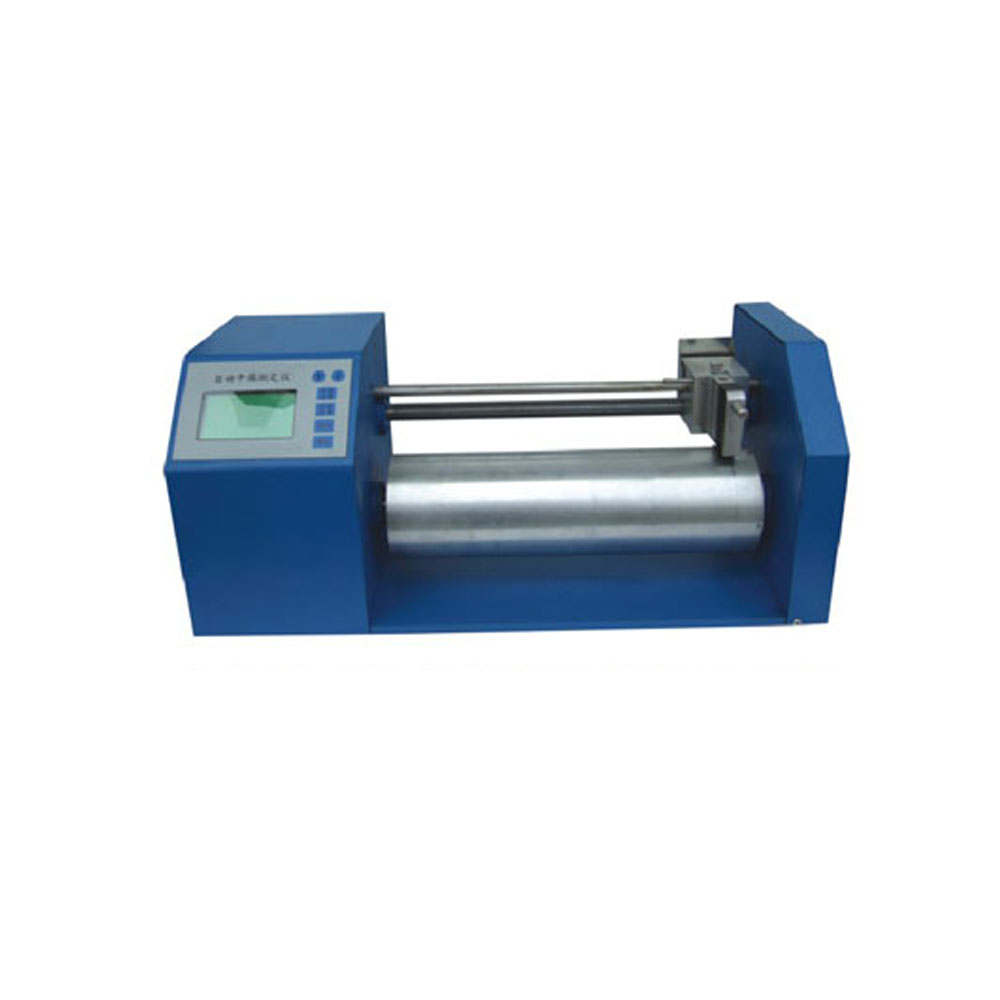

Automatic Drying Tester for ink
The Automatic Drying Tester for Ink measures ink drying time by using a rotating cylinder and a 100 g weight wheel that marks wet areas on parchment. With a touch screen and programmable duration (5–20 hours), it ensures precise and consistent results.
- Rotating cylinder with linear weight wheel movement.
- Adjustable test duration (5–20 hours) via touch screen.
- Accurate drying analysis through ink trace detection.
The Automatic Drying Tester for Ink is a precision instrument designed to evaluate the drying time of ink with accuracy. This Automatic Drying Tester for Ink features a rotating cylinder, a weight wheel, and a touch screen interface. During operation, the cylinder rotates at a constant speed while the weight wheel moves linearly along its axis at a steady pace. Ink is applied to a 30 cm parchment strip, which is then attached to the cylinder. The weight wheel starts at the cylinder’s left end, and a test duration (5–20 hours) is set to cover the cylinder’s length. If the ink remains wet, the wheel leaves marks on the parchment’s blank space, allowing drying time to be determined by counting ink traces and correlating with the cylinder’s speed.
Features
- Utilizes a rotating cylinder and 100 g weight wheel system for consistent ink application and evaluation.
- Features a touch screen for intuitive operation and setting test durations from 5 to 20 hours.
- Moves the weight wheel at 2 mm per revolution to detect incomplete drying through marks on the 30 cm parchment.
- Completes 120 revolutions over the full cylinder length, ensuring thorough testing.
- Provides results by analyzing ink traces, enabling precise drying time determination.
Technical Parameters
- Power: 220V ± 22V, 50 Hz
- Speed of Weight Wheel: 2 mm/r
- Settable Time of Whole Distance: 5 ~ 20 hours
- Circle Numbers of Whole Distance: 120 r
- Overall Dimensions: 500 mm x 200 mm x 220 mm (L x W x H)
- Wheel Weight: 100 g
- Weight: 17 kg
Why Choose the Automatic Drying Tester for Ink?
The Automatic Drying Tester for Ink is essential for ink manufacturers and labs assessing drying performance. Since drying time impacts print quality, this tester applies controlled pressure over 5–20 hours, detecting wet ink via marks on a 30 cm parchment. For example, it evaluates ink for packaging, optimizing formulations with a 120-revolution cycle. Its touch screen and compact 17 kg design enhance usability, making it a practical solution for production floors. Consequently, users can improve ink development and maintain quality. For more details or to request a demo, contact our team today.
