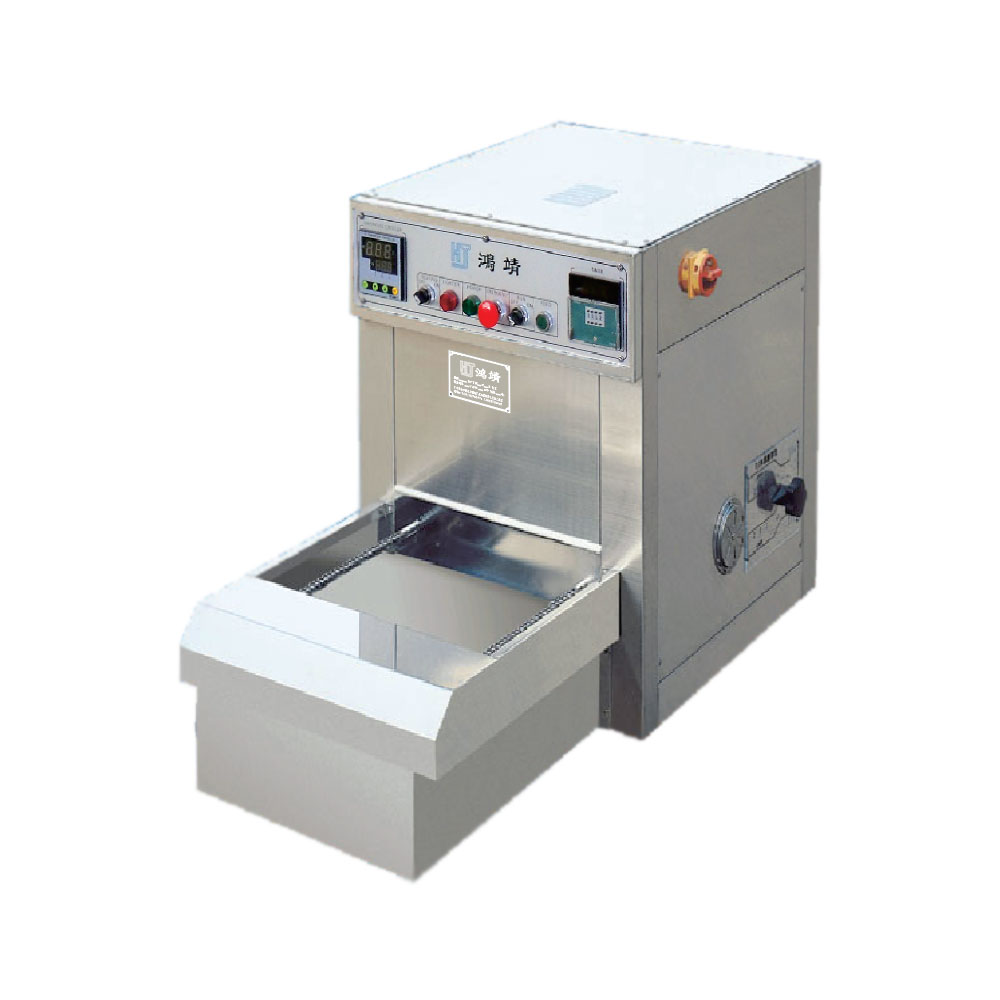

Automatic Electric Fixing Dryer

Introduction

The Automatic Electric Fixing Dryer, model R-3, is designed for textile labs, offering precise drying and heat fixation with a sample size of 360×420 mm and a temperature range from room temperature to 230°C. Featuring a digital display controller and adjustable dwell time, it ensures consistent results for dyeing and finishing processes. The Electric Fixing Dryer is ideal for dyeing and finishing labs, suitable for resin processing, pad dyeing, shaping, and baking of textile samples. Its versatility makes it perfect for testing heat fixation in various fabrics before bulk production.

Key Features

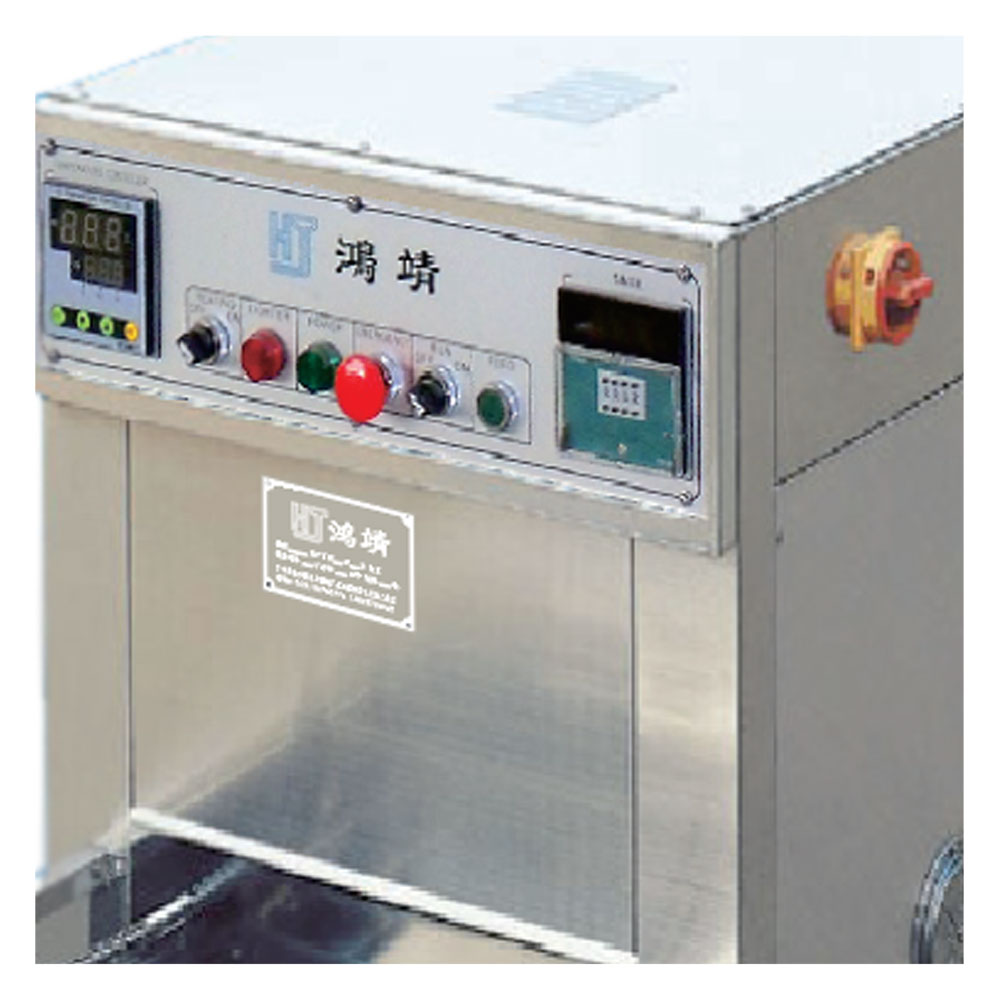

• Precise Temperature Control: The Automatic Electric Fixing Dryer uses a digital display for automatic temperature control up to 230°C.

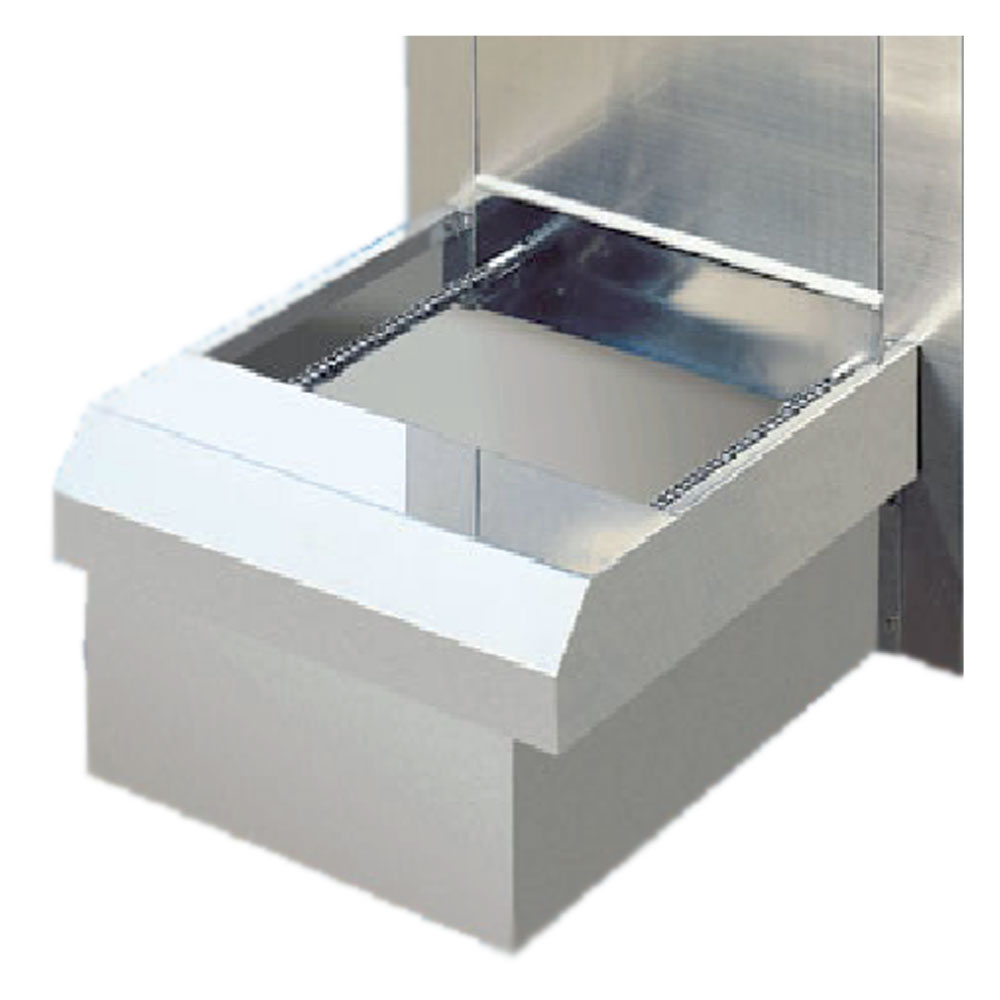

• Flexible Stretching: Offers one-way (2-side) and two-way (4-side) pin frame stretching for samples up to 360×420 mm.
• Adjustable Operation: Features a 1–9990 second dwell time and a damper to control air velocity with a 180W 3-phase fan motor.
• Compact Design: Measures 1320 x 650 x 850 mm with a 6kW power consumption, fitting easily into lab spaces.

Technical Specifications

• Sample Size: Max 360 x 420 mm
• Temperature Range: Room temperature to 230°C
• Temperature Control: Digital display automatic controller
• Dwell Time: 1–9990 seconds
• Fan Motor: 3-phase, 180W
• Damper: Adjustable air velocity
• Pin Frame: One-way (2 sides) and two-way (4 sides) stretching
• Power Consumption: 6kW
• Power Supply: AC380V, 50Hz, 3-phase
• Dimensions: 1320 x 650 x 850 mm (L x W x H)

Why Choose the Automatic Electric Fixing Dryer?

The Electric Fixing Dryer ensures reliable heat fixation with its advanced temperature control and flexible stretching options. Its compact design and efficient 6kW operation make it a top choice for textile labs aiming for precision and consistency in sample processing.
