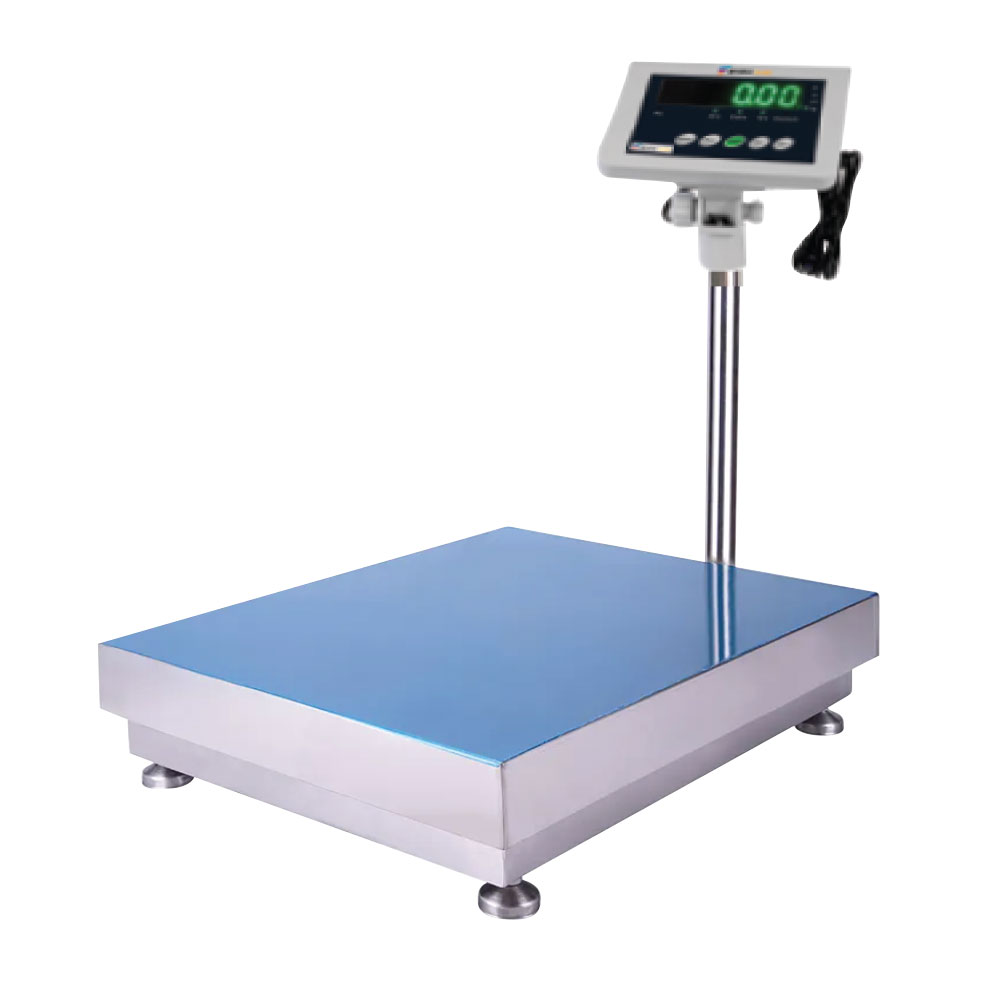

Digital Platform Scale

The Digital Platform Scale delivers high-precision weighing for industrial and commercial environments. It features a stainless steel weighing pan, a durable steel or aluminum base, and a silicone-coated aluminum load cell, ensuring reliable performance for capacities from 100 kg to 600 kg.

Users can measure in multiple units (kg, g, lb, oz) and program target weights for efficient check-weighing. An audible alert notifies the operator when the target is reached. The scale also includes advanced data processing, simple calibration, and a counting function, providing fast, accurate, and user-friendly operation. Ideal for warehouses, production lines, and logistics, this scale combines durability, precision, and convenience in one versatile platform.

Features

• Stainless steel weighing pan with painted steel or aluminum die-cast base
• Silicone-coated aluminum load cell
• Capacity: 100 kg to 600 kg
• Programmable target quantity or target weight for check-weighing
• Audible alert when target value is reached
• Supports multiple units: oz, lb, g(t), kg
• Simple calibration for accurate results
• Counting function for itemized measurement
• Print function for record keeping

Technical Parameter

• Accuracy: Level III
• AD output speed: 10 times / sec. Or 40times/sec
• Internal resolution: ≤ 24 mega-pixels
• Operation temperature: -10~40°C
• Display: 6 Bits LCD Display
• Data Processing: Advance data processing can react weighing result quickly
• Battery: 6V/4A
• Working voltage: DC:5V
• AC Power: 110-240v

Description of Keys Functions

The keys on the indicator respond to press-and-release actions for immediate operation. Each key has specific functions depending on the mode:

• [Model] Key:

  • Long press: Enters the setting mode for features and parameters.
  • Short press: Activates hold or peak hold function.

• [Print] Key:

  • Long press: Enters the up-down alarm setting mode.
  • Short press: Sends serial data. During parameter setting, it confirms selections.

• [Switch] Key:

  • Short press: Converts the weighing unit.
  • In parameter setting mode, it switches digits, and during digital input, it moves the selected digit to the right.

• [Tare] Key:

  • Short press: Activates the tare function to reset the scale for net weight.
  • During digital input, it increments the selected digit.

• [Zero] Key:

  • Short press: Returns the indicator to zero within the zero-setting range.
  • During digital input, it decrements the selected digit.

Accessories/Option

1. RS-232 interface, can connect to PC or
2. printer
3. RS-232 cable for PC
4. RS-232 cable for printer
5. Mini printer
6. Label printer
7. 3 color light towers

Why Choose Digital Platform Scale?

The Digital Platform Scale is engineered for accuracy, durability, and ease of use in demanding industrial settings. Its stainless steel pan and sturdy base ensure long-term reliability, while the silicone-coated aluminum load cell provides precise measurement across a wide capacity range of 100 kg to 600 kg. Multi-unit support—kg, g, lb, oz—offers flexibility for diverse applications, and the target weight programming feature allows efficient check-weighing with audible alerts, reducing human error. The scale’s advanced data processing delivers rapid and accurate results, while simple calibration and counting functions streamline operations. With Level III accuracy and high-resolution data output, this digital platform scale is ideal for warehouses, logistics, manufacturing, and quality control tasks.
