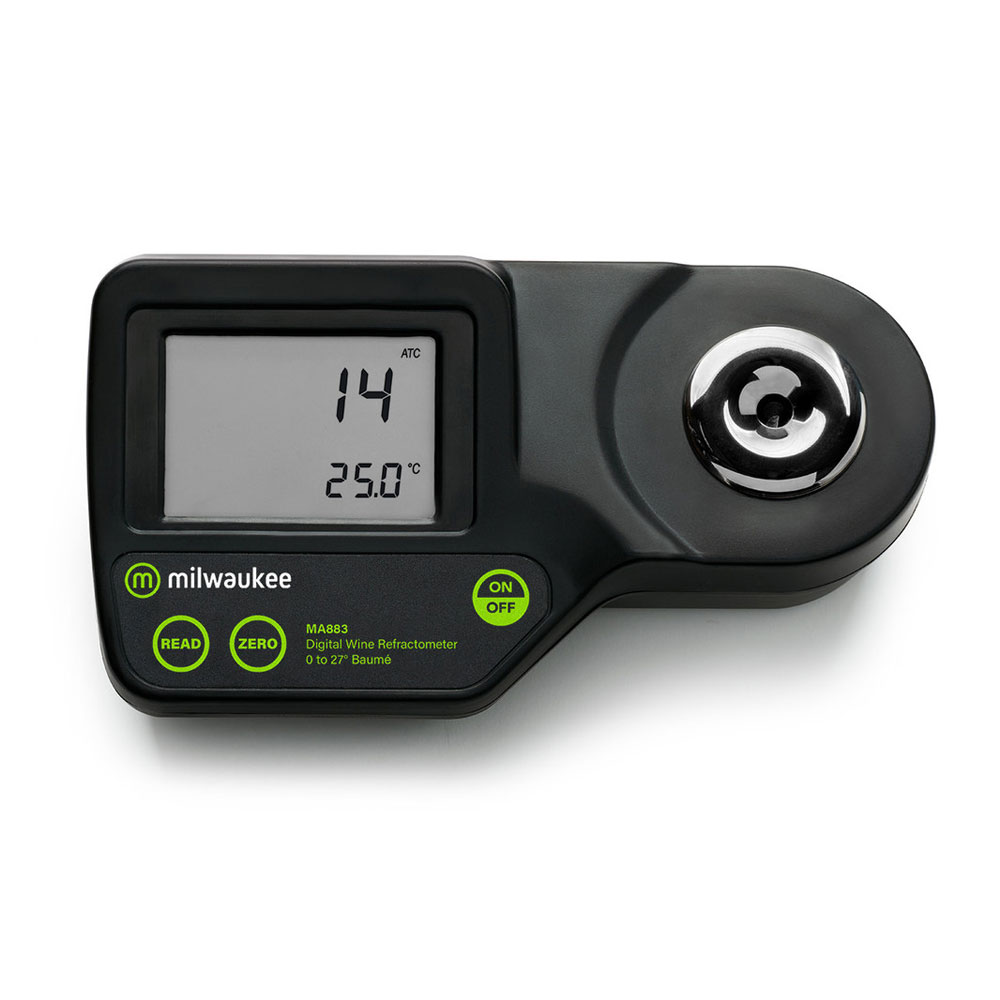

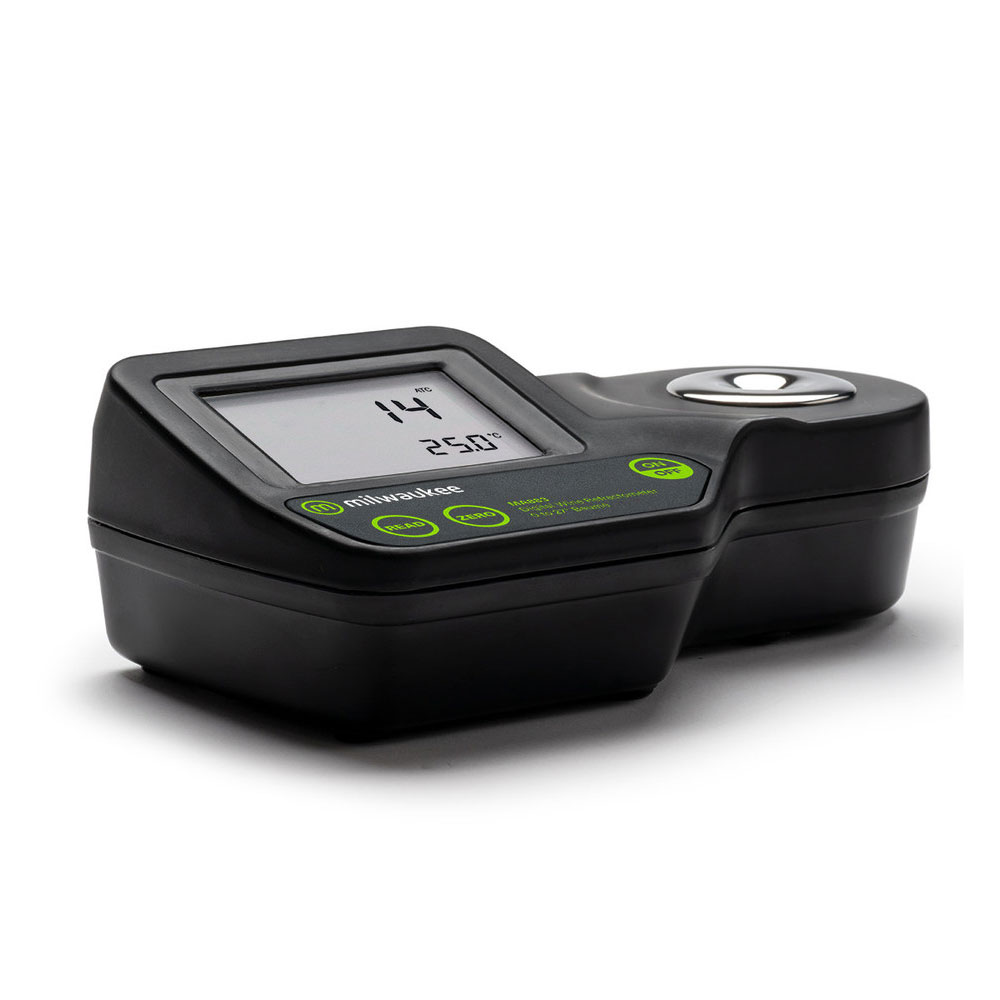

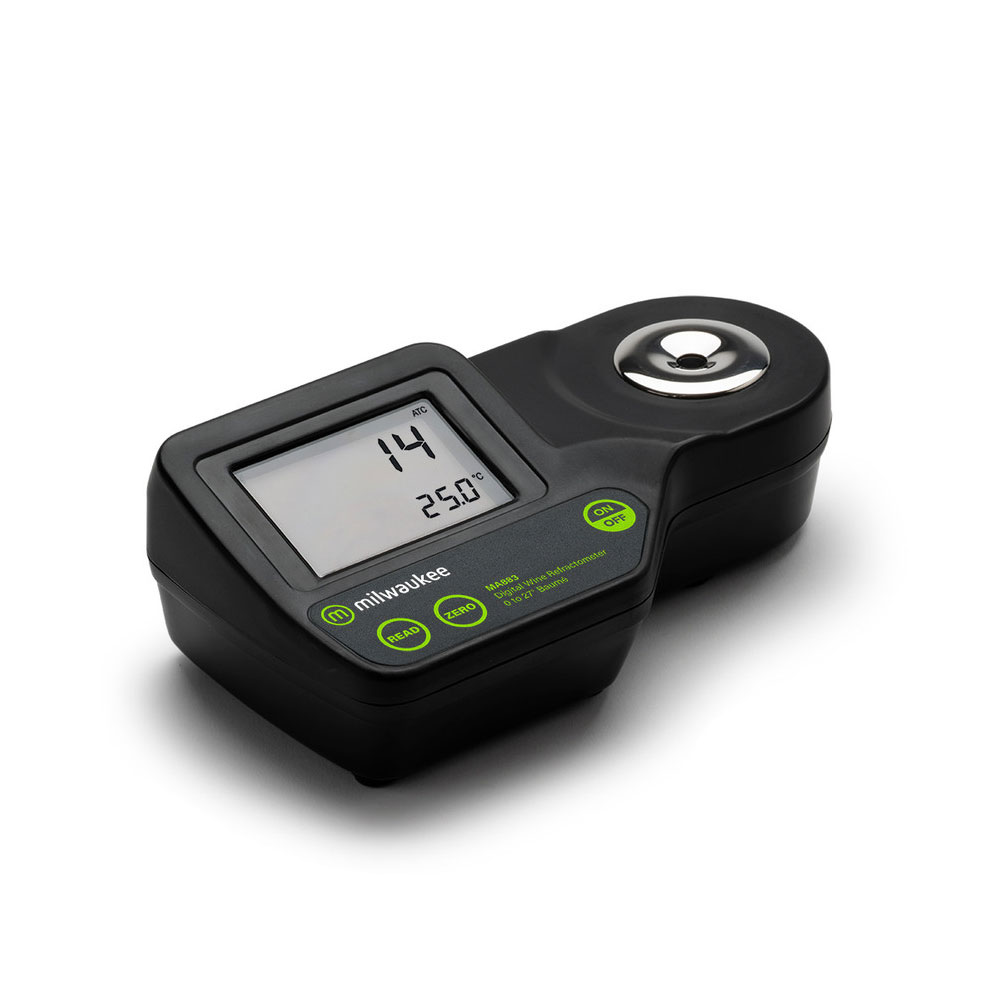

Digital Refractometer

Introduction

The Digital Refractometer is a precise, fast, and reliable instrument for measuring Brix and Baumé in liquids. Designed for winemakers, brewers, syrup producers, and food manufacturers, it delivers accurate results in less than 2 seconds using only 2–3 drops of sample. Featuring automatic temperature compensation and a dual-level digital LCD readout, the Digital Refractometer ensures easy, repeatable measurements. Its robust stainless steel sample cell, IP65-rated casing, and simple calibration make it ideal for both laboratory and field use. Compact, portable, and user-friendly, this digital refractometer combines convenience, speed, and accuracy for professional applications.

Design features

• Fast, accurate results with digital dual level LCD readout.
• Easy measurement with just 2-3 drops of sample needed and results less than 2 seconds.
• Simple one-point calibration using distilled or deionized water.
• Easy to clean, stainless steel sample well with unit rated to IP65 as “dust tight” and protected against water jets.
• Battery percent level indicator with automatic shut-off (batteries included).
• Ideal for winemakers, brewers, syrup producers, food producers and many other applications.
• MA883 converts the Brix readings to °Baumé based on the table found in the Official Methods of Analysis of AOAC International, 18Th Edition.
• 1 °Baumé is approximately equal to 1.8% Brix, and 1 °Baumé is roughly equivalent to 1 % alcohol when the wine is fully fermented.

Specifications

• Range: 0 to 28° Baumé | 0 to 80°C / 32 to 176°F
• Resolution: 0.1 °Baumé | 0.1°C / 0.1°F
• Accuracy: ±0.1 °Baumé | ±0.3°C / ±0.5°F
• Light Source: Yellow LED
• Measurement Time: Approximately 1.5 seconds
• Minimum Sample: Volume 100 µL or 2 metrics drops (cover prism totally)
• Sample Cell: Stainless steel ring and flint glass prism
• Temperature Compensation: Automatic between 10 and 40°C / 50 to 104°F
• Enclosure rating: IP65
• Case Material: ABS
• Battery Type: 1 x 9V AA (included)
• Battery Life: 5000 hours reading with auto-shut off after 3 minutes of non-use
• Dimensions Meter: 7.6 x 4.0 x 2.64 inches (192 x 102 x 67 mm)
• Weight Meter: .93 lbs. (0.42 kg)
• Dimensions Package: 11 x 6.8 x 4.60 inches (268 x 172 x 118 mm)
• Weight Packaged: 1.46 lbs. (0.66 kg)

Why Choose Digital Refractometer?

The Digital Refractometer is designed for efficiency, accuracy, and durability. Its IP65-rated, dust- and water-protected housing ensures reliable performance in harsh environments, while the stainless steel prism and sample cell allow quick and easy cleaning. The device requires only 2–3 drops of sample for a measurement, delivering results in under 2 seconds, making it ideal for high-volume testing or fast decision-making. Automatic temperature compensation guarantees consistent readings across a wide range of conditions, while one-point calibration simplifies operation. With Brix-to-Baumé conversion for wine, syrup, and fermentation analysis, it suits multiple industries. Its compact size, battery-powered operation, and long battery life make it highly portable, allowing users to take precise measurements wherever needed.
