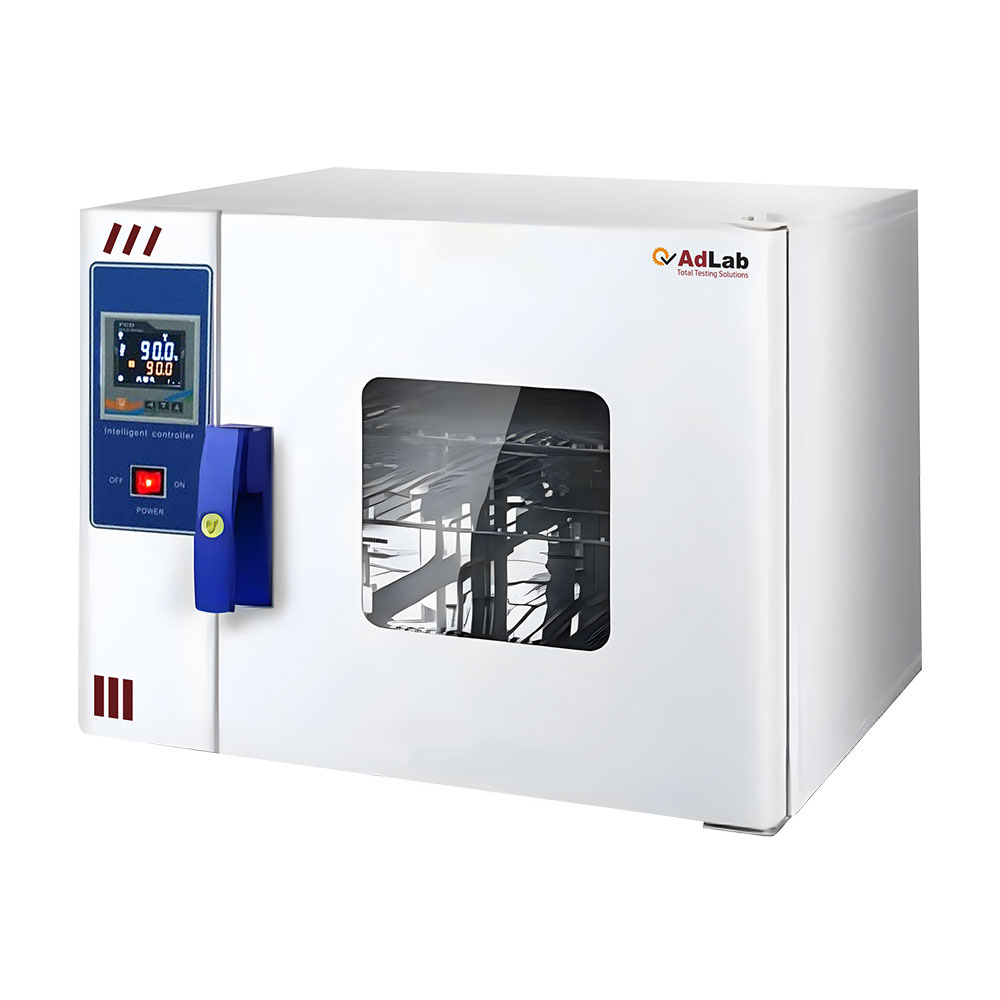

Forced Convection Oven

Suitable for users who have higher temperature uniformity requirements. The basis of laboratory research units supporting equipment, recommended for intermediate and senior laboratory.

Application

Widely used for drying, sterilization, thermostatic storage, heat treatment and other fields.

Structure Features

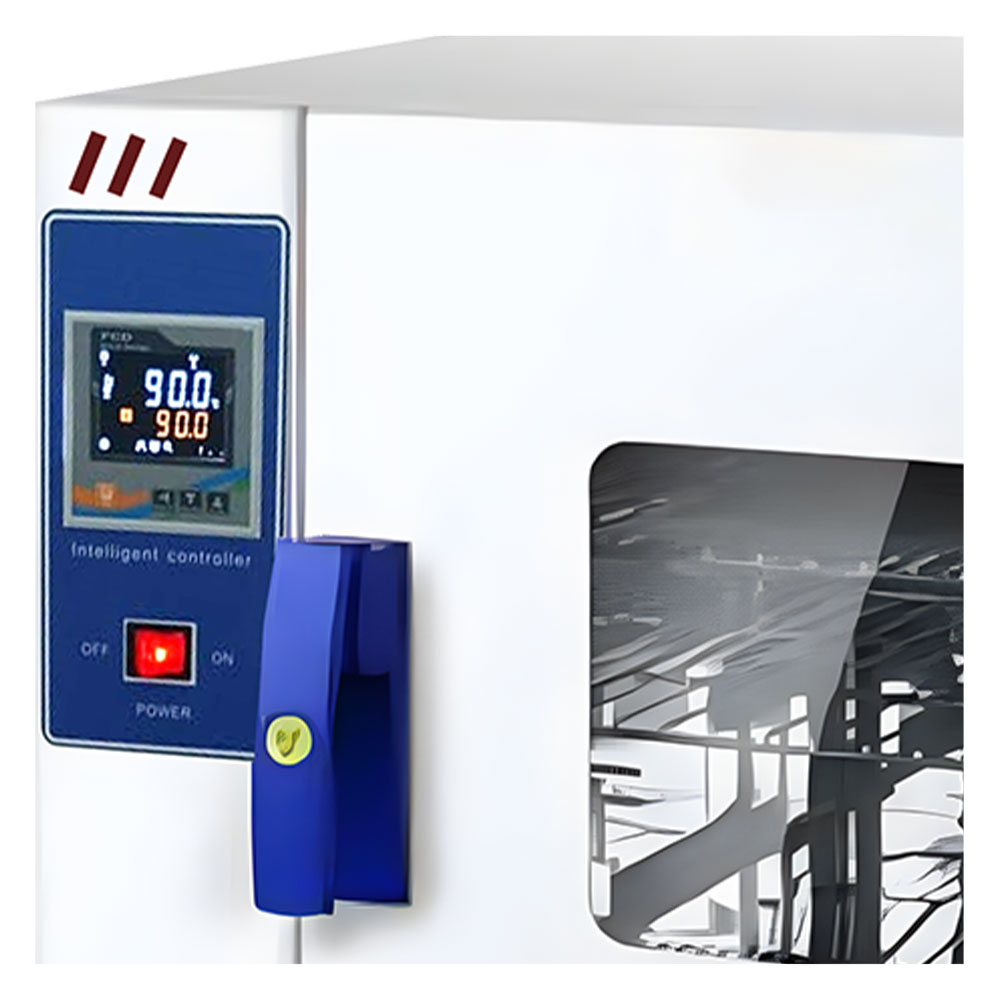

• Precision LCD microcomputer intelligent PID control system, with temperature control, timing and over temperature alarm, with RS485 computer interface.
• With standard international brands cooling fan maintenance – free, durability. Perfect combination of duct design to ensure temperature uniformity for the working chamber.
• Mirror stainless steel inner, anti-acid, and anti-corrosion characteristics.
• Double tempered glass observation window in the door.
• The spaces and quantity of shelves can be adjusted.

Parameter

• Model: ADL-OF130
• Temp range (°C) : RT+5~300
• Accuracy (°C) : ±1
• Fluctuation (%) : ±1
• Voltage (V) : 220
• Power (KW) : 1
• Inner size (mm)(H×W×D) : 320*350*350
• Overall dimension (mm)(H×W×D) : 530*640*550
• Packing size (mm)(H×W×D) : 650*720*630
• Net weight (kg) : 40
• Shipping weight (KG) : 43

Optional Product Accessories

1. Portable printer
2. Programmable multi-stage controller
3. ALLSENSTM software
4. individual temperature limit
