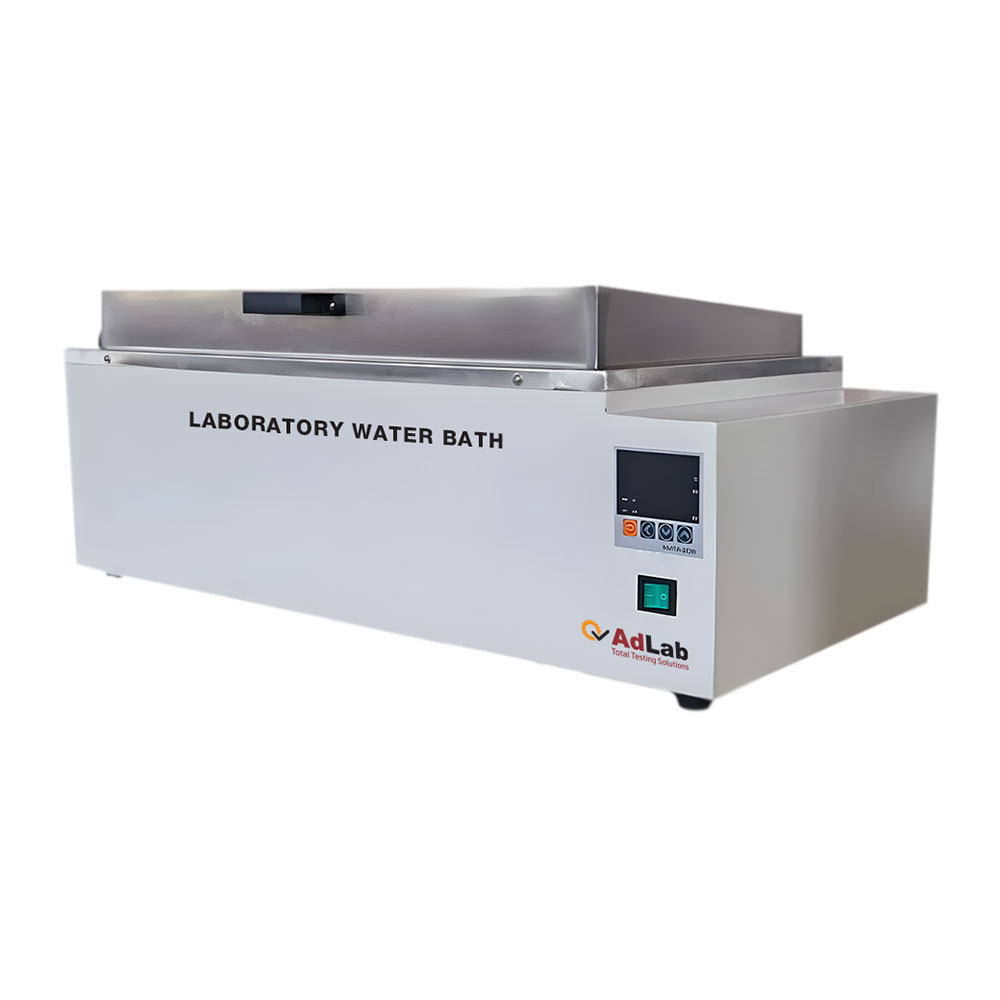

Laboratory Water Bath

Overview

The application of constant temperature water tanks is extensive, making them suitable for precise direct heating and refrigeration in the fields of biology, chemistry, physics, botany, and other scientific disciplines. These tanks also serve as auxiliary heating and refrigeration units. The structure of a constant temperature tank consists of a metal rectangle with a carefully crafted cold-rolled steel plate shell and a stainless-steel inner tank. A digital temperature controller, power supply, and water pump are installed within the control box. The core component of the constant temperature tank is its microcomputer intelligent control system which effectively regulates temperature changes to maintain liquid at a consistent level within the tank. This equipment finds applications in precision constant temperature operations as well as auxiliary heating functions for universities, enterprises, and scientific research institutions.

Features

Stainless steel inner liner, novel and beautiful appearance.
Digital display, microcomputer control, with timing function (optional).
Over temperature sound and light tracking alarm, so that the sample is reliably protected.
Stainless steel inner liner and top cover, anti-corrosion, easy to clean.

Technical Parameter

Model – ADL-WB60
Constant temperature method – Bottom heating water temperature natural convection transfer
Temperature range – RT+5~99.9
Display resolution – 0.1°C
Temp Accuracy – ±0.1°C
Temperature fluctuation – ±0.5°C
Liner material – Corrosion resistant 304 stainless steel
Shell – High quality steel plate
Rated power – 1500W
Temperature control – PID
Temperature display – Three-digit tube display
Heating method – U-shaped heating tube
Additional function – Deviation correction, menu key lock, power failure compensation, power failure memory, PID adjustable
Power source – 220V/50HZ
Safety device – Overtemperature alarm, short circuit protection, overheat protection, sound and light alarm
Sink size (mm) – 600*300*190
Opening size (mm) – 600*300
Content volume – 34L
Cover material – 304 stainless steel
Net/gross weight (approx.) – 12.5kg/15kg
