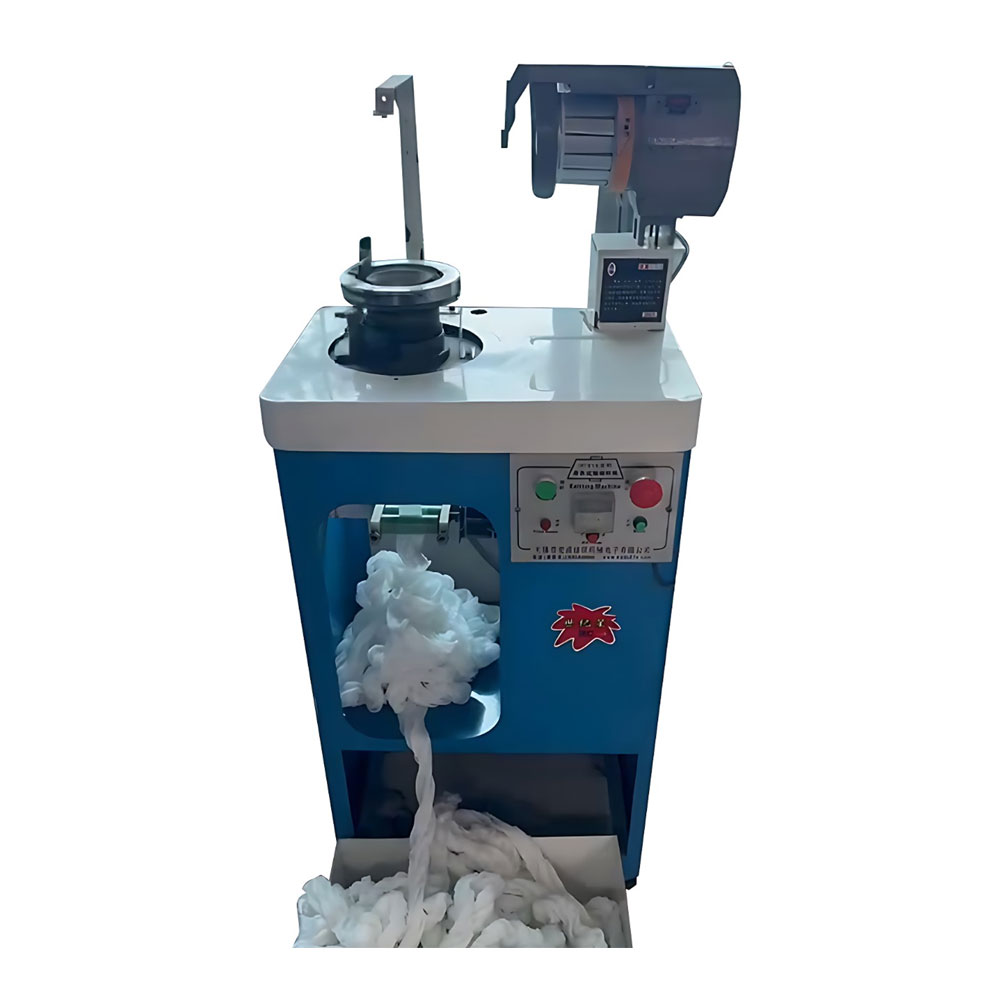

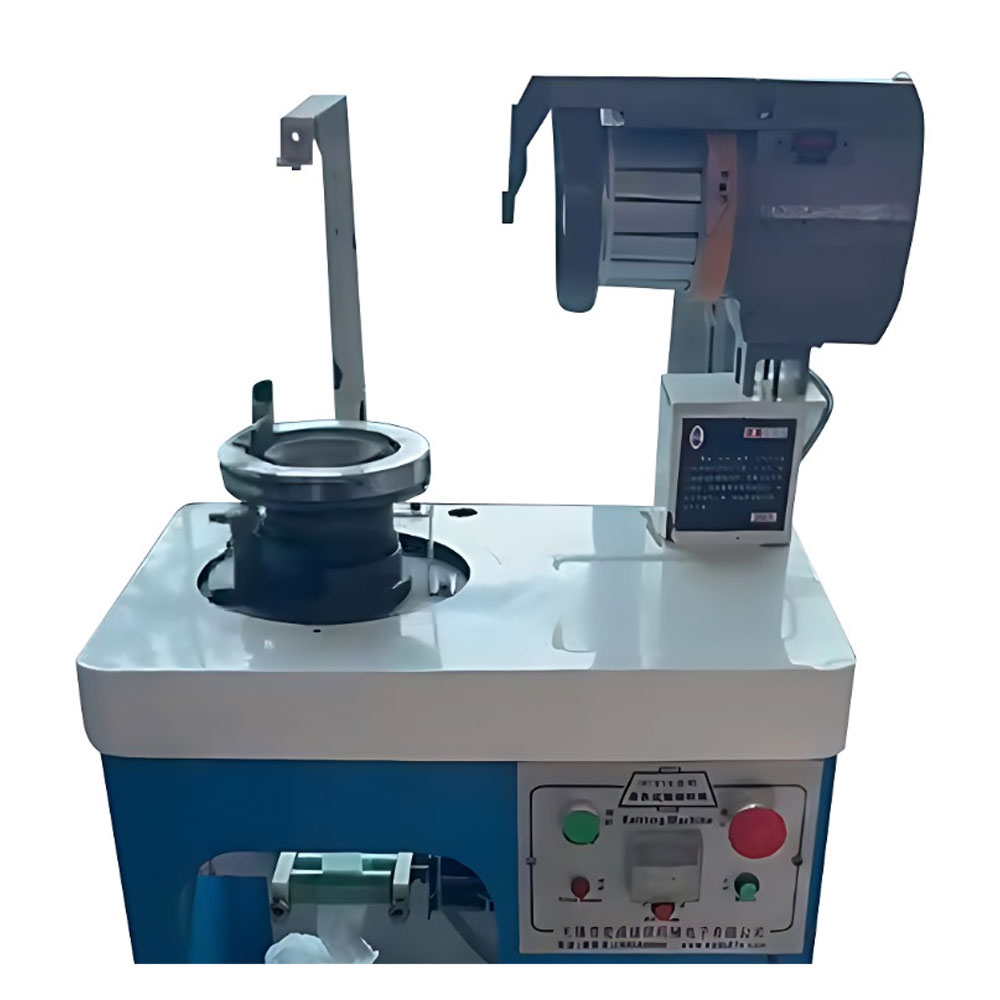

Sampling Knitting Machine (Muffs Knitting for Yarn Dyeing)

Introduction

The Sampling Knitting Machine is a compact, single-feeder knitting solution with a 3.5-inch cylinder and 240 needles, ideal for producing samples with 75–150D raw materials at 200–300 rpm. Weighing just 80 kg, it’s perfect for small-scale textile testing and development. The Machine is suited for textile labs and manufacturers creating knitted samples for fabrics using 500–1000D materials. Its precision makes it excellent for prototyping and quality checks before bulk production.

Key Features

• Efficient Design: The Machine features a single feeder and 240 needles for consistent sample knitting.
• Versatile Speed: Operates at 200–300 rpm, accommodating 75–150D and 500–1000D raw materials.
• Compact Size: Measures 560 x 360 x 1600 mm with a 0.25 kW/380V motor, ideal for limited spaces.
• Lightweight: Weighs 80 kg, enhancing portability and ease of installation.

Specifications

• No. of Feeder: Single
• Cylinder Diameter: 3.5 inches
• Needle Numbers: 240
• Raw Material: 75–150D (applicable: 500–1000D)
• Rotational Speed: 200–300 rpm
• Number of Stitches: 120N
• Motor Power: 0.25 kW/380V
• Dimensions: 560 x 360 x 1600 mm (L x W x H)
• Weight: 80 kg

Why Choose the Sampling Knitting Machine?

The Sampling Knitting Machine offers reliability and efficiency for small-scale knitting with its precise needle setup and adjustable speed. Its compact design and lightweight build make it a top choice for textile professionals needing accurate sample production.
