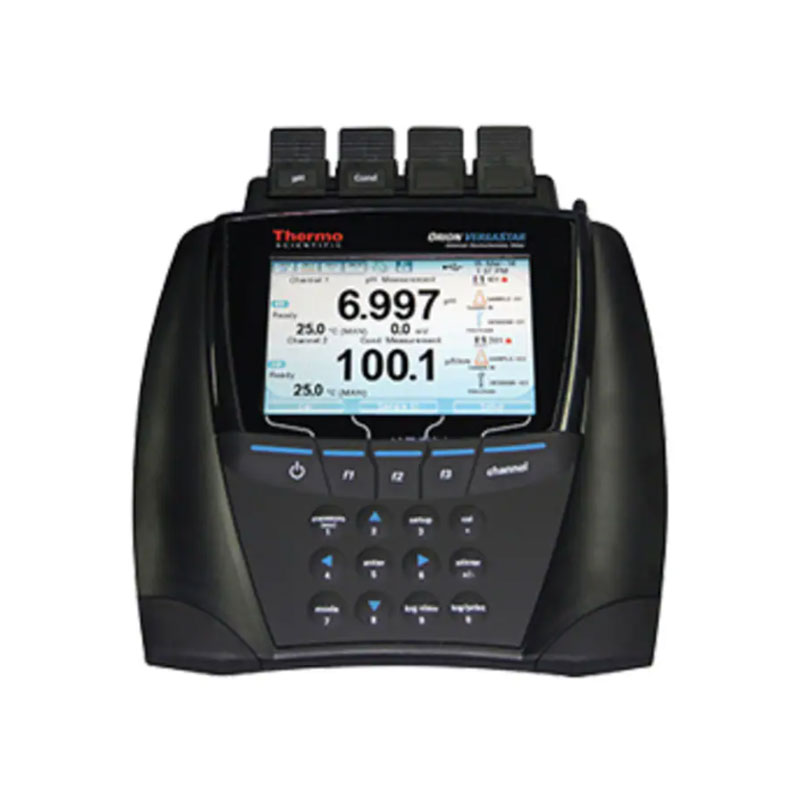

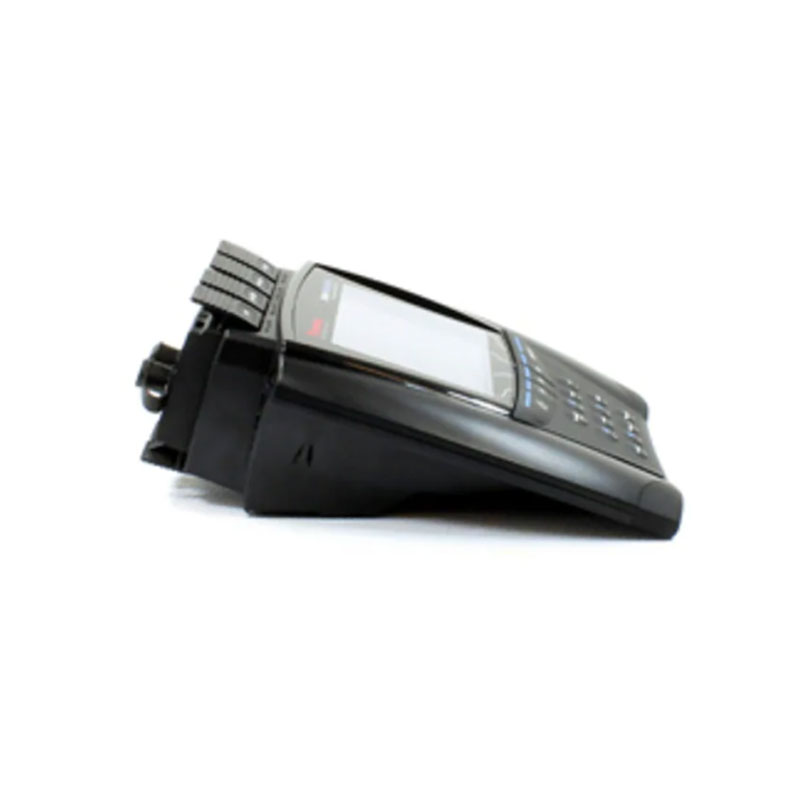

Thermo Scientific Versa Star Pro pH Conductivity Multiparameter Benchtop Meter
Thermo Scientific Orion Versa Star Pro simultaneously measures pH, conductivity, TDS, salinity, resistivity, ORP, and temperature with advanced modular flexibility.
- Simultaneous pH, conductivity, TDS, salinity, resistivity, and ORP measurement
- Four-channel modular design with six-point calibration and calibration editing
- 2,000-point data logging, USB/RS232 connectivity, and secure user access management
Introduction
The Thermo Scientific Orion Versa Star Pro pH/Conductivity Multiparameter Benchtop Meter delivers premium accuracy and unmatched flexibility for advanced laboratory analysis. It simultaneously measures pH, mV, ORP, conductivity, TDS, salinity, resistivity, and temperature using interchangeable measurement modules. With a customizable four-channel platform, intuitive color display, advanced calibration tools, and secure data management, this benchtop meter supports research, pharmaceutical, environmental, industrial, and quality control laboratories with confidence.
Premium Performance for Multiparameter Analysis
Get premium performance and flexibility with the Thermo Scientific Orion Versa Star Pro pH/Conductivity Multiparameter Benchtop Meter. Designed for demanding laboratory applications, it accurately measures pH, mV, ORP, conductivity, total dissolved solids (TDS), salinity, resistivity, and temperature.
The customizable four-channel platform allows users to configure interchangeable measurement modules according to their application requirements. You can view pH and conductivity simultaneously or display each channel individually on the vibrant color LCD. Additionally, the meter stores up to 2,000 time- and date-stamped measurement sets and transfers data easily to a computer or printer through USB or RS232 connections.
Flexible Modular Design
Thermo Scientific Orion Versa Star Pro Benchtop Meters adapt to changing laboratory requirements through interchangeable measurement modules. Multiple users can configure each of the four channels independently, making the system suitable for diverse laboratory workflows.
The high-resolution color display offers adjustable text sizes for improved visibility, while on-screen instructions in multiple languages simplify setup and calibration. Furthermore, the integrated numeric keypad enables quick and efficient data entry.
Advanced Measurement Features
The Versa Star Pro includes numerous intelligent features that improve laboratory productivity and measurement confidence:
- On-screen measurement stability indicator confirms when readings are ready.
- Auto-Read, Continuous, Timed, and Single-Shot measurement modes support different workflows.
- Audible alarms notify users of calibration intervals, offset values, and high or low measurement limits.
- Store up to ten password-protected methods for each channel.
- Control up to two stirrer probes for uniform sample mixing.
- Store up to 2,000 measurement records with optional electrode, sample, and account IDs.
- View the latest 30 calibration records with graphical calibration history.
- Verify measurement accuracy by reviewing the active calibration log during testing.
- Preserve settings and stored data with non-volatile memory.
- Transfer measurement data quickly through USB or RS232.
- Install the IP54-rated meter on a laboratory bench or wall.
- Meet CE, TUV 3-in-1, and FCC Class A certification requirements.
- Includes a 3-year replacement warranty.
Included Measurement Modules
Orion Versa Star pH Measurement Module
The included pH module provides accurate measurement of:
- pH
- mV
- Relative mV
- ORP
- Temperature
It supports up to six-point pH calibration using automatic recognition of NIST, DIN, or user-defined buffers. Additionally, the calibration editing function allows individual calibration points to be adjusted without performing a complete recalibration.
Orion Versa Star Conductivity Measurement Module
The conductivity module measures:
- Conductivity
- Total Dissolved Solids (TDS)
- Salinity
- Resistivity
- Temperature
The module supports up to six-point conductivity calibration with calibration editing for individual calibration points. Furthermore, automatic conductivity ranging delivers consistent readings throughout the measurement range without repeated recalibration.
Users can also choose linear, non-linear, EP (USP), or no temperature compensation while selecting reference temperatures of 5°C, 10°C, 15°C, 20°C, or 25°C.
System Access and Data Security
The Orion Versa Star Pro includes an advanced System Access feature that helps laboratories maintain data integrity and instrument security.
Laboratory managers can enable or disable System Access as operational requirements change. When activated, the system supports one administrator and up to ten user accounts with customizable permissions for measurement settings, instrument configuration, calibration records, and stored data.
Password protection secures selected functions while allowing unrestricted access to others. Consequently, laboratories can meet internal quality procedures and regulatory requirements without sacrificing operational flexibility.
Specifications
| Specification | Description |
|---|---|
| Model | Orion Versa Star Pro pH/Conductivity Multiparameter Meter |
| Channels | 4 (Customizable) |
| pH Range | -2 to 20 |
| Conductivity Range | 0.001 μS/cm to 3000 mS/cm |
| TDS Range | 0.001 ppm to 200.0 ppt |
| Salinity Range | 0.06–80.00 psu, 0.05–42.00 ppt |
| Resistivity Range | 2 Ω to 100 MΩ |
| ORP Range | ±2000 mV |
| Relative mV Range | ±2000 mV |
| pH Accuracy | ±0.002 |
| Conductivity Accuracy | 0.5% of reading |
| Temperature Accuracy | ±0.1°C |
| Calibration | Up to 6-point pH and conductivity |
| Data Storage | 2,000 records with date/time stamp |
| Outputs | Dual USB, RS232 |
| Display | User-customizable color graphic LCD |
| IP Rating | IP54 |
| Languages | English, Spanish, French, Italian, German, Chinese, Portuguese, Korean |
| Operating Temperature | 5°C to 45°C |
| Humidity | 5–85% RH (non-condensing) |
| Power Supply | Universal 100–240 VAC adapter |
| Dimensions | 28 × 24 × 10 cm |
| Weight | 1.2 kg plus 0.2 kg per module |

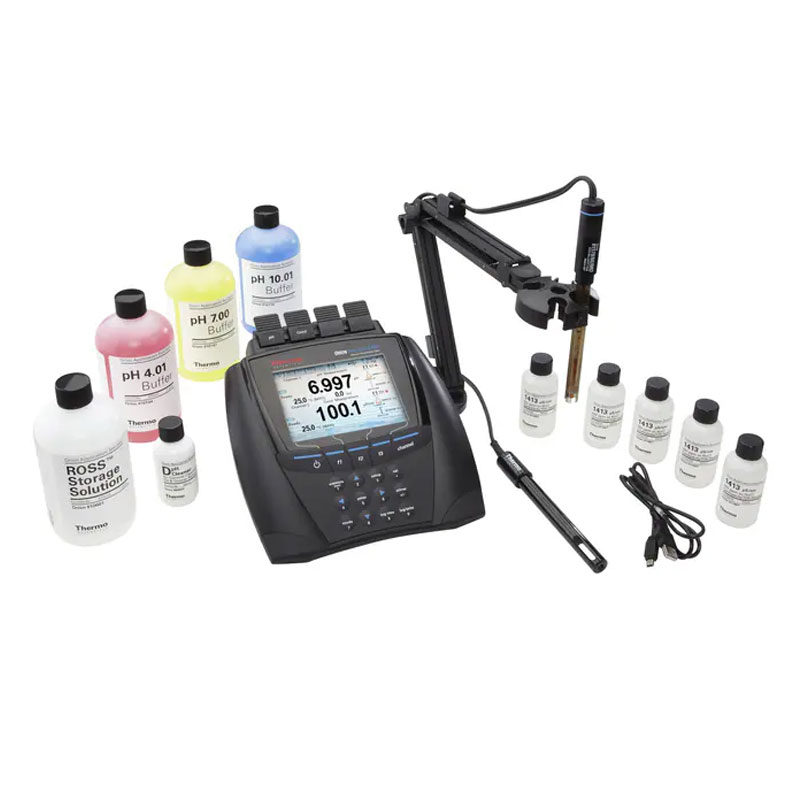

Standard Package Includes
The meter kit includes:
- Versa Star Pro benchtop meter
- VSTAR-PH pH module
- VSTAR-CND conductivity module
- ROSS Ultra Triode epoxy-body pH/ATC electrode
- Orion DuraProbe 4-cell conductivity sensor
- ROSS pH buffer and solution kit
- Orion 1413 μS conductivity standard
- Electrode stand
- Universal power adapter
- Computer interface cable
- Printed Quick Start Guide
- Literature CD
- Meter test certificate
Why Choose Thermo Scientific Orion Versa Star Pro pH/Conductivity Multiparameter Benchtop Meter?
The Thermo Scientific Orion Versa Star Pro pH/Conductivity Multiparameter Benchtop Meter combines high-performance measurement with exceptional flexibility for demanding laboratory applications. Its interchangeable pH and conductivity modules enable simultaneous measurement of multiple parameters, reducing testing time while improving laboratory efficiency.
Additionally, six-point calibration with calibration editing ensures outstanding accuracy while minimizing recalibration effort. The customizable four-channel platform adapts easily to changing laboratory requirements, and the intuitive color display simplifies daily operation.
The meter stores up to 2,000 time-stamped data sets and transfers measurement data through USB or RS232 for efficient documentation. Furthermore, password-protected user accounts, System Access controls, calibration history, and non-volatile memory strengthen data integrity and regulatory compliance. With IP54 protection, advanced temperature compensation, and multiple conductivity measurement modes, the Orion Versa Star Pro delivers dependable performance for research, pharmaceutical, environmental, and industrial laboratories.
