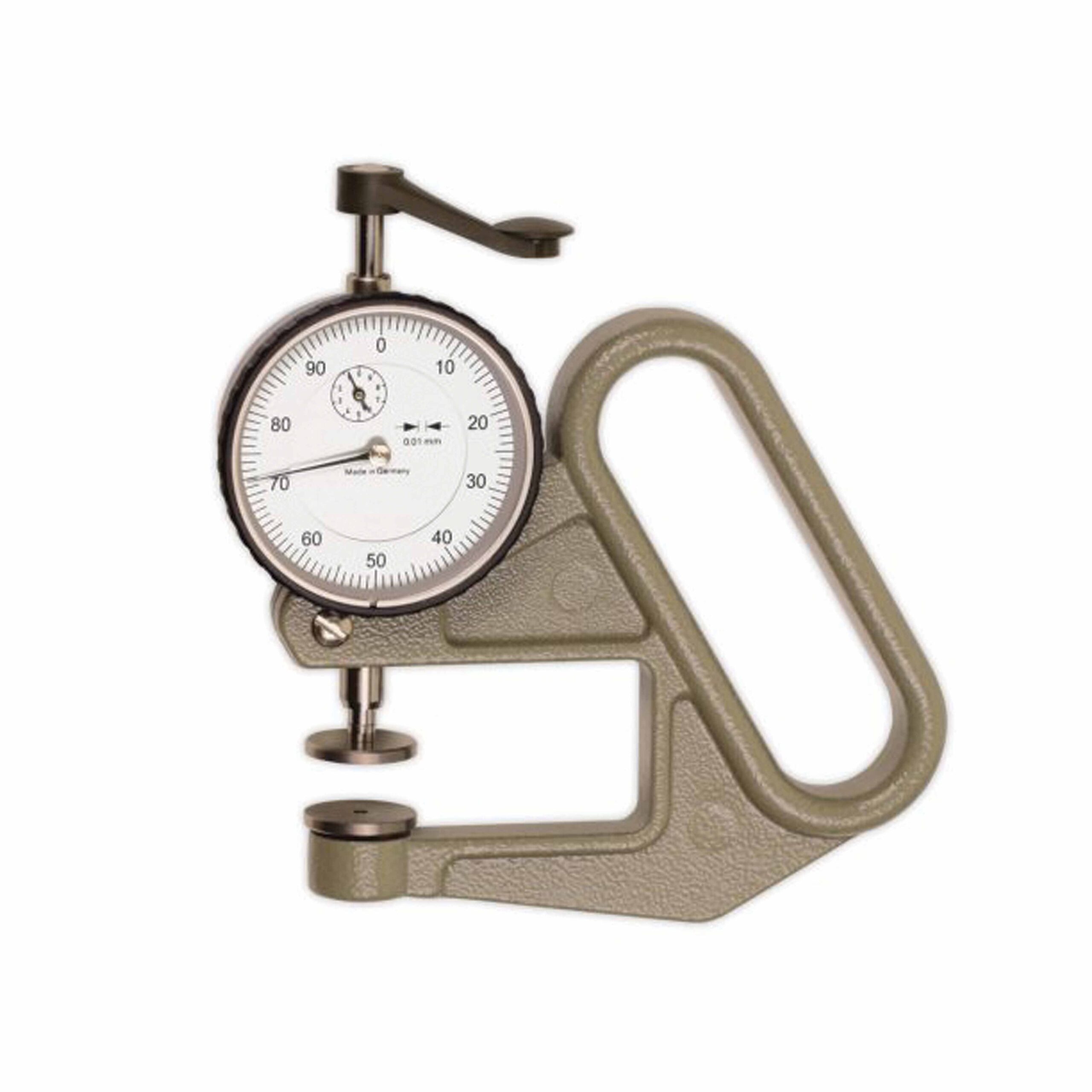

Thickness Gauge J-50
Description
Measuring range: 0 – 10 mm
Resolution: 0.01 mm
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foam and more
Self opening thickness gauge with high accuracy and resolution
Special Features
Thickness gauge J-50 features an easy to read analog display along with the high accuracy
The thickness gauge is available with 5 different feelers, which can be found below
Measuring by pressing the plunger rod
Opening by spring force – self opening thickness gauge J-50
Available Models
| Model | Measuring Range |
Resolution | Depth of Jaw |
|
| J-50 | 10 mm | 0.01 mm | 50 mm | |
| alternative | ||||
| J-15 | 10 mm | 0.01 mm | 18 mm | more |
| J-45 | 10 mm | 0.01 mm | 45 mm | more |
| JA-50 | 10 mm | 0.01 mm | 50 mm | more |
| J-100 | 10 mm | 0.01 mm | 100 mm | more |
| J-200 | 10 mm | 0.01 mm | 200 mm | more |
| J-200-30 | 30 mm | 0.01 mm | 200 mm | more |
| J-300 | 10 mm | 0.01 mm | 300 mm | more |
| J-300-30 | 30 mm | 0.01 mm | 300 mm | more |
| J-400 | 10 mm | 0.01 mm | 400 mm | more |
| J-400-30 | 30 mm | 0.01 mm | 400 mm | more |
To order, please indicate the desired feeler, e.g. J-50-B for gauge with feeler “B”
| Resolution: | 0.01 mm |
| Measuring range: | 10 mm |
| Depth of jaw: | 50 mm |
| Bezel diameter: | 54 mm |
| Feeler shape: | A/B/C/D/E |
| Measuring principle: | Self opening |
| Weight, net (gross): | 300 g (350 g) |
Specifications subject to change without notice!
