TrueLite D65 LED

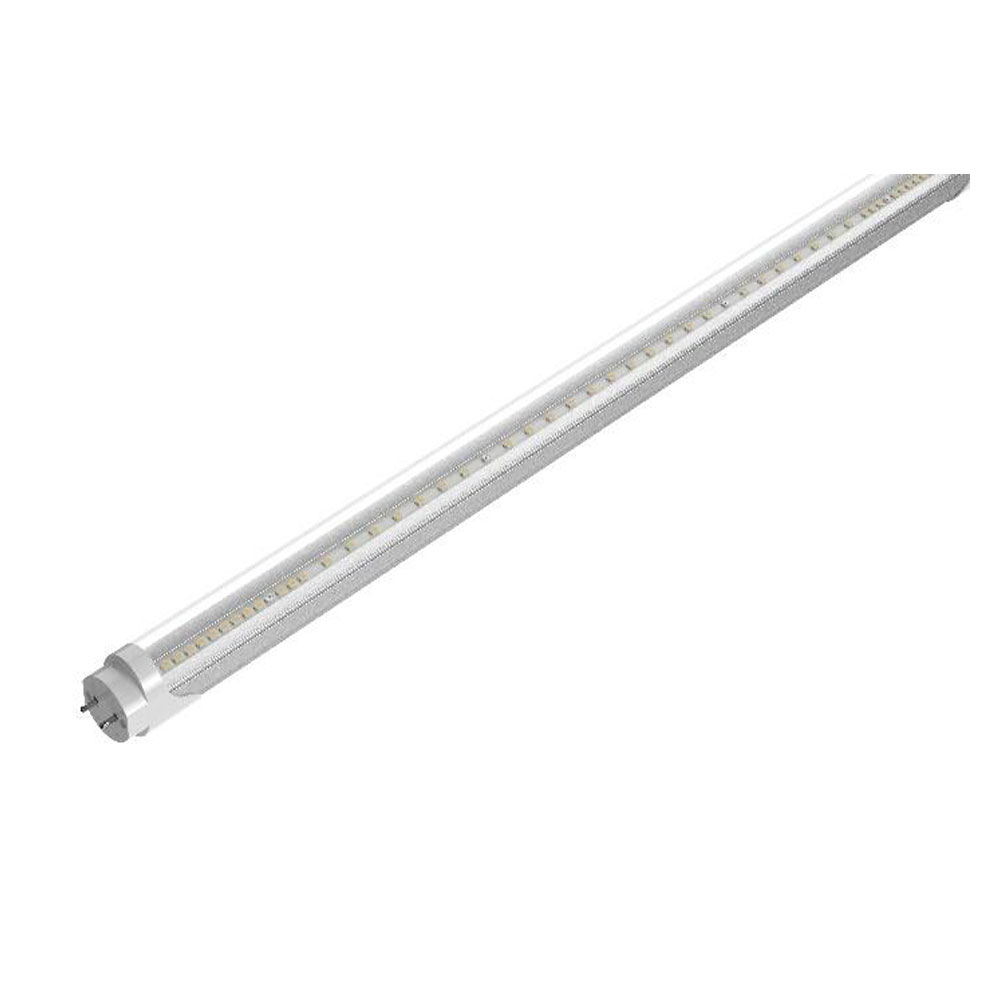

TrueLite D65 LED T8 4ft

TrueLite D65 LED, AdLab TrueLite CIE D65 (Daylight 6500K) series DL products provide industrial standard daylight solutions after CIE standard illuminant series DL. They could create an ideal viewing condition in compliant with ISO3668:2017 standard for accurate color assessment. Featuring in CRI 97.25+, Grade B Metamerism Index visible (Mlvis), Grade B or C Metamerism Index UV (Mluv) and 10,000 hours spec lifetime, they are preferable for direct replacement for traditional lamps in color viewing booths and color viewing cabinets.

Features

• ISO3668:2017 compliant CIE D65 (6500K)
• Up to CRI 97.25+ light qua lity
• CIE D65 Chromaticity tolerance < 0.004
• Metamerism Index visible (MIvis) Grade B
• Metamerism Index UV (MIuv) Grade B or C
• >76% lumen intensity evenness available
• 10,000 hours lifetime / 1-year warranty
• Plug and play design

Specification

TrueLite D65 LED T8 2ft

General Information

• Cap base: G13
• EU RoHS compliant: Yes
• Diameters: 1.17 inch / 29.7 mm
• Length: 1213 mm
• Nominal lifetime: 10000 h
• Switching cycle: 100000 X
• Net weight per lamp: 349 g

Technical data—Photometrical

• Color-Temp: 6500K
• Initial luminous flux: 1532 lm
• Color consistency: SDCM＜6
• Beam angle: 180°
• Color rendering index: 97.2 5+
• R9: 90+
• TM~30-20 Rf: 96.5
• TM~30-20 Rg: 104

Technical data—Electrical

• Power: 18 W
• Power factor: ≥ 0.95
• Lamp current: 75 mA
• Dimmable: No
• Nominal voltage: 85~265 V
• Input frequency: 50/60 Hz
• Starting time: ＜5 s
• Warm-up time (60 %): ＜5 s
