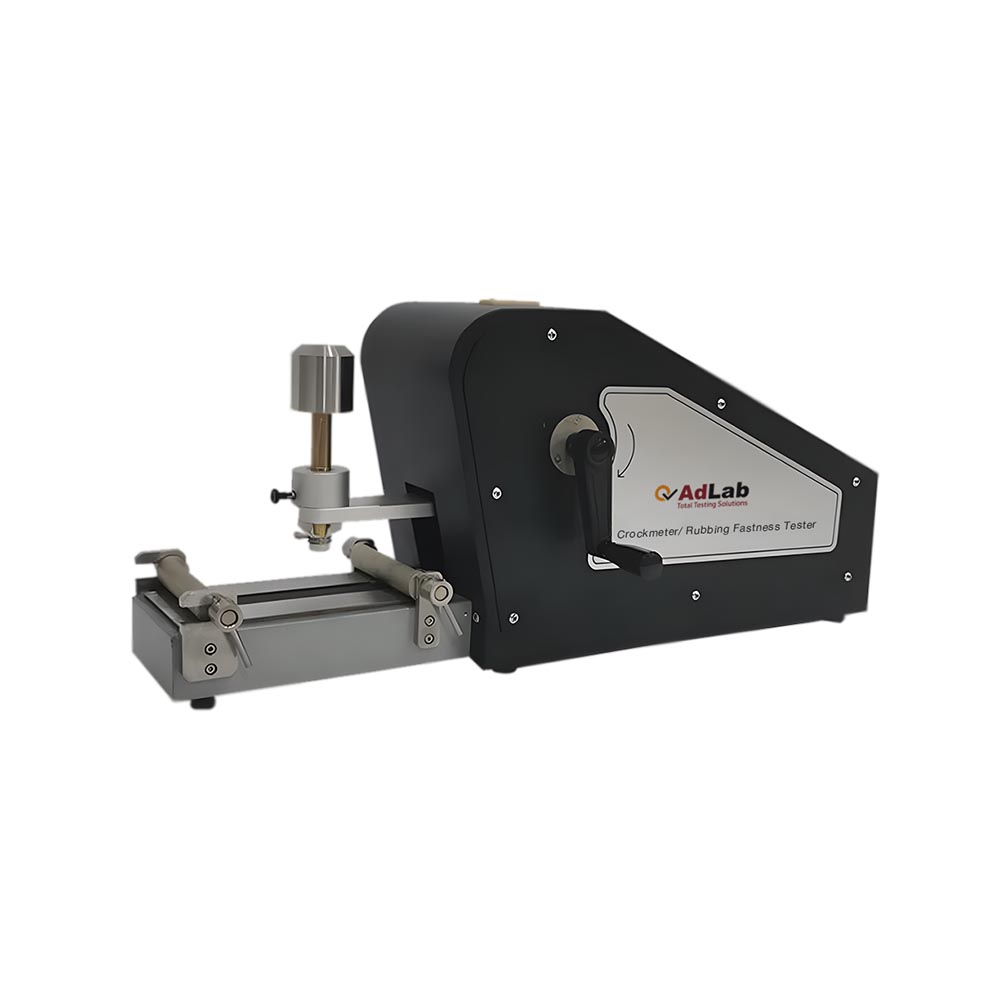

Crock Meter Rubbing Fastness Tester
Reliable Crock Meter designed for accurate dry and wet rubbing fastness testing with a digital counter, strong build, and compliance with major international standards.
- Accurate dry/wet rubbing fastness testing with digital counter
- Complies with ISO, AATCC, ASTM, BS, and JIS standards
- Durable metal body with high-temperature baked coating

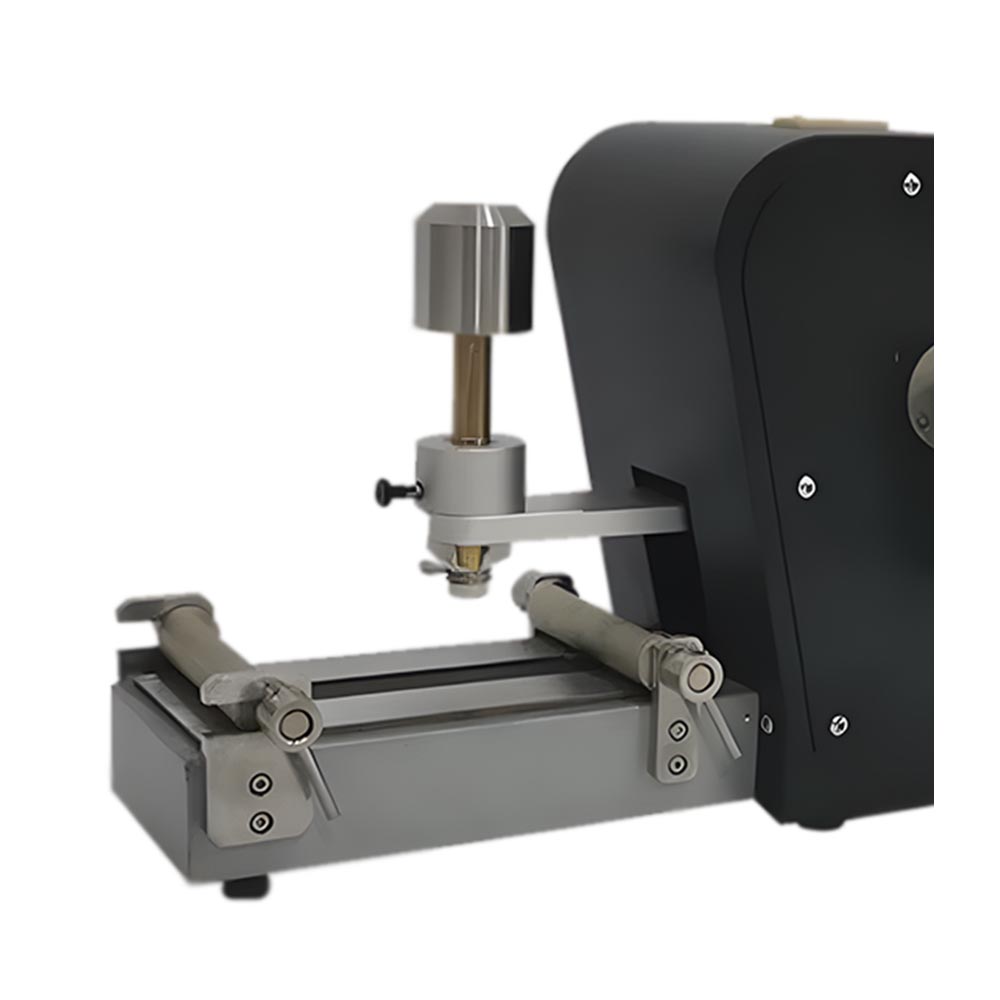

The Crock Meter Rubbing Fastness Tester is a precision instrument designed to measure the color fastness of textiles against dry and wet rubbing. With a pinned acrylic sample holder, it ensures fast, secure sample placement and highly repeatable test results. Built with a durable metal body and high-temperature baking finish, this tester is ideal for laboratories and quality control departments that require accurate and consistent colorfastness evaluations. It complies with major international standards, making it a reliable choice for textile manufacturers, dyeing units, and testing institutions.
Standard
BS 1006-D02, ISO 105-X12/D02, M&S C8, AATCC 8/165, ASTM D6279, JIS L 0849 Type1, JIS L 0862 Type1
Features
- Metal box, High-temperature baking coating, easy maintenance
- Manual strive, equip with digital counter, assist counting.
Key Specifications
- Model – ADL-05
- Rubbing head diameter – 16mm
- Vertical pressure – 9N±0.2N
- Rubbing head track – 104±3mm
- Dimensions – 638 x 232mm x 290mm (L x W x H)
- Weight – 15kg
Standards Accessories
- Rubbing cloth – 1 box
- Sand paper – 2 pcs
- Rings – 2 pcs
Why Choose This Crock Meter?
Choosing this Crock Meter Rubbing Fastness Tester ensures exceptional accuracy and repeatability in evaluating textile colorfastness. Its manual operation is simple yet precise, supported by a digital counter that helps maintain consistent test cycles. The pinned acrylic sample holder provides secure clamping, eliminating sample slippage and ensuring reliable results every time. The machine is constructed with a high-temperature baked metal coating, offering long-term durability and easy maintenance in demanding lab environments. Designed to meet globally recognized standards such as ISO, AATCC, ASTM, BS, and JIS, it supports universal testing requirements. Whether for textile mills, dyeing factories, or R&D labs, this crock meter delivers stable performance, robust build quality, and accurate friction testing essential for quality assurance.
