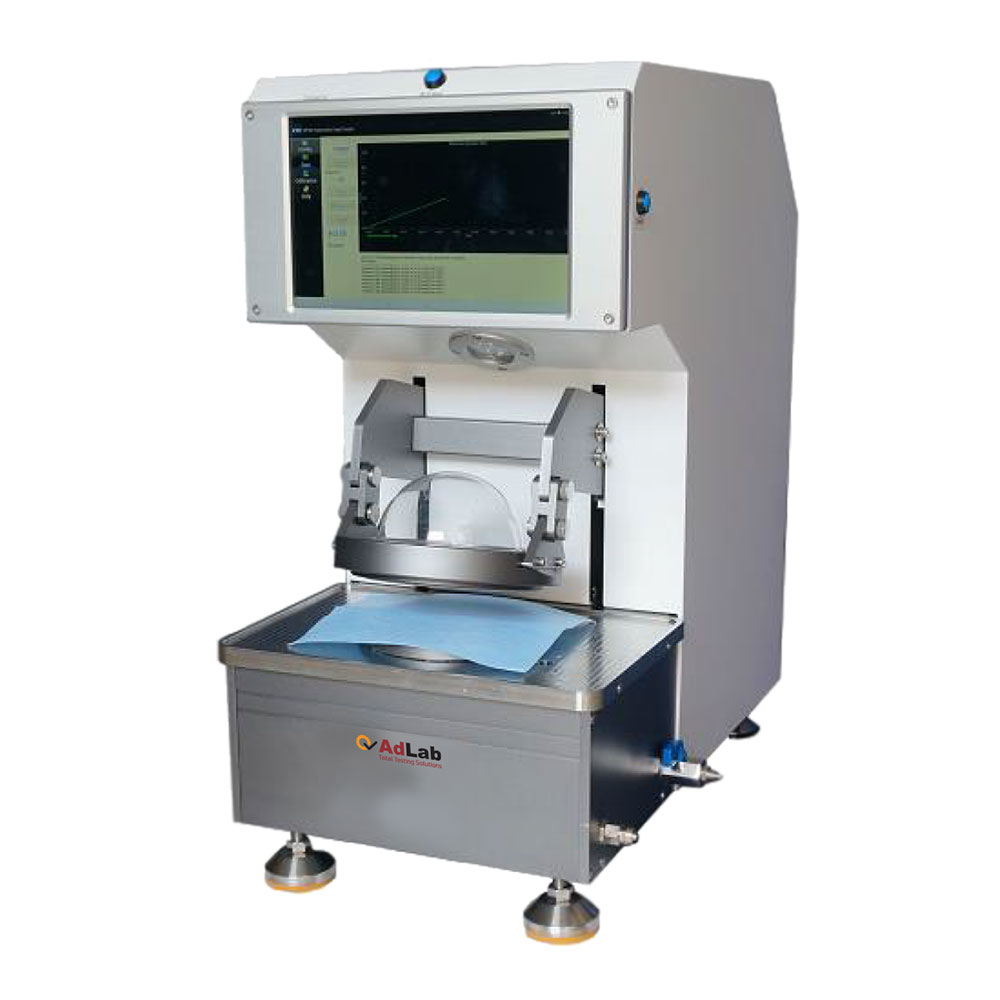

Smart Hydrostatic Head Tester

The Smart Hydrostatic Head Tester precisely measures fabric resistance to water penetration under hydrostatic pressure, ideal for all textiles including water-repellent treated materials. Featuring a pneumatic clamp head with immense gripping force up to four tons, it prevents side leaks for reliable results. With a 10-inch Android touchscreen, high-precision sensors, and WiFi data export to Excel, this compact device (40×60×60cm, 65kg) supports pressures from 0-3000mbar across areas like 100cm². Compliant with global standards such as AATCC 127, ISO 811, and GB/T 4744, it empowers textile professionals to validate waterproof performance efficiently.

Technical Specifications

• Test pressure:0~3000mbar
• Measuring accuracy: ± 0.5 % ± 1 mbar
• Readability: 0.1 mbar
• Test gradient:1~1000mbar/min
• Pressure warning signal: 1mbar ~3000mbar
• Test area:100 cm2 (10 cm2, 19.63 cm2,26 cm2, and 28 cm2 optional)
• Maximum sample thickness:0~20mm
• Required compressed air supply: 4~8 bar (clean and dry)
• Dimensions: 40×60×60cm(W×D×H)
• Weight: 65Kg
• Power: AC100~240V,50/60Hz,50W
• Warranty: 24 Months

Professional Technology

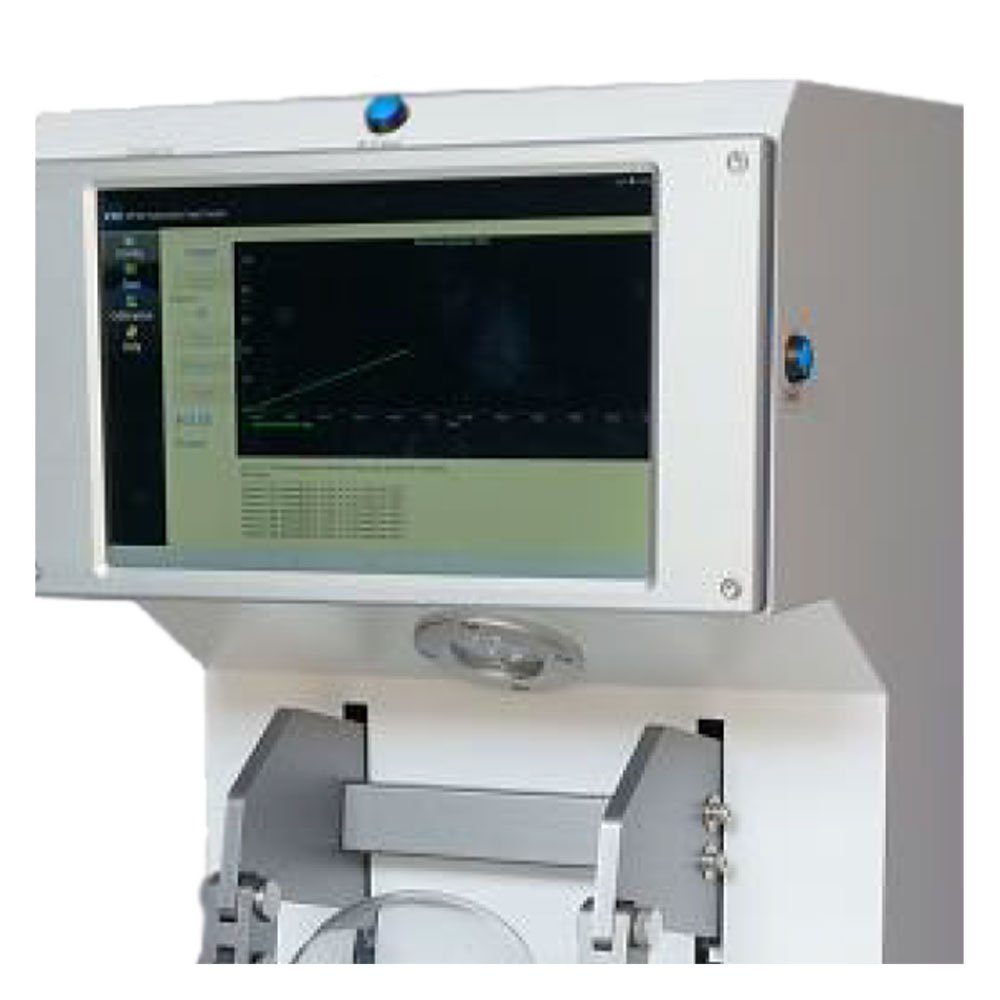

• 10-inch color screen, capacitive touch screen, multi-point touch Android7.0 operating system, easy Control, Test results can be saved to Excel file, and can be sent via WIFI to anywhere.
• Simple and convenient test fixture is designed to provide superior gripping force, to ensure that the water does not leak out from the side.
• High-precision pressure sensors and pressure control system.
• LED soft illumination system, digital adjust lighting brightness.
• Friendly and convenient test software, test software to configure a variety of test standard, user-friendly.

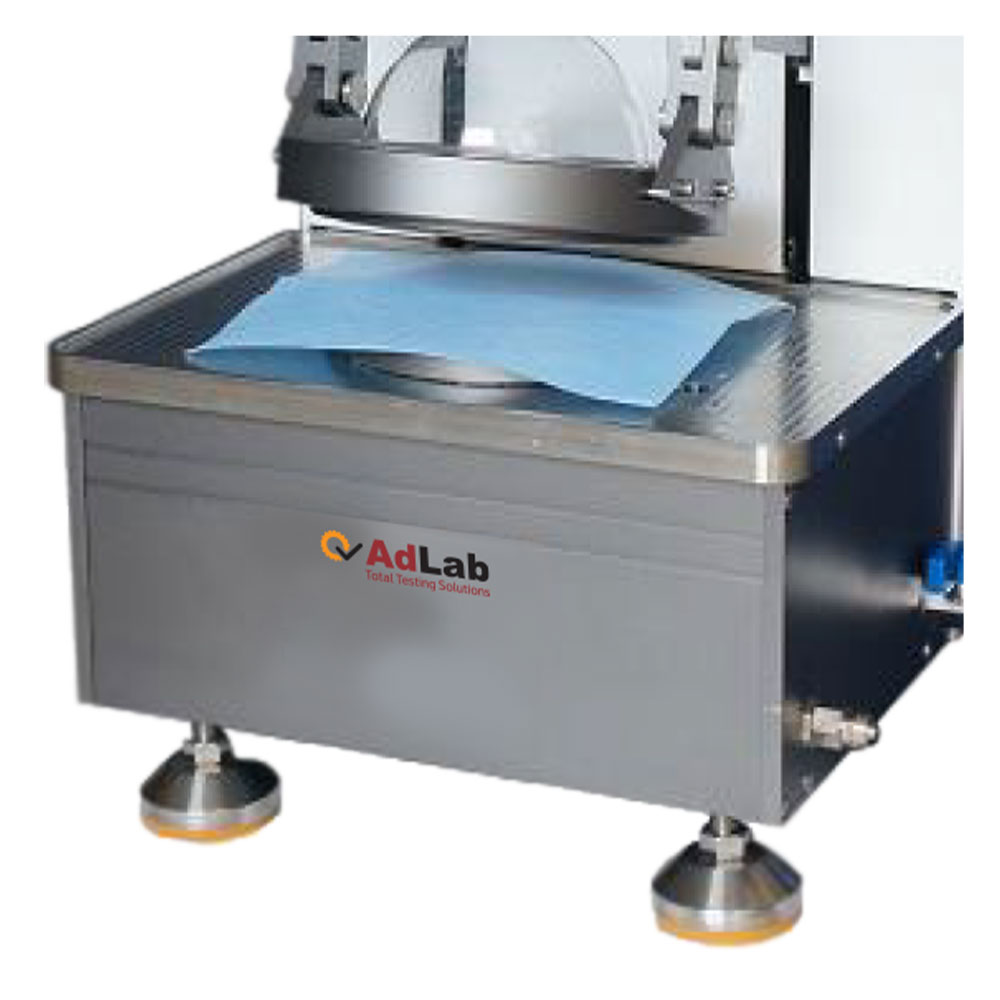

• Test pneumatic clamp head, with huge clamp pressure, Maximum pressure four tons。

Testing Standards

GB/T 4744, AATCC 127, EN 20811, BS 2823, BS 3424-26 29A/29C, BS 3321, BS 3321, ISO 811, ISO 1420A, DIN 53886, INDA IST 80.4, JIS L 1, 092 A, JIS L 1, 092 B-b NF G07-057, ERT-120-1, 160-0, EDANA 120.2-02, ISO 16603, ASTM F1670, YYT 0700, ASTM F903.

Test Principle

One surface of the test specimen is subjected to a hydrostatic pressure, increasing at a constant rate, until three points of leakage appear on its other surface. The water may be applied from above or below the test specimen.

The instrument contains a high precision pressure control system, which produces the test pressure in an internal water tank.

Configuration

Standard configuration: Mainbody, Test Head 100 cm², Samsung p3110 Tablet, Tablet LABTest Software

Optional accessories:

• ADL-HT01S Test Head 10 cm²: For measurements on small test samples and abrasion test areas.
• ADL-HT01S-19.63 Test Head 19.63 cm²: For measurements in accordance with BS 3424-26 29C
• ADL-HT01S Test Head 26 cm²: For measurements on small test samples.
• ADL-HT01S Test Head 28 cm²: For measurements in accordance with EDANA 120.2-02 and for measurements on small test samples.

Why Choose the Smart Hydrostatic Head Tester

Opt for the Smart Hydrostatic Head Tester to streamline waterproof testing with cutting-edge precision and user-centric design. Unlike basic testers, its pneumatic clamp delivers four tons of pressure to eliminate side leaks, ensuring accurate results on diverse fabrics. The intuitive 10-inch capacitive touchscreen on Android 7.0 simplifies controls, saves data to Excel, and shares via WiFi—boosting lab productivity. High-accuracy sensors (±0.5% +1mbar) and LED adjustable lighting support standards like AATCC 127 and ISO 811 without hassle. Compact and robust (65kg, 24-month warranty), it reduces setup time, minimizes errors, and accelerates R&D for apparel, geotextiles, and medical fabrics—delivering confident, quantifiable water resistance data for market-leading products.
