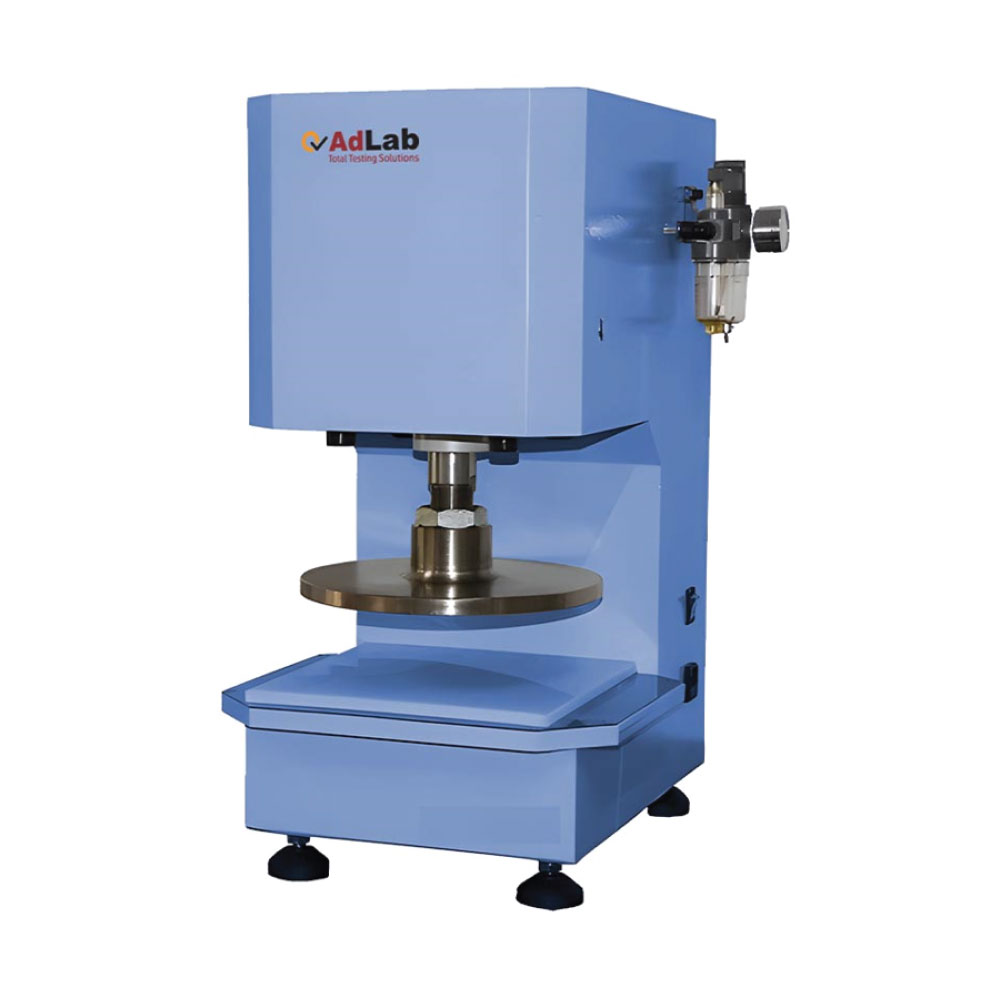

Hydraulic Sample Cutter

The Hydraulic Sample Cutter delivers precise, distortion-free cuts for textiles, leather, rubber, and other materials up to 50 mm thick. Compact and durable, it ensures uniform samples for reliable lab testing and quality control.

Cuts samples up to 125 × 125 mm and 50 mm thick
Operates with ~4 kg/cm² air pressure for clean results
Includes standard round and rectangular die-cut tools

Description

Application Scope

The Hydraulic Sample Cutter is a robust device designed for precise sampling and cutting of materials such as wool, cotton, chemical fibers, knitted fabrics, leather, and rubber. This Hydraulic Sample Cutter ensures clean, accurate cuts up to 50 mm thick and 125 x 125 mm in size, making it essential for textile labs, quality control, and material testing facilities.

Key Features

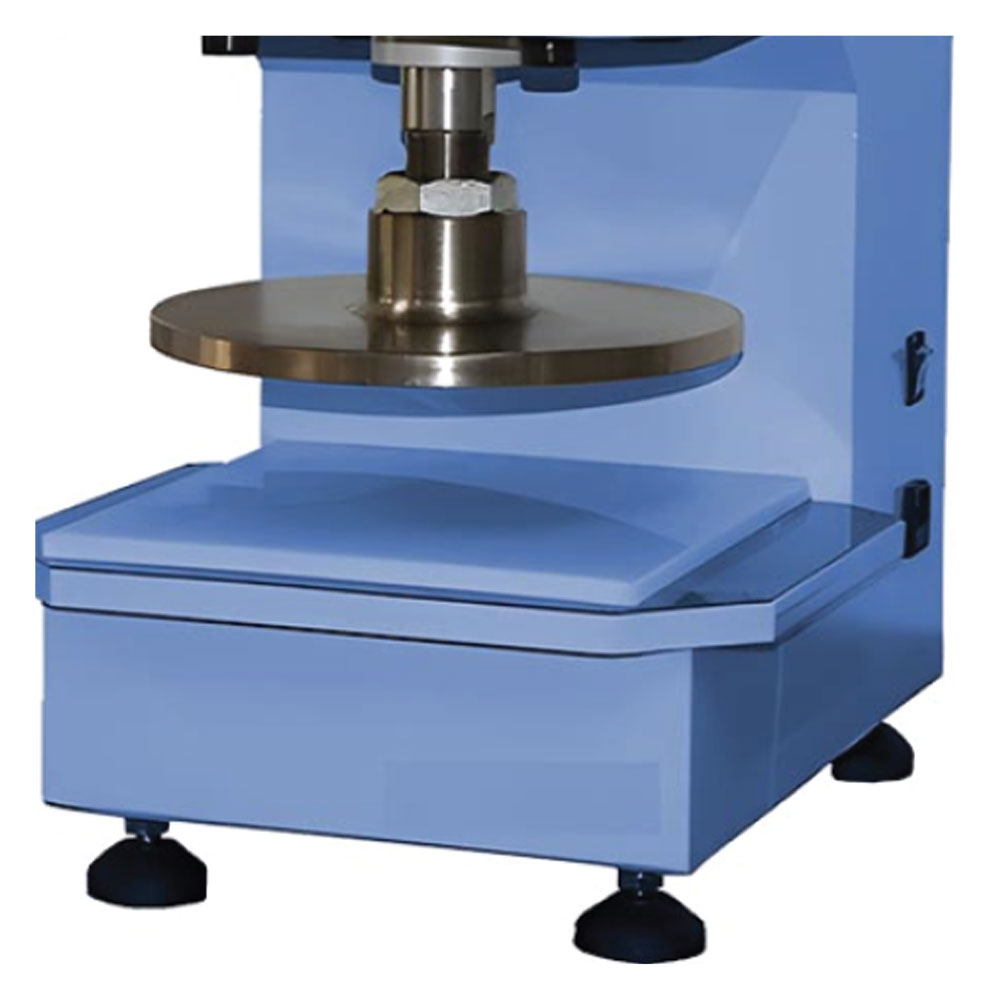

Features a top plate diameter of 185 mm for stable cutting of large samples up to 125 x 125 mm.
Handles maximum sample thickness of 50 mm, suitable for thick materials like leather and rubber.
Operates on air pressure of ~4 kg/cm², ensuring clean, precise cuts without distortion.
Offers on-the-shelf die-cut tools including round shapes (OD 38 mm, 90 mm, 140 mm) and rectangles (40 x 100 mm, 50 x 150 mm), with customization available.
Compact and durable design, with dimensions of 44 x 37 x 65 cm and a net weight of 65 kg, for easy lab integration.

Parameters

Top Plate Diameter: 185 mm
Max Sample Dimension: 125 x 125 mm
Max Sample Thickness: 50 mm
Air Pressure: ~4 kg/cm²
Die-Cut Tools (On-the-Shelf):
- Round: OD 38 mm
- Round: OD 90 mm
- Round: OD 140 mm
- Rectangle: 40 x 100 mm
- Rectangle: 50 x 150 mm
- Other sizes customizable
Device Dimension: 44 x 37 x 65 cm
Package Dimension: 59 x 49 x 81 cm
Net Weight: 65 kg
Gross Weight: 77 kg

Why Choose the Hydraulic Sample Cutter?

The Hydraulic Sample Cutter is indispensable for textile and material labs requiring accurate sample preparation. Since precise cuts are critical for reliable testing of wool, cotton, and rubber, this cutter delivers uniform samples up to 50 mm thick, supporting standards like ASTM D4851 and ISO 139. For example, it facilitates quick preparation for tensile or absorption tests, reducing errors and improving efficiency. Its customizable tools and air pressure operation (4 kg/cm²) cater to diverse needs, while the compact 65 kg design fits various lab spaces. Consequently, users can enhance testing accuracy and meet industry standards. For more details or to request a demo, contact our team today.
