Description

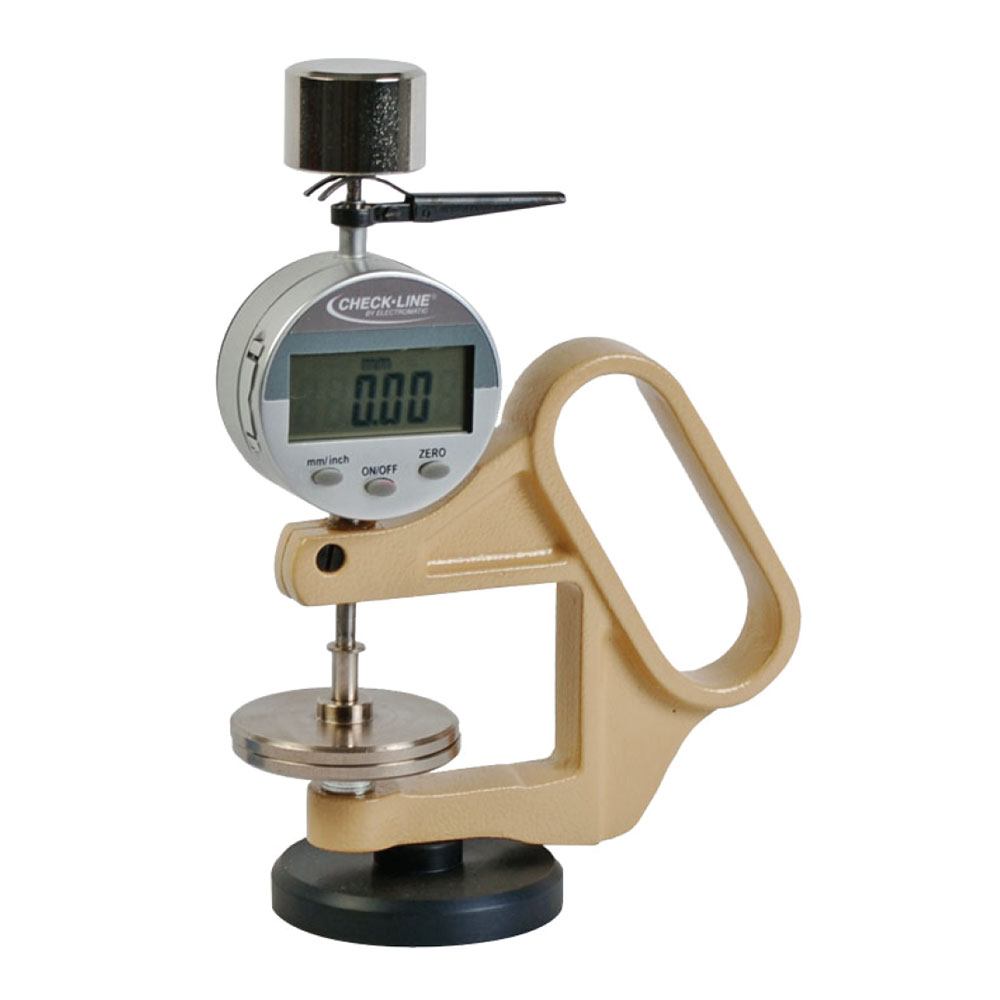

Digital Thickness Gauge can be used to determine the material thickness of non-woven fabrics, textiles, felts, geomaterials, paper, floor coverings, leather, foils, etc. The instrument does not meet the DIN, EN and ISO standards. The feeler shape and the pressure are corresponding to DIN EN ISO 5084 standards. This low-cost thickness gauge is suitable for quick comparison measurements.



Key Features

  • Provides a standard measuring range of 0–10 mm, with an optional range up to 25 mm for thicker materials.

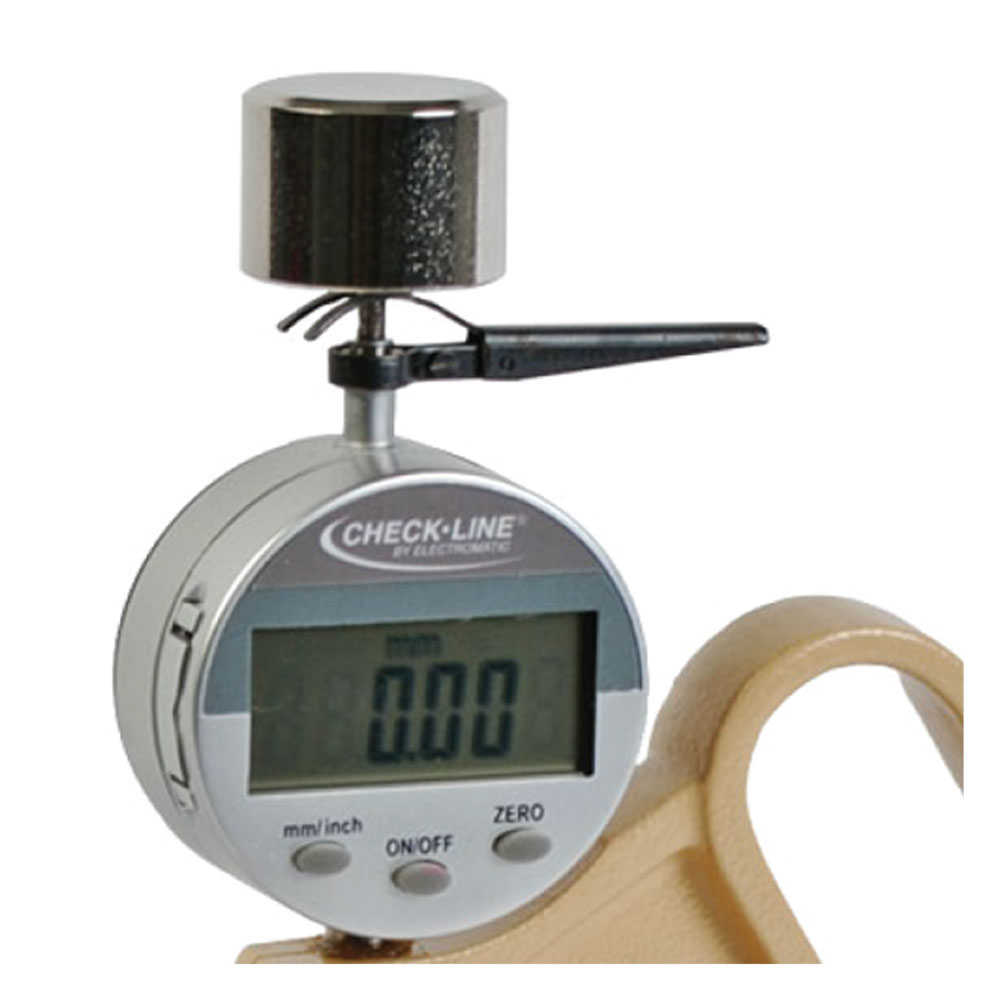

  • Features a high-resolution LCD display (4 digits, 8 mm tall) for clear readings with 0.01 mm precision.
  • Ensures accuracy of ±0.02 mm, suitable for quick assessments of textile and foil thickness.

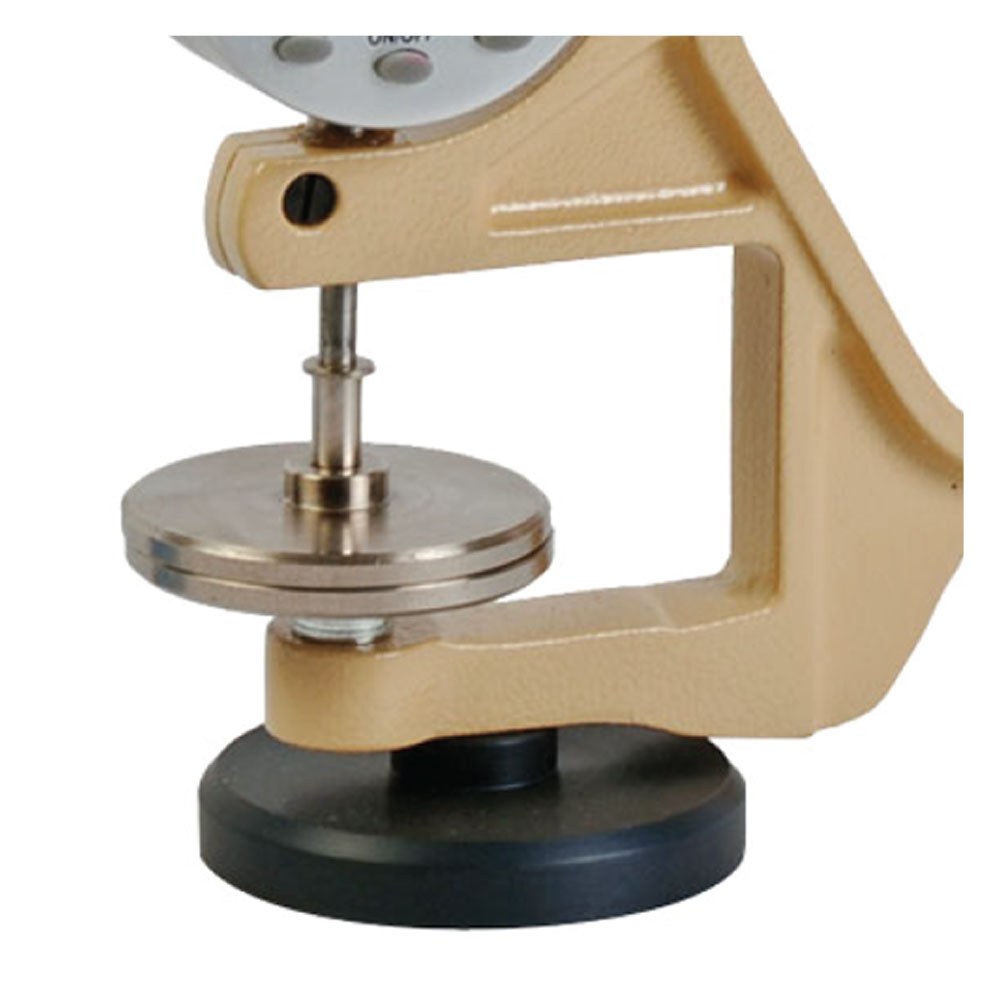

  • Equipped with 40 mm deep jaws for accessing varied sample depths.
  • Operates on a single CR2032 3V lithium coin cell battery, offering portability and ease of use.



Specifications

  • Measuring Range: 0–10 mm (0–25 mm optional)
  • Resolution: 0.01 mm
  • Accuracy: ±0.02 mm
  • Depth of Jaws: 40 mm
  • Display: LCD 4 Digit, 8 mm tall
  • Dimensions: 103 x 65 x 145 mm (L x W x H)
  • Weight: 230 g (net), 800 g (gross)
  • Battery: 1 pc. CR2032 (3V Lithium Coin Cell)



Why Choose the Digital Thickness Gauge?

The Digital Thickness Gauge is essential for textile labs and manufacturers needing quick thickness comparisons of nonwoven fabrics, leather, and foils. Since thickness affects material performance, this gauge provides accurate readings (±0.02 mm) per DIN EN ISO 5084 feeler standards, ideal for initial assessments. For example, it measures textiles up to 10 mm (or 25 mm optionally) with a compact 230 g design, enhancing portability. Its LCD display and battery operation ensure convenience, making it a cost-effective solution for quality checks.
