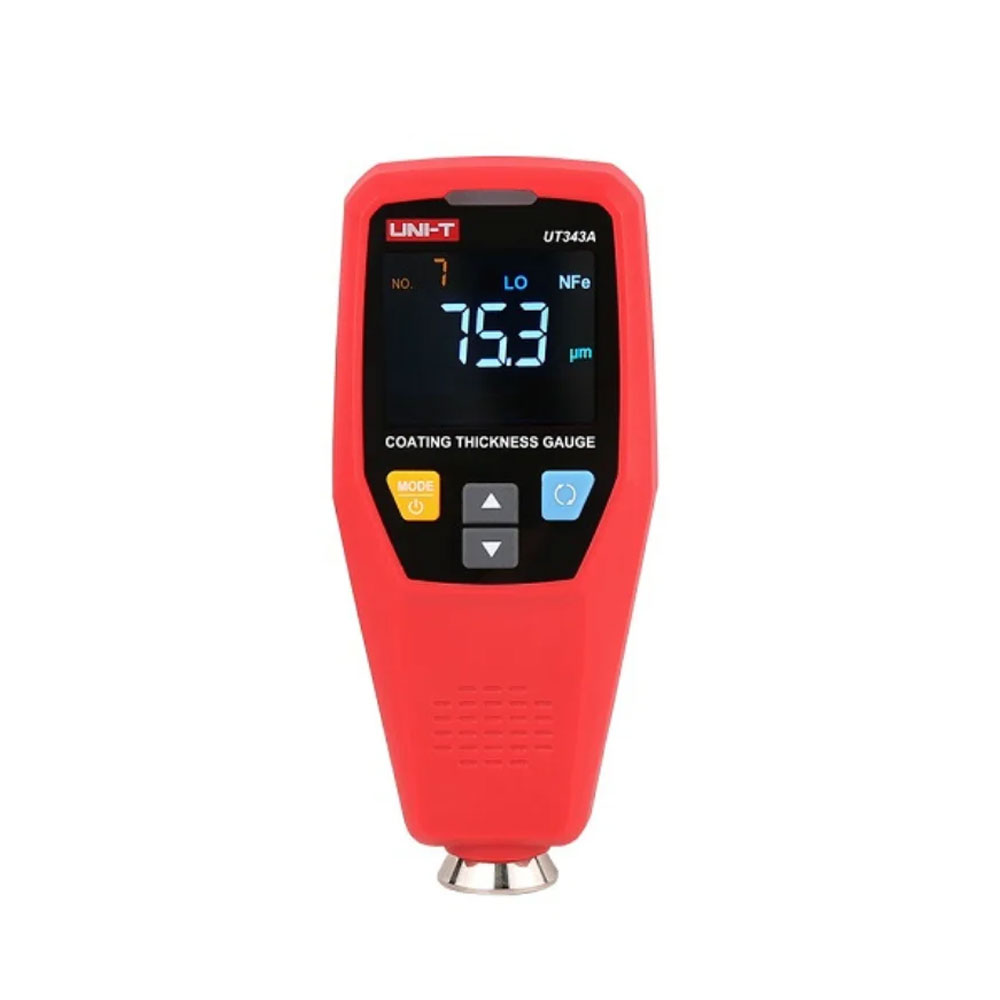

Coating Thickness Gauge

The Coating Thickness Gauge is a versatile device used to measure the thickness of plated or coated sheets on ferrous or non-ferrous substrates, with a large range up to 1750 µm. This Coating Thickness Gauge is widely applied in manufacturing, metal-processing, chemical industries, and quality inspection, providing reliable readings in workshops or outdoors. It supports data storage for 199 groups, single/continuous measurement, and features like Max/Min/Avg, unit conversion (µm/mil), rotatable screen, LED/buzzer alarm, and auto power off.

Key Features

• Stores up to 199 groups of data for easy recall and analysis.
• Offers single or continuous measurement modes with Max/Min/Avg calculations.
• Supports unit conversion between µm and mil for global compatibility.
• Features a rotatable screen for comfortable viewing in various orientations.
• Includes LED and buzzer alarms for instant out-of-limit notifications.
• Automatically powers off to conserve battery life during idle periods.

Technical Specifications

• Measuring Range: 0–1750 µm
• Resolution: 0.1 µm (typical for digital models)
• Measurement Method: Magnetic induction (ferrous) or eddy current (non-ferrous)
• Data Storage: 199 groups
• Modes: Single/Continuous, Max/Min/Avg
• Units: µm/mil (convertible)
• Alarm: LED/Buzzer for limits
• Auto Power Off: Yes

Why Choose the Coating Thickness Gauge?

The Coating Thickness Gauge is indispensable for industries ensuring coating quality, from manufacturing to commodity inspection. Since accurate thickness (up to 1750 µm) prevents defects and controls costs, this gauge delivers ±1% precision per ASTM D7091 and ISO 2808, supporting ferrous/non-ferrous substrates. For example, it verifies paint layers in metal-processing, aligning with NIST-traceable standards like DeFelsko’s for calibration. Its data storage (199 groups) and rotatable screen enhance usability, while the alarm and auto-off features promote efficiency. With 0.1 µm resolution, it meets ISO 2178 for non-magnetic coatings.
