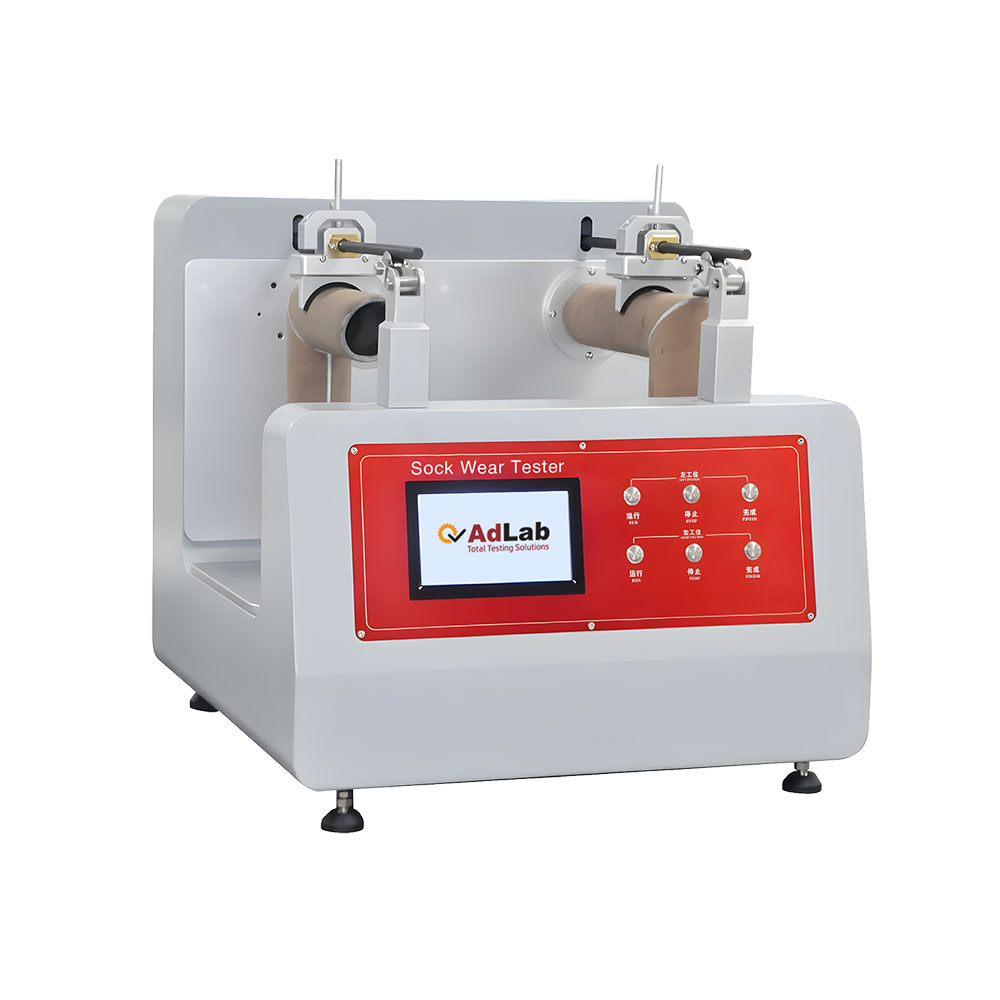

Sock Wear Tester

The Socks Wear Tester is a specialized instrument specifically designed to test the wear resistance and tear resistance of socks. This tester ensures accurate evaluation of sock durability by simulating wear conditions, thus helping manufacturers meet quality standards for knitted footwear. As a result, it supports the production of high-quality socks that withstand everyday use.

Compliant with Standards

EN 13770-2002 Textiles – Determination of wear resistance of knitted footwear – Method C

Testing Principle

Install the sample on the testing mold, rub the sock sample with sandpaper at a constant speed, and cycle every 100 or 500 times to observe if the sample is damaged or thinning. If so, record the number of times.

Product Features

• The manufacturer finishes the electric control box with metal baking paint for durability.
• It features an imported special aluminum brushed panel, providing an elegant and professional appearance.
• Moreover, the transmission sliding mechanism uses imported linear sliders, ensuring smooth operation with no vibration.
• The manufacturer treats the base with a metal baking paint process for enhanced durability.
• The sampling handwheel uses thread locking, offering good friction and preventing slippage.
• Additionally, it includes a large color touch screen with a user-friendly interface, supporting both Chinese and English languages.
• Furthermore, the servo drive and motor ensure stable, adjustable speed with extremely low operating noise.
• The design equips the leg surface with imported cork for added functionality.

Key Specification

• Friction Frequency: 1-999,999 times (adjustable)
• Reciprocating Stroke: 1-30mm
• Workstations: 2
• Reciprocating Frequency: 125 times/min
• Power Supply: AC220V ± 10%, 50Hz
• External Dimensions: 650mm x 600mm x 580mm (L x W x H)
• Weight: 45kg

Why Choose the Socks Wear Tester?

The Socks Wear Tester is an essential tool for manufacturers aiming to ensure the durability of socks. Since wear and tear resistance directly impacts the longevity and quality of knitted footwear, this tester simulates real-world conditions by rubbing the sock sample with sandpaper at a constant speed. For instance, it cycles every 100 or 500 times to observe if the sample is damaged or thinning, recording the number of cycles for accurate analysis. Moreover, its user-friendly features, such as the large color touch screen and bilingual interface, make it easy to operate in any lab. Consequently, manufacturers can ensure their socks meet standards like EN 13770-2002, improving product reliability
