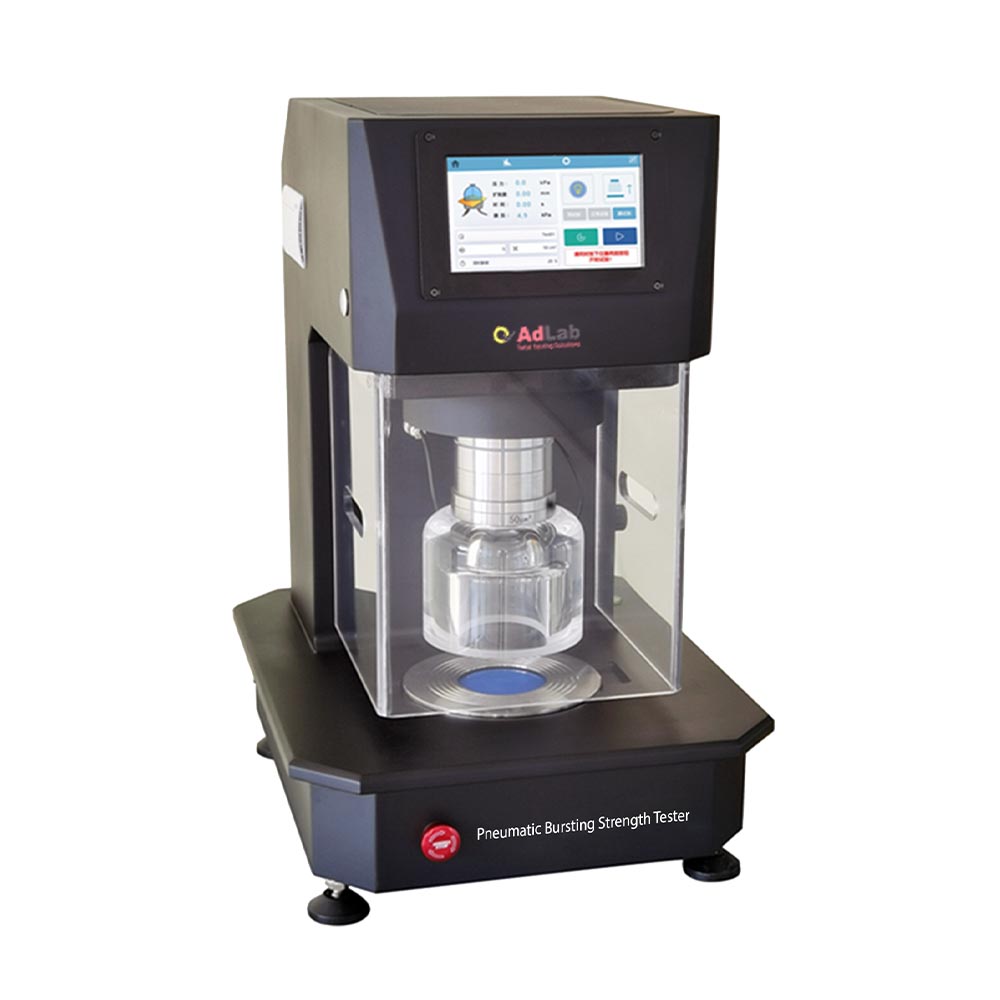

Pneumatic Bursting Strength Tester

Description

Application

Pneumatic Bursting Strength Tester is used for measuring the burst strength and burst expansion of knitted fabrics, woven fabrics, non-woven fabrics, and laminated fabrics, as well as various fabrics manufactured by other processes. The existing experimental results indicate that there is no significant difference in the bursting strength results obtained by using hydraulic and pneumatic driving methods when the pressure does not exceed 800kPa. This pressure includes the performance level of most ordinary clothing. For special textiles that require higher bursting pressure, it is recommended to use hydraulic method.

Standards Compliant

GB/T 7742.2, ISO 13938-2, etc

Features

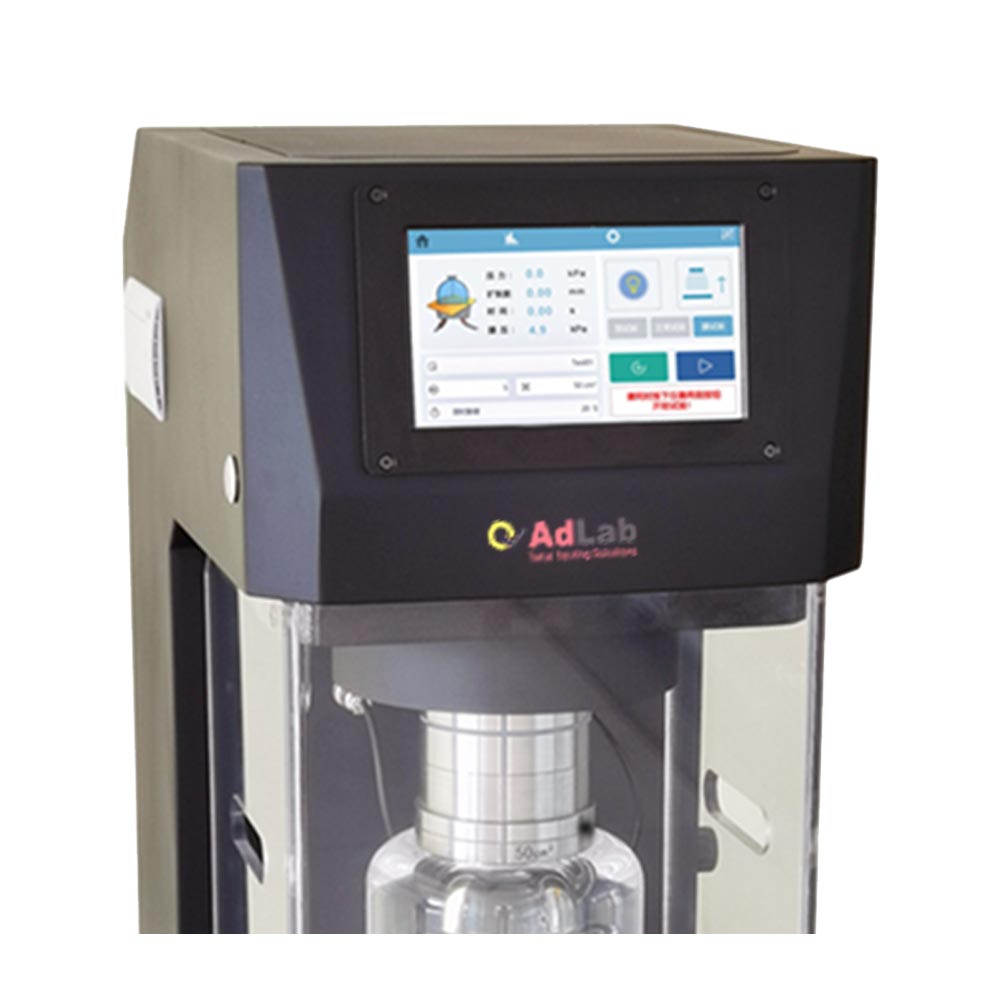

It adopts an industrial-grade 7-inch color touch screen for display and operation control, with a user-friendly interface that supports both Chinese and English languages.
The expansion height is measured using non-contact laser ranging technology, ensuring high accuracy and reliability.
It offers four pressurization methods: timed, constant speed, constant pressure, and constant expansion, meeting diverse industry requirements.
The units for bursting strength (kPa, bar, psi) and height (mm, cm, inch) are selectable to comply with different standards.
Equipped with various sample holders and an automatic recognition function for fixtures, it ensures versatility.
The pneumatic gripper clamps the sample using a slow pressing method to prevent damage or slippage.

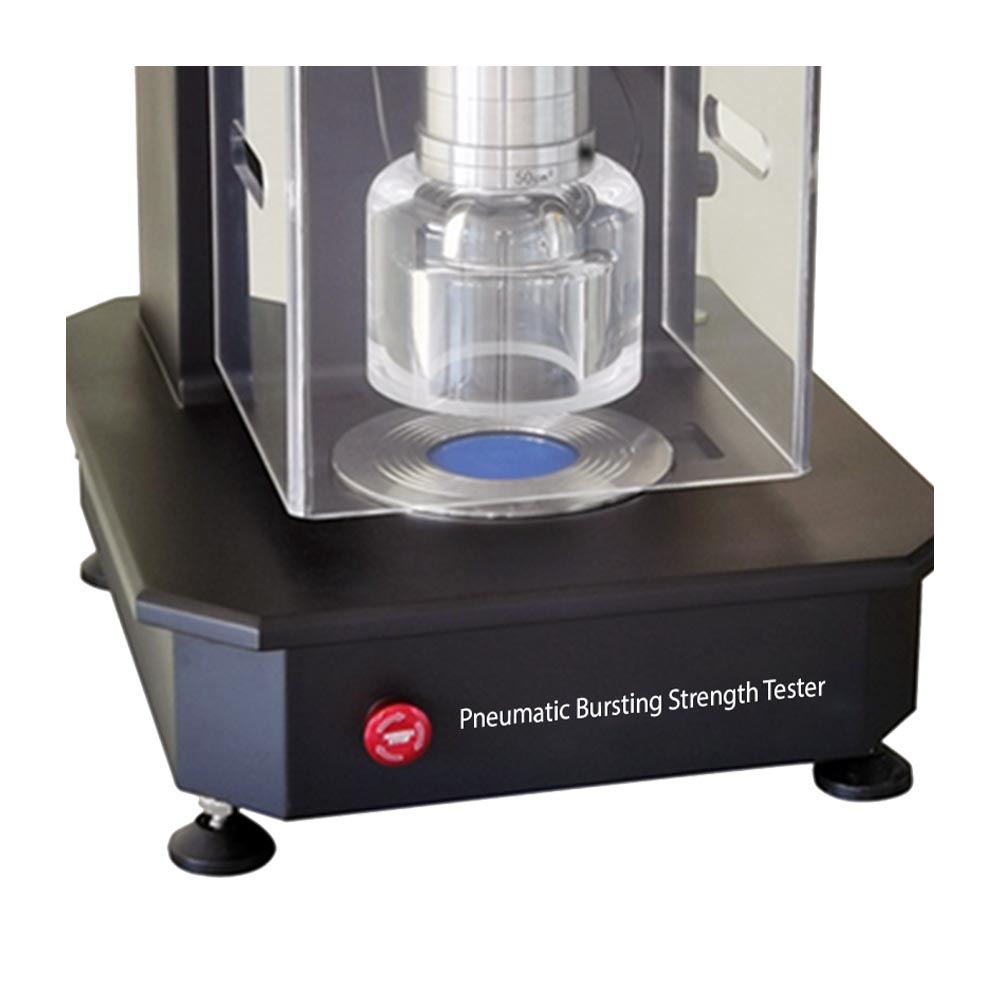

It includes safety features like pressure over-range protection and a high-transparency organic glass cover with LED lighting for clear observation.
The tester also supports storing experimental data and printing test reports via a micro thermal paper printer.

Technical Parameter

Color Touch Screen: 7 inches
Printer: Micro thermal paper printer
Sample Clamping Method: Pneumatic gripper
Expansion Pressure Range: 0.2 kPa to 850.0 kPa, division value: 0.1 kPa
Pressure Method (Pneumatic): Constant rate expansion, constant pressure cycle, constant expansion degree, and timed expansion
Pressure Rate: 1.0 kPa/s to 50.0 kPa/s
Test Area: Standard configuration: 50cm² (Φ 79.8mm), 7.3cm² (Φ 30.5mm)
Expansion Height Range:
- For 50cm² test area: ≤ 70mm, division value: 0.01mm
- For 7.3cm² test area: ≤ 30mm, division value: 0.01mm
Measurement Method for Swelling Height: Laser ranging
Elastic Diaphragm: Thickness < 2mm
Output Format: Real-time display, query display, printout test reports
Dimensions (W x D x H): 420 x 520 x 610mm
Power Supply: AC220V ± 10%, 100W
Weight: 75kg
Standard Configuration:
- Sample holders: 7.3cm², 50cm²
- Elastic diaphragms: 2 pcs
- Calibrate sealing plate: 1 pc
- Standard measuring block: 1 pc

Note: Gas source requirements: Pressure: 0.70MPa-0.80MPa, flow rate ≥ 80L/min.
If the bursting pressure of the test sample exceeds 0.55MPa, an additional booster pump needs to be purchased.

Standard Configuration

Sample holders – 7.3cm2， 50cm2
Elastic diaphragms – 2 pcs
Calibrate sealing plate – 1 pc
Standard measuring block – 1 pc

Why Choose this Strength Tester?

The Pneumatic Bursting Strength Tester is an essential tool for textile manufacturers aiming to ensure the durability of their fabrics. Since bursting strength is a critical factor in determining the quality of knitted, woven, non-woven, and laminated fabrics, this tester provides precise measurements under controlled conditions. For instance, it supports testing for most ordinary clothing with pressures up to 800kPa, making it a versatile solution for various industries. Moreover, its compliance with standards like ISO 13938-2 and GB/T 7742.2 ensures reliable results. Consequently, manufacturers can improve product quality and meet industry standards.
