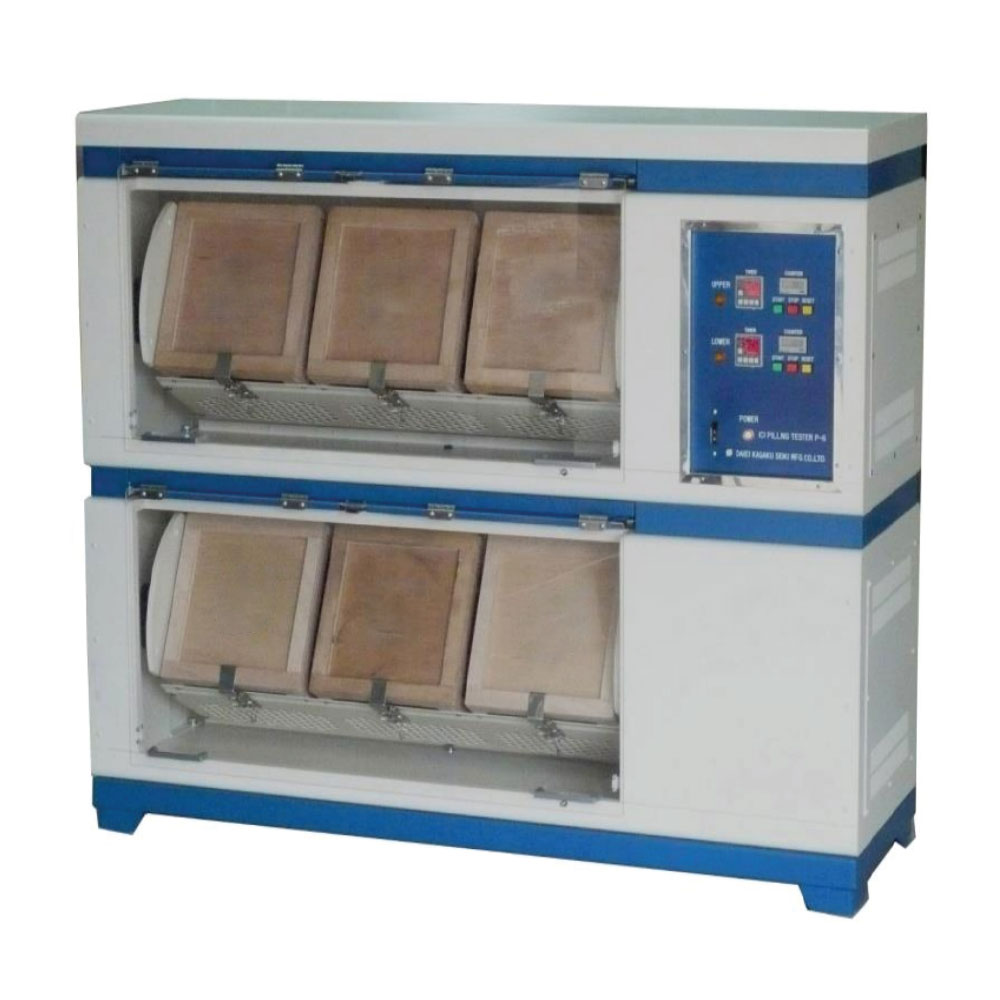

ICI-Type Pilling Tester
Reliable tester for assessing fabric pilling resistance per JIS L 1076 standards, featuring cork-lined boxes, rubber tube setup, and LED timer control.
- Conforms to JIS L 1076 pilling test standard
- LED timer and 8-digit digital counter for precision control
- Safe design with transparent door and secure clamp clip
This ICI-Type Pilling Tester is an appraisal tester to evaluate the small lumps (pilling effect) of the fiber artificially generated by friction for woven and knitted fabric, in conformity with A method of JIS L-1076 pilling test. This is a tester to evaluate the resistance to pilling and surface change of textile fabrics.
The work method of this test consists of cork lined test box (wooden) and rubber tube. Put the specimen attached to a rubber tube in test box, and compare the judgment photograph with the pilling state generated after having turned the text box at preset time to appraise the anti-pill performance.
-For security, there are the sheet-metal casing to collect the test box rotating part, and the design of the transparent sliding door on the front.
-The use of clamp clip method for opening and shutting of the box cover, makes simple operation, and enables the shutting certainly.
-There is independent case each at the upper and lower line, and it is possible to take off the rubber tube from one side even if the tester is driven.
Spec
Function: This is a tester to evaluate the resistance to pilling and surface change of textile fabrics complies with JIS L 1092.
Specification
- Number of test box: 3 / 6 / 9 Boxes (Optional).
- Rotary speed of test box: 60±2/min.

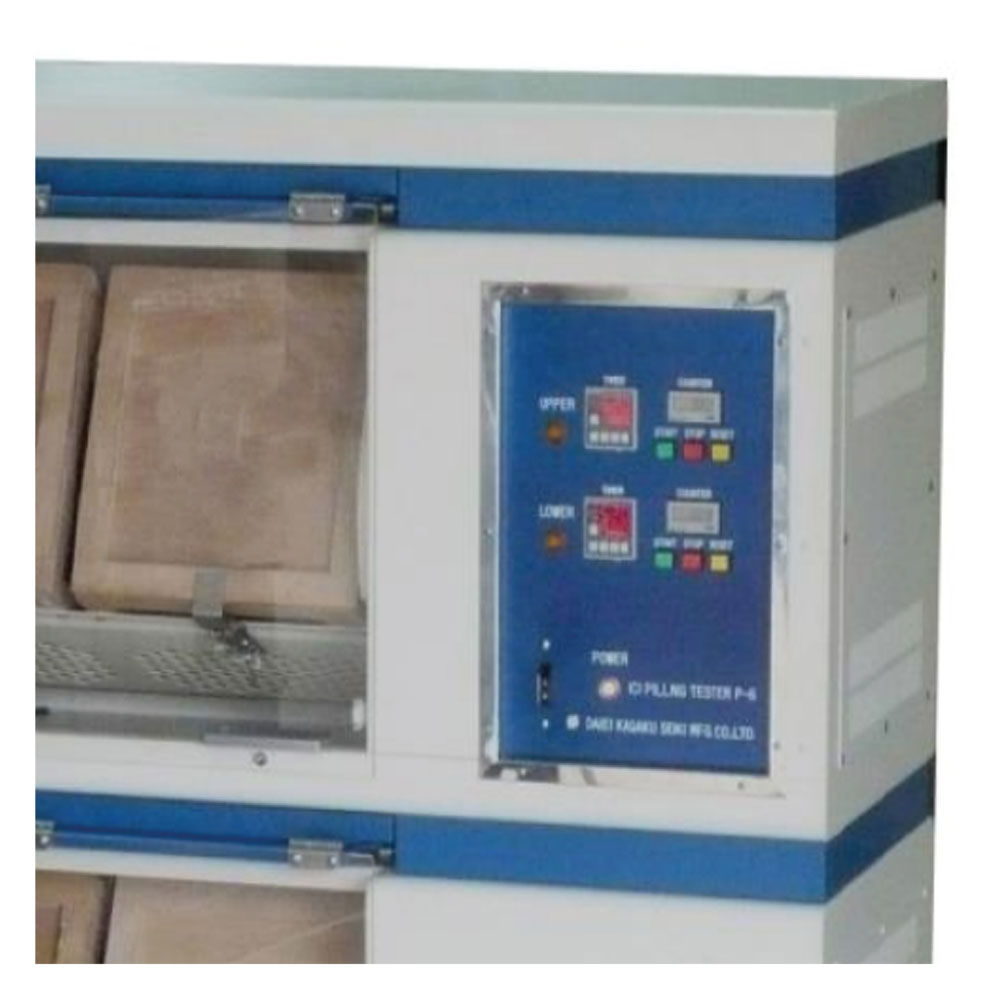

- Timer: LED timer (~99H59M) each one line.
- Counter: Total counter (8 digits) each one line.
- Inner dimension of test box: 23×23×23cm (lining corkboard t:3mm).
- Size of rubber tube: 150±1(length), 25.0±0.4(ID), 3.0±0.2(thickness).
- Mass of rubber tube: 51±0.5g.
- Hardness of rubber tube: 42±5 degree (JIS K 6253 A type).
- Test box metal clip: Clamp clip method (preventer pin).
Standards
JIS L 1076.
Why Choose ICI-Type Pilling Tester?
Choose the ICI-Type Pilling Tester for its precision, safety, and reliability in evaluating fabric pilling resistance. Built according to JIS L 1076, it ensures standardized and comparable results for both woven and knitted textiles. Its cork-lined wooden test boxes replicate natural friction, while the durable rubber tube setup maintains consistent testing conditions. The independent upper and lower cases allow easy sample handling without interrupting testing, and the transparent safety cover ensures operator protection. With an LED timer, 8-digit total counter, and adjustable rotation speed (60±2 rpm), it offers accurate, automated, and efficient testing. This tester is a dependable choice for fabric manufacturers, research institutes, and testing laboratories seeking reliable anti-pilling performance evaluation.
