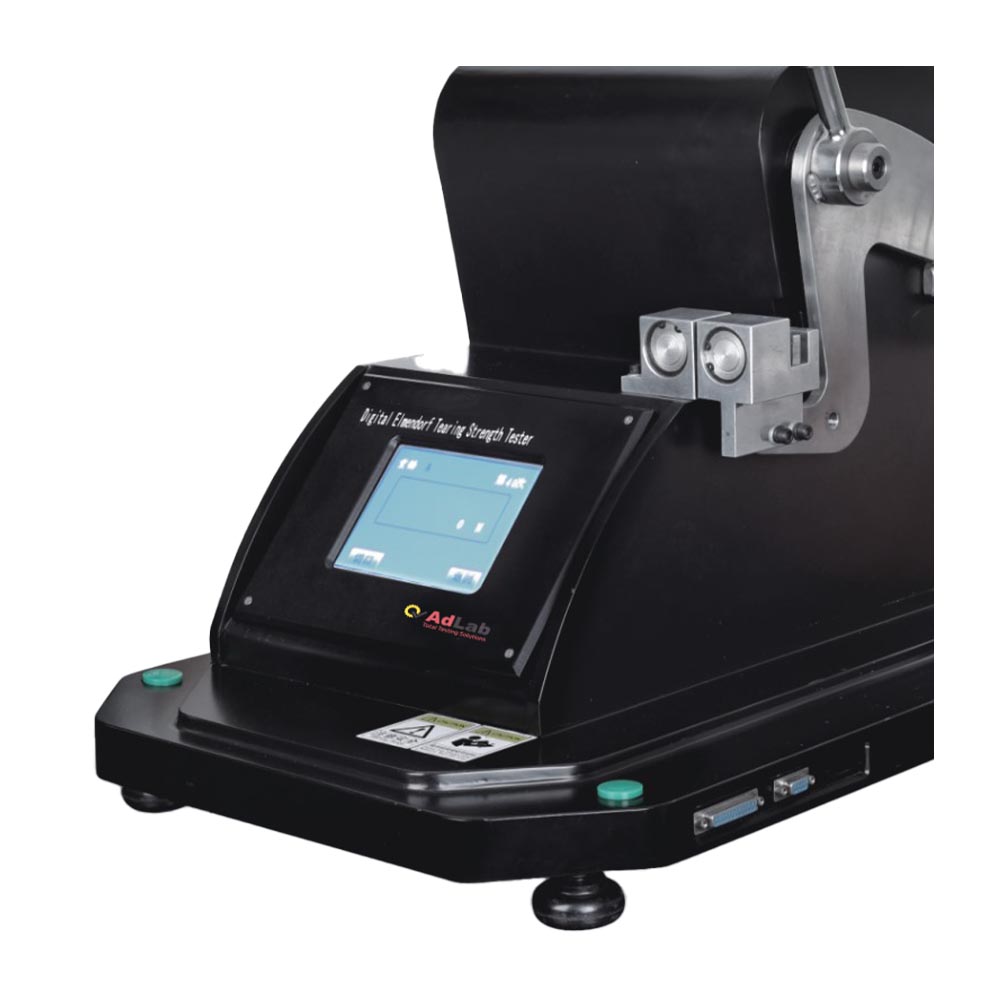

Digital Elmendorf Tearing Tester - Image 2

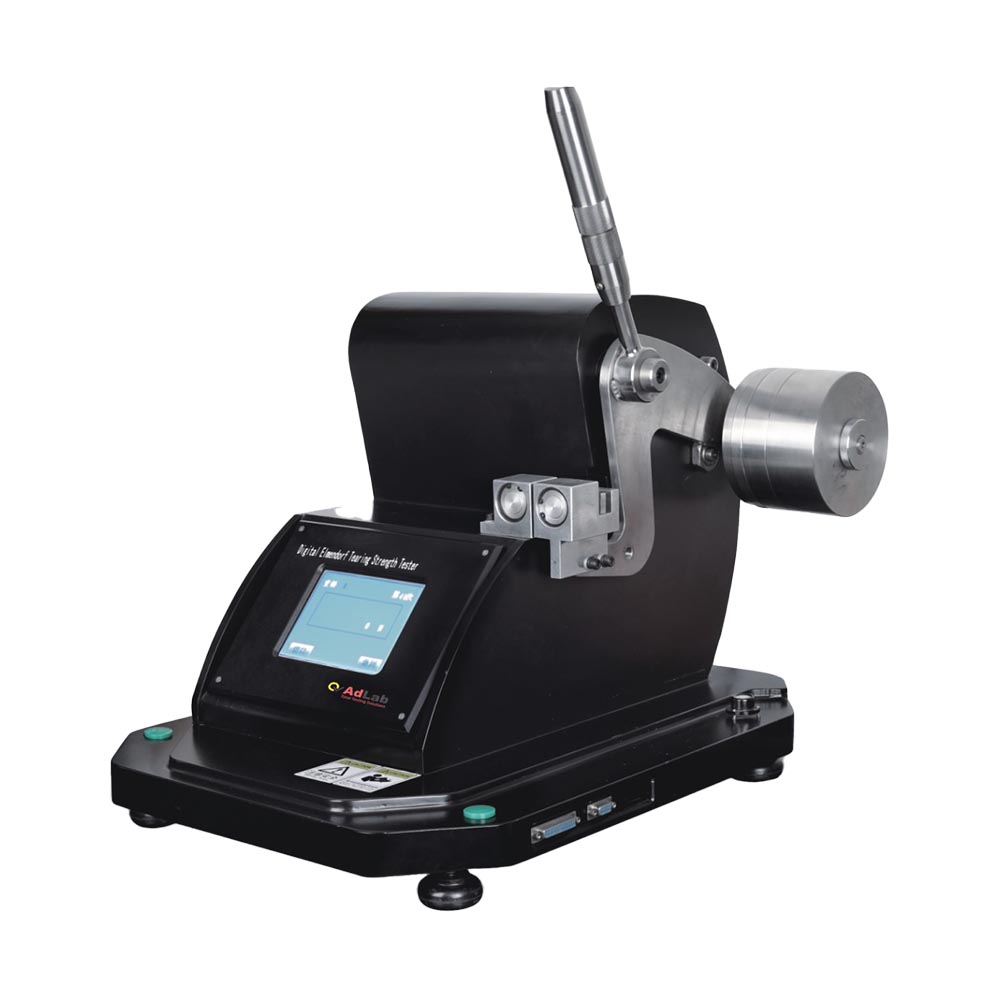

Digital Elmendorf Tearing Tester

High-precision tearing tester with pneumatic clamping, automatic incision, and touchscreen control. Ideal for testing tear strength of fabrics, paper, and plastic materials.

Conforms to GB/T 3917.1, ISO1974, ASTM D1424 standards
Automatic incision and pneumatic clamping system
Multiple test ranges up to 128N with digital control

Description

The Digital Elmendorf Tearing Tester is designed to accurately determine the tear resistance of woven fabrics, paper, plastic sheets, and similar flexible materials using the Elmendorf method. It features a microcomputer-controlled system with pneumatic clamping, automatic sample incision, and a high-precision digital decoding mechanism for reliable results. Equipped with a color touchscreen interface and multiple measurement units, this tester ensures simple operation and excellent repeatability. It is ideal for textile, packaging, and materials testing laboratories requiring fast, consistent, and standard-compliant tear resistance evaluation.

Related Standards

GB/T 3917.1 FZ/T60006 FZ/T75001 ISO1974/9290 ASTM D1424/5734, etc.

Instrument Characteristics

128N test range
Microcomputer control, digital decoding, support online communication
Color touch screen control, Chinese and English menu operation interface
Pneumatic clamping, automatic incision
A variety of measurement units (cN, GF) selection

Technical Parameters

Test range: A hammer: (0 ~ 16)N B hammer: (0 ~ 32)N C hammer: (0 ~ 64)N D hammer :(0 ~ 128)N
The test accuracy: ≤± 0.2% F·S
Tear length: 43mm
Automatic incision length: (20±0.2)mm
Sample size: (100×63)mm
Sample holding: pneumatic mode
Working power supply: AC220V±10% 50Hz 100W
Overall size: (560×480×530)mm
Weight: 78kg

Why Choose Digital Elmendorf Tearing Tester?

Choose the Digital Elmendorf Tearing Tester for its advanced automation, precision, and efficiency in measuring fabric and material tear strength. With test ranges from 0–128N and selectable measurement units (cN, GF), it provides flexibility for diverse testing needs. The microcomputer control system supports data communication and real-time digital decoding, ensuring accurate and stable results. Its pneumatic clamping and automatic incision system eliminate manual errors, improving consistency across samples. The touchscreen interface with bilingual (Chinese/English) menus enhances user experience and control. Complying with GB/T 3917.1, ISO1974, ASTM D1424, and other international standards, this tester delivers dependable performance for textile factories, quality control centers, and R&D institutions.
