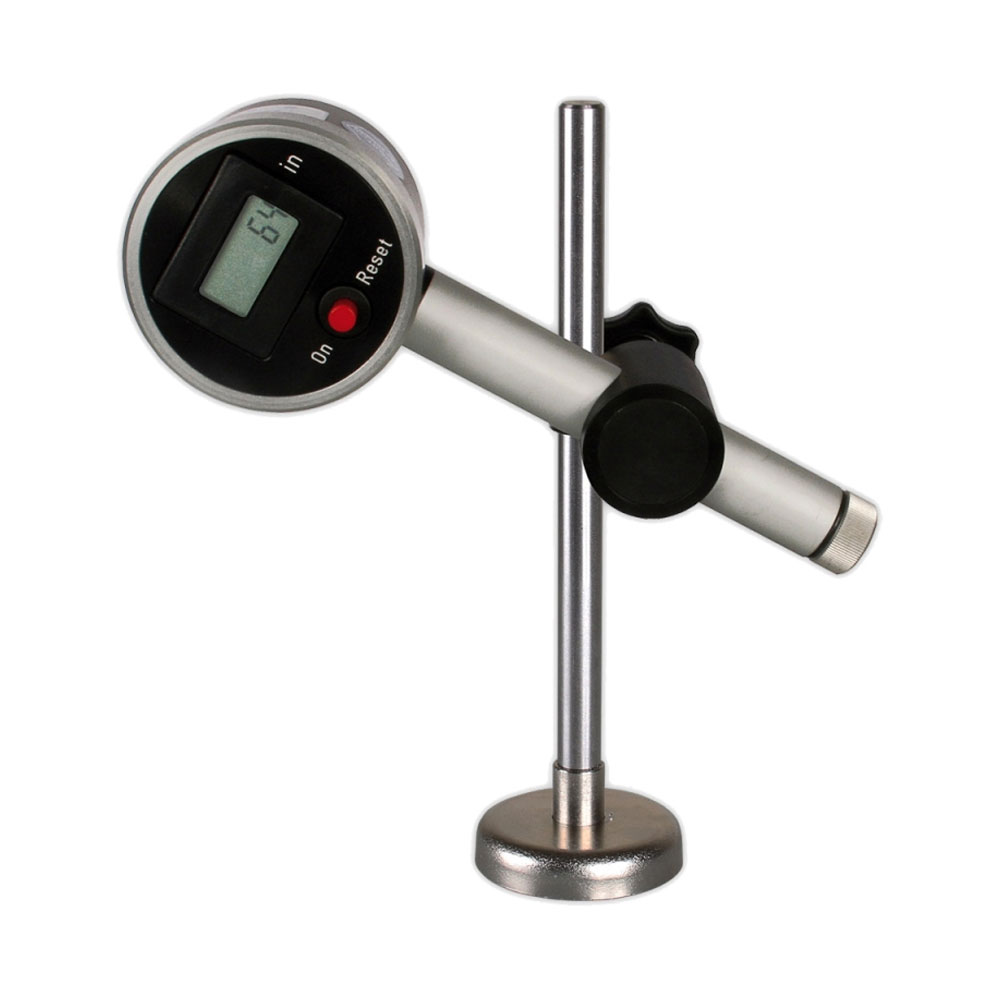

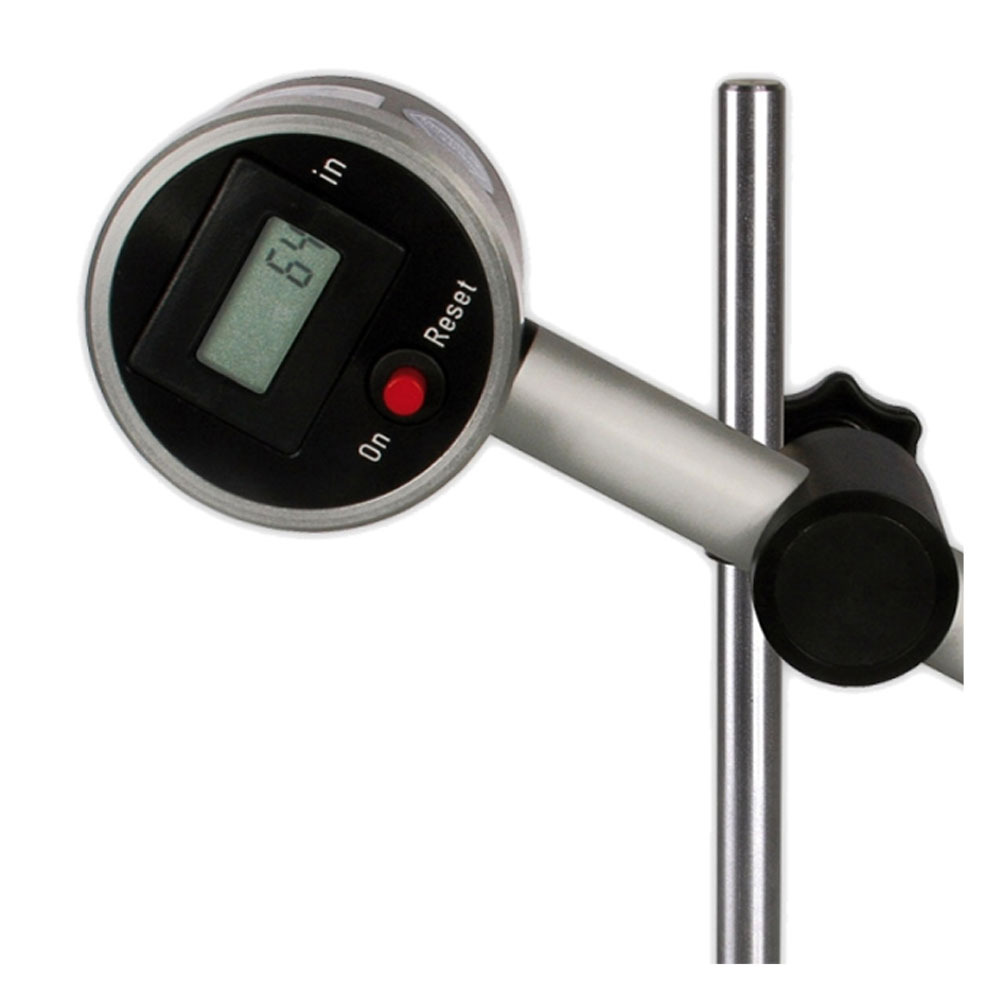

Yarn Consumption & Yarn Length Meter
Accurate Yarn Consumption & Length Meter with magnetic mount, LCD display, and durable design—ideal for comparing yarn usage across knitting machines.
- Measures yarn length and consumption with ±0.2% accuracy
- Magnetic base and rubber-coated wheel prevent slippage
- Durable metal housing with easy-to-read LCD display
The Yarn Consumption & Yarn Length Meter precisely measures yarn feed from a textile machine feeder to a take-up device during one or more cylinder rotations. The LMI/LMC Yarn Consumption Meter offers accurate readings in centimeters for reliable performance. It allows users to compare yarn consumption between feeds and machines on circular and flat-bed knitting machines. The instrument also supports other textile processes that require precise yarn length measurement.
Feature
- Magnetic mounting base and universal tube clamp for quick and easy setup
- Precision, ball-bearing-mounted, low-inertia measuring wheel is rubber coated to eliminate yarn slippage
- Surface-mount electronics and a rugged, metal housing provide trouble-free operation in tough production environments
- Powered by two AAA batteries (included)
Specification
- Range: 0 –99,999 Inches (or cm)
- Accuracy: +/- 0.2% of displayed value, +/- 1 digit
- Resolution: 1 Inch (or 1 cm)
- Display: LCD, 8mm high
- Measuring Wheel Access: 4mm wide x 270
- Operating Temperature: 50 to 120 F (10 to 45 C)
- Pre-settable Cycle Capacity: 0 –99 (LMI-S or LMI-C models only)
Why Choose Yarn Consumption & Yarn Length Meter
Choose the Yarn Consumption & Yarn Length Meter for its unmatched precision and dependable performance in textile measurement. Equipped with a magnetic mounting base and universal tube clamp, it allows quick setup on any machine. The rubber-coated, low-inertia measuring wheel ensures smooth operation without yarn slippage, while the LCD display provides clear readings in inches or centimeters. Built with surface-mount electronics and a rugged metal housing, it’s engineered for long-lasting durability, even in harsh production conditions. Powered by two AAA batteries, it offers convenience and portability. Perfect for textile engineers and production supervisors seeking accurate yarn length comparison and consistent process control across knitting machines.
