Description

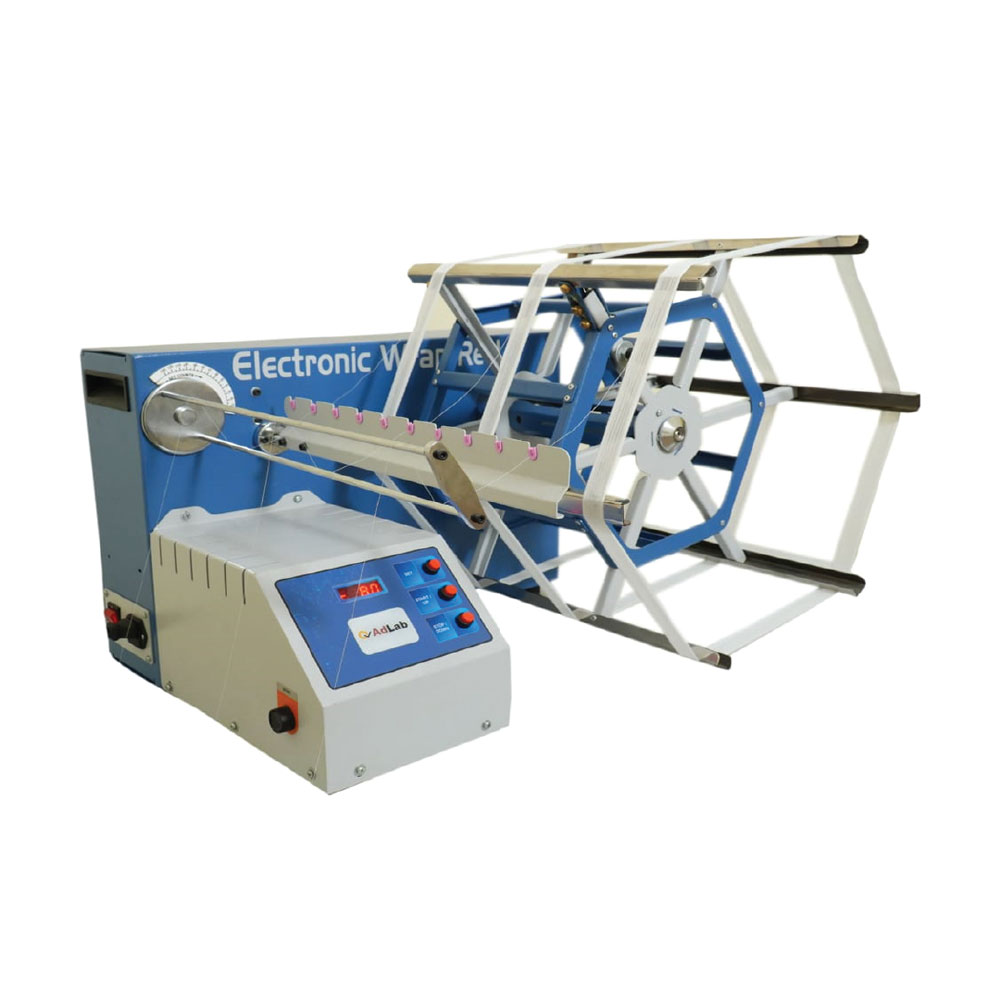

The Electronic Wrap Reel is a precision laboratory instrument designed to prepare yarn skeins of predetermined length and turns for evaluating linear density (count) and lea strength. With an ergonomic and patented reel design, it ensures high accuracy and repeatability in testing. Capable of handling 10 samples simultaneously, the reel operates under an automated, pre-programmable system ranging from 5 to 999 revolutions with auto-stop functionality. Equipped with ceramic trap guides to minimize friction and a collapsible swift for easy sample removal, this instrument provides a smooth, reliable, and efficient yarn preparation process for both research and industrial labs.

Features

  • Prepare skeins of yarn of a predetermined Length and number of turns to determine the linear density (count) of yarn and /or to measure the strength of lea.
  • Ergonomic design; Patented real Construction for high accuracy.
  • Accommodates 10 samples at a time
  • Attributes automation and pre- programmable From 5 -999 revolutions with auto stop. Measures adopted for 1.5 Yards girth to evaluate various count systems.
  • Incorporated surface finish ceramic trap guides to avoid yarn friction.

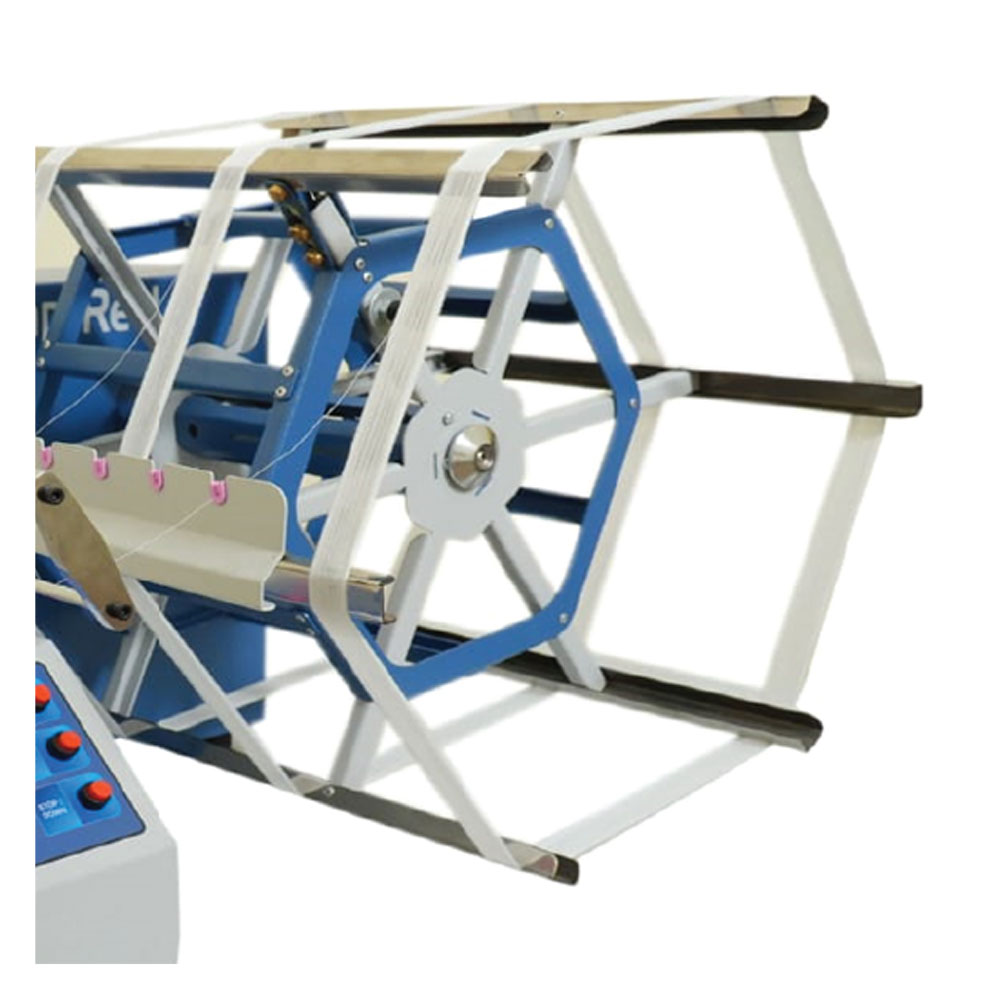

  • Spreader loop reeling arrangement includes collapsible swift for easy lea removal.
  • Specially designed cop stand with adjustable tensioner for precise sampling.
  • Comprises various safety components.



Technical Data

  • Capacity: 10 Skeins at a time,
  • Swift Perimeter: 1.5 Yards ± 2.5 mm
  • Loop Spread: 25mm ± 3.0 mm
  • Pre-programmable Range: 5 to 999 revolutions
  • Reeling Speed: 160 ± 5 RPM
  • Power Supply: Single Phase 220v AC @ 50Hz; Consumption: 120 watts
  • Applicable Standard: ASTM D 1578, ASTM D 1907, ASTM D2260, IS 1315 and IS 1617.



Scope of Supply

  • Main Unit: 1No
  • Accessories: Cop Stand – 1 no, Mains Cord – 1 No, Hand Scissor – 1 No
  • Documents: User guide, warranty certificate, test certificate, calibration certificate.



Why Choose the Electronic Wrap Reel?

The Electronic Wrap Reel delivers precision, speed, and ease of use for textile laboratories. Its automatic programmable system allows users to preset revolution counts, ensuring consistency and reducing manual error. The 1.5-yard girth meets international testing standards such as ASTM D1578, ASTM D1907, ASTM D2260, IS 1315, and IS 1617, making it ideal for accurate yarn count and strength evaluations. Designed with ceramic yarn guides and an adjustable tensioner, it minimizes friction for smooth winding. The collapsible swift simplifies sample removal, while safety components enhance operator protection. Its 10-skein capacity boosts productivity, and the compact, durable design ensures long-lasting, maintenance-free operation. This makes it an essential tool for both academic and industrial textile testing environments.
