Automatic Yarn Count Balance

Application

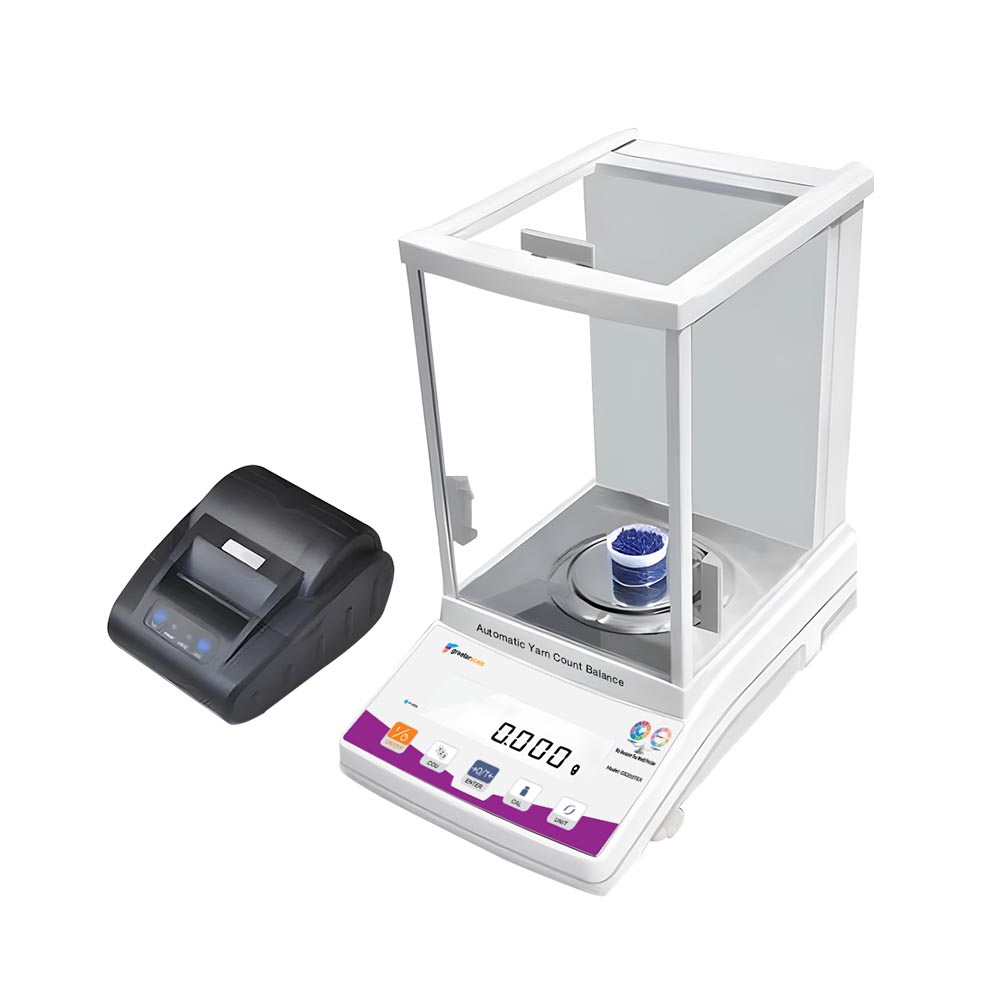

The Automatic Yarn Count Balance is composed of a precision electronic balance connected through RS232 bidirectional interface and a microcomputer. Automatically eliminate abnormal data, with power failure protection data function, capable of storing 100 pieces of data. The test data includes: test frequency N, weighing value Mass, number Tex (or common number Nm), average value AV, coefficient of variation CV% value, unevenness U%, maximum value Max, minimum value Min, total weight Sum, and test time

Features

Specially crafted precision cast aluminum casing, comprehensively enhancing the anti-static and anti-interference ability of the balance;

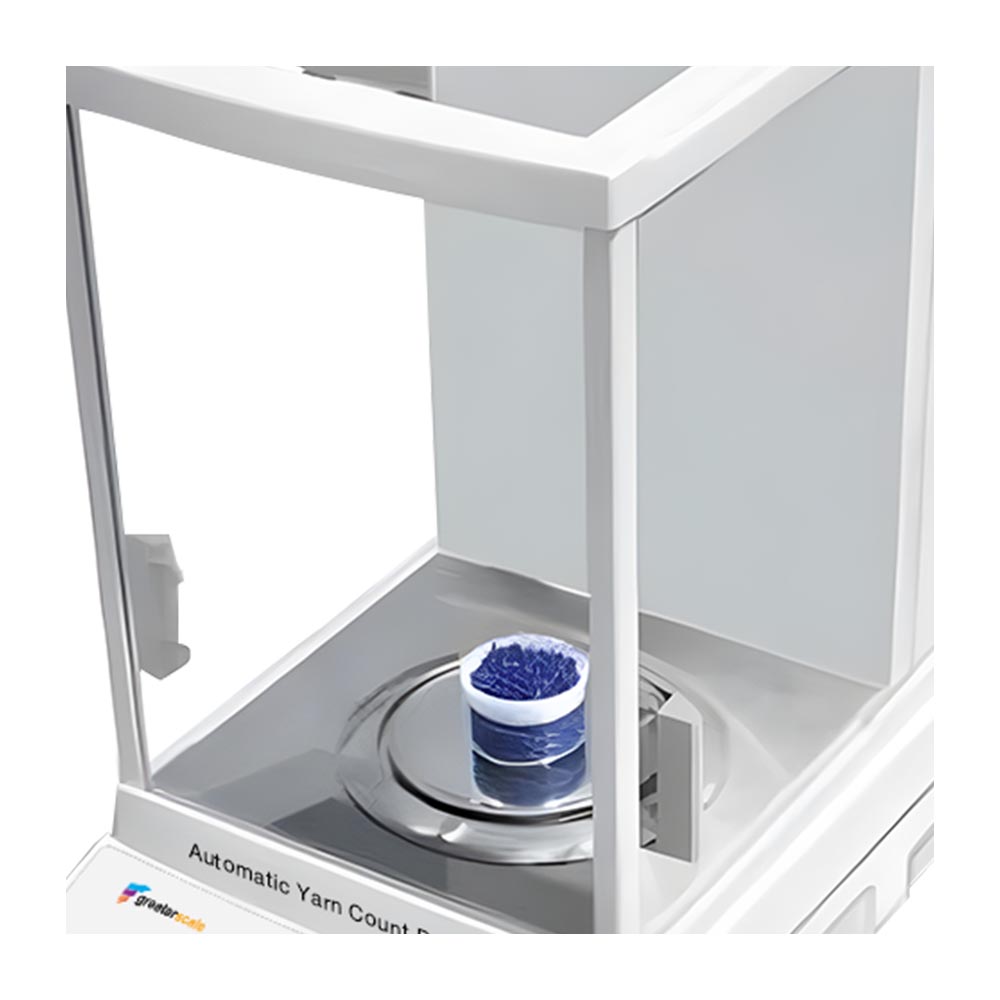

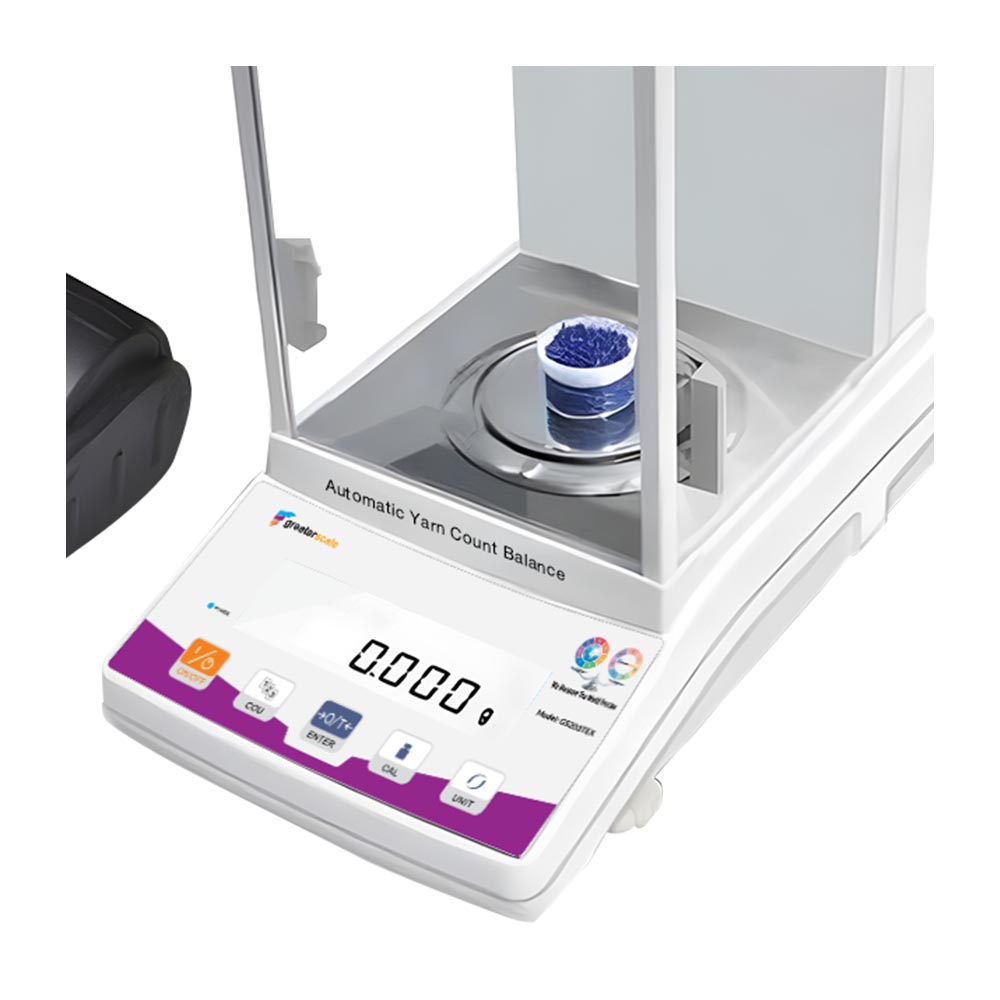

Five key operation, large LCD backlight display, human-machine dialogue interface, making the balance scale More convenient measurement operation; Three door glass windshield, large space glass sliding windshield Cover, visually transparent, easy to operate; Has seven textile unit conversions: ounces(OZ), Number (Tex), Number of Common Branches (Nm), Number of English Branches (Ne) Daniels (D), grams per square meter (g/m2), ounces per Square yard (oz/yd2); Can set time, date, yarn blending code, sample length, and can be automatically stored 100 data, can be deleted or tested at will; Printable statistics for each weighing Weight and maximum (Max), minimum (Min), average (AV) Uneven rate (CV); Suitable for testing various types of yarns, fibers, and fabrics

Technical Parameter

• Model – GS-203Tex
• Capacity – 210g
• Sensor – Load Cell
• Resolution (g) – 0.001
• Min Weighing (g) – 0.004
• Stable time – ≤ 3s
• Display – LCD (White back light with black font)
• Pan size – Φ90mm
• Operation temp – 5-25℃
• Repeatability – ±0.002g
• Liner – ±0.003g
• Draft shield size – 240mmx190mmx265mm
• weight – 200g
• Option – RS232C&RS485, Printer, Dual display, USB
• Packing size – Inside: 415x285x430mm
  Outside: 480*320*660mm
• G.weight – 7.5kg

Why Choose the Automatic Yarn Count Balance?

The Automatic Yarn Count Balance is essential for textile manufacturers and laboratories seeking accurate, fast, and reliable yarn analysis. Its precision load cell sensor ensures repeatability up to ±0.002 g, while the cast aluminum casing enhances anti-static and interference resistance. The large LCD backlit display with a human-machine interface simplifies operations, and the three-door sliding glass windshield ensures safe and convenient measurements. It supports seven textile units including Tex, Nm, Ne, and g/m², and provides comprehensive test statistics such as AV, CV%, Max, Min, and total weight. The balance can store 100 datasets, with power failure protection and RS232/RS485 connectivity for data transfer or printing. This makes it a reliable solution for high-precision yarn count and quality control.
