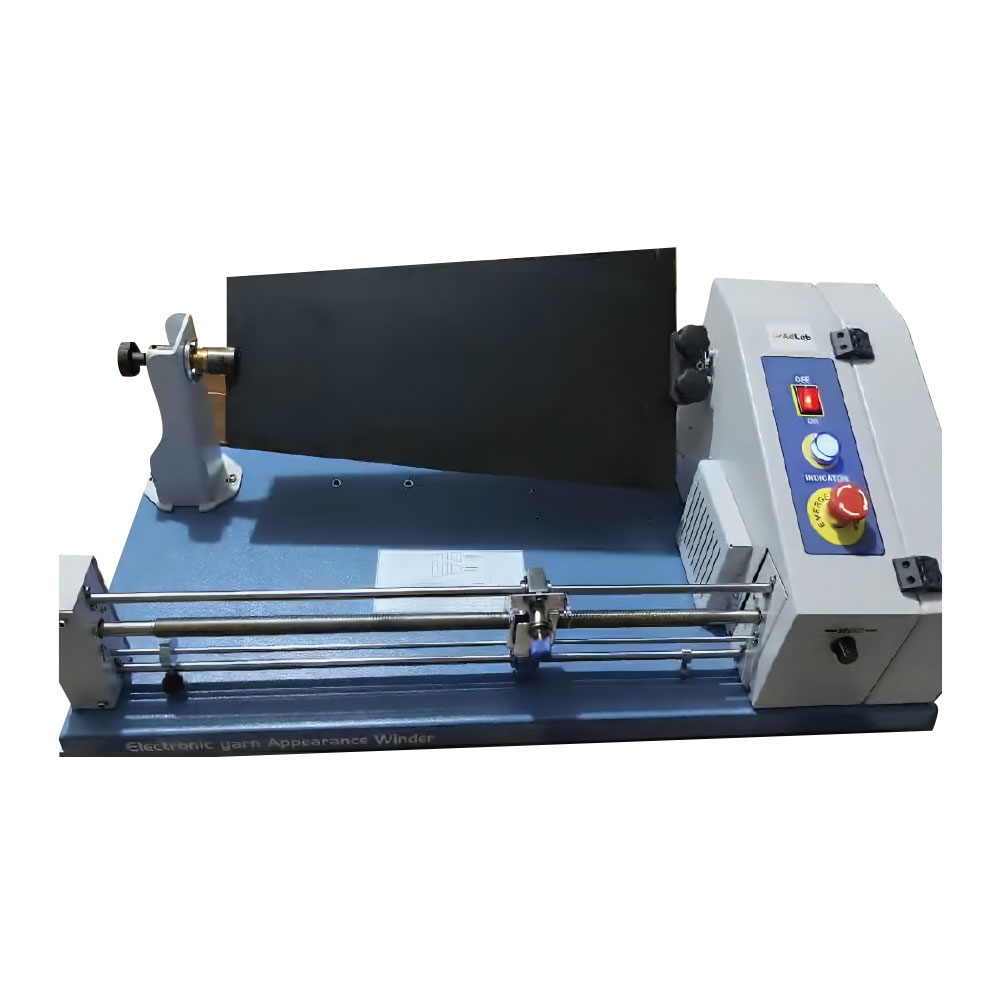

Yarn Appearance Board Winder

The Yarn Appearance Board Winder is a high-precision, motorized tabletop instrument designed for uniform and accurate yarn winding. Built with a rugged steel body, it ensures long-lasting durability and stable operation. The machine supports both rectangular and tapered black boards and features a stepped pulley mechanism with traversing motion for consistent yarn spacing. With variable winding speeds and pre-settable stoppers, it eliminates manual disturbances while achieving standards-compliant yarn winding. Suitable for fine to coarse yarn counts, this winder is ideal for textile laboratories, quality control departments, and production facilities requiring precise yarn presentation and sampling.

Features

• Ergonomically designed table top model having rugged steel body construction.
• Motorized and precision-engineered Mechanism for smooth and accurate Operation.
• Choices of wide range of rectangular and tapered winding black boards.
• Operating under stepped pulley mechanism with traversing motion ensures uniform winding in different pitch as per standards.
• Automatic wrapping in left directions with pre-settable stopper eliminates manual disturbances.
• Variable winding speed option for fine to course count of yarn.
• Yarn wrapped on the board can be 20, 22, 26, 32, 38 & 48 ends per inch.
• Specially designed yarn bobbin stands for precise sampling.

Technical Data

• Measuring range : 1’s to 135’s Count (NeC)
• Tapered board size : 305 x 280 x 178 mm (or) 22 x 11 x 7 inch
• Rectangular board size : 280 x 178 mm (or) 11 x 7 inch
• Standard Yarn Spacing : 20, 22, 26, 32, 38 & 48 ends per inch (or) 8, 9,10, 13, 15 & 19 Per Cm
• Power supply : Single phase 220vAC @ 50Hz
• Consumption : 50 watts
• Applicable Standard(s) : ASTM D2255 and IS 13260
• Physical Dimensions : Size (WDH): 72 x 55 x 42 cm
• Weight : 32 kg

Scope of Supply

• Main Unit – 1 No.
• Accessories: Yarn bobbin stand – 1 No., Transmission Belt – 1 No., Mains cord – 1 No.,
• Spares: Glass fuse (1A) – 3 Nos.
• 2 Nos of tapered and rectangular board each (black Board)
• Documents: User’s guide, Warranty certificate, Test certificate & Calibration certificate.

Why Choose the Yarn Appearance Board Winder?

The Yarn Appearance Board Winder delivers unmatched accuracy, efficiency, and consistency for yarn winding tasks. Its motorized, precision-engineered mechanism ensures smooth and uniform winding across both rectangular and tapered boards. Ergonomically designed for table-top use, it provides easy access and stable operation. The stepped pulley with traversing motion guarantees consistent yarn pitch, while the pre-settable stopper prevents manual disturbances during winding. Variable speed adjustment allows handling of fine to coarse yarn counts, covering 20–48 ends per inch. Constructed with a rugged steel body, it ensures durability and long service life. Compliant with ASTM D2255 and IS 13260, it is perfect for textile laboratories, quality control, and yarn sampling processes that demand precision, repeatability, and reliability.
