Scope of Application

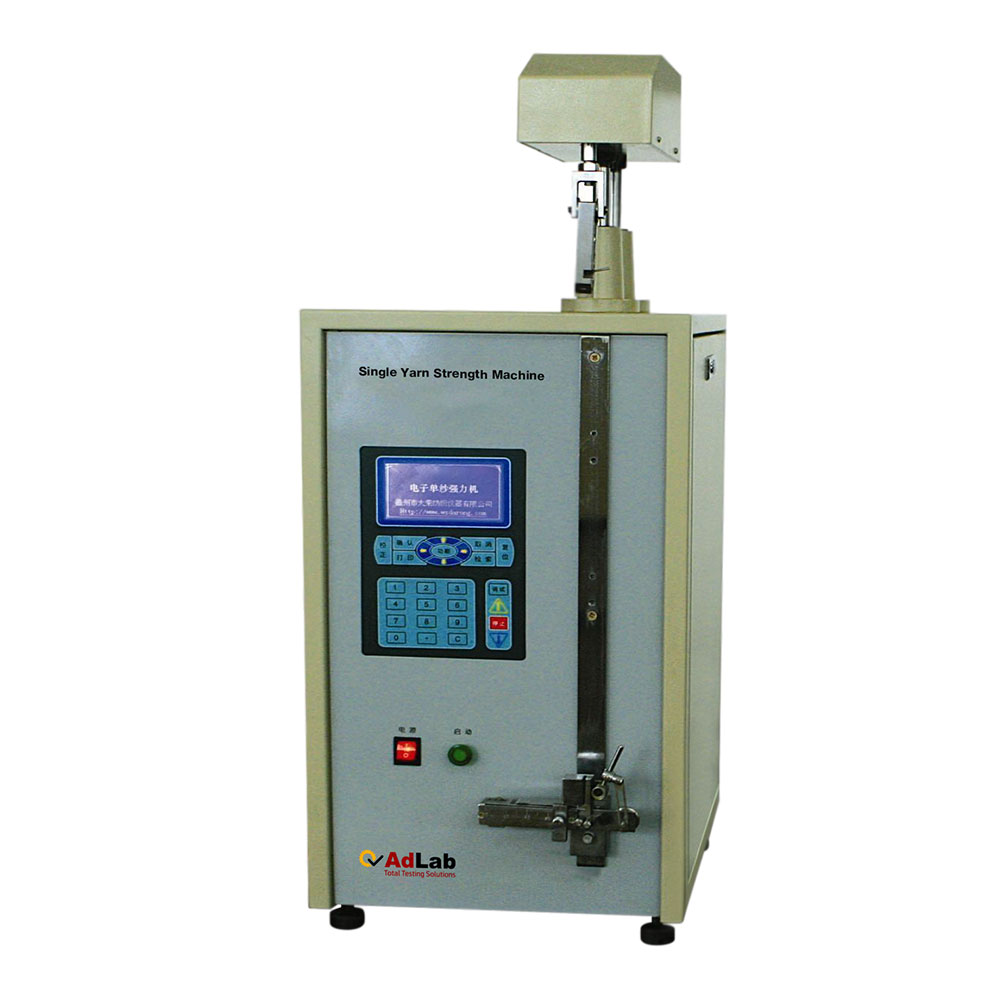

The Single Yarn Strength Machine is a specialized instrument designed for testing the breaking tenacity and elongation of single yarn. Specifically, this Single Yarn Strength Machine evaluates pure or blended yarns made of cotton, wool, linen, silk, chemical fiber, and core-spun yarn, ensuring accurate results for textile manufacturers. As a result, it helps maintain the quality and durability of yarn products.

Standards of the Yarn Strength Machine

This tester complies with international standards. Specifically, it meets GB/T14344 GB/T3916 ISO2062 ASTM D2256 etc.

Features

The Single Yarn Strength Machine offers advanced features for precise testing:

It operates on the principle of constant speed elongation (CRE), ensuring consistent and reliable results.
The machine features microcomputer control with an LCD display available in both Chinese and English.
Additionally, it supports a wide range of force measurements, from 1% to 100% of full scale, with options for 3000cN or 5000cN capacity.
It provides high test accuracy (≤0.2% F·S), making it ideal for professional textile labs.
The stretching speed is adjustable from 10 to 1000mm/min, offering flexibility for various testing needs.

Technical Parameters

Work Mode: Constant speed elongation (CRE), microcomputer control, LCD display in Chinese/English
Force Measurement Range: 1% to 100% of full scale
- ADL-3Kn: 3000cN
- ADL-5Kn: 5000cN
Test Accuracy: ≤0.2% F·S
Stretching Speed: 10~1000mm/min
Maximum Elongation: 400±0.1mm
Clamping Distance: 100mm, 250mm, 500mm
Pre-Tension: 0~150cN (adjustable)
Power Supply: AC220V ± 10%, 50Hz, 0.1Kw
Dimensions: 370mm x 530mm x 930mm (L x W x H)
Weight: 60kg

Why Choose the Single Yarn Strength Machine?

The Single Yarn Strength Machine is an essential tool for textile manufacturers aiming to ensure the quality of their yarn products. Since breaking tenacity and elongation directly impact the performance and durability of yarn in applications like weaving and knitting, this tester provides precise measurements to meet industry standards. For instance, it supports testing for various materials, including cotton, wool, linen, silk, chemical fiber, and core-spun yarn, ensuring versatility across different textile types. Moreover, its compliance with standards like ISO 2062 and ASTM D2256 guarantees reliable results. Consequently, manufacturers can improve yarn quality and reduce defects.
