Yarn Length Meter
Yarn Length Meter YS-20 offers contact and non-contact yarn measurement with digital display, memory function, and durable design for reliable textile testing.
- Measures yarn length, speed, and revolutions accurately
- Dual-mode contact and non-contact measurement system
- Built-in memory for min, max, and last readings

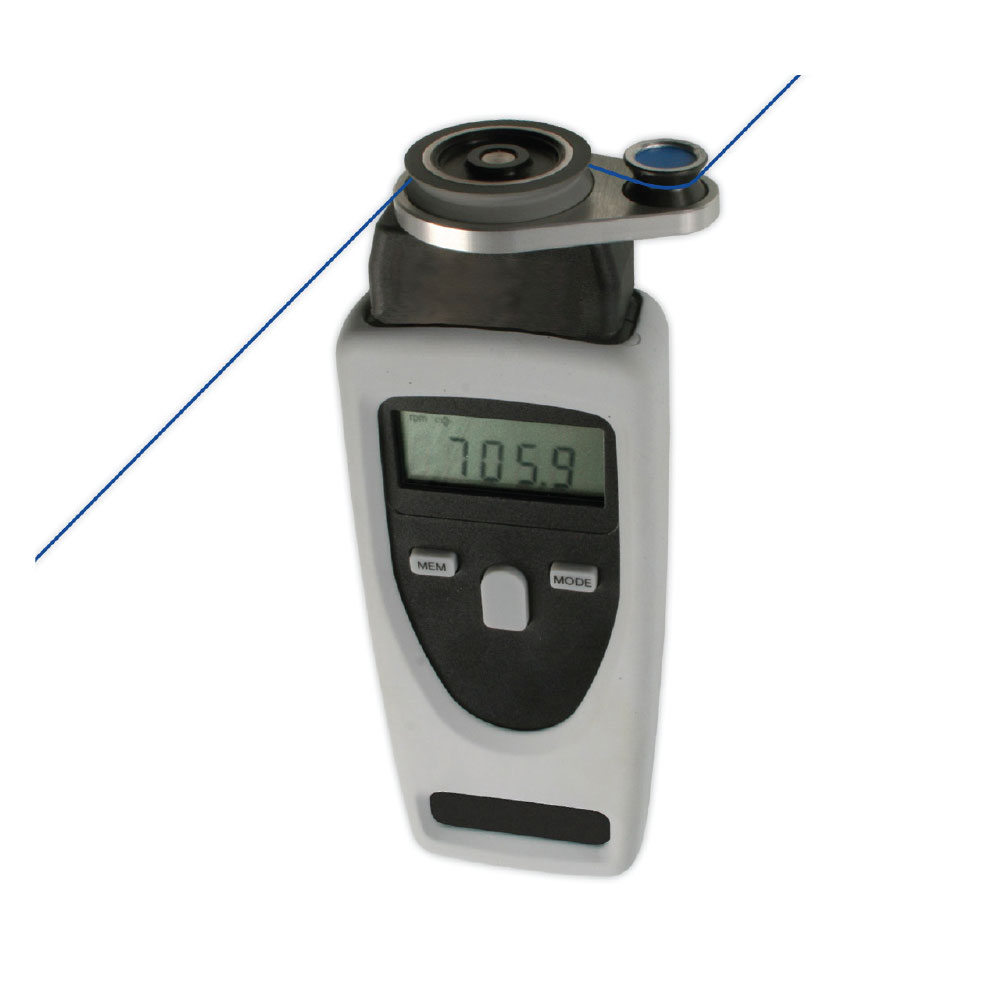

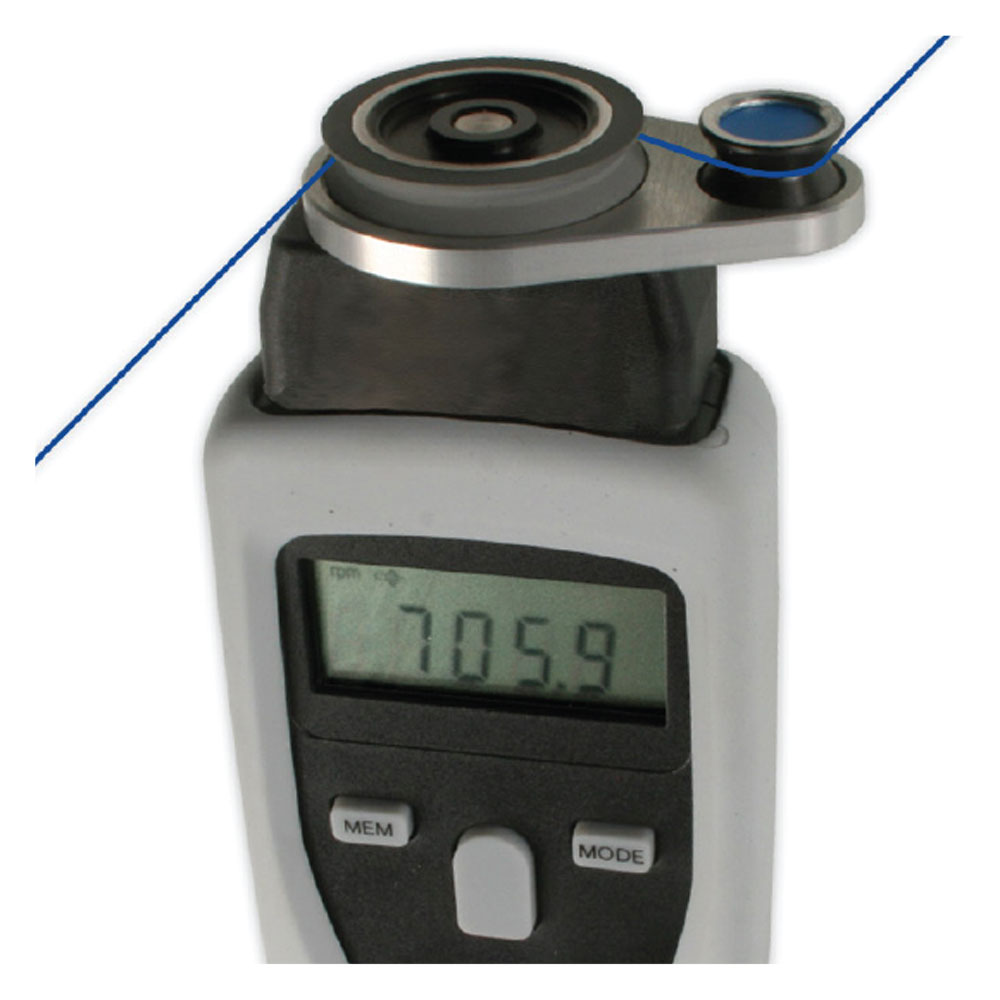

The Yarn Length Meter is a versatile and precise instrument designed to measure yarn length, speed, and revolutions with ease. It combines the function of four separate instruments—speed meter, length meter, contact revolution meter, and non-contact revolution meter—into one compact device. With two slide-in measuring adapters, users can effortlessly switch between contact and non-contact measurement modes. The large, easy-to-read display and built-in memory for minimum, maximum, and last values make the ideal for textile production monitoring and quality control.
Special Features
- The yarn speed and length meter YS-20 combines the function of four seperate instruments in one:
– Speed and length meter
– contact measuring of revolutions
– contact measuring of velocity of rotation
– non-contact measuring of revolutions
- 2 Slide-in measuring adapters for yarn speed and length meter YS-20 make it simple to convert from contact to non-contact or to speed and length measurement
- User-selected units
Linear Speed: meters/min, feet/min, inches/min
Length: meters, feet, inches
Revolutions: rpm
- Built-in memory for minimum, maximum and last values
Standard Features
- Easy to use
- Rugged plastic housing with rubber sheathing for firm and safe handling
- Easy to read display
Why Choose Yarn Length Meter
Choose the Yarn Length Meter for its unmatched versatility, precision, and ease of use in yarn testing and textile production. This advanced device offers multiple measurement functions, allowing operators to accurately track yarn length, linear speed, and revolutions in various units—meters, feet, or inches. Its dual-mode adapters enable smooth switching between contact and non-contact testing, ensuring flexibility for different applications. The rugged plastic housing with rubber sheathing guarantees durability and safe handling even in demanding industrial environments. The YS-20 also includes a memory function to store minimum, maximum, and last readings, helping users maintain consistent quality control and optimize machine performance efficiently.
