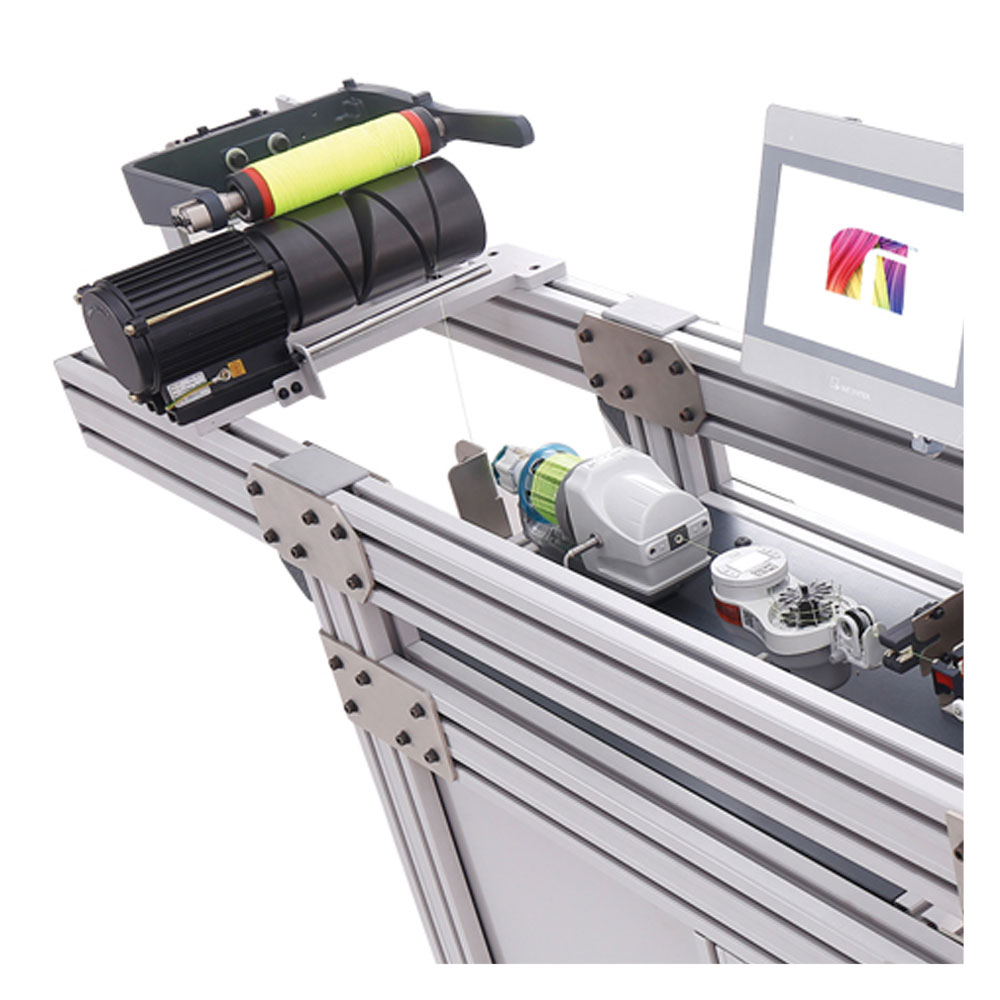

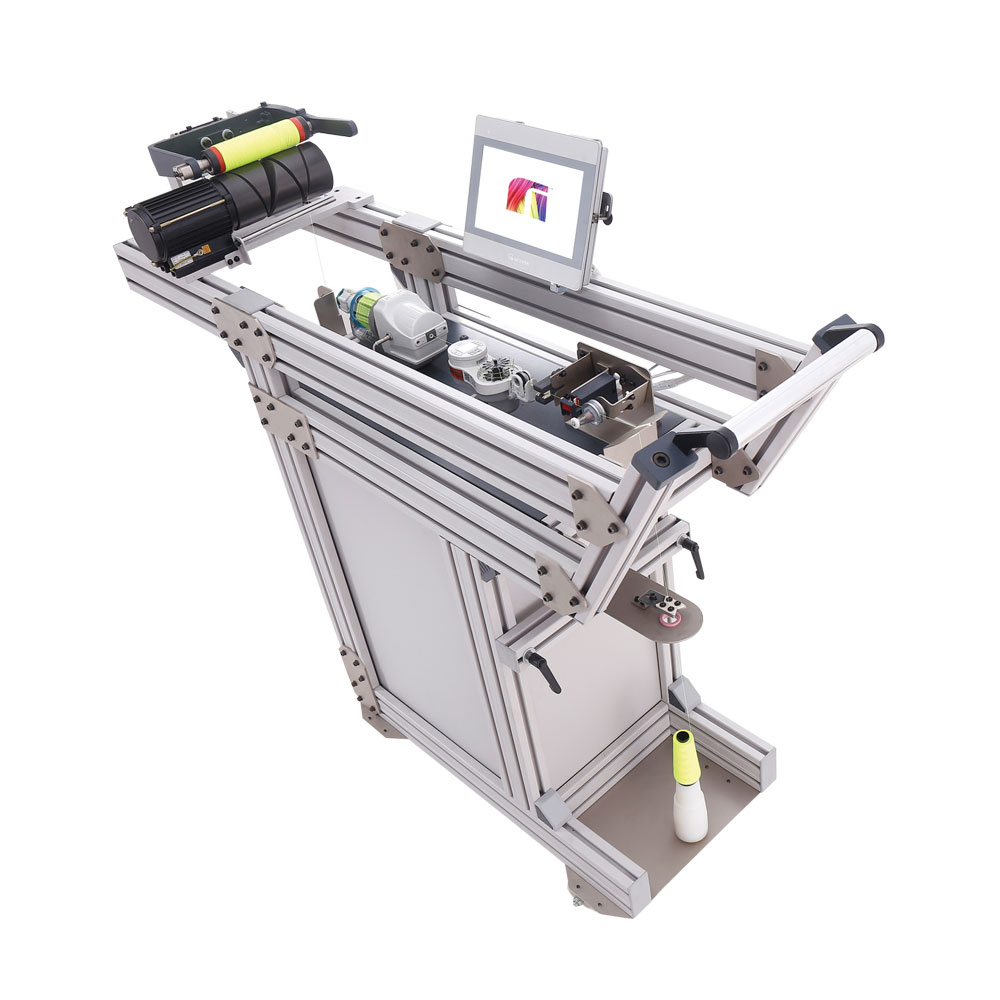

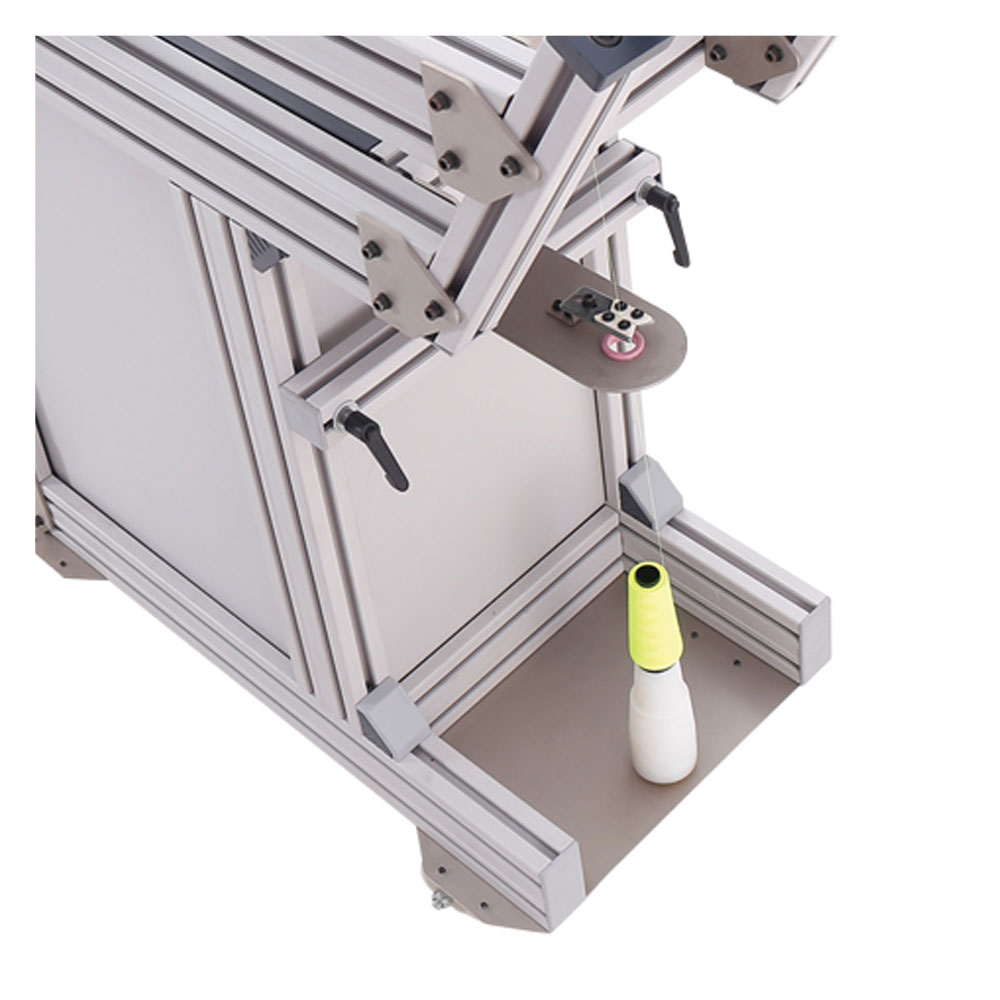

Sewing Thread Yarn Length Tester
Sewing Thread Yarn Length Tester provides accurate, non-destructive yarn measurement with WiFi, USB data collection, and high-speed operation up to 1000 m/min.
- Non-destructive yarn length testing up to 1000 m/min
- WiFi and USB data collection for easy operation
- Accuracy within 0.1% measuring fault
The Sewing Thread Yarn Length Tester is used to measure the yarn length precisely in winded tubes/cops/cones/bobbins in lab testing and in winding section. It is also used for calibrating length measuring system in winding machines.
Feature
- Remote access through WiFi
- Data collection through USB
- Cost saving, no waste of yarn, as the measurement is not-destructive
- Very reliable and precise
- Guaranteed maximum measuring fault 0.1%
Parameter
- Speed: Maximum yarn speed 1000 m/min
- Length: Maximum countable yarn length 99999.9 m or 999999 m
- Tension: Yarn tension range 0 – 40 cN
- Count: Yarn count range 16 – 100 tex
- Dimension (LxWxH): 85x55x105 cms
Why Choose Thread Yarn Length Tester
Choose the Sewing Thread Yarn Length Tester for its unmatched accuracy, efficiency, and user convenience. This advanced tester allows precise yarn length measurement without wasting material, offering a non-destructive testing process that saves both time and cost. Equipped with WiFi remote access and USB data collection, it ensures seamless data handling and easy integration with digital lab systems. The RLMS delivers superior accuracy with a maximum measuring fault of only 0.1%, making it a trusted choice for quality assurance and calibration in textile labs and winding departments. Its capability to handle yarn speeds up to 1000 m/min and tension ranges up to 40 cN ensures performance across various yarn types.
