Thread Tension Meter DX2-400
Availability: In Stock
Brand: Hans Schmidt
Model: DX2-400
Origin: Germany
- 20–400 cN tension range.
- 66 mm measuring head.
- ±1% full-scale accuracy.
- Rugged aluminum housing.
Introduction to the Thread Tension Meter
The Thread Tension Meter DX2-400 is a durable, handheld device designed for precise tension measurement within a 20–400 cN range. Equipped with a 41 mm analog display and a 66 mm measuring head, it ensures quick adjustments and reliable performance in textile and fiber applications. The DX2-400 is ideal for textile industries, optimizing tension settings in sewing, weaving, and winding processes. Its filament guide and roller mechanism suit a variety of materials, making it perfect for monitoring thread tension in production lines.
Key Features of the Thread Tension Meter
- Clear Display: The Thread Tension Meter features a 41 mm scale for fast tension readings.
- User-Friendly Design: Includes a roller shifting mechanism and finger support for easy operation.
- High Accuracy: Individually calibrated with ±1% full-scale accuracy.
- Rugged Build: Housed in aluminum for durability and long-term use.
Specifications
- Tension Ranges: 20–400 cN
- Measuring Head Width: 66 mm
- Calibration: SCHMIDT factory procedure
- Accuracy: ±1% full scale or ±1 graduation on scale
- Scale Diameter: 41 mm
- Temperature Range: 10–45°C
- Air Humidity: 85% RH, max.
Why Choose the Thread Tension Meter DX2-400?
The Thread Tension Meter offers precision and reliability with its robust aluminum housing and individually calibrated rollers. Its ergonomic design and CE compliance make it a top choice for textile professionals needing accurate tension control across a wide range of materials.
Related products

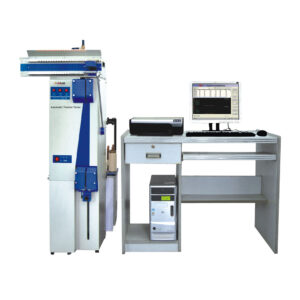

Automatic Single Yarn Strength Tester
