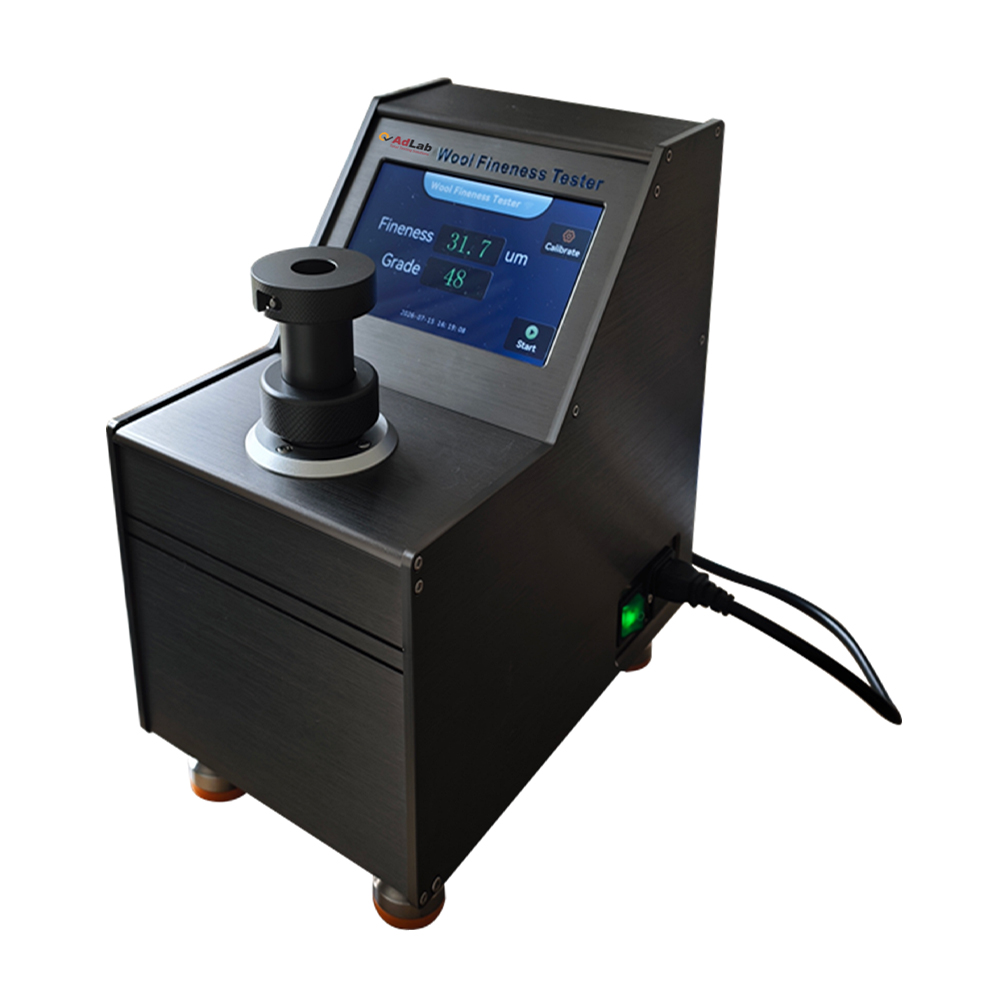

Wool Fineness Tester (Touch Screen)
Touch-screen Wool Fineness Tester delivers fast, accurate airflow-based wool fiber fineness measurement with convenient WiFi data transfer.
- Measures wool fineness from 12–50 μm with 0.1 μm accuracy

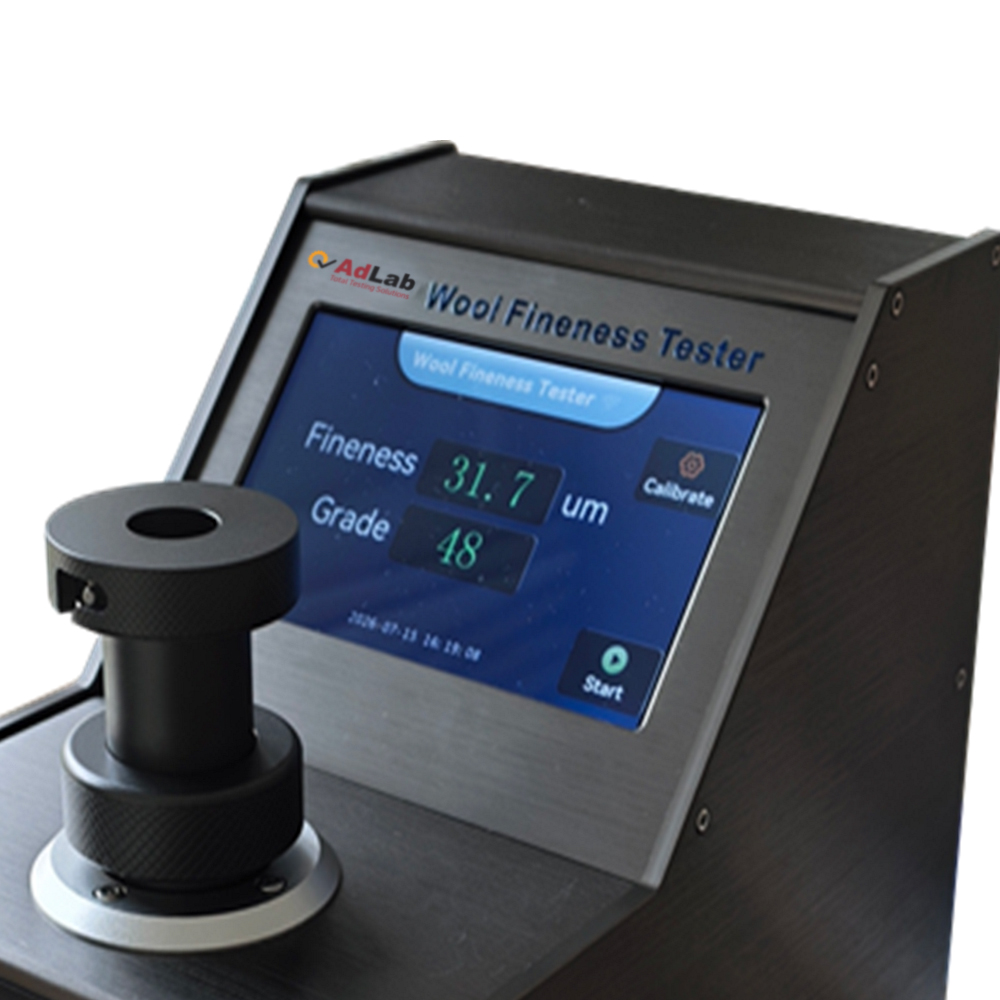

- 25-second average test time with one-click touch-screen operation
- Supports WiFi data transfer and Excel result storage
Introduction
The Wool Fineness Tester (Touch Screen) provides a fast and precise way to measure wool fiber fineness using airflow technology. Its intuitive touch-screen operation allows users to start testing with one click and obtain accurate fineness readings without manual calculations. With an average test time of just 25 seconds and measurement accuracy of 0.1 μm, it supports efficient quality control in laboratories, wool purchasing, production, and textile manufacturing. The tester also connects to a PC via WiFi, allowing users to transfer test results and save data in Excel format.
Wool Fineness Tester (Touch Screen)
The Wool Fineness Tester (Touch Screen) is an airflow-based tester for measuring wool fineness. Place wool specimens into the test chamber and start a one-click test to obtain wool fineness readings without manual calculation. It delivers fast testing and high measurement precision. Test results can be wirelessly transmitted to a computer and saved as Excel files.
Testing Standard
GB/T11603-2022, ISO1136, BS3183, ASTM D1282
Specification
- Measuring range: 12~50um
- Measuring accuracy: 0.1um (standard lab environment)
- Test time: 25 seconds on average
- Sample mass: 2.5 ± 0.004g
- Power requirements: AC 100-240V, 50/60Hz
- PC communication: WiFi connection
- Operation Temp & RH: 10°C to 35°C.80% maximum (non-condensing)
- Size (W×D×H): 21cm×32cm×32cm
- Weight: 20kg Appx.
Application
- Quality control in fabric and garment manufacturing
- Wool purchase inspection
- Wool production and trade
Standard Accessories
- Main Test Unit
- Standard calibration wool, 8 packs, 2.5 g per pack
- WFT software for PC
Why Choose the Wool Fineness Tester?
- Fast Testing: Complete a wool fineness test in approximately 25 seconds, helping laboratories improve testing efficiency.
- High Measurement Precision: Measure wool fineness across a 12–50 μm range with accuracy up to 0.1 μm under standard laboratory conditions.
- One-Click Operation: The touch-screen interface simplifies testing and eliminates the need for manual calculations.
- Reliable Standards: Supports GB/T 11603-2022, ISO 1136, BS 3183, and ASTM D1282 testing standards.
- Easy Data Management: Transfer test results wirelessly to a computer through WiFi and save testing records as Excel files.
- Practical Design: Its compact 21 × 32 × 32 cm structure saves valuable laboratory space while maintaining professional testing performance.
- Wide Applications: Ideal for textile laboratories, wool purchasing inspection, wool production, trading, and quality-control applications.
