Hand Press Hydraulic GSM Cutter
ADL-100cm² Hydraulic GSM Cutter delivers clean, accurate 100 cm² swatch cuts for textiles, leather, paper, and plastic with ergonomic and safe operation.
- Hydraulic operation for consistent, precise 100 cm² cuts
- Round blade knife reduces fraying and distortion
- Suitable for textiles, leather, paper, plastic, and composite materials
Hand Press Hydraulic GSM Cutter ADL-100cm² — Specimen diameter 113mm/100cm² — For European Fabric Yield System
Description

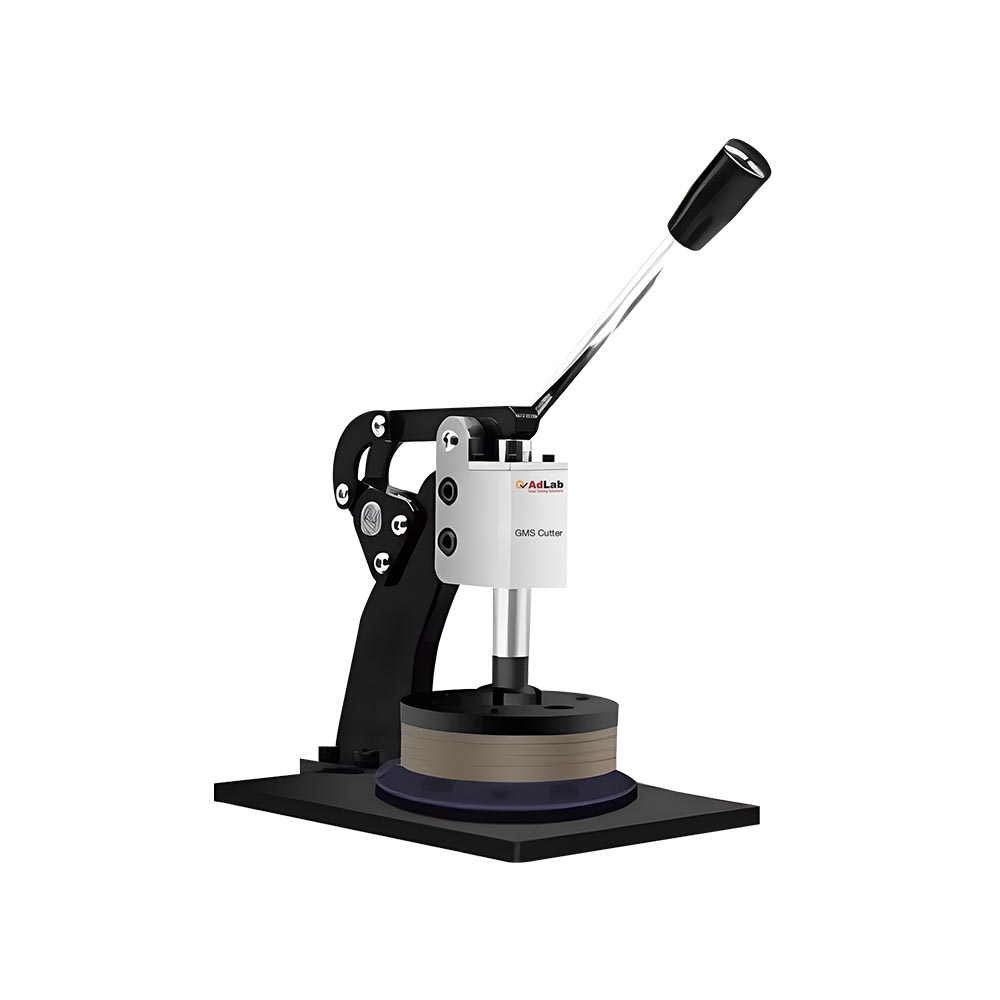

The ADL-100cm² Hydraulic GSM Cutter features stainless steel construction and a manual hand press for precise fabric swatch cutting. It handles sample diameters of 112.84 mm and thicknesses from 0.1 mm to 10 mm. Its cutting area measures 100 cm², and the outer dimensions are 34 × 34 × 24 cm. The cutter suits a variety of materials, including textiles, leather, film, carpet, plastic, paper, carbon composites, and poly-foam boards.
“GSM” stands for grams per square meter, reflecting the cutter’s ability to measure and cut materials based on weight per unit area.
Key Features and Functionalities
- Hydraulic Operation: The cutter uses hydraulic power to deliver consistent cutting force, ensuring clean and precise cuts.
- Round Blade Knife: Its round blade knife minimizes fraying or distortion and works on fabrics, leather, paper, and plastic.
- High Accuracy: The hydraulic mechanism and blade ensure precise cutting to specific dimensions or shapes.
- Versatility: The ADL-100cm² handles a wide range of materials, making it suitable for garment manufacturing, upholstery, automotive, and crafts.
- Ease of Use: Intuitive controls and ergonomic design enhance operator comfort and productivity.
- Safety Features: Built-in safety mechanisms protect the operator during cutting.
Overall, the ADL-100cm² Hydraulic GSM Cutter provides reliable and efficient cutting for industries that require precise material preparation. Its combination of hydraulic operation and round blade knife ensures accuracy for various applications.
Optional Requirements
- ADL-10cm² Circular Sample Cutter: Specimen diameter 36 mm / 10 cm² — For European Fabric Yield System
- ADL-12cm² Circular Sample Cutter: Specimen diameter 38 mm / 12 cm² — For Martindale Abrasion and Pilling Tester
- ADL-140cm² Circular Sample Cutter: Specimen diameter 140 mm / 154 cm² — For Martindale Abrasion and Pilling Tester
Why Choose Hand Press Hydraulic GSM Cutter?
The ADL-100cm² Hand Press Hydraulic GSM Cutter stands out for its precision, durability, and versatility. The hydraulic hand press delivers consistent force, ensuring clean and accurate cuts every time. Its round blade knife minimizes fraying, distortion, or damage to delicate materials, making it ideal for a wide range of applications including textiles, leather, paper, plastics, and composite boards. The cutter accommodates thicknesses from 0.1 mm to 10 mm and handles various material types, offering unmatched flexibility. Its ergonomic design and intuitive controls enhance operator comfort and productivity, while built-in safety features ensure secure operation. Suitable for garment manufacturing, upholstery, automotive, and laboratory testing, the ADL-100cm² combines efficiency, reliability, and long-lasting performance for precise GSM determination.
