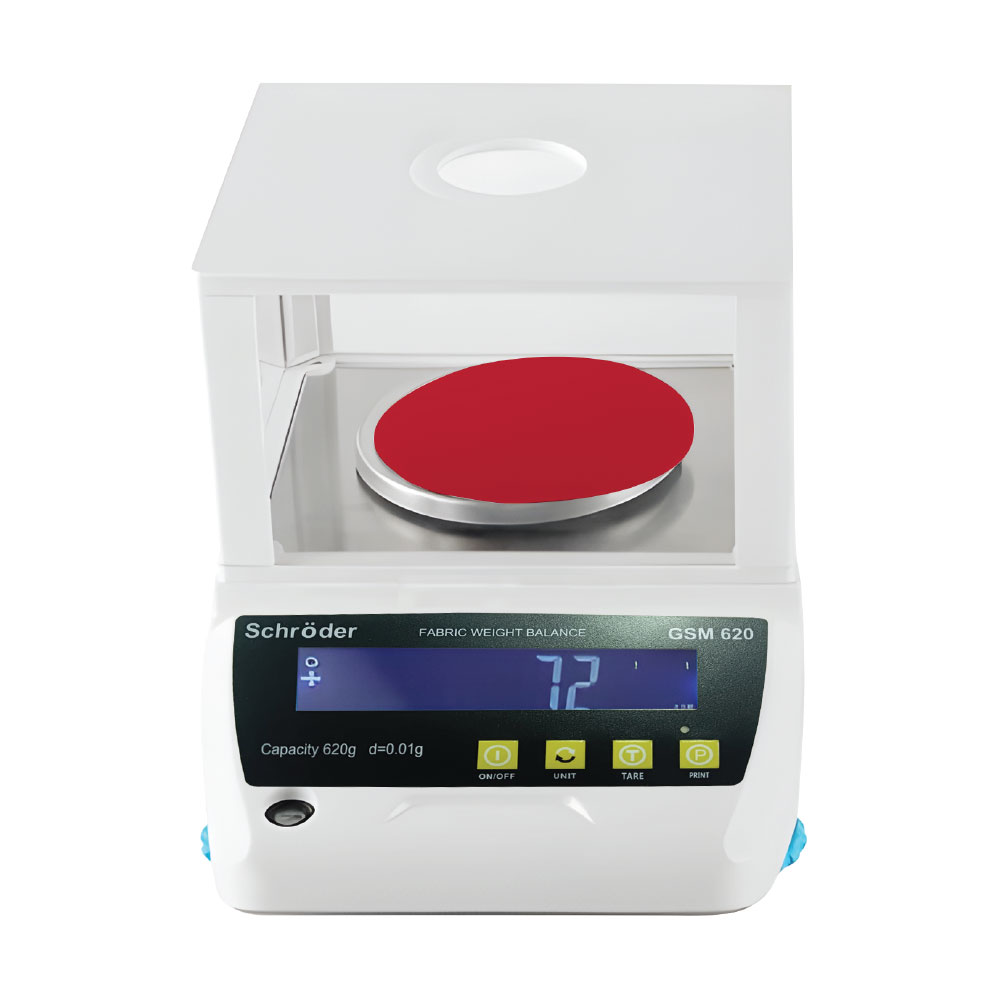

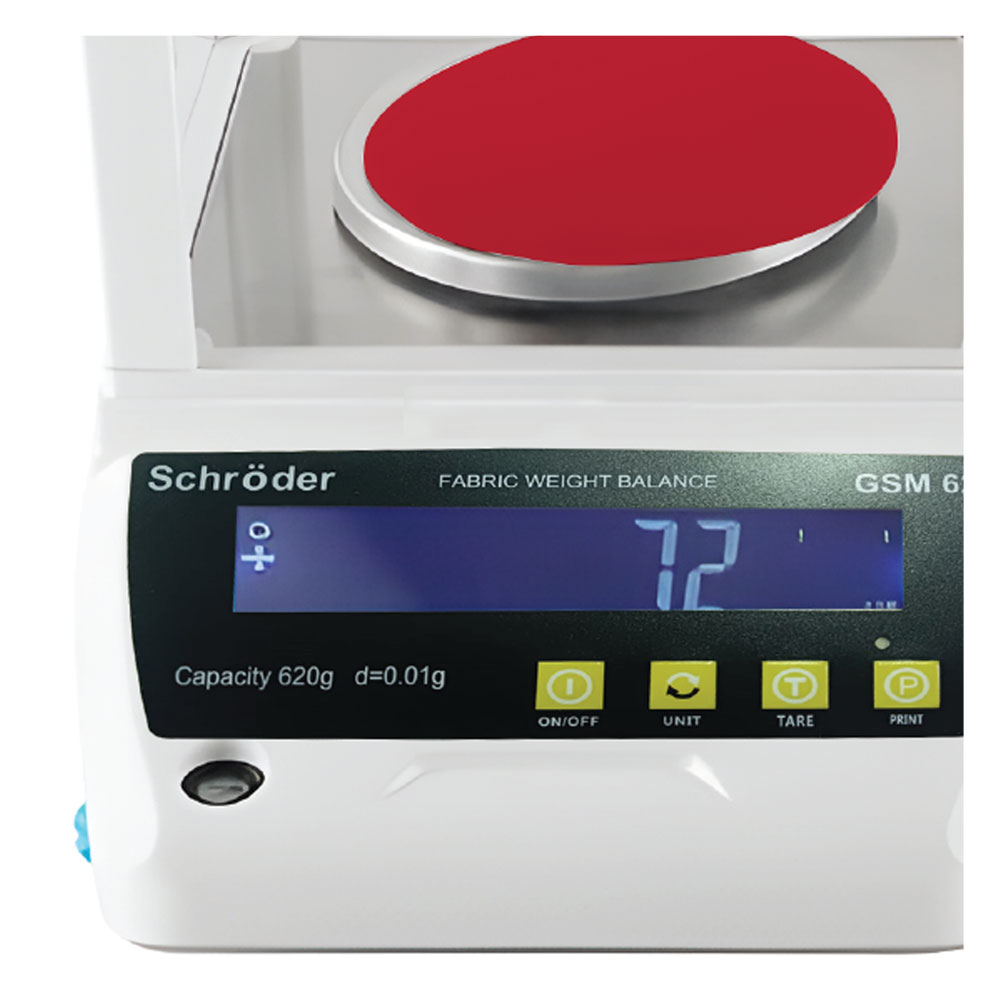

Schröder GSM Balance

The Schröder GSM Fabric Weight Balance is a precision instrument designed for accurately determining the “per unit area” weight of textile fabrics, including knitted and woven materials. Compatible with GSM-100, it allows textile manufacturers to quickly calculate material costs and ensure consistent quality. The balance offers high accuracy, fast response, and versatile unit conversion, including g/m² and oz/yd². Equipped with a stainless steel pan, LCD backlit display, and dual power options, it combines reliability, durability, and ease of use for quality control and laboratory testing in textile production.

Fabric Weight Balance

Schröder Fabric Weight Balance – work with GSM-100 helps to simply and economically determine “per unit are” of textile knitting and woven fabric and calculate the material costs. It can switch from different unit such as g/m2 to oz/yd2

Features

• High Accuracy and Reasonable Price
• LCD display with backlight
• Stainless Steel Round Pan
• Two Power Source: AC adaptor or Batteries

Specifications

• Draft Shield- With Plastic Draft Shield
• Capacity- 620g
• Resolution-0.01g
• Repeatability- ± 0.02g
• Linearity Error- ± 0.02 g
• Response Time- ≤ 2 sec
• Calibration- Calibration with External Weight
• Weighing Units- g, ct, lb, PCS, GSM
• Construction- Cast aluminum, static resistant ABS, stainless steel pan

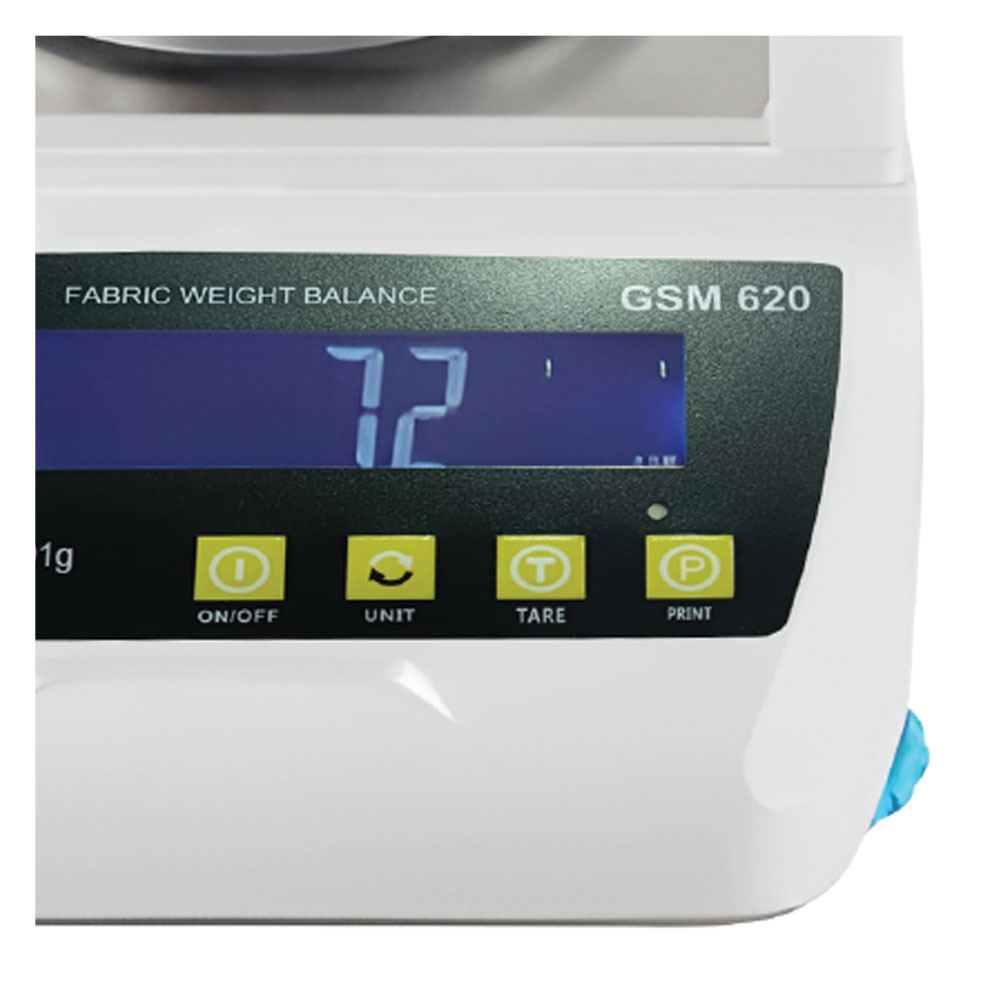

• Display- Large, easy to read LCD display with backlight
• Pan Size- Round Pan (115mm)
• Body dim. – 304x 204 x 300 mm
• Battery- Rechargeable battery 7V
• Power- 110v – 240v, 50HZ / 60HZ
• Operational Temp. – 10°C to 40°C
• Connectivity- Configurable RS 232 interface

Why Choose Schröder GSM Balance?

The Schröder GSM Fabric Weight Balance provides an economical yet highly precise solution for textile weight measurement. Its large stainless steel pan and static-resistant ABS construction ensure durability and consistent performance under daily lab or production use. With fast response time, repeatable accuracy (±0.02 g), and multiple weighing units (g, ct, lb, PCS, GSM), it offers versatility for different textile types. The large backlit LCD display makes readings easy, even in low-light conditions, while the dual power option (AC adaptor or rechargeable battery) enhances portability and convenience. Configurable RS-232 connectivity allows easy data transfer, simplifying record-keeping and process monitoring. This balance is an ideal choice for manufacturers and labs focused on cost calculation, quality control, and reliable textile testing.
