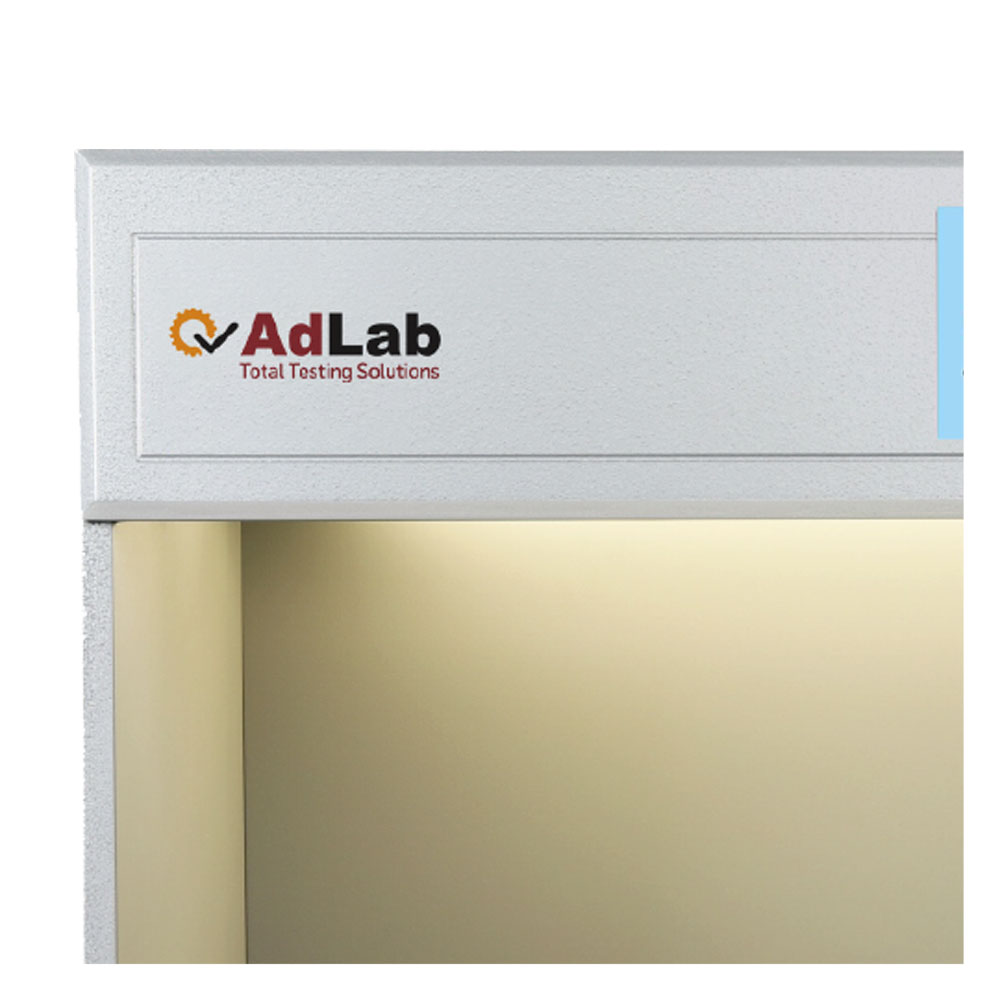

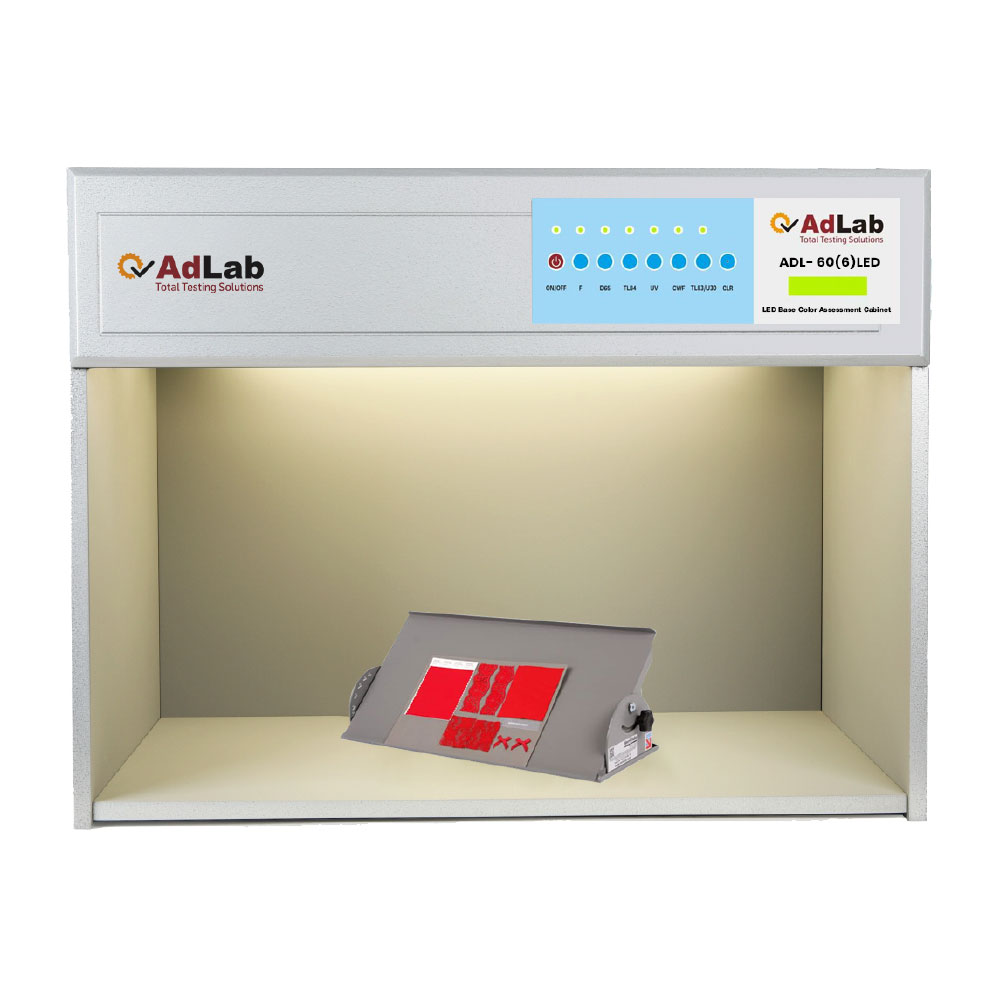

LED Base Color Assessment Cabinet

The LED Base Color Assessment Cabinet provides accurate and consistent color evaluation for various industries. It features six LED light sources, including D65 and UV, allowing users to assess metamerism, fluorescence, dyes, and coatings reliably. Its instant-start, flicker-free performance and low energy consumption make it efficient and user-friendly for quality control environments. With a compact design, stable illumination, and long-lasting LEDs, this cabinet delivers dependable results for textiles, plastics, ceramics, printing, and product inspection.

Product Features

• Displays the usage time and total time of each light source.
• Automatically switches light sources, supporting metamerism evaluation.
• Offers fast, reliable color assessment without preheating or flicker.
• Consumes little energy, produces no heat, and maintains high luminous efficiency.
• Compact, easy to use, and cost-effective.
• LED tubes provide higher energy efficiency and longer life than fluorescent lamps.

ADL- 60(6) LED color light box, adding ultraviolet light wave part has a detection effect close to natural daylight. It can be used independently or together with other light sources to detect fluorescent brighteners on products, dyes and coatings more effectively

It also has the advantage of multi-light source switching, which can easily detect whether there is metamerism between samples (this phenomenon means that the color of the sample matches under a certain light source, but it does not match when switched to another light source).

Product Parameters

• Allocation – D65, TL83, TL84, UL35, F, UV, 6 types of LED light sources
• Weight – 27kg

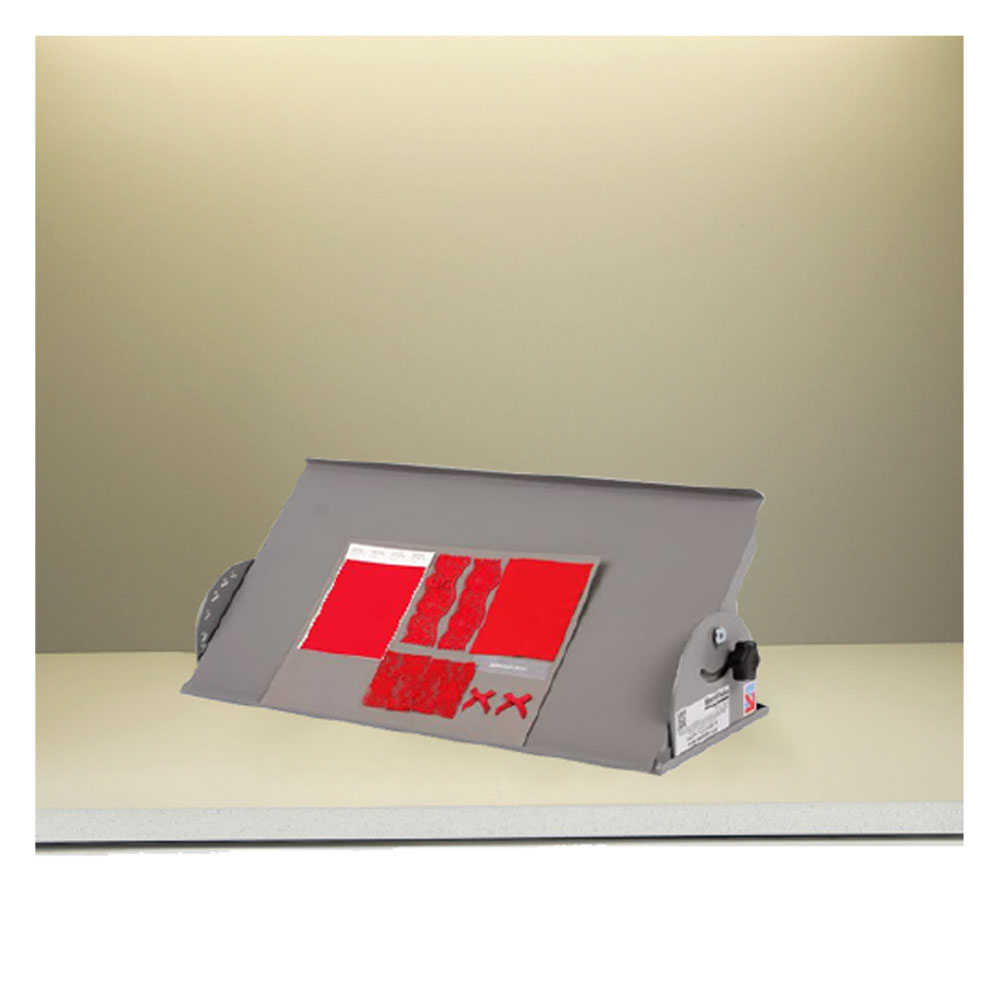

• Optional Accessory – 45-degree standard stand

Light source description

D65 International standard Artificial Daylight

TL84 Applied to stores in Europe, Japan and China

UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments

F “Sun-setting Light Yellow” incandescent light source (imitation of sunset)

Application Industry

The scope of application of T60 (4) four-light source standard light source box: textile, toys, printing and dyeing, plastics, paint, ink, printing, pigments, chemical ceramics, footwear, leather, hardware, food, cosmetics and other color management fields, It is used to accurately check the color deviation of the goods.

Size

Internal dimensions: 710*412*545 mm (Length * Width * Height)

External dimensions: 680*388*360 mm (Length * Width * Height)

Why Choose This LED Color Assessment Cabinet?

This LED Base Color Assessment Cabinet offers superior reliability, accuracy, and durability—ideal for laboratories and production settings requiring precise color matching. Unlike traditional fluorescent light boxes, it uses advanced LED tubes that provide higher luminous efficiency, lower heat, and significantly longer service life. The cabinet features automatic light-source switching, metamerism evaluation, and UV detection, enabling users to identify color inconsistencies under multiple lighting conditions. With real-time usage tracking for each light source, users can maintain consistent testing standards and replacement schedules. Its compact size, fast startup, and stable, flicker-free illumination make it convenient for daily quality control tasks. Whether testing fabrics, coatings, plastics, or ceramics, this system ensures accurate and repeatable color judgments.
