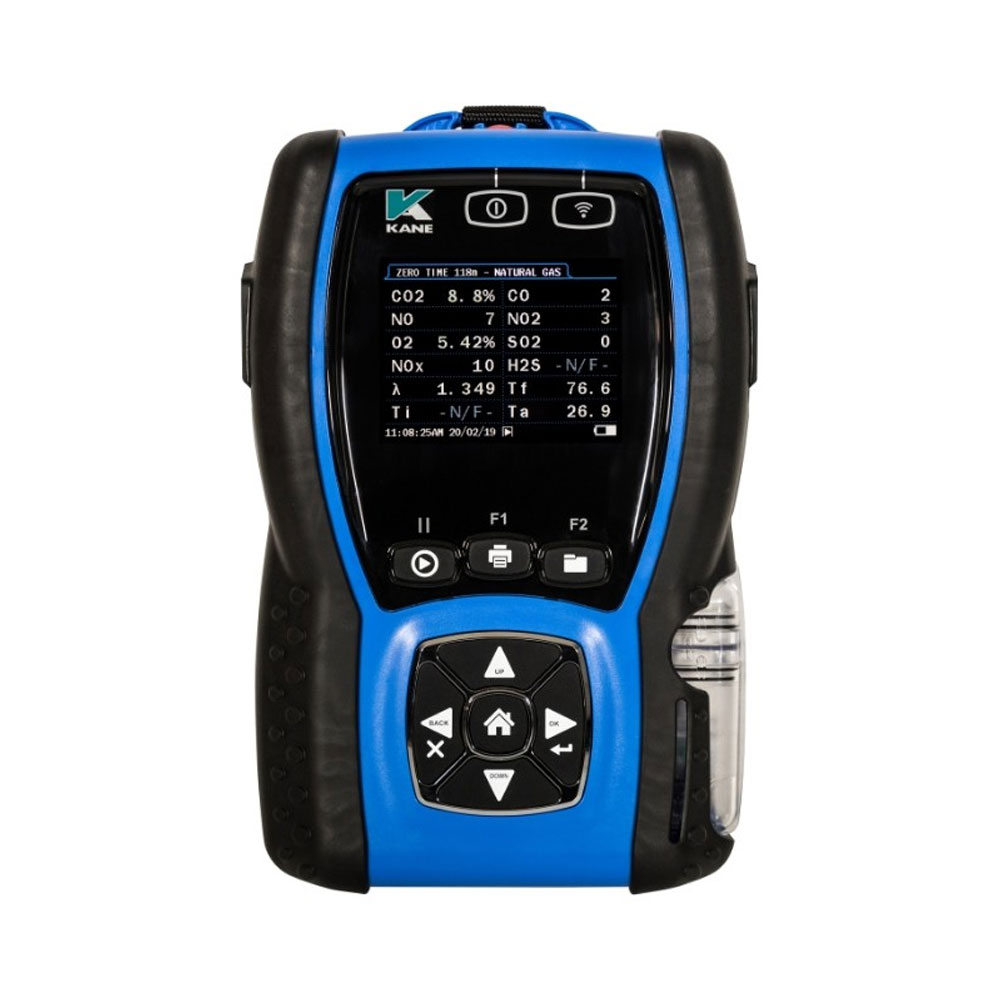

Industrial Flue Gas Analyzer

The Industrial Flue Gas Analyzer is a robust, high-performance instrument designed for accurate combustion analysis in industrial and commercial environments. It measures key parameters such as O₂, CO, temperature, and differential pressure while calculating CO₂, excess air, NOx (optional), and combustion efficiency. Built with a high-suction double-headed pump, long-life rechargeable battery, and large onboard storage, it ensures reliable results even under demanding stack conditions. Ideal for oil, gas, biomass, and solid fuel systems, this analyzer provides precise data for commissioning, servicing, and safety inspections.

Features

• Low energy wireless module
• Infra-red printer link with customized printer header
• Logs & stores up to 8000 test results for easy transfer to Android
• Long life battery recharged in situ
• High suction double headed pump, ideal for high stack pressure in large chimneys
• Supplied with Teflon lined flue probe
• Heavy Duty Backpack

Application

• Installation, commissioning & servicing of industrial/commercial oil, gas or biomass appliances
• Safety checks
  • CO in a room or around an appliance
• Combustion performance checks
• Combustion efficiency checks
• Flue Draught

Measures

• O₂0-21%
• CO 0-10,000ppm (hydrogen compensated)
• Differential pressure
• Temperature – inlet / flue gas / differential / ambient

Calculates

• CO₂– 0-99%
• CO/CO₂ratio
• Excess air
  • NOx (if NO sensor fitted)
• Combustion efficiency

Fuel Types

• Natural Gas (x2)
• Wood Pellets
• Kinsale Gas
• Heavy oil
• LPG
• Coal
• Town Gas
• Bio Gas
• Gascor
• Propane
• User fuel (x5)
• Anthracite
• LPG
• Butane
• Coke
• 28 sec oil

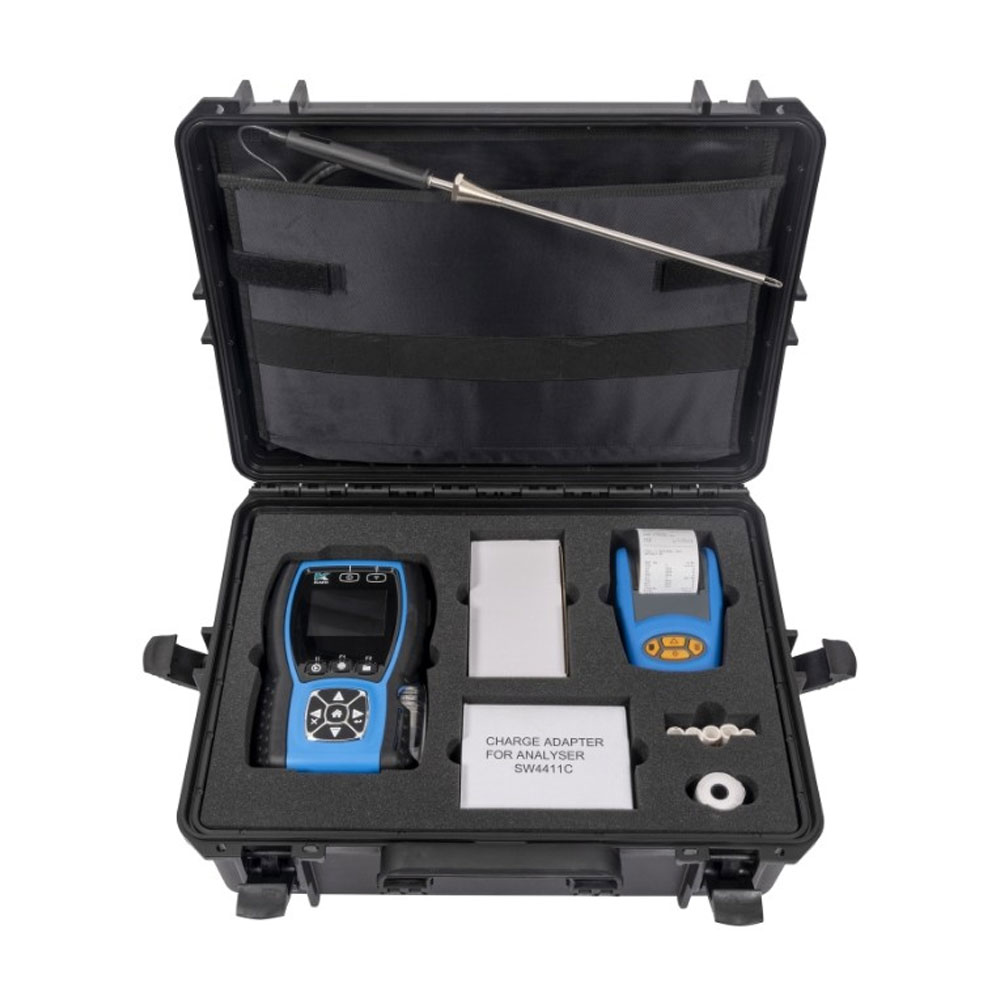

Box Contents

• Analyzer
• Probe
• Pressure connectors
• Charger
• Quick reference guide

Why Choose This Industrial Flue Gas Analyzer?

This Industrial Flue Gas Analyzer stands out for its power, durability, and professional-grade accuracy. The high-suction double-headed pump delivers excellent performance in large chimneys with strong stack pressures, ensuring fast and reliable sampling. Its low-energy wireless module enables seamless data transfer, and the internal memory stores up to 8,000 test results, making reporting and record-keeping effortless. The unit includes a Teflon-lined probe for enhanced chemical resistance and extended service life. A long-lasting rechargeable battery allows uninterrupted field use, while the rugged backpack enhances portability for technicians working in harsh environments. With support for multiple fuel types and advanced calculations like CO/CO₂ ratio, combustion efficiency, and optional NOx, it is the perfect all-in-one tool for professional combustion analysis.
