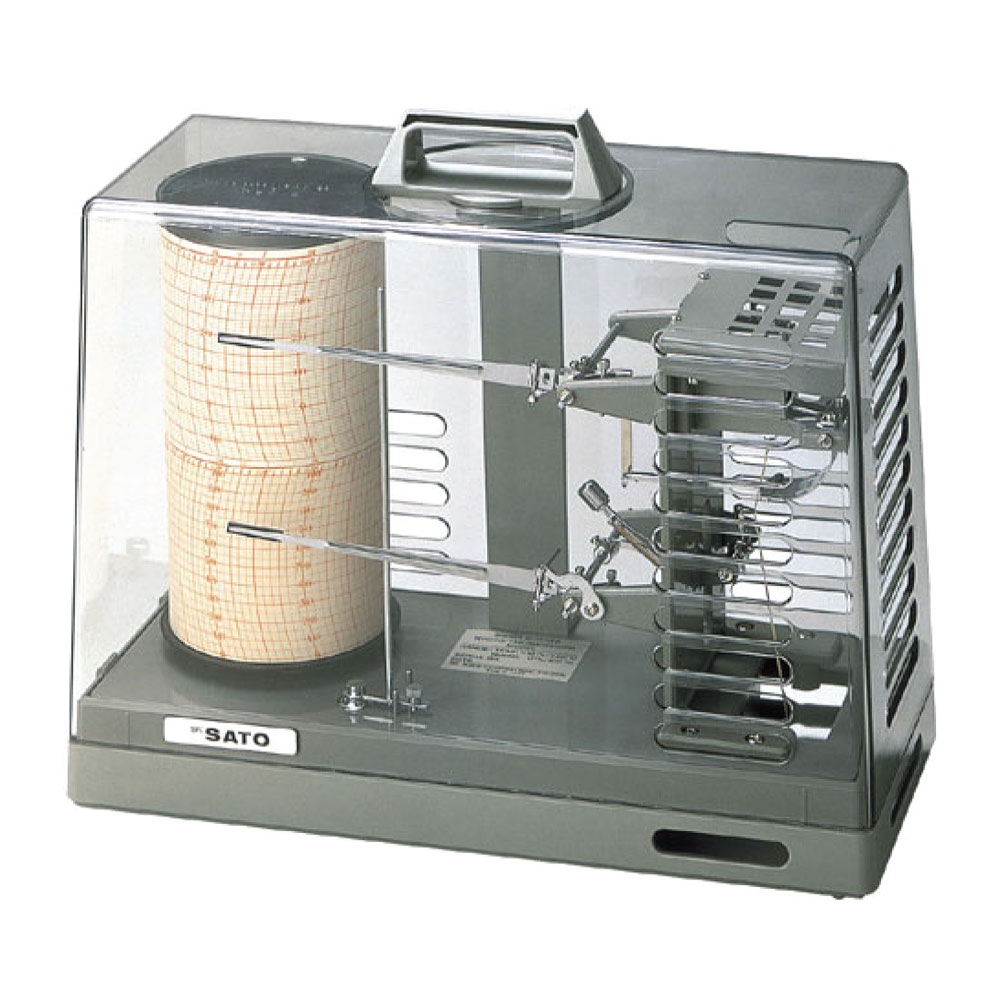

Thermo Hygrograph Meter

The Thermo Hygrograph Meter is a reliable and precise instrument for continuous monitoring and recording of temperature and humidity. Designed for laboratories, storage areas, and quality-controlled environments, it provides accurate readings over a wide range of conditions. Featuring a quartz clock with selectable recording cycles of 1, 7, or 32 days, it ensures consistent data logging. The device uses an aged bimetallic strip for temperature measurement and a human-hair sensor for humidity, offering high accuracy and stability. Compact and durable, the Thermo Hygrograph Meter is ideal for long-term environmental monitoring and ensures reliable documentation of critical conditions.

Specification

• Measuring range: –15 to 40°C for temperature, 0 to 100% for relative humidity
• Clock: Quartz type:
  1 day, 7 day and 32 days by change-over switch
  Battery: “C” size battery x 2
  Battery life: 1 year for continuous use

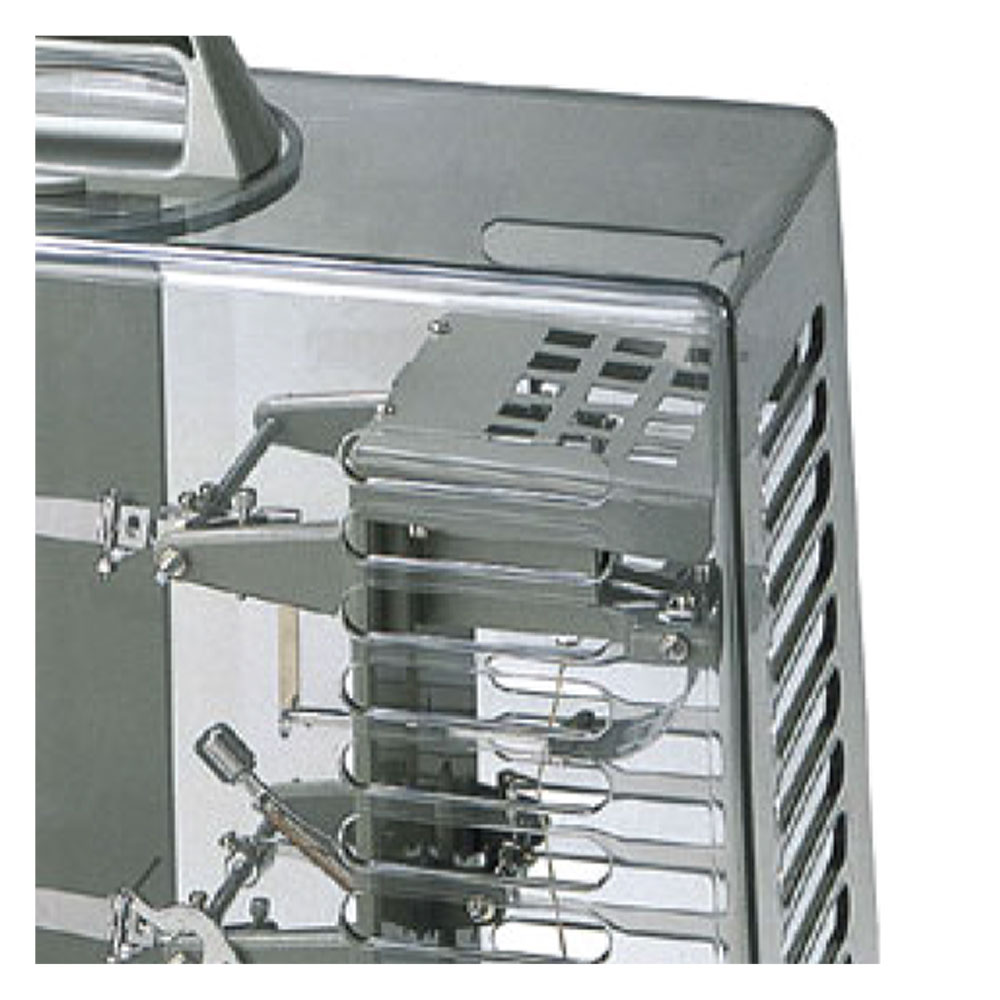

• Sensors: Aged bimetallic strip for temperature
  Human hair bundle for humidity
• Accuracy:
  ±1°C for temperature (10 to 30°C)
  ±3%RH for humidity (20 to 95%RH at 15 to 25°C)
  ±5%RH (other range)

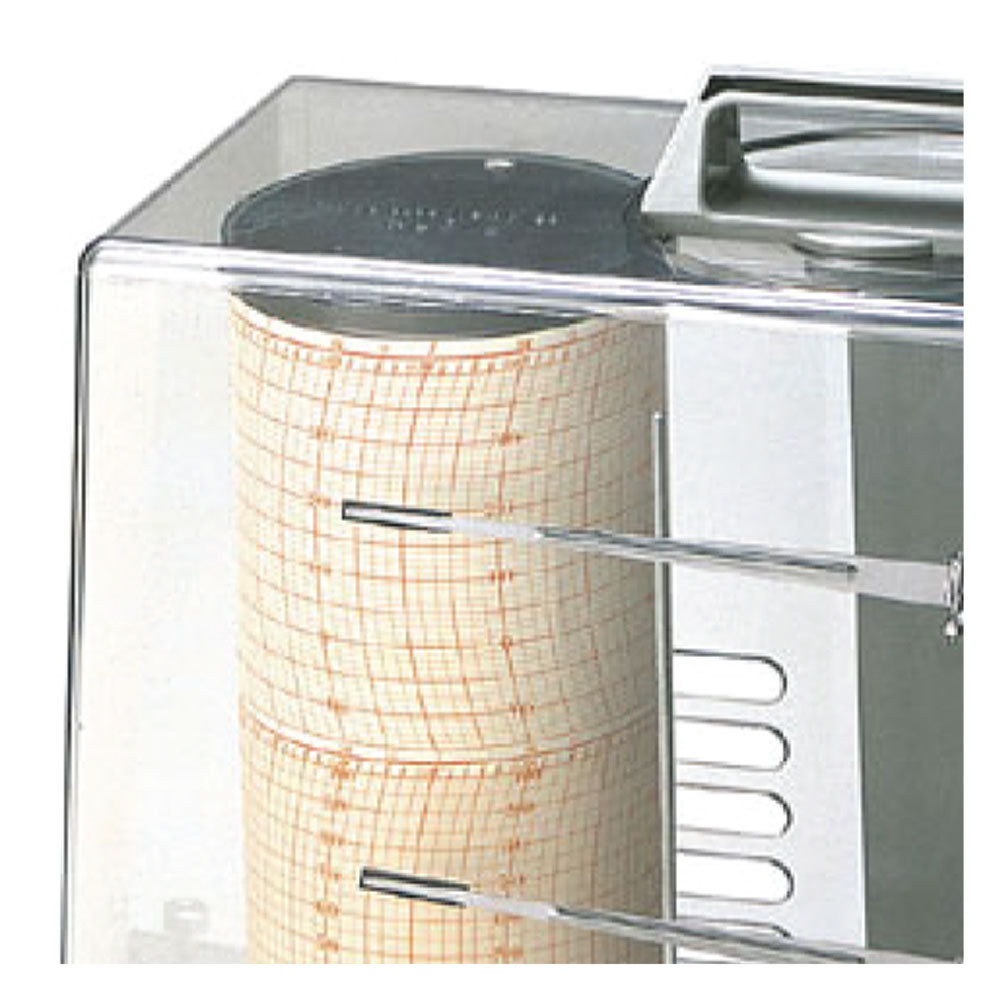

• Chart graduation: 1°C for temperature, 1% for RH
• Recording pens: Cartridge pens (violet)
• Dimensions: 336 (W) x 148 (D) x 295 (H) mm
• Weight: Approx. 3.1 kg
• Accessories: 7-day chart for 1 year use (55 sheets/pad), Test result “C” size battery x 2

Why Choose Thermo Hygrograph Meter?

Choosing the Thermo Hygrograph Meter ensures precise and dependable environmental monitoring for both professional and industrial settings. Its dual-sensor system, featuring a bimetallic strip for temperature and human-hair bundle for humidity, provides exceptional accuracy across a wide measurement range. With selectable 1, 7, or 32-day recording cycles and cartridge-type pens, the device allows effortless, continuous logging for long-term applications. The quartz clock ensures precise timekeeping, while battery operation offers up to one year of uninterrupted use. Its compact design and durable build make it suitable for laboratories, storage rooms, and production facilities, ensuring that critical temperature and humidity data are accurately tracked, recorded, and easily reviewed.
