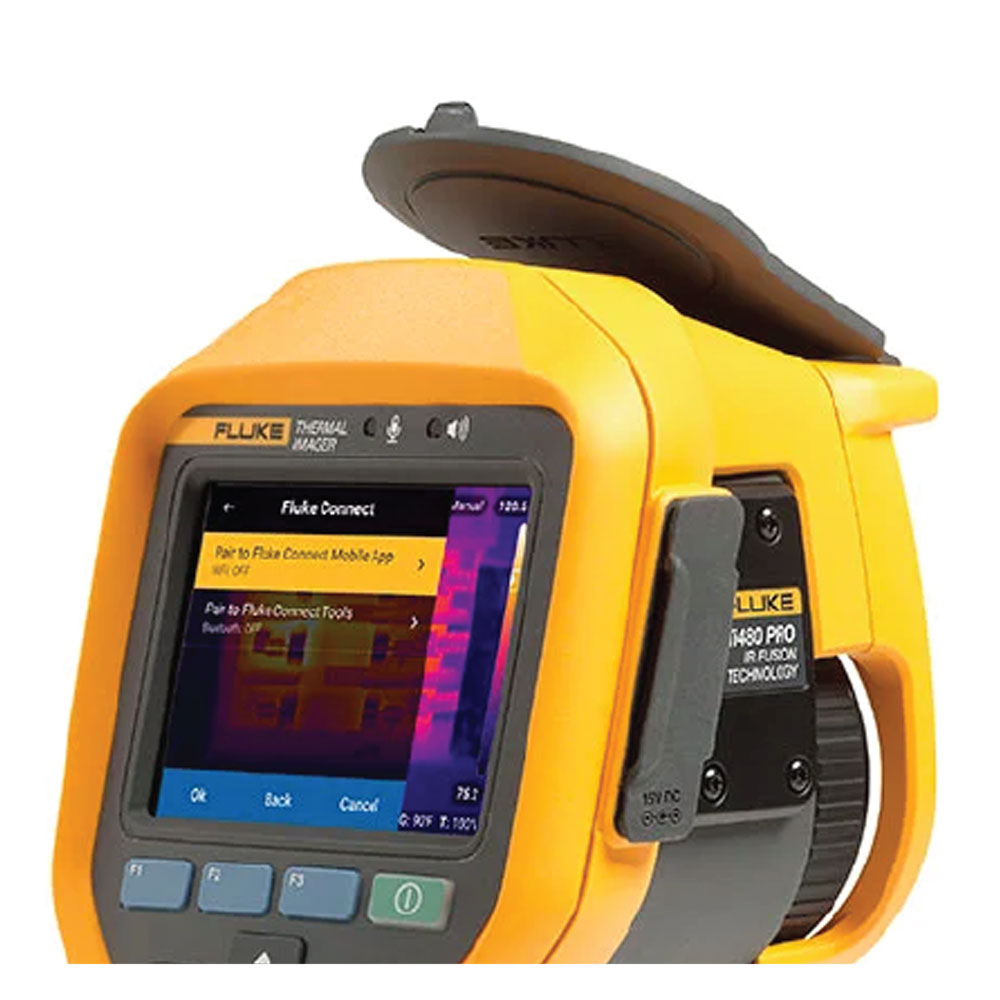

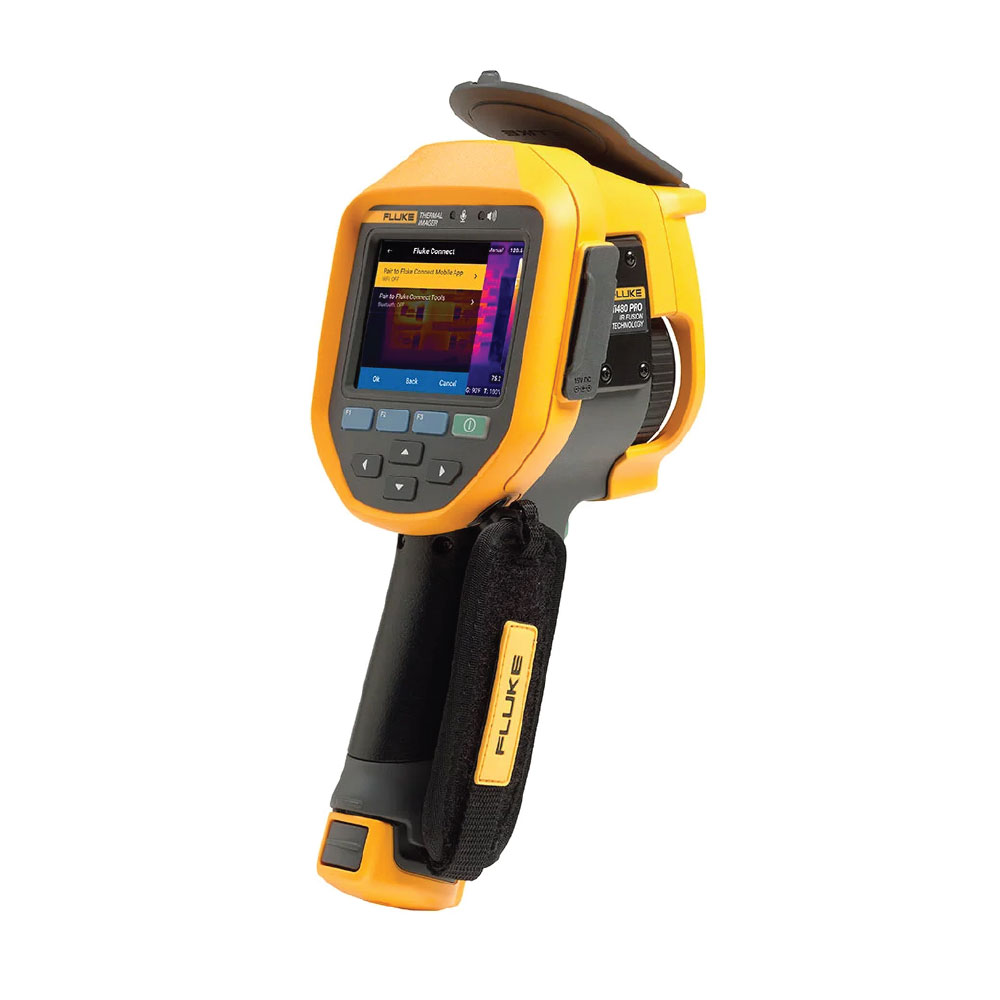

Infrared Thermal Image Scanner is an ideal camera for certified or uncertified thermographers working in:

• industrial maintenance
• heavy commercial facility maintenance
• commercial building diagnostics

The rugged tool you need to establish and maintain a preventive maintenance program.

• Splash resistant
• Dust resistant
• 2-meter drop tested

Infrared Thermal Image Scanner equipped with a unique combination of 640 x 480 resolution and field of view that offers the flexibility to capture measurements in tight spaces or from a distance, even the novice thermographer can capture images of critical issues before they become failures. This well priced camera offers the highest resolution in its class along with the best-selling features from Fluke. With temperature measurements up to 1000 °C, it is suitable for most industrial environments.

Key features

• IFOV with standard lens (spatial resolution): 93 mRad, D:S 1065:1
• Detector resolution: 640 x 480
• Super Resolution: Captures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image
• Infrared Resolution: 307,200 pixels
• MultiSharp™ Focus: Yes, focused near and far, throughout the field of view
• LaserSharp® Auto Focus: Yes, for consistently in-focus images
• Laser distance meter: Yes, calculates distance to the target for precisely focused images and displays distance on screen
• Advanced manual focus: Yes
• Ruggedized touchscreen display: 3.5 inch (landscape) 640 x 480 LCD
• Rugged, ergonomic design for one-handed use: Yes
• Digital zoom: 2x and 4x

Temperature measurement

• Temperature measurement range (not calibrated below -10 °C): ≤-20 °C to 1000 °C (-4 °F to 1832 °F)
• Accuracy: ±2 °C or 2% (at 25 °C nominal, whichever is greater)
• Thermal sensitivity (NETD)*: ≤0.05 °C at 30 °C target temp (50 mK)
• On-screen emissivity correction: Yes (both value and table)
• On-screen reflected background temperature compensation: Yes
• On-screen transmission correction: Yes

*Best possible

Wireless connectivity

• To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
• Fluke Connect® app compatible: Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
• Fluke Connect® Assets optional software: Yes*, assign images to assets and create work orders. Easily compare measurement types in one location
• Fluke Connect® Instant Upload: Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
• Fluke Connect® tool compatible: Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen

IR-Fusion® technology

• Adds the context of the visible details to your infrared image
• AutoBlend™ mode: Min, Mid, Max IR plus full visible on camera; continously variable in software
• Picture-In-Picture (PIP): Yes
• Built-in digital camera (visible light): 5 MP

Lenses

Standard lens

• IFOV (spatial resolution): 0.93 mRad, D:S 1065:1
• Field of view: 34 °H x 24 °V
• Minimum focus distance: 15 cm (approx. 6 in)
• IR-Fusion® technology: Picture-In-Picture and full screen

2x telephoto smart lens (Optional)

• IFOV (spatial resolution): 0.46 mRad, D:S 1529:1
• Field of view: 17 °H x 12 °V
• Minimum focus distance: 45 cm (approx. 18 in)
• IR-Fusion® technology : Picture-In-Picture and full screen

4x telephoto smart lens (Optional)

• IFOV (spatial resolution): 0.23 mRad, D:S 2941:1
• Field of view: 6 °H x 4.5 °V
• Minimum focus distance: 1.5 cm (approx. 60 in)
• IR-Fusion® technology: N/A

Wide-angle smart lens (Optional)

• IFOV: 1.85 mRad, D:S 377:1
• Field of view: 48 °H x 34 °V
• Minimum focus distance: 15 cm (approx. 6 in)
• IR-Fusion® technology: Full screen
• Level and span Smooth auto and manual scaling
• Fast auto toggle between manual and auto modes: Yes
• Fast auto-rescale in manual mode: Yes
• Minimum span (in manual mode): 2.0 °C (3.6°F)
• Minimum span (in auto mode): 3.0 °C (5.4°F)

Data storage and image capture

• Extensive memory options: Removable 4 GB micro-SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud™ for permanent storage
• Image capture, review, save mechanism: One-handed image capture, review, and save capability
• Image file formats: Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files
• Memory review: Thumbnail and fullscreen review
• Software: SmartView® software – full analysis and reporting software and Fluke Connect® system
• Export file formats with SmartView® software: Bitmap (.bmp), GIF, JPEG, PNG, TIFF
• Voice annotation: 60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required
• IR-PhotoNotes™: Yes (5 images)
• Text annotation: Yes
• Video recording: Standard and radiometric
• File formats video: Non-radiometric (MPEG – encoded .AVI) and fully-radiometric (.IS3)
• Streaming video (remote display): Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® software on a PC; via WiFi hotspot to the Fluke Connect® app on a smartphone; or via HDMI to a TV monitor
• Remote control operation: Yes, through SmartView® software or Fluke Connect® mobile app
• Auto capture (temperature and interval): Yes

Battery

• Batteries (field-replaceable, rechargeable): Two lithium-ion smart battery packs with five-segment LED display to show charge level
• Battery life: 2-3 hours per battery (*Actual life varies depending on settings and usage)
• Battery charge time: 2.5 hours to full charge
• Battery charging system: Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
• AC operation: AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
• Power saving: User selectable sleep and power off modes

Color palettes

• Standard palettes: 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
• Ultra Contrast™ palettes: 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted

General Specifications

• Frame rate: 60 Hz or 9 Hz versions
• Laser pointer: Yes
• LED light (torch): Yes
• Color alarms (temperature alarms): High temperature, low temperature, and isotherms (within range)
• Center-point temperature measurement: Yes
• Spot temperature: Hot and cold spot markers
• User-definable spot markers: 3 user-definable spot markers
• Center box: Expandable-contractible measurement box with MIN-MAX-AVG temp display
• Infrared spectral band: 7.5 μm to 14 μm (long wave)
• Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)
• Storage temperature: -20 °C to +50 °C (-4 °F to 122 °F)
• Relative humidity: 10% to 95% non-condensing
• Safety: IEC 61010-1: Overvoltage category II, Pollution Degree 2
• Electromagnetic compatibility: IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
• Australian RCM: IEC 61326-1
• US FCC: CFR 47, Part 15 Subpart B
• Vibration: 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6
• Shock: 25 g, IEC 60068-2-29
• Drop: Engineered to withstand 2 meter (6.5 feet) drop with standard lens
• Size (H x W x L): 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in)
• Weight (battery included): 1.04 kg (2.3 lb)
• Enclosure rating: IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
• Warranty: Two-years (standard), extended warranties are available
• Recommended calibration cycle: Two-years (assumes normal operation and normal aging)
• Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish

Why Choose This Infrared Thermal Image Scanner?

This Infrared Thermal Image Scanner offers best-in-class resolution, advanced focusing technology, and rugged durability—making it the ideal choice for industrial engineers, maintenance teams, and building inspection professionals. Its 640 × 480 detector resolution, boosted to 1280 × 960 with SuperResolution, delivers exceptional image clarity for identifying faults from a distance or within tight spaces. Features like MultiSharp™ Focus, LaserSharp® Auto Focus, and a built-in laser distance meter ensure every image is sharp and accurately measured.

With a temperature range up to 1000°C and thermal sensitivity as low as 0.05°C, it detects even the slightest thermal variations. Wireless connectivity through Fluke Connect® enables instant uploads, reporting, asset tagging, and real-time collaboration. Multiple lens options allow you to adapt to wide-angle, telephoto, and precision inspection requirements. Rugged, drop-tested, and IP54-rated, this scanner is built for long-term reliability and professional-grade results.
