Torque Tester

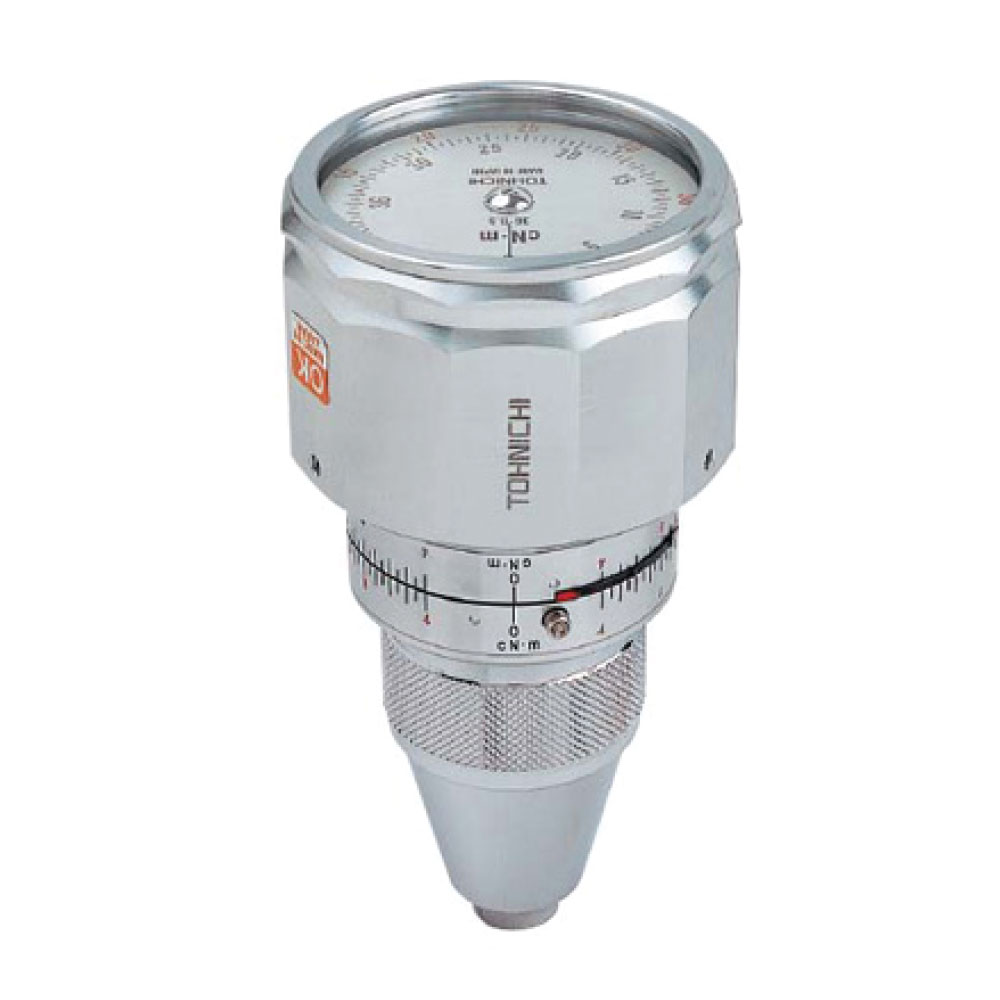

This precision instrument measures low torque values from 0.5 mN·m to 150 cN·m. With bi-directional operation, a robust aluminum threaded keyless 3-jaw chuck, and memory pointers on the dial, it ensures accurate readings from multiple angles. Available in two body sizes (ATG and BTG) to match various torque ranges, this handheld gauge is ideal for quality control and laboratory testing. Each unit comes with a calibration certificate and a protective plastic storage case for safe handling and long-lasting use.

Features

• Torque gauge series designed to measure low torque from 0.5mN • m to 150cN • m
• Two Body Sizes: ATG smaller and BTG larger coordinate with torque ranges.
• Bi-directional operation handheld type torque gauge.
• Aluminum Threaded keyless 3-jaw chuck is standard.
• Push lock button holds the gauge in place while securing test object in the chuck

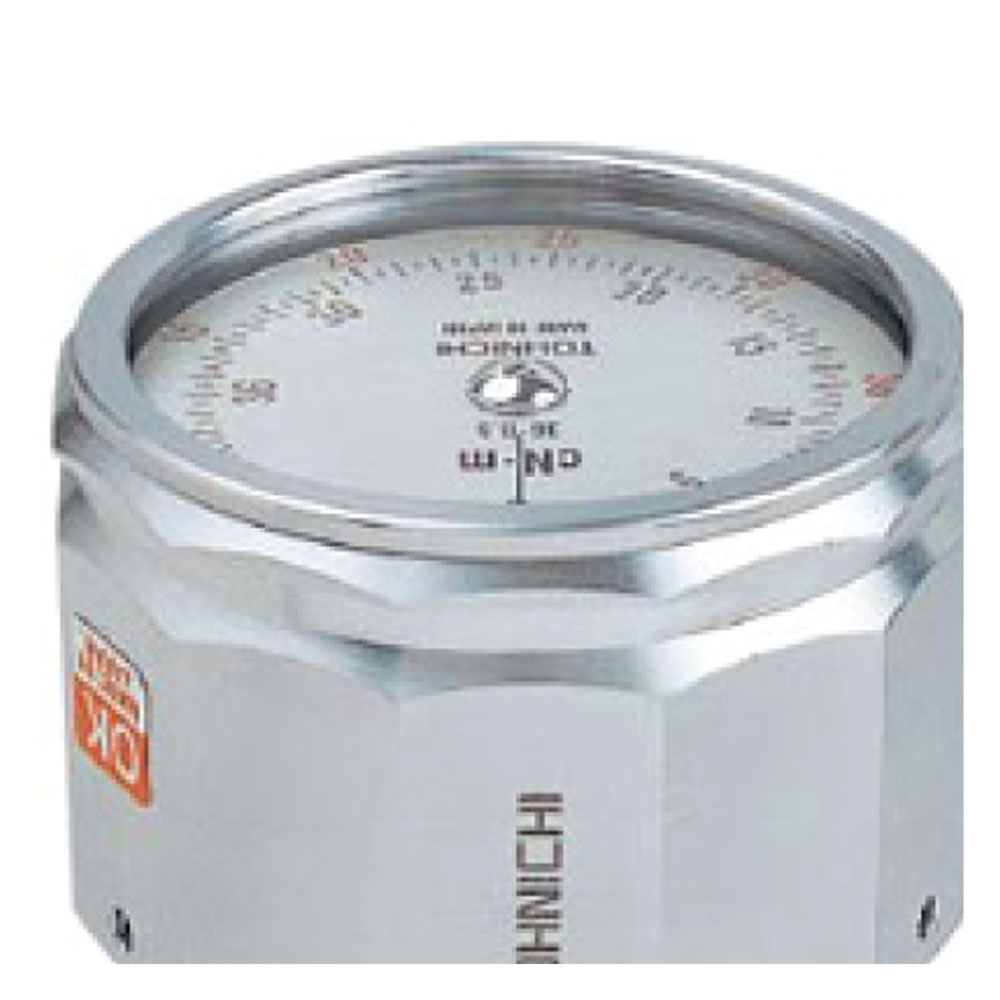

• The dial is scaled by 270 degrees with a stopper which prevents over-loading.
• Includes plastic storage case and certificate of calibration
• Top and Side scales feature memory pointers to insure easy and accurate torque reading from different angles.

Specifications

• Accuracy: ±2%
• Memory Pointers available on most models Excludes: ATG045CN, 45ATG, ATG06Z
• Measurement Units: cN.m, gf.cm, kgf.cm, ozf.in, lbf.in

Why Choose This Torque Tester?

Choosing this Torque Tester guarantees precision, reliability, and convenience for torque measurement applications. Its bi-directional operation allows testing in both clockwise and counterclockwise directions. The aluminum threaded keyless 3-jaw chuck securely holds samples, while the push-lock button ensures stability during testing. Memory pointers on the top and side scales provide easy torque readings from different angles, eliminating errors and improving workflow efficiency. The 270-degree dial, equipped with an overload stopper, prevents damage to the device. Compact and portable, it is perfect for laboratory, industrial, or quality control environments. With included calibration certification, users are assured of consistent, accurate results.
