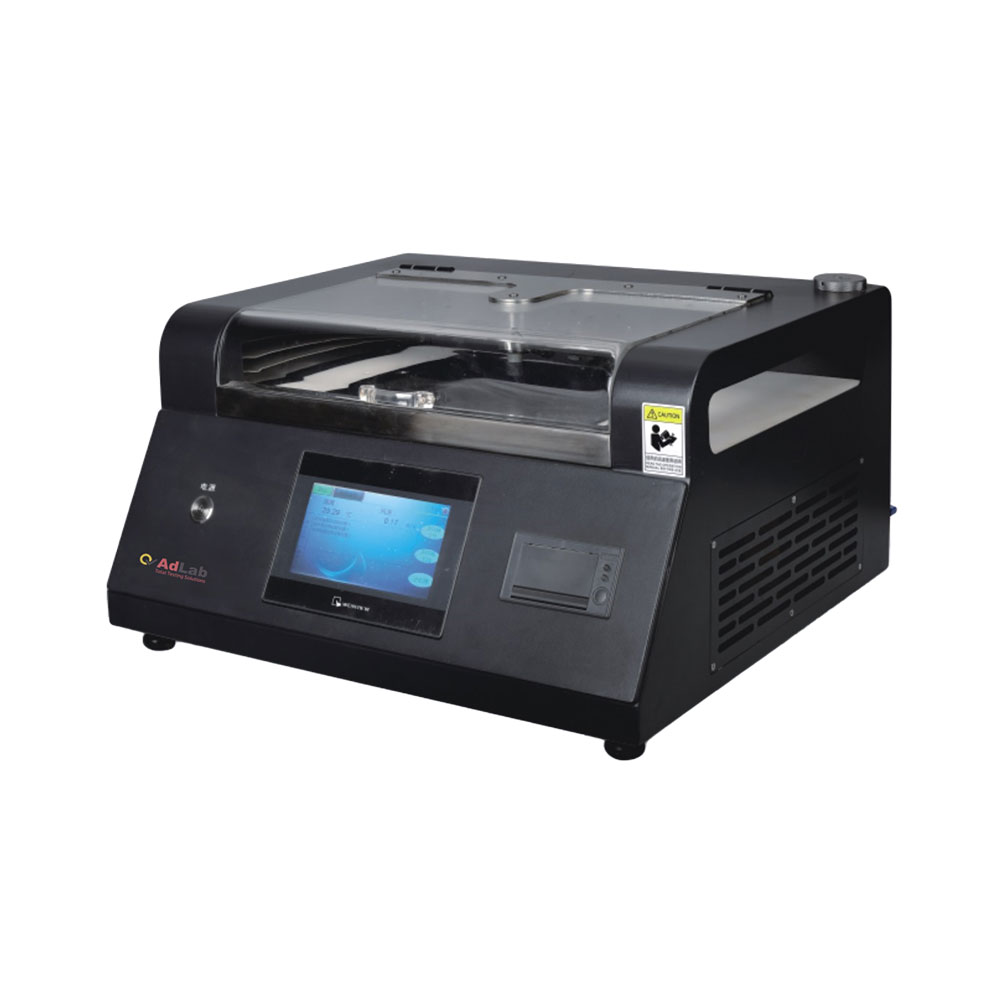

Textile Drying Rate Tester

The Textile Drying Rate Tester is a precision instrument designed to measure the drying time and drying rate of functional hygroscopic and quick-drying fabrics. Conforming to AATCC 201 standards, this tester provides accurate and repeatable results using high-precision sensors for wind speed, temperature, and infrared detection. With its color touch-screen interface, computer software integration, and automated data analysis, it enables efficient testing and reliable performance for textile research, quality control, and product development applications.

Related Standards

AATCC201 standard

Instrument Characteristics

• The instrument uses a high-precision wind speed sensor, infrared temperature sensor, and temperature sensor.
• A precision dripping device ensures accurate water delivery.

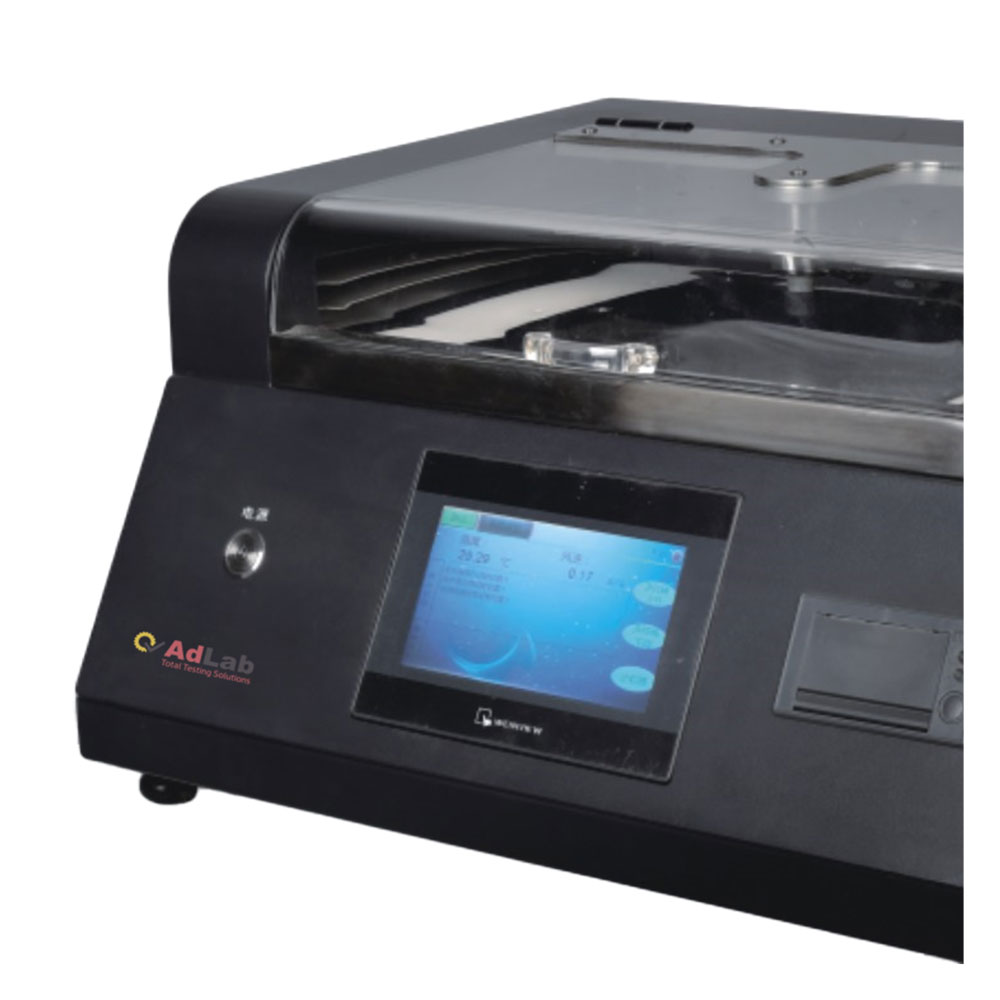

• A color touch screen provides control with Chinese and English menu options.
• When connected to a computer, the system automatically completes fabric drying time and drying rate tests, along with a full set of data analyses.
• The system displays and saves data as curves and charts for easy analysis and printing.
• The instrument operates fully automatically and includes safety protection features.
• Users can adjust both wind speed and water drop rate.

Technical Parameters

• Heating plate: 305mm × 305mm ± 1mm
• Flexible heating sheet: 305mm × 305mm ± 1mm
• Heat insulation cork board: 305mm × 305mm ± 1mm
• Metal pressure rod: 150mm × 40mm × 2mm ± 1mm
• Hot plate temperature: settable from 30–40°C; heating accuracy ±0.1°C
• Sample temperature: detection accuracy ±0.2°C
• Drip device: adjustable speed from 0.01–0.2ml/s
• Wind speed: adjustable range 1–3m/s; accuracy ±0.3m/s
• Sample size: 150mm × 150mm
• Dimensions: 510mm × 510mm × 360mm (L × W × H)
• Power supply: AC 220V, 50Hz
• Weight: approximately 40kg

Why Choose Textile Drying Rate Tester?

Choose the Textile Drying Rate Tester for its advanced automation, precision, and ease of operation. Equipped with high-accuracy wind speed, infrared, and temperature sensors, it ensures stable and repeatable results that comply with AATCC 201 standards. The tester features a precision dripping system, adjustable wind speed and water drop rate, and a touch-screen control panel for intuitive use. Integrated software automatically records and analyzes data, displaying results as curves and charts for easy evaluation and reporting. Its reliable heating system provides consistent performance with a ±0.1°C accuracy, while built-in safety protections ensure user confidence. Ideal for laboratories and textile manufacturers, this instrument guarantees accurate, efficient, and standardized fabric drying assessments.
