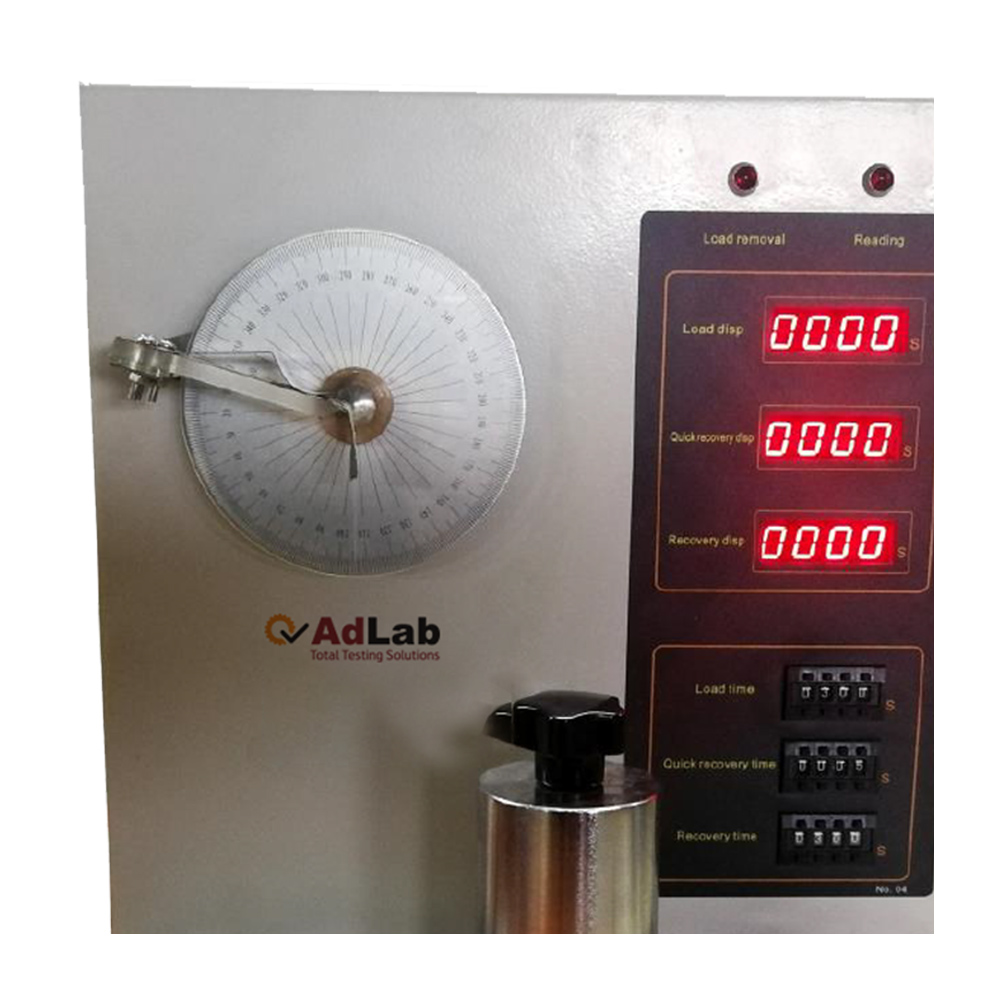

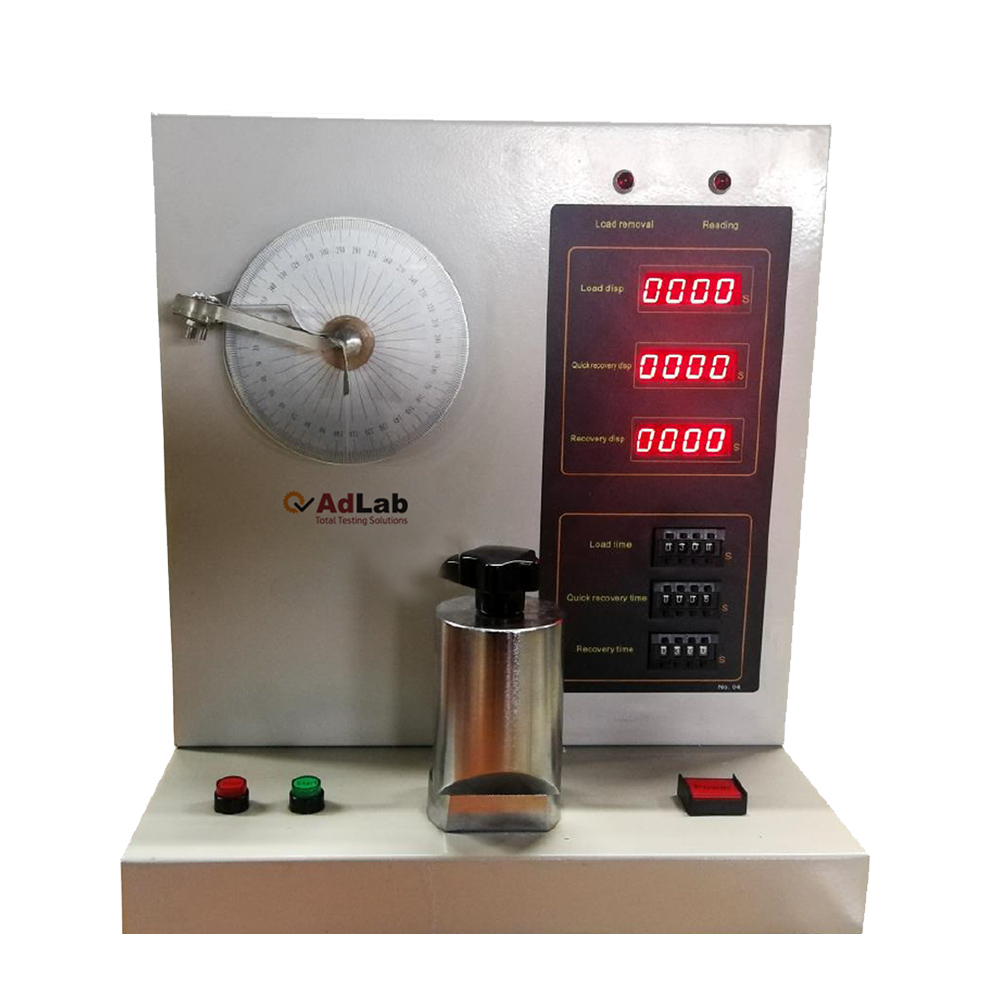

The Crease Recovery Tester determines a fabric’s ability to recover after being creased using the horizontal method. It works efficiently with fabrics of various thicknesses and quickly provides both fast and slow crease recovery indexes under standard room conditions.

Features

• Uses the horizontal method to measure crease recovery and meets international test standards.
• Allows users to preset load time, fast recovery time, and slow recovery time—all displayed clearly on the LED panel.
• Runs tests automatically and includes an alarm to alert the operator when the process is complete.

Related Standards:

Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.

Key Specification

• Testing method – Horizontal method 1
• Working position – Fast recovery: 15s±1s
  Slow recovery: 5min±5s
• Measuring mode –
• Load time – 5min±5s
• Dimension of testing specimen – 40×15mm
• Effective area of testing specimen – 18×15mm
• Pressure load – 10N±0.05N
• Measuring angle range – 0~360°
• Measuring angle accuracy – ±1°
• Location accuracy – 1mm
• Power supply –  AC220V, 50Hz
• Dimensions – 280×300×190mm (L×W×H)
• Net weight – 7kg

Why Choose the Crease Recovery Tester?

Choose the Crease Recovery Tester for its superior precision, automation, and compliance with leading global textile testing standards. This advanced instrument uses the horizontal crease recovery method to ensure consistent and reproducible results for different fabric types. With preset load time, fast and slow recovery settings, and LED display for clear monitoring, the device minimizes human error and boosts testing efficiency. It’s equipped with an automatic process and an alert system to notify the operator upon test completion. Compact and user-friendly, it ensures stable performance and accurate wrinkle recovery evaluation — making it ideal for textile research, production quality control, and academic applications where precision and repeatability are essential.
