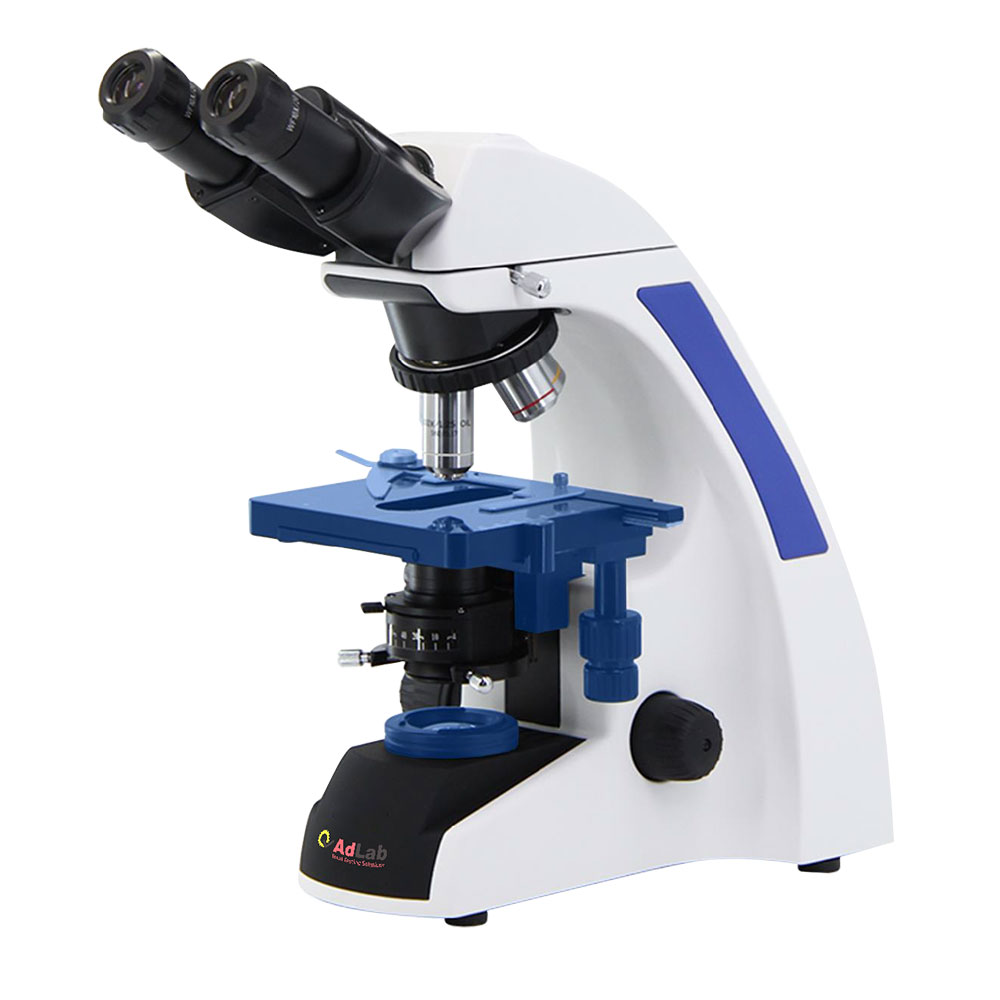

Laboratory Microscope
The Laboratory Microscope offers clear imaging for textiles, biology, and material studies with 40x–1000x magnification. Its ergonomic design, LED illumination, and camera-ready trinocular option make it ideal for labs and research.
- Infinity optical system for high clarity
- 40x–1000x magnification with plan objectives
- LED illumination with digital imaging support
The Laboratory Microscope is a high-performance optical instrument designed for detailed microscopic analysis of textiles, biological samples, and materials, utilizing an infinity optical system for superior clarity. This Laboratory Microscope is ideal for textile labs, research facilities, and quality control, offering magnification from 40x to 1000x for fiber inspection, yarn analysis, and more. Its ergonomic design and advanced features make it a top choice for professionals.
Features
- Features an infinity optical system with achromatic lenses for distortion-free, high-contrast imaging.
- Offers binocular or trinocular heads, inclined at 30° with 48-75 mm interpupillary adjustment and 360° rotation for ergonomic viewing or camera attachment.
- Includes wide-field eyepieces (WF10x/20mm or 22mm, H16x) with high eyepoint and diopter adjustment (±5) for enhanced visibility.
- Equipped with a backward quadruple nosepiece and infinite plan objectives (4x, 10x, 40x, 100x) for magnification from 40x to 1000x.
- Provides Kohler illumination with a 3W LED light source, adjustable brightness, and a blue filter, plus a C-mount 0.5x adapter for digital imaging.
Product Specification
| Optical System | Infinity Optical System |
| Achromatic Optical System | |

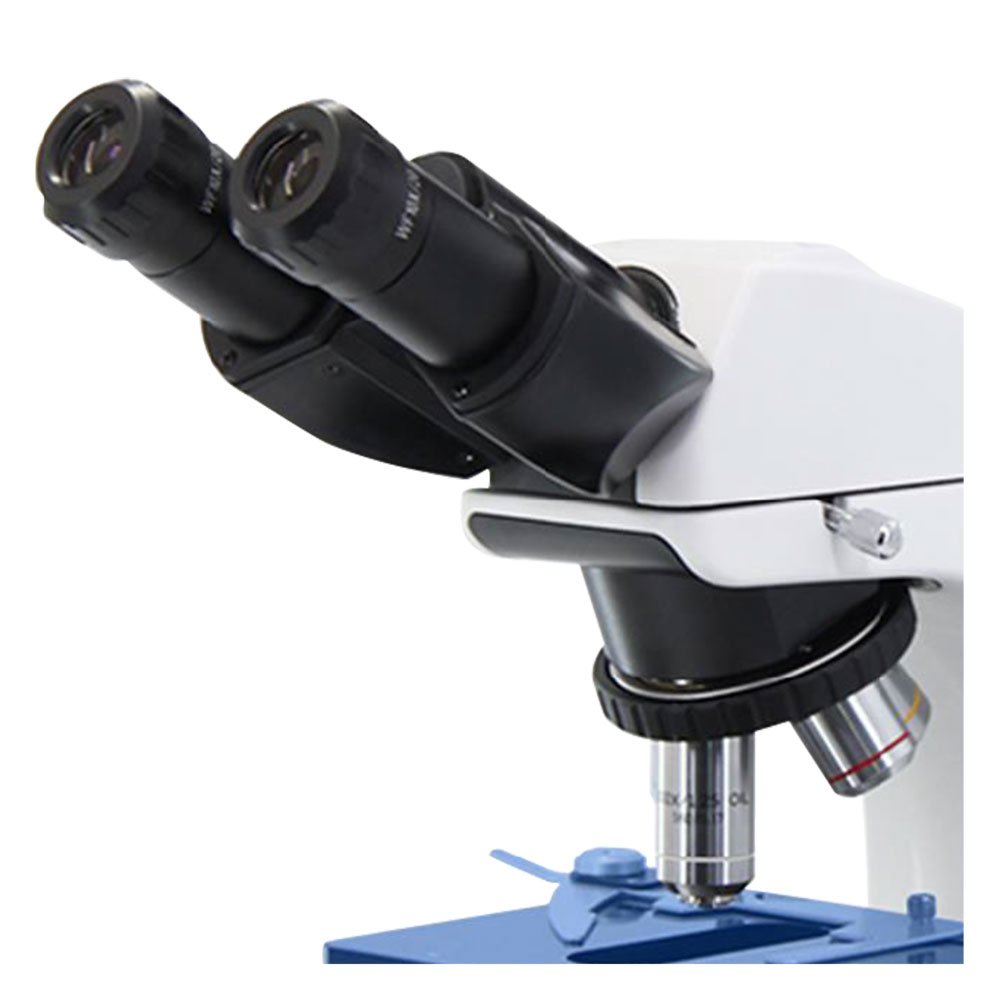

| Head | Binocular, Inclined at 30°, Interpupillary 48-75mm, 360° Rotatable |
| Trinocular, Inclined at 30°, Interpupillary 48-75mm, 360° Rotatable | |
| Eyepiece | WF10x/22mm, H16X PAIR Dia.30mm, High Eyepoint, Diopter Adjustment -/+5 |
| WF10x/20mm, Dia.30mm, High Eyepoint, Diopter Adjustment -/+5 | |
| Nosepiece | Backward Quadruple Nosepiece |
| Objective | Infinite Plan High Contrast Chromatic-free 4X, 10X, 40X, 100X |
| High Contrast Chromatic-free 4X, 10X, 40X, 100X | |
| Magnification | 40X-1000X |
| Condenser | Abbe Condenser NA1.25, with Iris Diaphragm, Center Adjustable |
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke
37.7mm/Rotation, Moving Range 24mm, With Safety Stop Screw, Tension Adjustable |

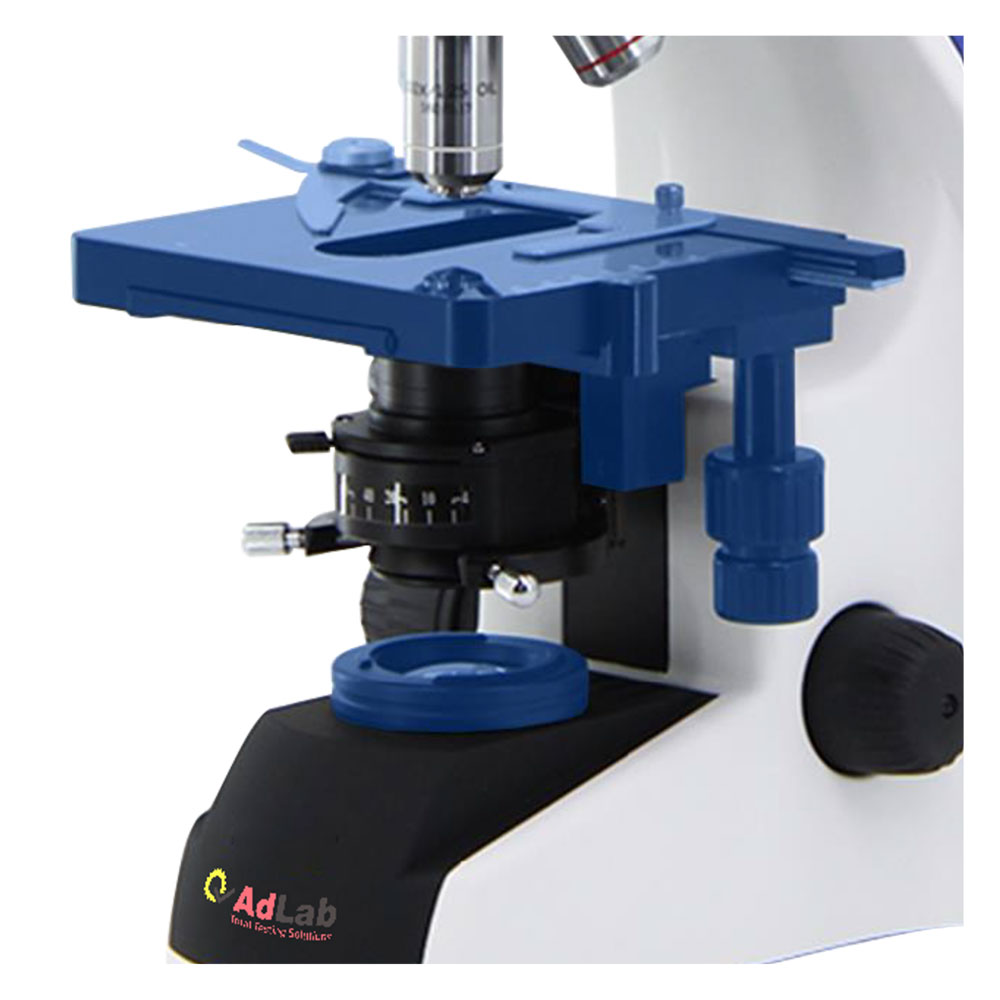

| Working Stage | Large Size Double Layer Mechanical Stage 216x150mm, Graphite Surface,
Moving Range 75mmx55mm, Reckless Safety Round Edge |
| Large Size Double Layer Mechanical Stage 142x132mm, Graphite Surface,
Moving Range 75mmx50mm |
|
| Light Source | Kohler Illumination, 3W/LED, Brightness Adjustable, With Blue Filter |
| External Illumination, 3W/LED, Brightness Adjustable, With Blue Filter | |
| Adapter | C-Mount 0.5x |
Why Choose the Laboratory Microscope?
The Laboratory Microscope is essential for textile labs and research facilities analyzing fiber structure and material defects. Since microscopic detail ensures quality in yarn and fabric production, this microscope delivers high-contrast imaging from 40x to 1000x, compliant with ISO 1833 and ASTM E175. For example, it identifies fiber blends with its infinity optical system and adjustable stage (up to 216 x 150 mm), enhancing precision. The 3W LED illumination and C-mount adapter improve usability, while the compact design fits various lab spaces. Consequently, users can optimize quality control and meet industry standards. For more details or to request a demo, contact our team today.
