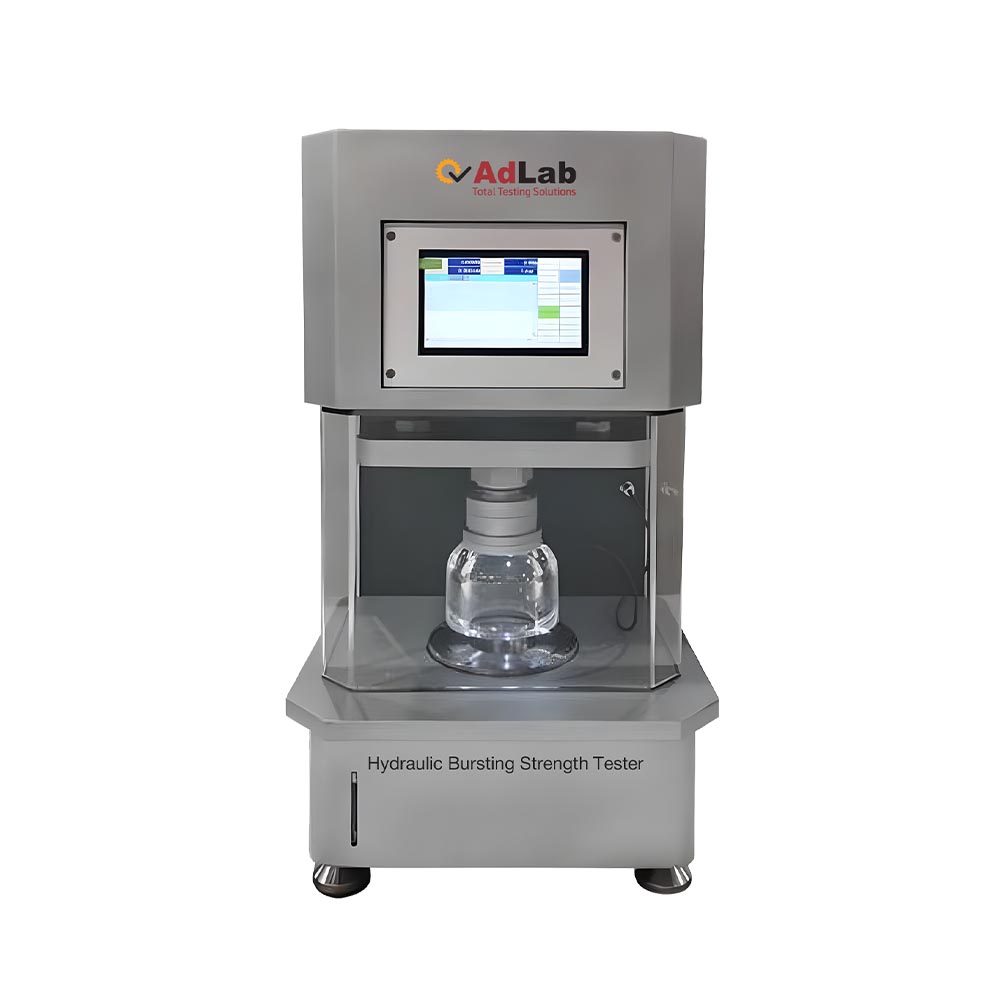

Hydraulic Bursting Strength Tester

Application

Hydraulic Bursting Strength Tester is applied to determine the bursting strength and distension at burst of woven, knitted and non-woven fabrics, papers and boards by the application of hydraulic load under a rubber diaphragm.

Feature

• This machine use hydraulic method, meet multinational standards and equipped with several changeable test clamp.

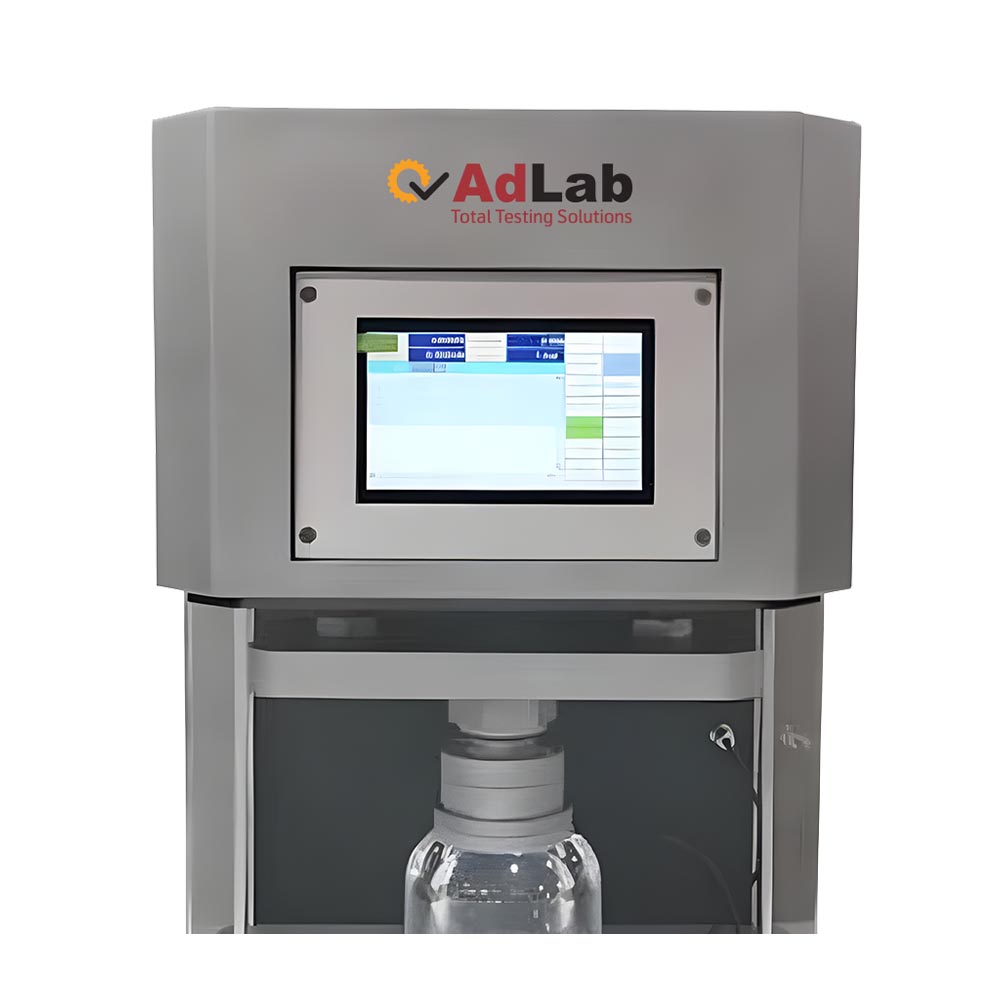

• The simple interface touching screen controller is easy and simple to handle.

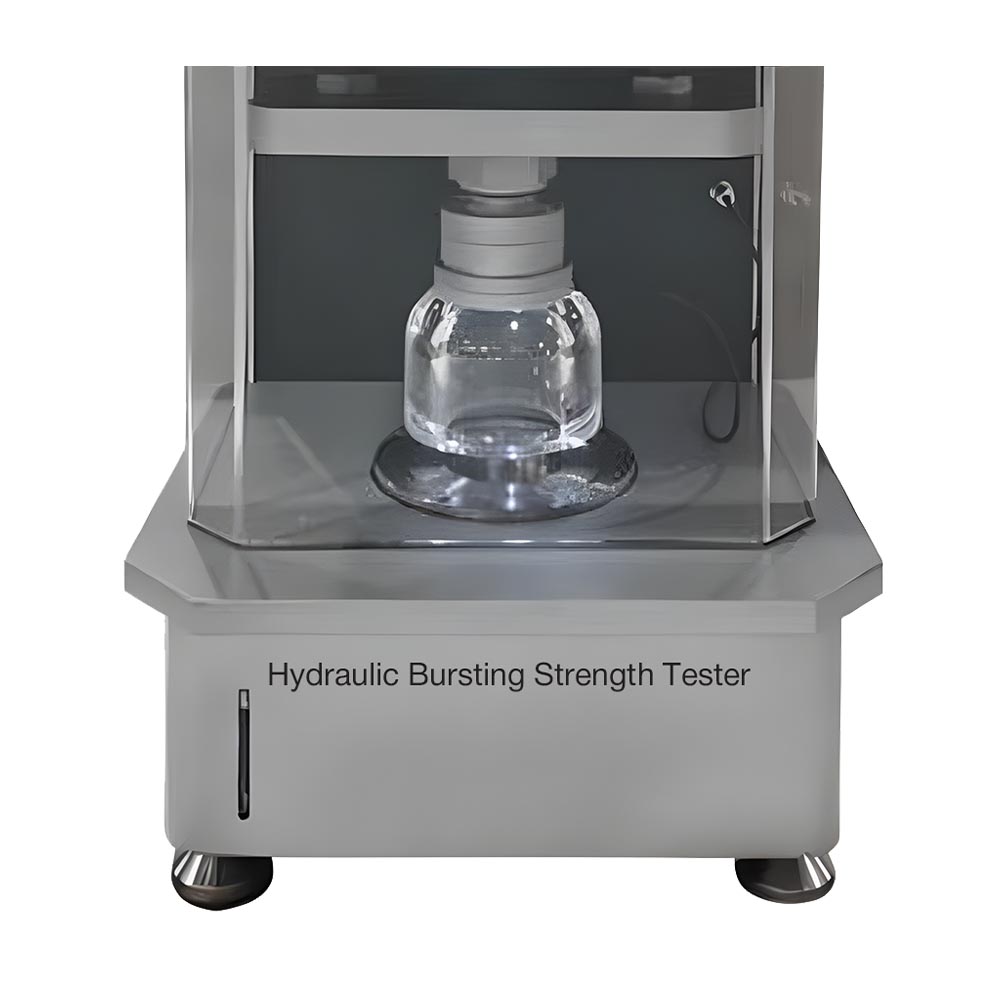

• The machine is with protection transparent cover and LED light inside which will be easy to observe the specimen.
• The machine can induct the burst automatically which is much more sensitive and reliable.
• The AC servo drive system with low noise and wide range of applications.
• 4 Test Methods: Constant Rate Bursting, Constant Expansion, Constant Pressure and Constant Time Bursting.
• The tester brings saving and printing functions and support on-line operation.
• Provide on-line interfaces, professional detection software which can be used to analysis testing result.

Key Specification

• Model: ADL-BT02 / ADL-BT03
• Range: 2.00 MPa / 10.000 MPa
• Min. Division Value: 0.001 MPa / 0.003 MPa
• Test Area: 7.3 cm² (Φ30.5 mm), 10 cm² (Φ35.7 mm), 50 cm² (Φ79.8 mm), 100 cm² (Φ112.8 mm) optional
• Thickness of Rubber Diaphragm: ≤2 mm
• Pressure Speed: 100 ml/min ~ 500 ml/min
• Accuracy: ±1 mm (height at burst up to 70 mm)
• Testing Units: kPa, kgf/cm², lb/in², bar (free switch)
• Test Method: Constant Rate Bursting, Constant Expansion, Constant Pressure, Constant Time Bursting
• Output: Printer, display, PC connection
• Power Supply: AC 220V, 50/60 Hz, 500 W
• Dimensions: 550 x 450 x 700 mm
• Net Weight: 125 kg

Standard Accessories

• Test set of 7.3cm2(Φ30.5mm) – 1 set
• Test set of 50cm2(Φ79.8mm) – 1 set
• Wrench – 1 Pc
• Stainless steel calibration plate – 1 Pc
• Rubber diaphragm – 1 Pc
• English operation software – 1 Pc
• Cable connects with PC – 1 Pc

Optional Accessories

• Other test set
• Rubber diaphragm
• Air compressor

Why Choose the Hydraulic Bursting Strength Tester?
