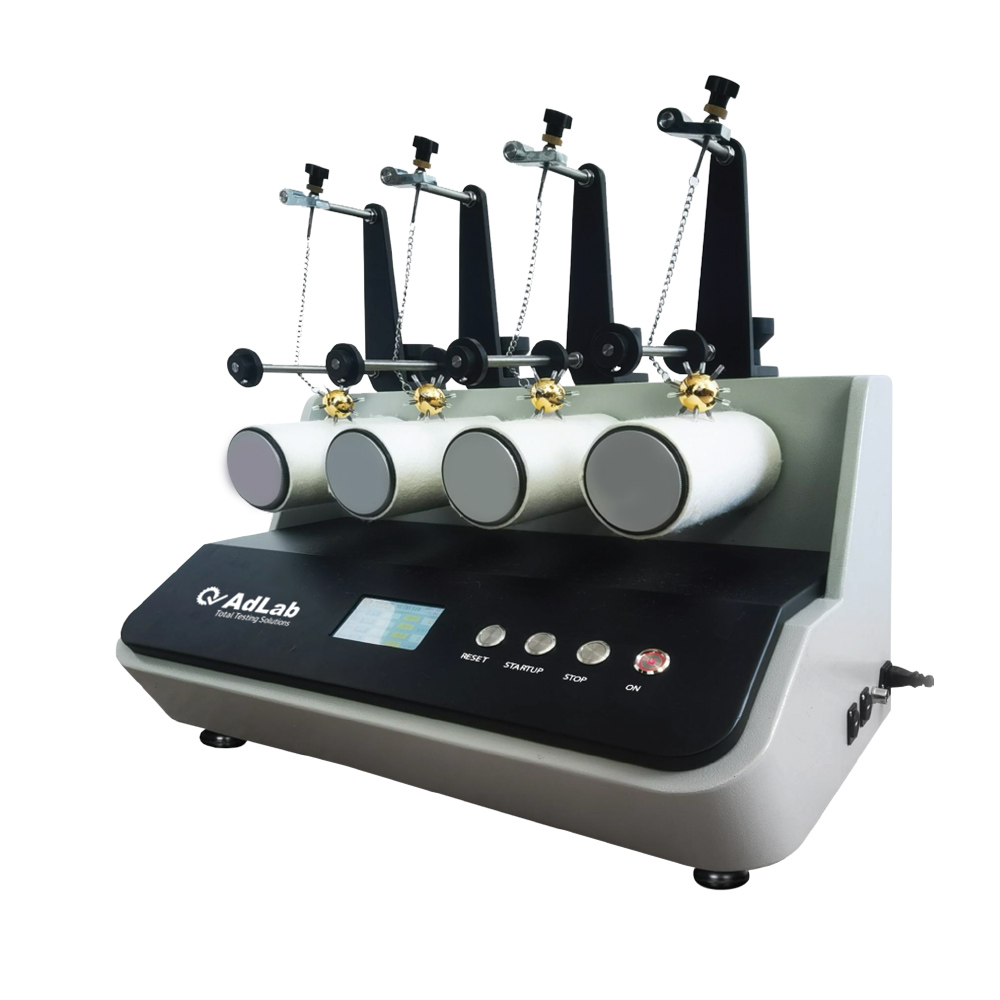

Digital ICI Mace Snag Tester
Reliable Digital ICI Mace Snag Tester for testing fabric snag resistance. Features durable copper mace, precise control, and multi-station design.
- Conforms to GB/T11047, ASTM D3939, JIS L1058
- Four-station design for efficient multi-sample testing
- Accurate digital counter up to 99,999 cycles

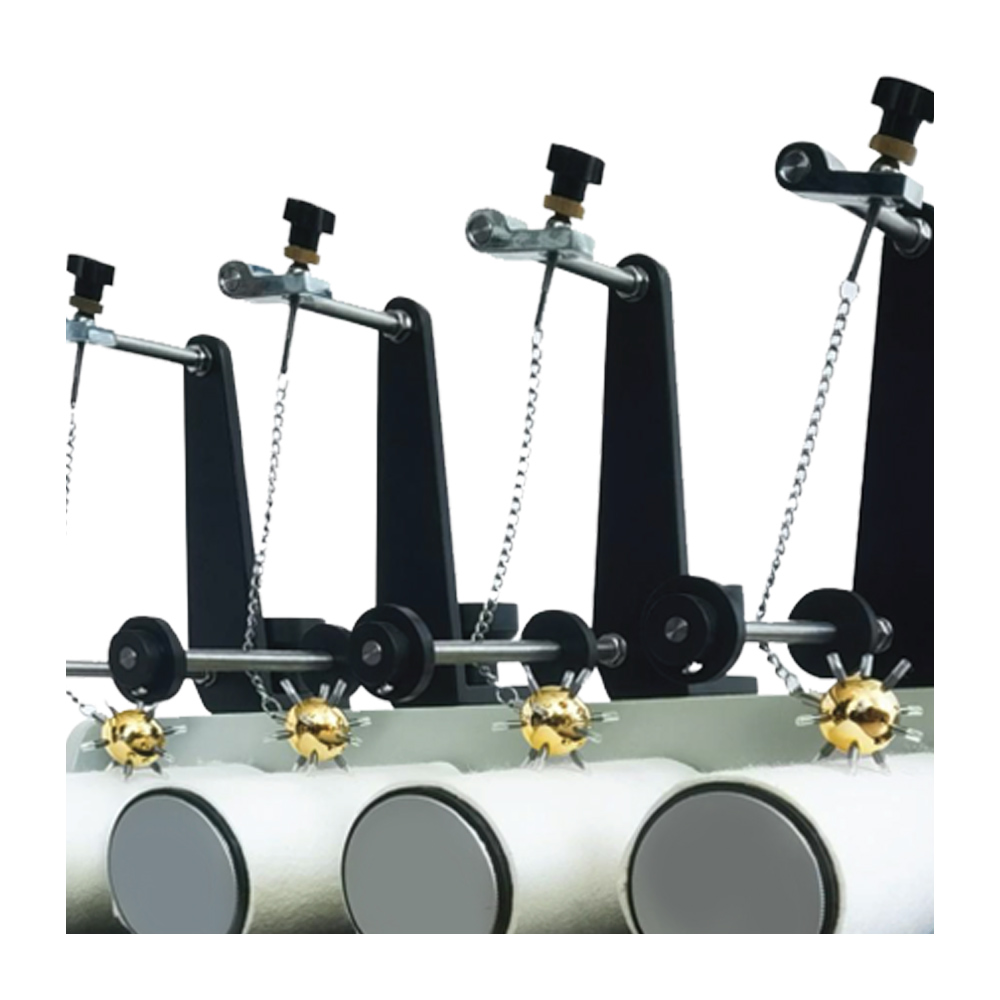

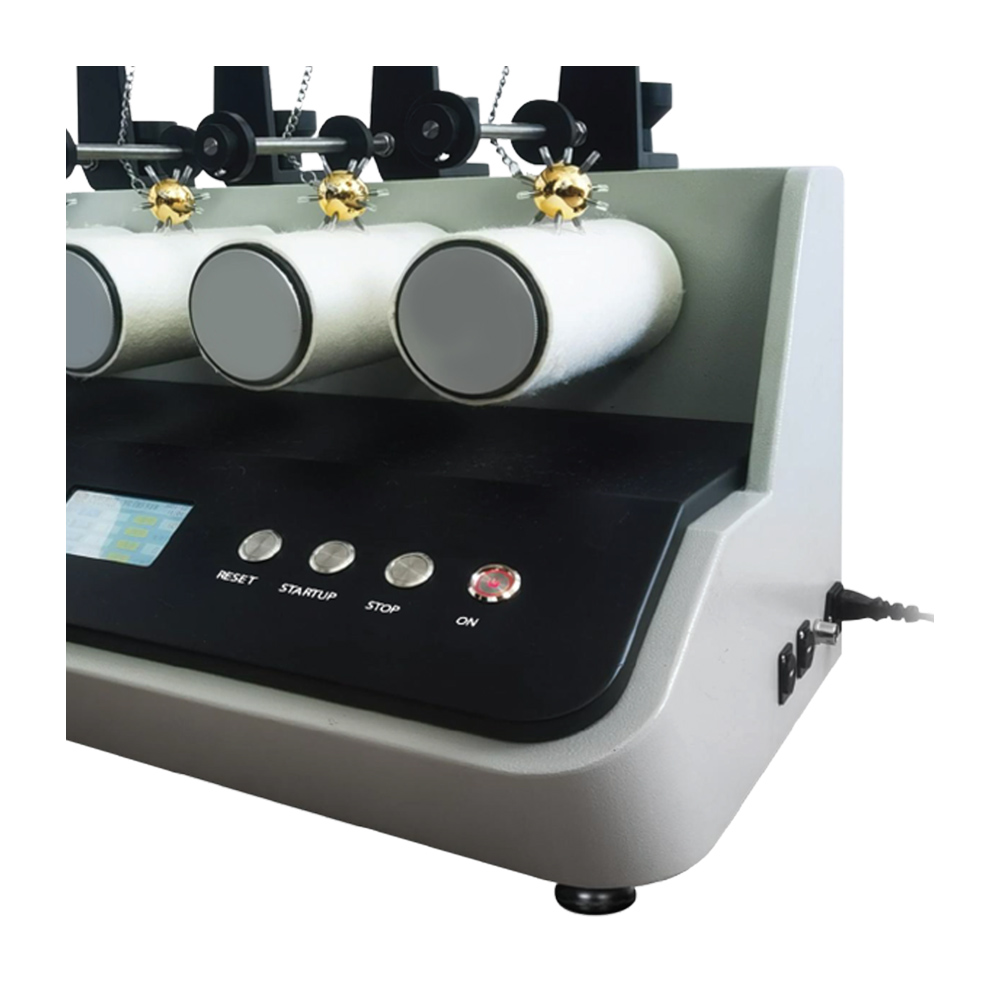

The Digital ICI Mace Snag Tester is designed to determine the snagging resistance of knitted and other easily snagged fabrics. It simulates real-life fabric damage caused by sharp or rough surfaces, ensuring accurate evaluation of textile durability. Built with high-quality materials, including a precision-engineered copper mace and a robust multi-station design, this tester provides stable and repeatable test results. Ideal for textile laboratories, quality inspection departments, and fabric manufacturers seeking reliable fabric performance analysis.
Related Standards
GB/T11047 ASTM D3939 JISL1058 etc.
Technical parameter
- Number of stations: 4 stations
- Rotating speed of drum: (60±2)r/min
- Counting range: 0～99999
- Drum diameter: Φ82mm; width 210mm
- Mace weight: (160±10)g
- Number of needles for nail hammer planting: 11
- The exposed length of the pin nail: 10mm; the tip radius 13mm
- Felt thickness: (3～2)mm; width 165mm
- Working width of guide rod: 125mm; diameter Φ10mm
- The distance between the nail hammer and the guide rod: 45mm
- Power source: AC220V±10% 50Hz 200W
- Dimensions: (660×460×530)mm
- Weight: 45kg
Standard Accessories
- Number of stations: 4 stations
- Rotating speed of drum: (60±2)r/min
- Counting range: 0～99999
- Drum diameter: Φ82mm; width 210mm
| Name and Specification | Qty | Note |
| Main machine | 1 | |
| Power cable | 1 | |
| Mace | 4 | |
| Rubber ring | 8 | |
| Fuse | 2 | 3A |
| Foot Bottom | 4 |
Why Choose Digital ICI Mace Snag Tester?
Choose the Digital ICI Mace Snag Tester for its precision, reliability, and compliance with international standards such as GB/T11047, ASTM D3939, and JIS L1058. The tester features four test stations and a rotating drum system operating at a stable speed of 60±2 rpm. Each mace is crafted from durable copper, strictly meeting standard weight, length, and diameter specifications. Its intuitive digital counter allows accurate test cycle tracking up to 99,999 counts. With a compact design, low power consumption, and stable performance, this tester ensures consistent snag-resistance results for various fabric types, including knitted, woven, and delicate materials.
