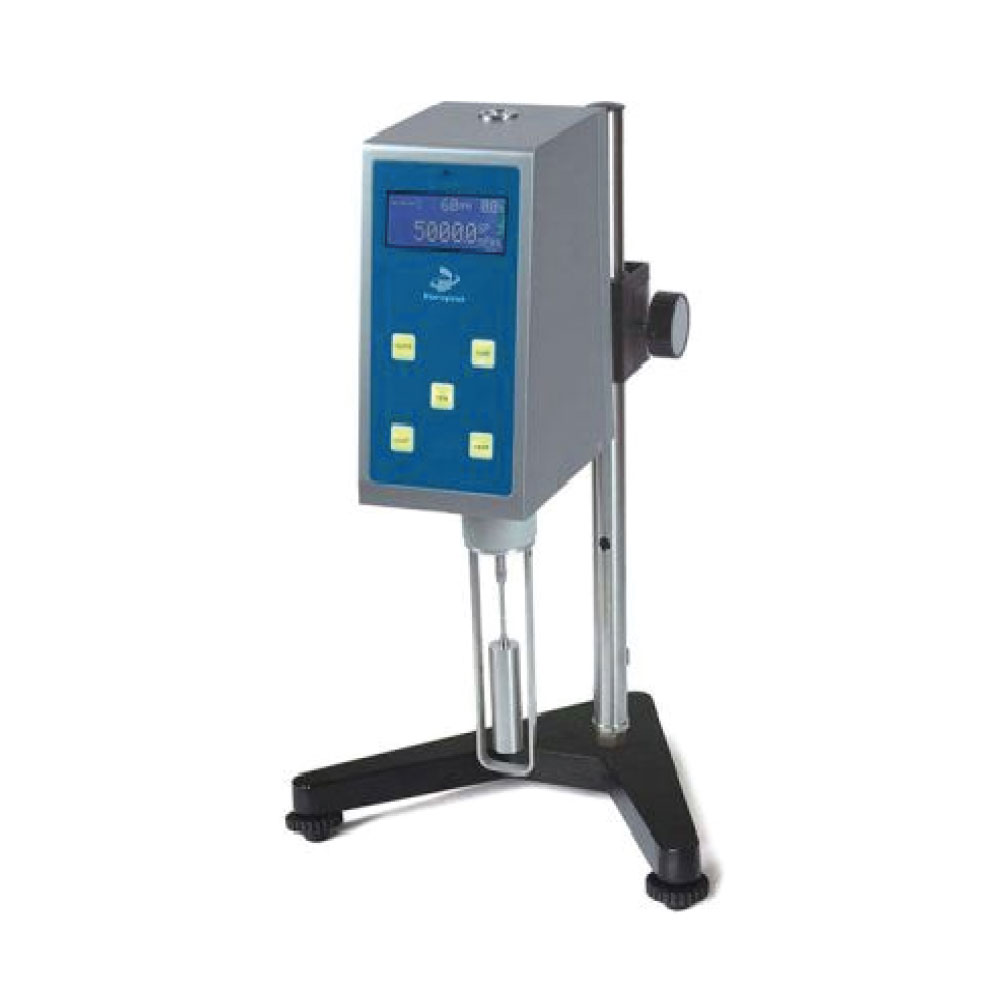

Digital Low Viscosity Meter

The Digital Low Viscosity Meter is a precision instrument designed for accurate measurement of fluid viscosity in research, industrial, and quality control applications. It continuously displays viscosity, temperature, shear rate, and torque values in real time for complete process visibility. With ±1% full-scale accuracy, 54 selectable speeds, and advanced data connectivity options, it provides unmatched reliability and flexibility. Equipped with an RTD temperature probe and compatible with PC software like Rheocalc® and Wingather™, this digital viscometer ensures efficient analysis, automated data logging, and easy calibration for both Newtonian and non-Newtonian fluids.

Features And Benefits

• Continuously displays viscosity (cP or mPa·s), temperature (°C or °F), shear rate, shear stress, % torque, and spindle status.
• Measures torque with ±1% full-scale accuracy and 0.2% repeatability, ensuring precise and consistent readings.
• Offers 54 selectable speeds, providing a wide range of viscosity and shear measurements for flexible, stand-alone operation.
• Allows users to download and load custom programs using DV Loader software (included).
• Enables automated program control through a PC with optional Rheocalc® software, offering speed control from 0.01 to 200 rpm.
• Supports automatic data collection and historical comparison via optional Wingather™ software.
• Includes a built-in RTD temperature probe for accurate sample temperature monitoring.
• Features an easy-to-use keypad for quick test parameter selection and setup.
• Uses an auto-zero function to maintain precise torque measurement before each test.
• Provides customizable connectivity options, including parallel printer, RS-232 serial, and analog voltage outputs.
• Compatible with all Brookfield accessories for maximum versatility.
• NIST-traceable viscosity standards available for calibration and compliance.

Specification

• Measuring Range (mPa·s): 20–1,000,000 / 20–2,000,000
• Rotating Speed: 0.1–200 rpm (monopolar shift)
• Measurement Accuracy: ±1% (for Newtonian liquids)
• Repeatability: ±0.5%
• Power Supply: AC 220V ±10%, 50Hz ±10%
• Operating Temperature: 5–35°C
• Relative Humidity: ≤80% (non-condensing)
• Dimensions (L×W×H): 370 × 325 × 280 mm
• Net Weight: 6.8 kg

Why Choose Digital Low Viscosity Meter?

Choose the Digital Low Viscosity Meter for precise, reliable, and versatile viscosity testing across a wide range of liquids. It offers full digital control and continuous display of key parameters such as viscosity, temperature, shear rate, and torque, ensuring complete process transparency. With ±1% accuracy and ±0.5% repeatability, it guarantees consistent and repeatable results. The instrument supports 54 selectable speeds, enabling flexible testing conditions and programmable automation using Rheocalc® software. Its compatibility with all Brookfield accessories enhances usability, while NIST-traceable standards ensure calibration integrity. The user-friendly keypad, auto-zero function, and temperature monitoring probe make setup and operation effortless—ideal for laboratories, production environments, and R&D facilities requiring dependable viscosity analysis.
