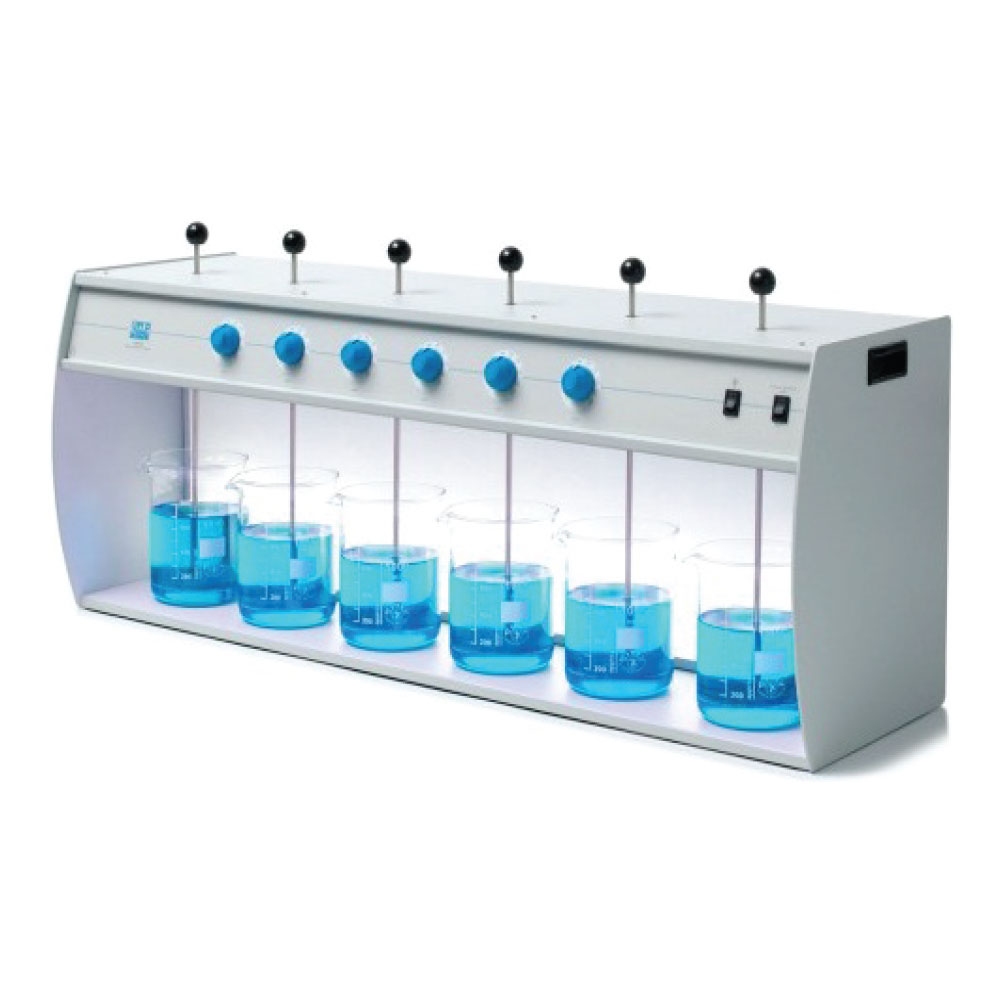

Jar Tester

The Jar Tester provides independent stirring positions that allow users to apply standardized testing conditions, ensuring reproducible and reliable results in coagulation and flocculation studies.

Independent Control

• Independently selectable speeds 10-15-30-45-60-90-120-150-200-300 rpm
• Same product can be submitted to different conditions in parallel
• Reliable and repeatable results from VELP stirring quality
• Precise speed from an electronically controlled DC gear motor

Versatile Operation

• Choice of 4- or 6-place models
  FC 4S, 4-position jar tester
  FC 6S, 6-position jar tester
• Speed can be changed during the run

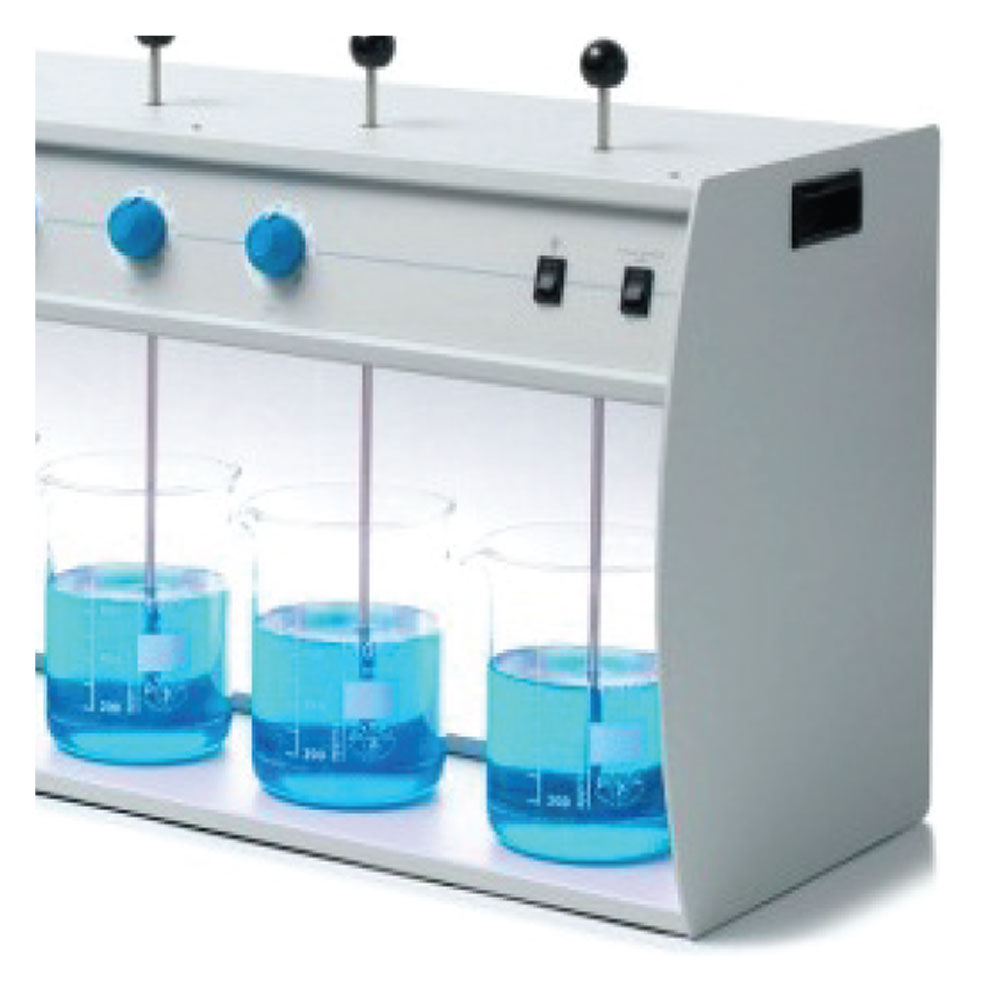

• Illuminated back panel to simplify sample observation
• Stirring rods adjustable in height without tools

Robust Design

• Strong resistance to chemical and mechanical corrosion

Feature

• Construction material: epoxy painted metal structure
• Models: 4 positions, 6 positions
• Back panel: disconnectable illuminated
• Stainless steel stirring rods: adjustable in height by a self blocking chuck
• Pluriselector: settable individual speed for each rod
• Power: 18 W, 23 W
• Weight :12.5 kg (27.5 lb), 18 kg (39.6 lb)
• Dimensions (WxHxD): 645x347x260 mm (25.4×13.7×10.2 in), 935x347x260 mm (36.8×13.7×10.2 in)

Performance

Speed selector settable at: 10 – 15 – 30 – 45 – 60 – 90 -120 – 150 – 200 – 300 rpm

Independent Positions

FC4S and FC6S, 4- or 6- position Floc Tester, permits changing of the speed during operation, up to 300 rpm.

Settable individual speed for each rod means that every single position is independent for the others.

An illuminated back panel simplifies the observation of the samples, whilst height adjustment option for the stirring blades during operation increases its capabilities.

Why Choose Jar Tester

Choose the Jar Tester for accurate, repeatable, and efficient water and wastewater treatment studies. Its independently controlled stirring positions (4 or 6) allow multiple tests under variable conditions, ensuring flexibility in experimental setups. Each rod’s speed is electronically regulated through a DC gear motor, providing stability and precision across a range of 10 to 300 rpm. The adjustable stainless-steel stirring rods and illuminated back panel make it easy to operate and observe results in real time. Designed with a robust epoxy-painted metal body, the unit ensures long-term durability and reliability in laboratory environments. Whether for coagulant optimization, sedimentation studies, or educational research, this Jar Tester delivers consistent performance and dependable data for process evaluation.
