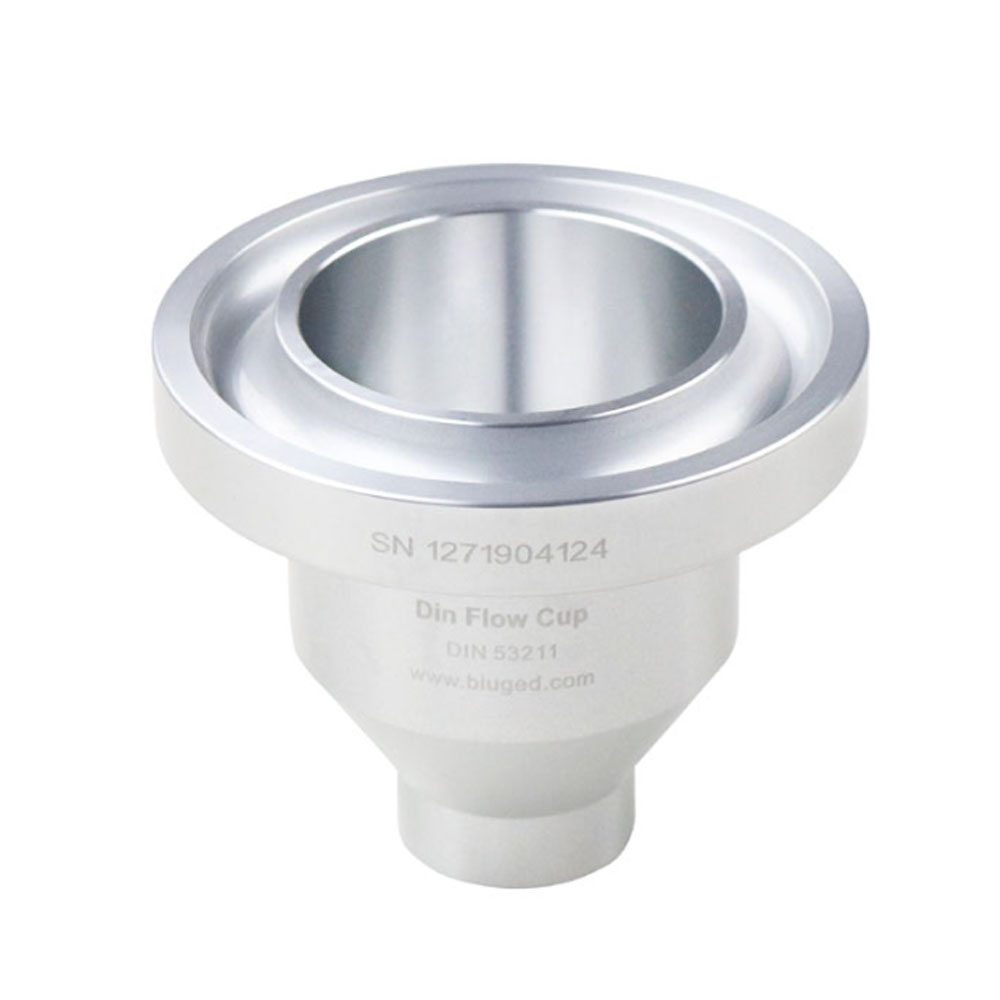

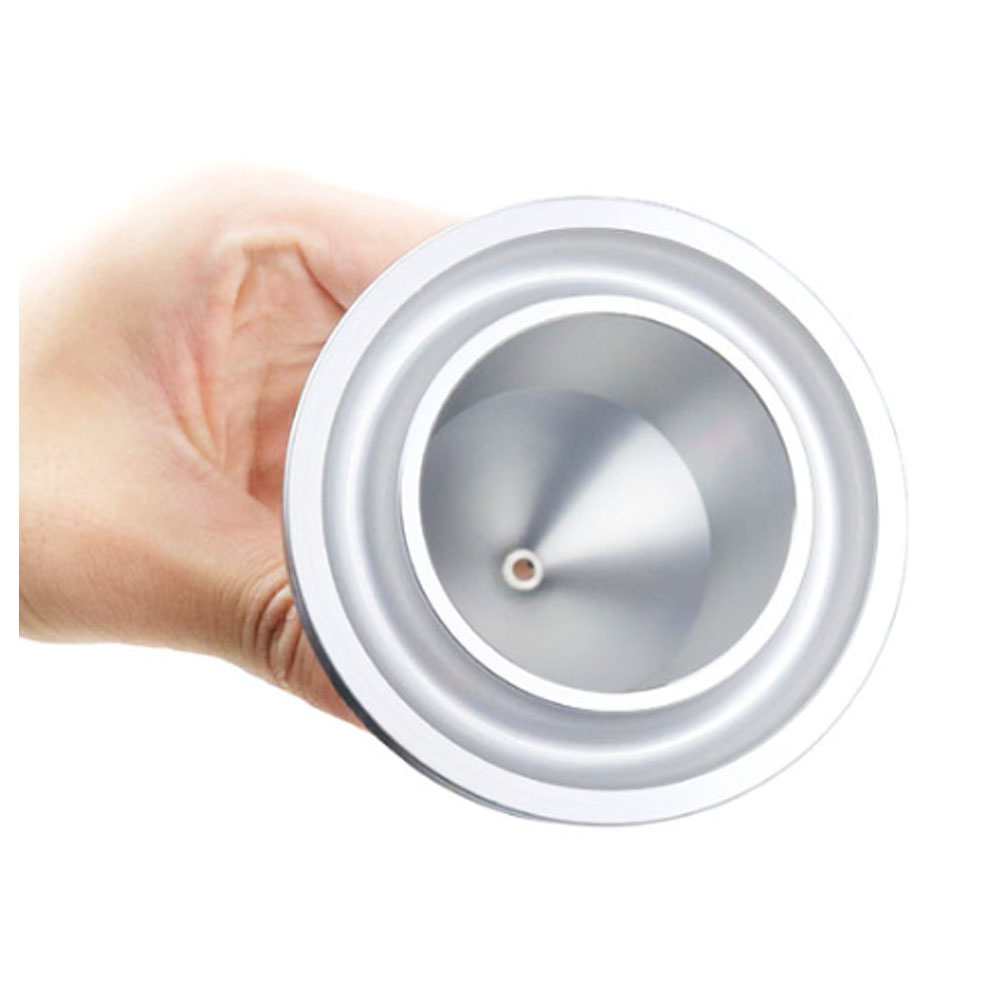

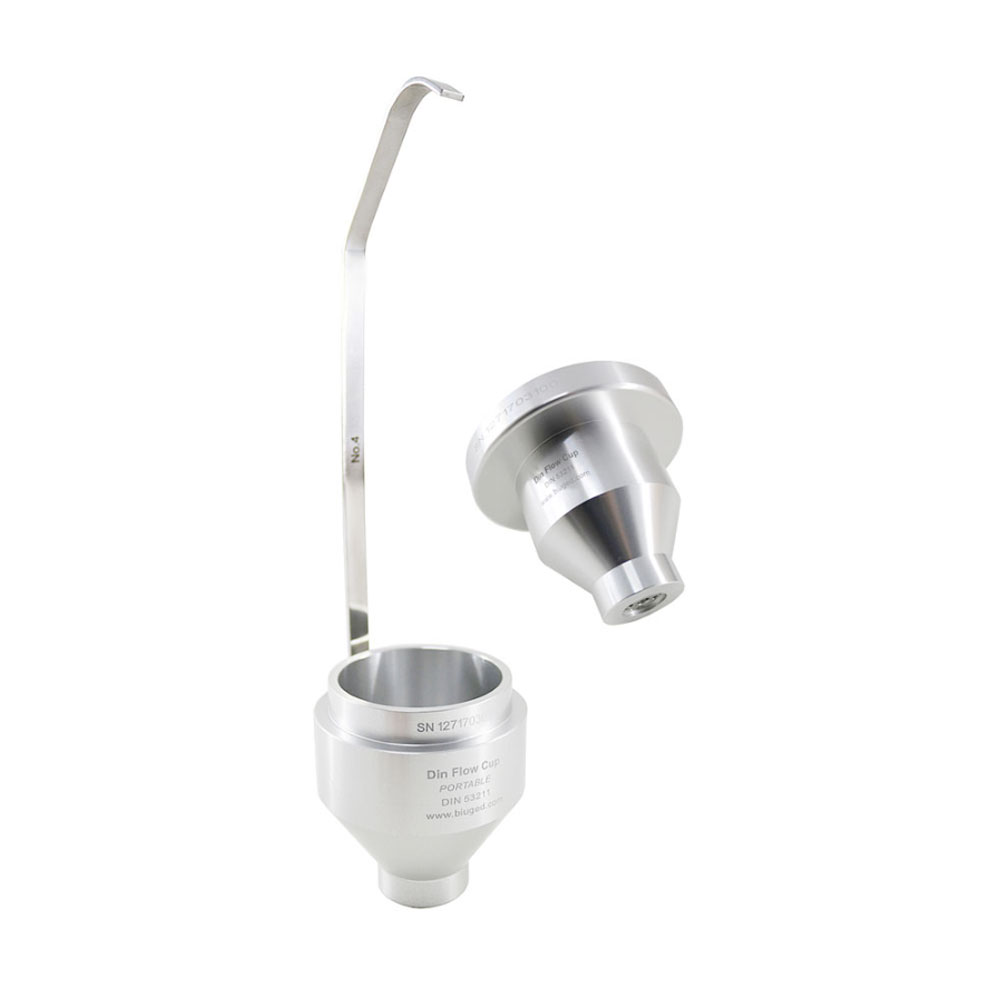

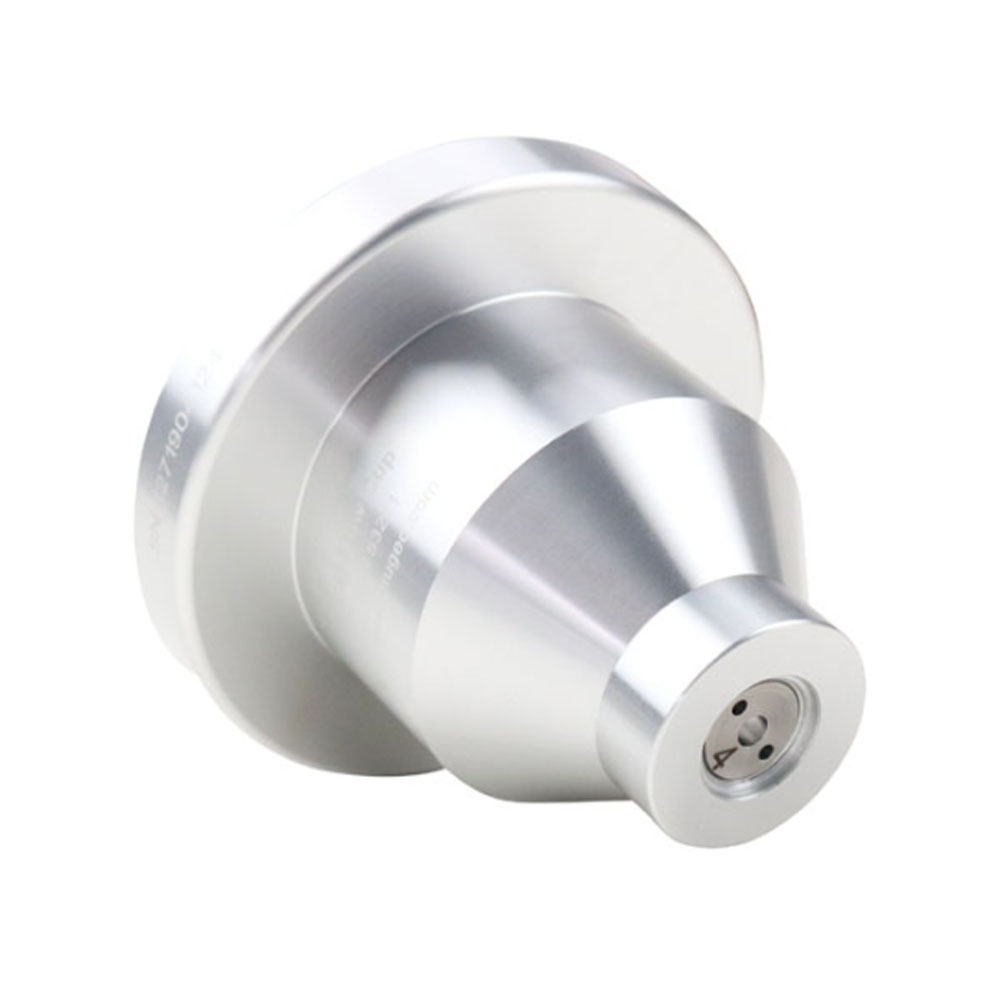

Din Flow Cup

The Biuged DIN and Dip Viscosity Cups are produced with an easily removable orifice. Cup and orifice production tolerance permits replacement of the orifice without loss of acceptable tolerance. In accordance with Deutsche Normen DIN 53211.

It complies with DIN 53211 standard and is applied for low viscosity liquids.

Main Technical Parameters

■ Volume of Cup: 100ml±1ml

■ Orifice Diameter Tolerance: ±0.02mm

■ Body is made of anodized aluminum

■ Stainless steel orifice, interior polished

■ Come with calibration certificate
