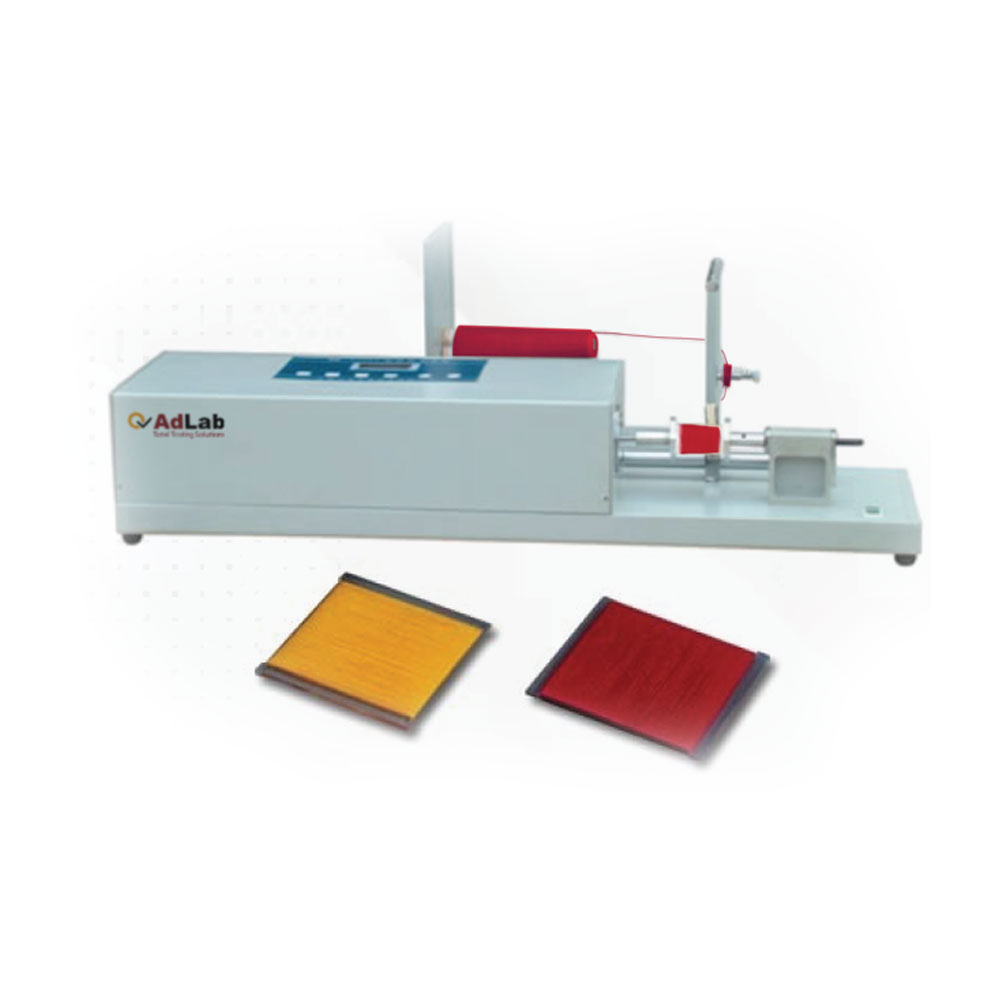

Yarn Color Card Winder
The Yarn Color Card Winder is designed for producing yarn sample cards for spectrophotometers and colorimeters. It ensures precise, efficient winding for color testing, UV resistance measurement, and sample adjustments in labs and production environments.
- Adjustable winding speed (100–900 r/min), width (1–50 mm), and layers (1–99).
- Supports yarn diameters from 0.03–3.58 mm for versatile applications.
- Durable, PLC-controlled system with high efficiency up to 5,000 sets/year.
Yarn Color Card Winder use to produces yarn sample cards for Spectrophotometer. Suitable for sample card, UV resistance measurement, sample adjusting, colorimeter testing, cleanness degree and winding color card.
Features
- High Efficiency: Automates yarn winding with a capacity of up to 5,000 sets/year.
- Customizable Settings: Adjustable winding length (up to 300mm), width (up to 80mm), and speed (0–1,100 r/min).
- Wide Compatibility: Supports yarn diameters from 0.03mm to 3.58mm; ideal for labs, farming, and home use.
- Durable Build: Equipped with premium components including a PLC, motor, and pump for reliable performance.
- Industry Approved: Rigorously tested and compliant with professional standards-perfect for modern yarn production needs.
Technical Parameter
- Winding speed: 100-900r / min (adjustable)
- Sample density: 0.01-0.99mm (adjustable)
- Winding board size: the user needs to determine
- Winding layers: 1-99 layers
- Winding width: 1-50mm
- Number of windings: 1
- Dimensions: L750×W230×H120mm
Why Choose the Yarn Color Card Winder?
The Yarn Color Card Winder is indispensable for textile labs and manufacturers needing consistent yarn sample cards for spectrophotometer and UV testing. Since accurate sample preparation is key to color and quality evaluation, this winder automates the process with speeds up to 900 r/min and layers up to 99, supporting diameters from 0.03 to 3.58 mm. For example, it produces cards for colorimeter analysis, ensuring reliable results in production. Its durable PLC-controlled design and customizable settings enhance efficiency, while the compact 750 x 230 x 120 mm size saves space. Consequently, users can streamline workflows and meet industry standards. For more details or to request a demo, contact our team today.
