Fiber Fineness Meter

Application

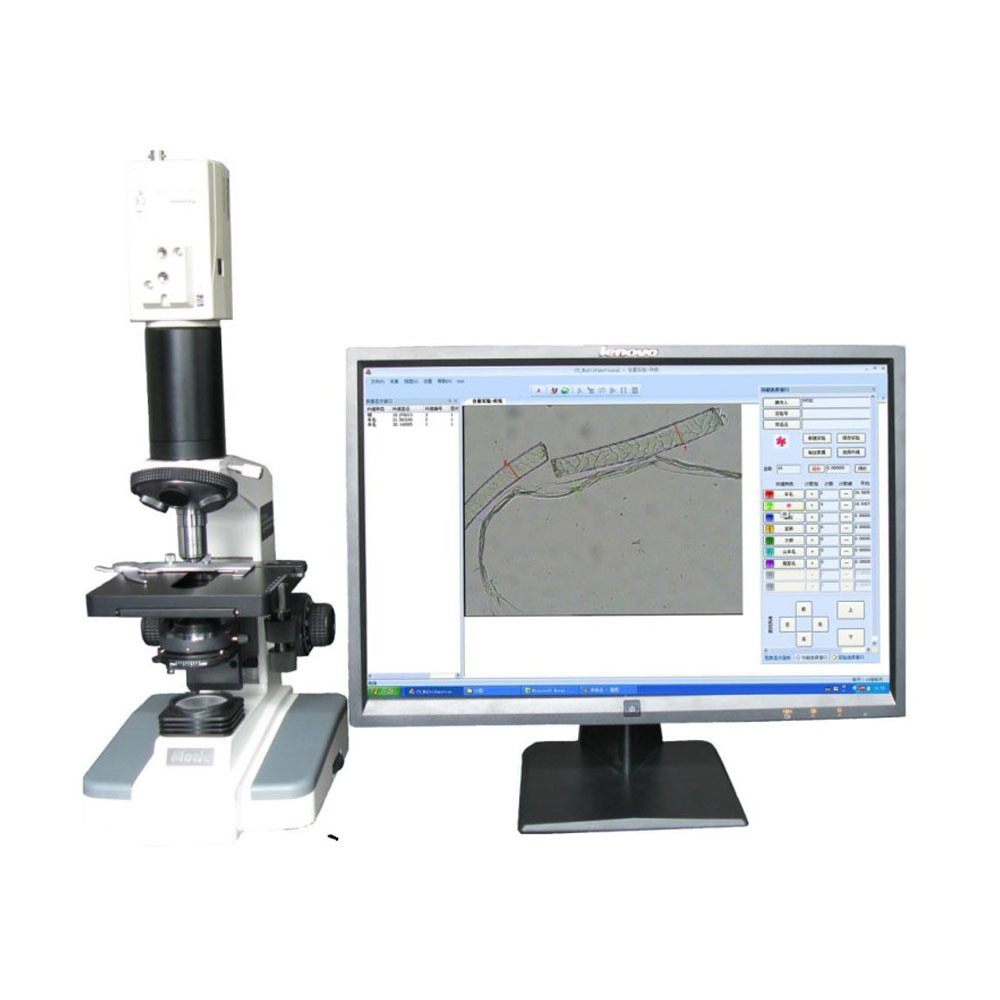

Fiber Fineness Meter consists of an optical microscope, high-resolution industrial camera and computer, to perform fiber diameter and cross-sectional area tests by using professional software. It also can determine the content of each fiber in the blended fiber. It contains several different models of different microscopes and different software.

Standards

• AATCC20/A-2011
• IS0137-1975, ISO 17751
• IWTO-8-2004, IWTO-47-2009
• TWC-TM24-2009
• SN/T 1062, 0756
• GB/T 20732-2006, 10685-2007, 16988
• FZ/T 01057.3, 30003, 32004, 01101-2008

Features

1. Qualitative analysis, conforms to AATCC20-2011, FZ/T01057.3
2. Used to determine the fiber diameter of animal fiber, chemical fiber, cotton and flax fiber, etc. Fast to test, easy to operate, with small human error
3. Fiber diameter measurement, conforms to ISO137-1975, IWTO-8-2004, TWC-TM24-2009, GB/T 10685-2007
4. With automatic test function of fiber diameter (optional), conforms to IWTO-47-2009, GB/T 20732-2006
5. Measuring range: 1~2000μm
6. Data and report output in EXCEL format, it also can be customized as customer’s requirement

Content type

• It can determine the fiber content of various blended products by analyzing single fiber morphology and measuring diameter
• It conforms to ISO 17751, SN/T 1062, GB/T 16988, SN/T 0756, FZ/T30003, FZ/T 32004, etc.
• Adopts professional analysis software, data, and report output in EXCEL format
• Provided with a sample gallery of special animal fiber, chemical fiber, cotton and flax fiber, convenient to contrast for the operator, improve the ability of identification

Why Choose Fiber Fineness Meter?

Choose the Fiber Fineness Meter for its precision, versatility, and compliance with multiple international standards, including ISO, AATCC, IWTO, and GB/T. Its integrated optical microscope, high-resolution camera, and professional software ensure fast, accurate testing of fiber diameter, cross-sectional area, and blended fiber content. The automatic test function reduces human error, while data and report output in Excel format allows easy analysis and documentation. With a sample gallery for animal, chemical, cotton, and flax fibers, operators can quickly reference and identify fibers, improving quality control. Suitable for textile laboratories and manufacturers, the Fiber Fineness Meter guarantees reliable performance, efficient workflow, and high accuracy for fiber testing and research applications.
