Digital Microscope

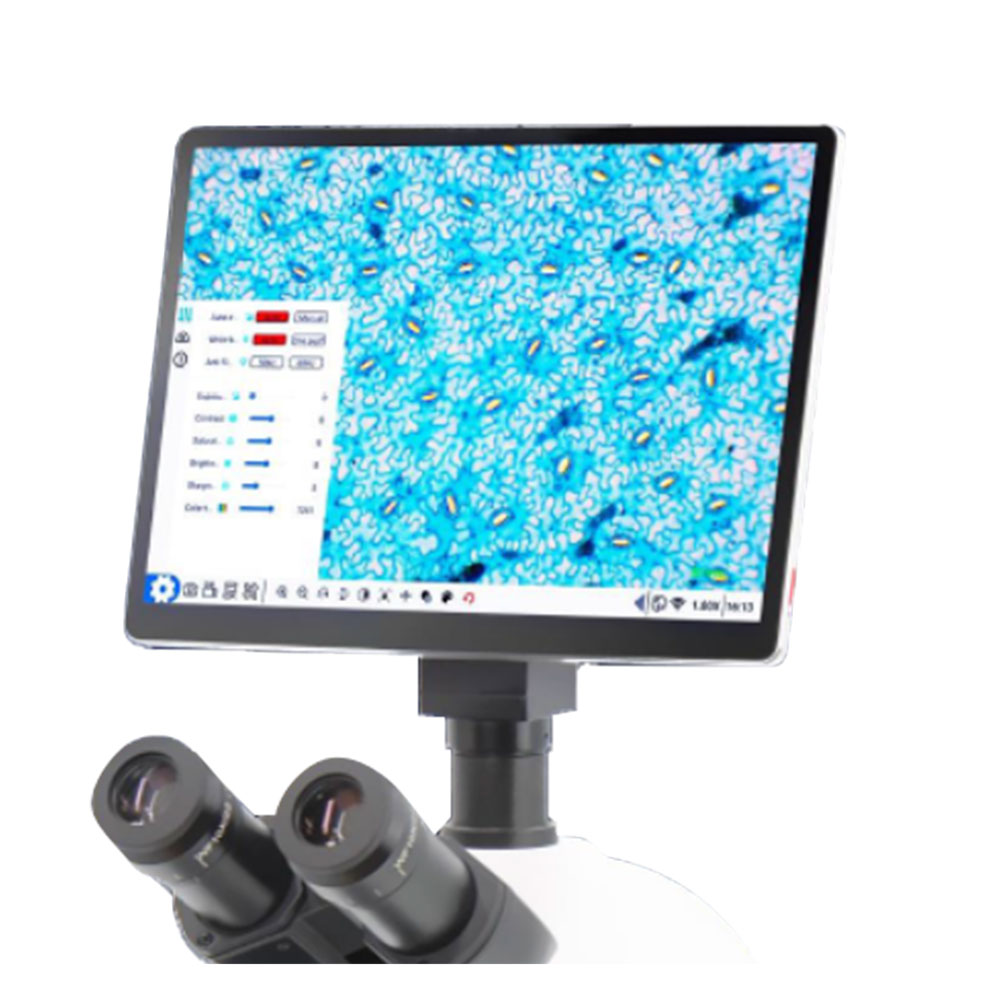

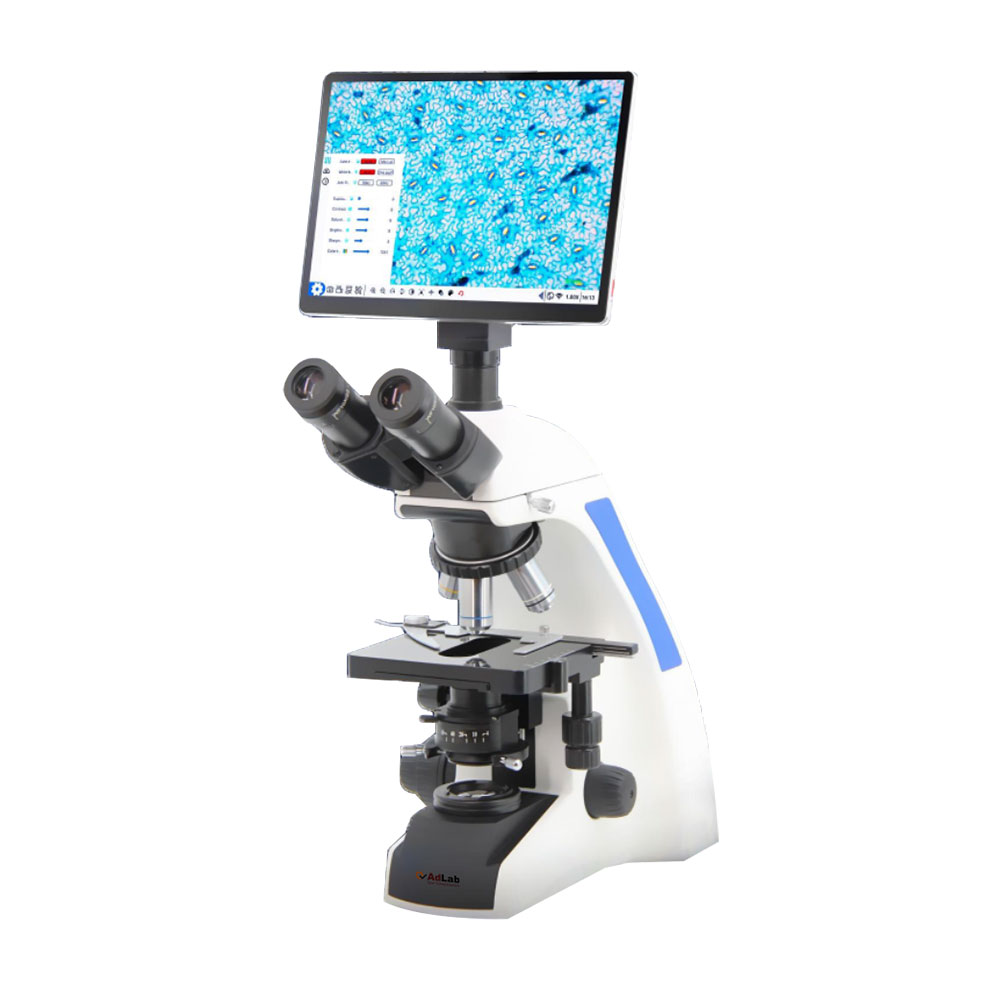

The ADL-FibroComp Digital Microscope is an all-in-one, high-performance optical microscope designed for laboratory and hospital applications. Featuring a 10.5” touch screen Android pad with pre-installed S-Eye measurement software, users can observe, capture, measure, and analyze specimens directly. It offers high-contrast achromatic objectives (4x, 10x, 40x, 100x), a double-layer mechanical stage, and 3W LED Kohler illumination. With advanced features like dark field, polarizing, phase contrast, and fluorescent viewing, this microscope supports both routine and advanced imaging needs. Its intuitive touch and USB control make it easy to operate, ensuring accurate results in research, diagnostics, and educational settings.

Features

• 5″ Touch Screen Android Pad + 4K Digital Camera, All-in-One
• 0M 1/1.8″ CMOS Digital Camera Resolution 3840*2158@30FPS
• Android 11 Tablet Built-in Memory RAM 2G + ROM 16G For Photo & Video Record
• 0+HDMI+LAN Output, Touch Screen + USB Mouse & Keyboard Control
• Open & See Microscope Image Directly, Built-in Software for Measure & Analysis

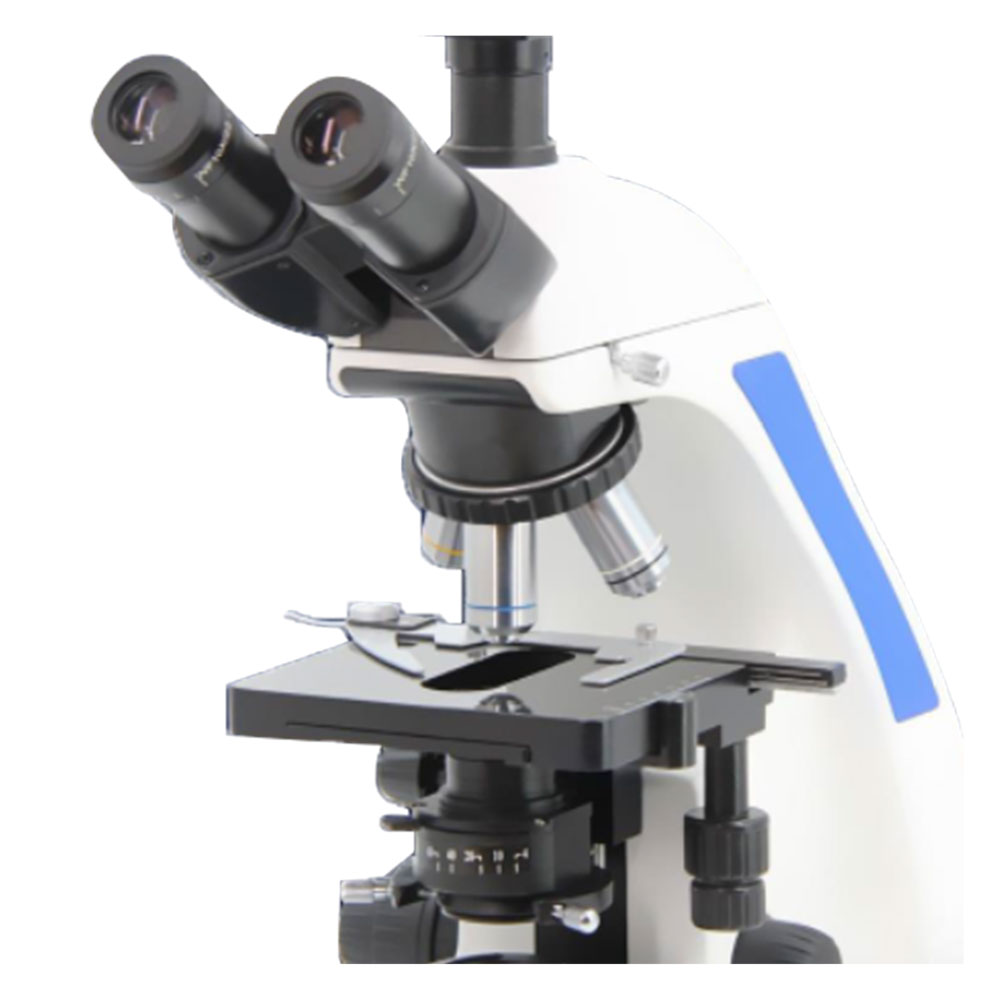

• Head: Trinocular Head, 30°Inclined, Interpupillary Distance 48 75mm, Both Eyepiece Tube Diopter Adjustable
• Eyepiece: WF10x/20mm, Diopter Adjustable, Dia. 30mm
• Objective: High Contrast Chromatic Free 4x, 10x, 40x(S), 100x (Oil, S)
• Focus Knob: Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm
• Nosepiece: Quadruple, Backward with Click Stops
• Stage: Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm
• Condenser: Abbe Condenser N.A.1.25, Center Adjustable
• Light Source: 3W LED Brightness Adjustable
• Adapter: C-Mount 0.5x
• Package: 53*32.5*53.5cm/11.5Kg, 1 Set/Carton

Why Choose ADL-FibroComp Digital Microscope?

Choose the ADL-FibroComp Digital Microscope for its versatility, precision, and user-friendly design. The built-in 10.5” Android tablet allows real-time observation, measurement, and analysis without the need for external devices. Its high-contrast objectives and upgradeable infinity plan optical system ensure crisp, detailed imaging across 4x to 100x magnifications. The double-layer mechanical stage provides smooth sample movement, while adjustable LED illumination enhances visibility for dark field, polarizing, and fluorescent techniques. Its trinocular head with diopter-adjustable eyepieces allows ergonomic viewing, and the integrated software supports accurate digital measurements. Whether for laboratory research, hospital diagnostics, or educational purposes, the ADL-FibroComp delivers reliable performance, precise imaging, and seamless workflow in a compact, all-in-one design.
