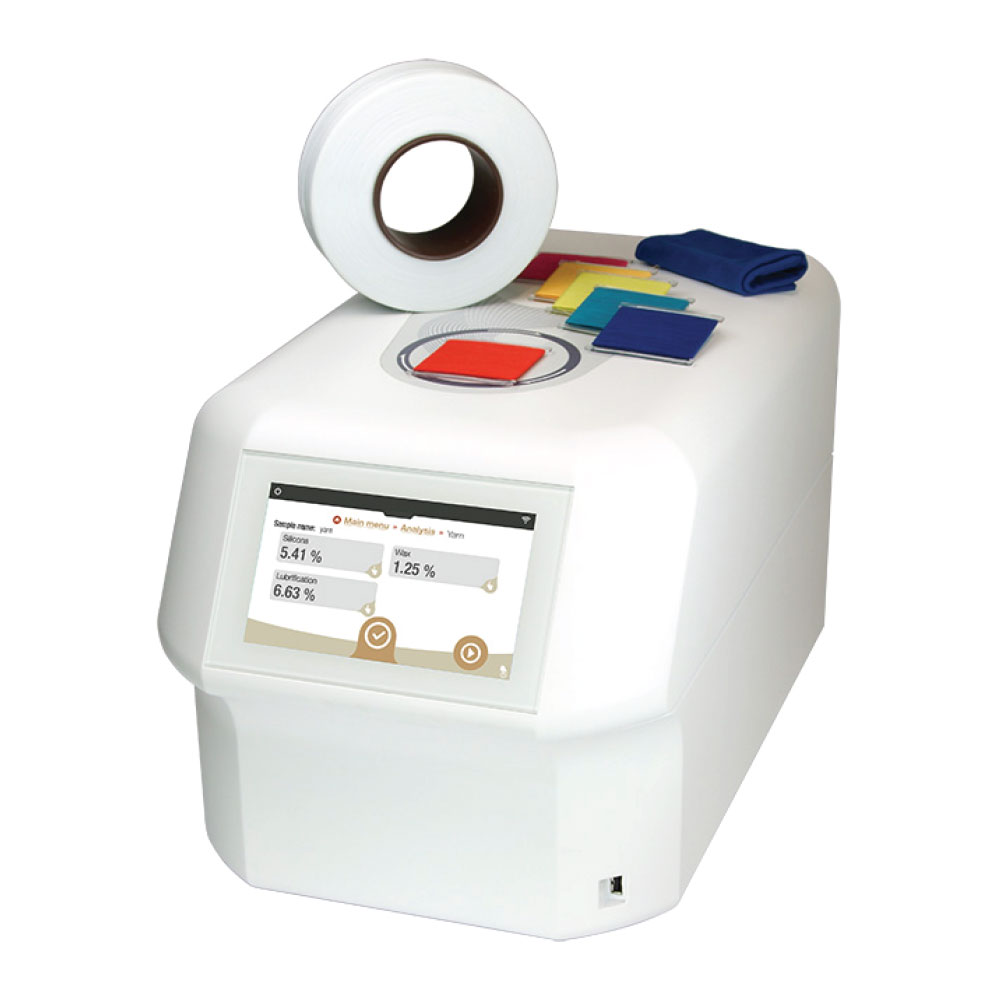

SpectraAlyzer for Yarn Lubrication Tester

SpectraAlyzer for Yarn Lubrication Tester, In today’s processing industry, reliable and accurate analytical solutions are essential to provide customers with the highest and, most importantly, consistent quality products. To be most competitive in the global market, it is necessary to achieve consistently high yields, the highest quality and low production costs.

Designed as a modular system, SpectraAlyzer TEXTILE provides results for key quality parameters (e.g. moisture, protein, fat, oil, fiber, ash, solvents and many others) within 45 seconds, without the need for manual sample conditioning or additional reagents. The analyzer solution therefore provides highly accurate quality control parameters without additional costs.

As a stand-alone system, the analyzer can be operated very easily and intuitively, even close to the production line. The robust design and the internal unique optical sampling/reference system ensure reliable operation in temperature fluctuations, vibrations and dust. The integrated web server enables immediate visualization of data across the entire company, providing current and historical analytics in real time. The download of calibration models as well as analytics makes the instrument a valuable tool for process control.

The SpectraAlyzer TEXTILE analyzer comes with ready- to-use calibration models for many applications and a powerful software package that facilitates fine-tuning of the model and extensive and automated recording and storage of analysis results in a database.

Key Features

• NIR testing – reference technology like all SpectraAlyzer® instruments for highly sensitive and long-term stable measurements.
• Versatile presentation of samples with closed, open, viscous, sliding and disposable cups for powders, pastes, suspensions and liquids.
• User friendly sample presentation and ease of use.
• Compact design optimized for desktop or streaming use.
• Touch user interface and intrinsically safe glass sensor for direct hygienic control of the device
• Many mathematical models for all included products for quick installation and launch of algorithms.
• Web server Web connection for direct access to devices via local network and Internet from anywhere and at any time.

Technical data

• For textile and chemical products
• Spectral range: 800 – 2500 nm
• Dual beam system, sample/reference measurement
• High signal to noise ratio: > 150.000:1
• Large expandable internal memory for calibration models, methods and history results
• Auto-diagnostics
• Graphical user interface, projected capacitive glass touch panel

Technical specifications

• Screen: TFT 800 x 480 pixel
• Power requirements: min. 90 V AC (50 – 60 Hz), max. 260 V AC (50 – 60 Hz), 220VA
• Operating temperature: 5 °C – 40 °C non-condensing
• Interfaces: 1 x front USB 2.0, 3 x USB 2.0, 2 x RS232, ethernet
• Dimensions: Height: 310 mm / width: 300 mm / depth: 480 mm
• Weight: 17 kg

Why Choose SpectraAlyzer?

Choose the SpectraAlyzer for Yarn Lubrication Tester for its unmatched speed, accuracy, and ease of use in textile quality control. Its NIR technology provides stable, highly sensitive measurements across multiple parameters, eliminating the need for additional reagents or manual conditioning. The modular design accommodates powders, liquids, pastes, and suspensions using open, closed, or disposable cups, ensuring versatile sample presentation. The touch user interface and hygienic glass sensor simplify operation, while the integrated web server enables remote access, real-time monitoring, and historical data analysis. With ready-to-use calibration models, robust construction, and automatic diagnostics, the SpectraAlyzer ensures reliable, repeatable results, helping manufacturers maintain high-quality standards, optimize processes, and reduce production costs.
