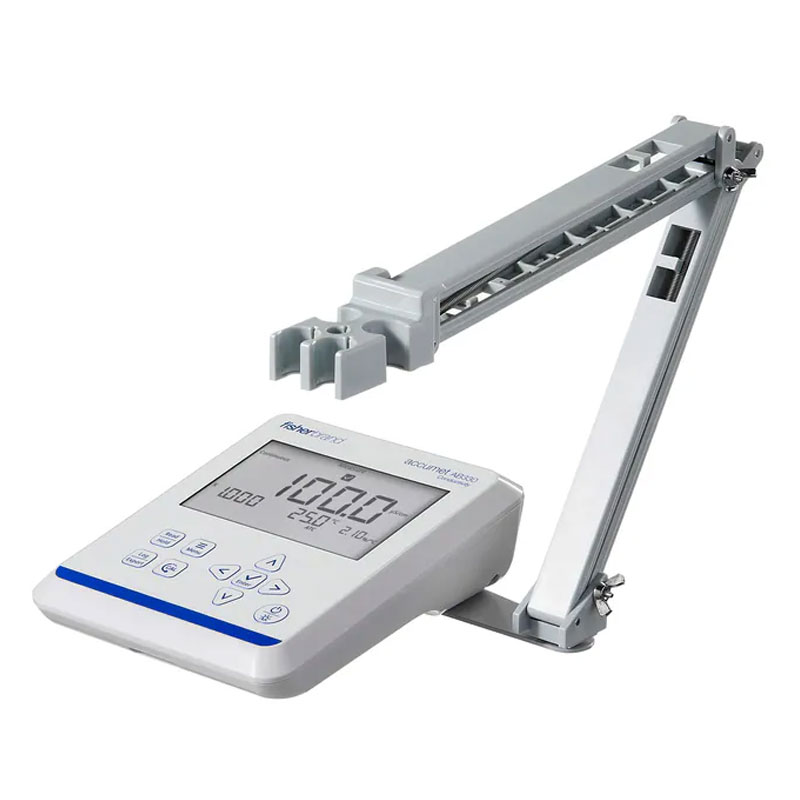

Fisherbrand Basic AB330 Benchtop Laboratory Conductivity Meter

Category: pH and Water Testing Instruments

Description

Ideal for daily conductivity, TDS and salinity testing of your routine laboratory samples, the accumet™ Basic AB330 Benchtop Meter provides essential functions needed without complicated functions at a budget-friendly price.

Large, backlit display simultaneous shows conductivity and temperature readings
One to five point conductivity calibration with automatic standard recognition of four conductivity standards
One to five point TDS calibration and one point salinity calibration
Linear temperature compensation from 0 to 10 %/°C with reference temperatures of 15, 20, 25 or 30°C
One point ATC temperature probe calibration
Calibration due alarm, selectable 1 to 60 hr., or off
Automatic or manual temperature compensation
Ready icon indicates measurement stability
500 data set storage with time/date stamp
Non-volatile meter memory preserves settings and data in event of power loss
Meter-attached stand facilitates easy electrode movement into and out of samples

Specifications

Description	Conductivity Meter with Epoxy-body 2-cell Electrode
Accuracy (Conductivity)	±1% Full Scale
Outputs	Port for Computer or Printer
Includes	Conductivity/ATC Probe, Electrode Stand, Power Adapter
Measurement Modes	Conductivity with Temperature, TDS with Temperature, Salinity with Temperature
Cell Constant	0.1 to 10
Calibration	Conductivity, TDS, Salinity, Temperature
Calibration Points (Conductivity)	84 μS, 1413 μS, 12.88 mS, 111.8 mS
Calibration Points	1 to 5 (Conductivity), 1 to 5 (TDS), 1 (Salinity), 1 (Temperature)
Range (Conductivity)	0 μS to 500 mS
Resolution (Conductivity)	0.01, 0.1, 1 μS; 0.01, 0.1 mS
Temperature Compensation	Linear
Temperature Coefficient	0 to 10 %/°C
Temperature (Metric) Reference	15, 20, 25 or 30°C
Range (Salinity)	0 to 80 ppt
Resolution (Salinity)	0.01, 0.1 ppt
Accuracy (Salinity)	±1% Full Scale
Resolution (TDS)	0.01, 0.1, 1 ppm; 0.01, 0.1 ppt
Accuracy (TDS)	±1% Full Scale
TDS Factor Range	0.4 to 1
Temperature Range (Metric)	-5°C to +105°C
Resolution (Temperature)	0.1°C (0.1°F)
Accuracy (Temperature)	±0.3°C (±0.5°F)
Display Type	5 in. LCD
Backlight Option	Yes
Memory	Non-volatile
Data Points	500
Data Management Details	Printed or CSV Format
Inputs	Conductivity, ATC
Certifications/Compliance	CE, TUV 3-1, FCC Class A, Without NIST-traceable Calibration Certificate
IP Rating	IP54
AC Adapter	Universal Power Adapter
Warranty	3 Years
Model	AB330
Stability	Indicator Icons
Data Logging	Automatic with Auto-read and Timed Modes, Manual with Continuous Mode
Type	Meter with 2-cell Electrode
Voltage	100/240 V
Frequency	50/60 Hz
