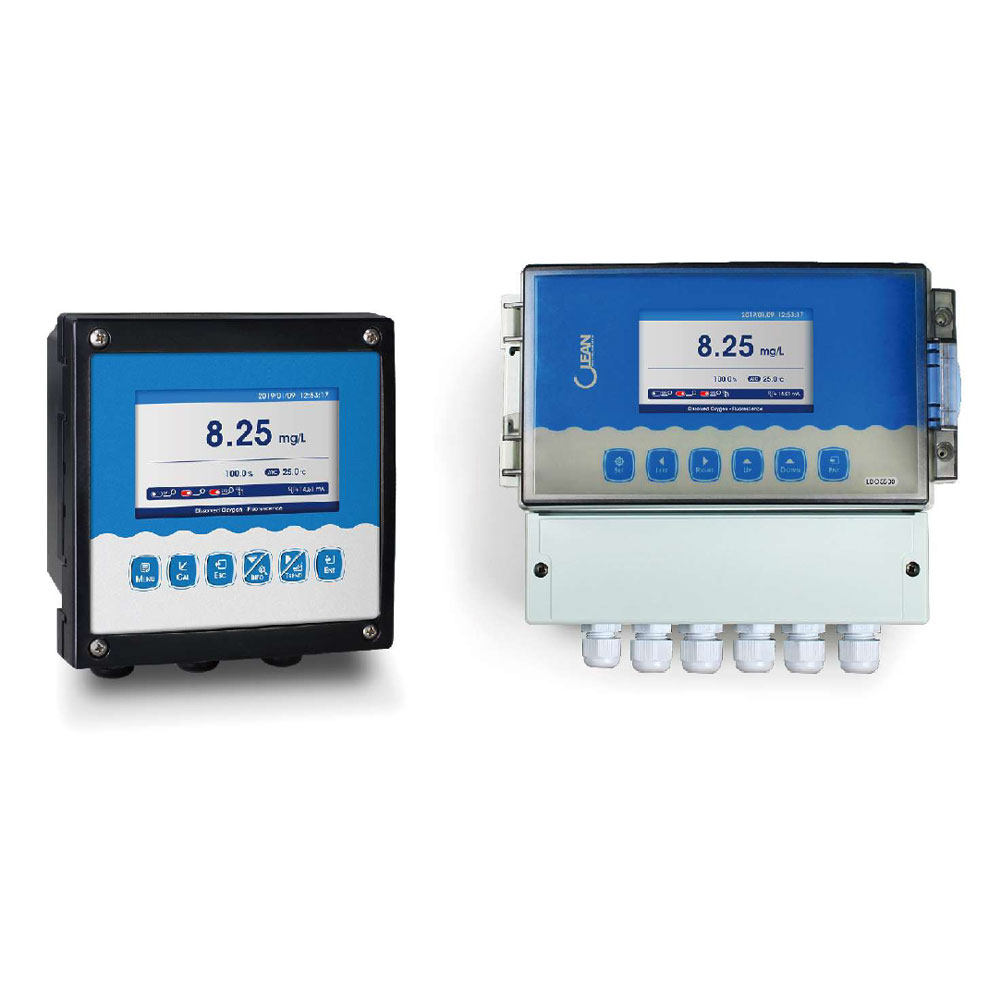

Fluorescence Dissolved Oxygen Meter

Fluorescence Dissolved Oxygen Meter

Fluorescence method dissolved oxygen

Turbidity

Suspended solids sludge concentration

lon

MP5506 multi parameter

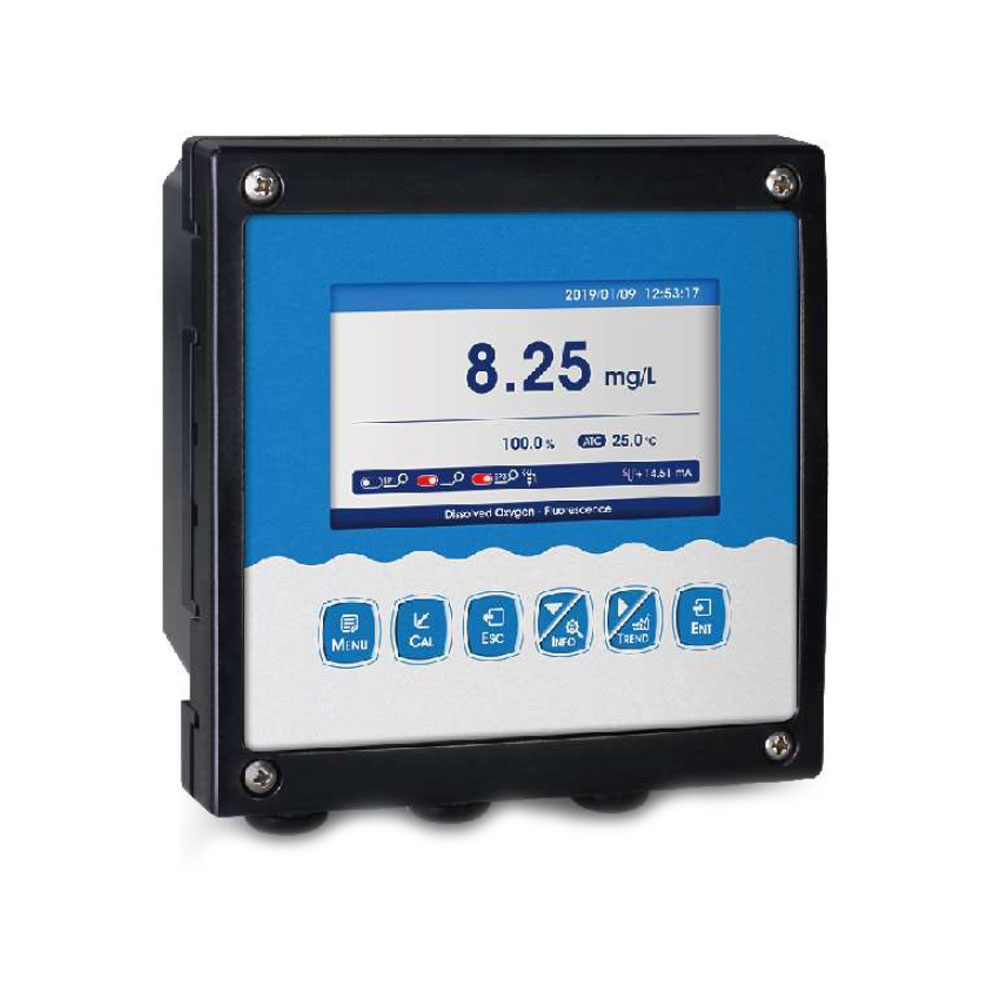

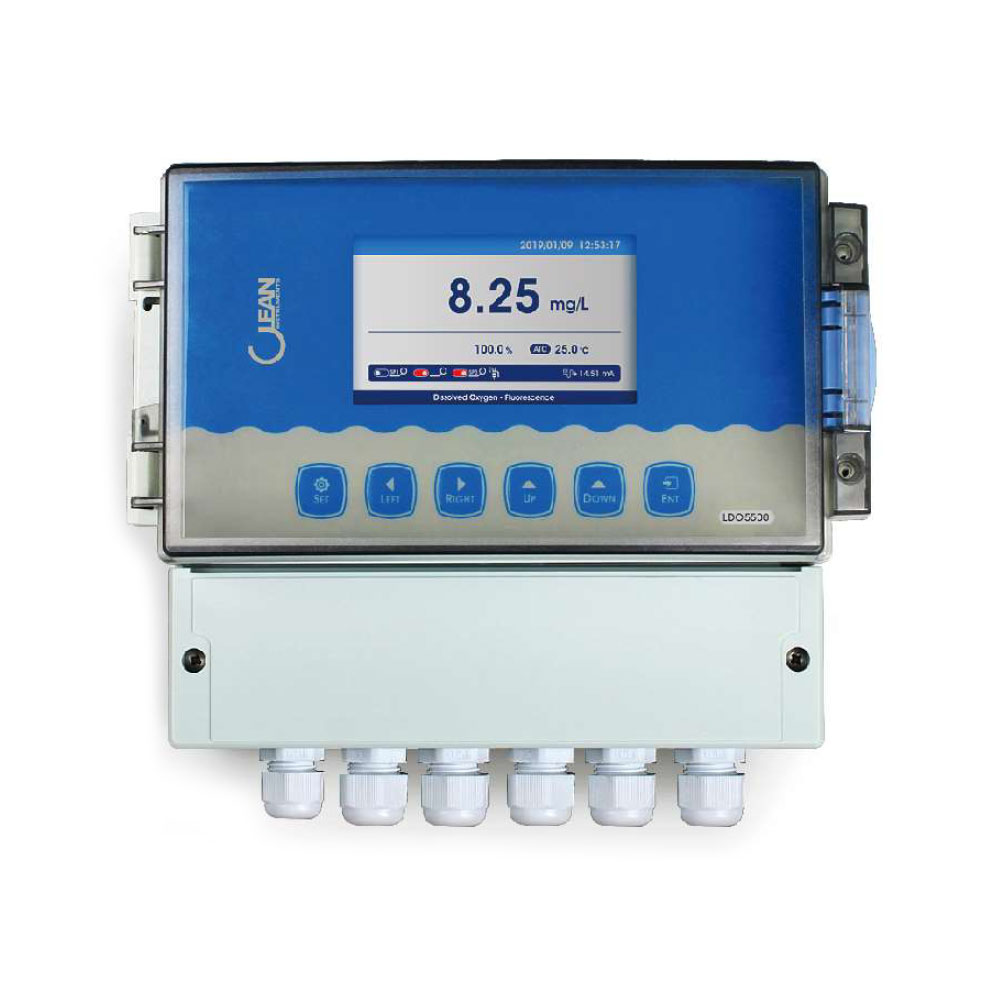

Fluorescence industrial online dissolved oxygen meter is a microprocessor-based online water quality monitoring and control instrument. The instrument is equipped with fluorescent dissolved oxygen electrodes, which are widely used in power plants, petrochemical industry, metallurgy and electronics, mining, paper industry, food and beverage, environmental protection water treatment, aquaculture and other industries; Continuously monitor and control the dissolved oxygen value and temperature value of the aqueous solution.

Features

• LCD large screen color LCD display
• intelligent menu operation
• data recording & curve display
• multi point calibration function to ensure measurement accuracy
• differential signal measurement mode, stable and reliable
• three sets of relay control switches
• high limit, low limit and hysteresis control
• 4-20mA & RS485 multiple output modes
• password protection can be set to prevent mis operation by non-staff

Specification

• Measurement range               : 0~20.0mg/L
• Measurement principle          : Fluorescence method
• Resolution                               : 0.01mg/L
• Basic error                               : ±1%F.S
• Temperature                            : 0~50.0 C
• Temperature Resolution          : 0.1 C
• Temperature basic error         : ±0.3 C
• Temperature compensation    : Automatic or Manual
• Stability                                   : At atmospheric pressure & constant temperature, weekly drift< 2% F. S. At 25C < 60S; 35C < 30S
• Response time                        : Two ways 4~20mA/20~4mA
• Current Output                        : RS485 MODBUS RTU
• Communication Output          : Data recording/Trend chart display/Data upload function
• Other Functions                       : Three:5A 240VAC, 5A 28VDC or 120VAC
• Relay Control Contacts            : 85~265VAC;9~36VDC, Power consumption≤3W
• Power Supply                          : IP65
• Protection Grade                     : 0.8kg
• Weight                                    : 144×144×118mm
• External Dimensions               : 138×138mm
• Panel Opening Size                 : Panel, wall mounting or pipeline;
• Installation Methos                 : -10~60 C
• Operating Temperature           : ≤90%
• Relative Humidity                    : No strong magnetic field interference
• Operating Environment           : except the geomagnetic field.
