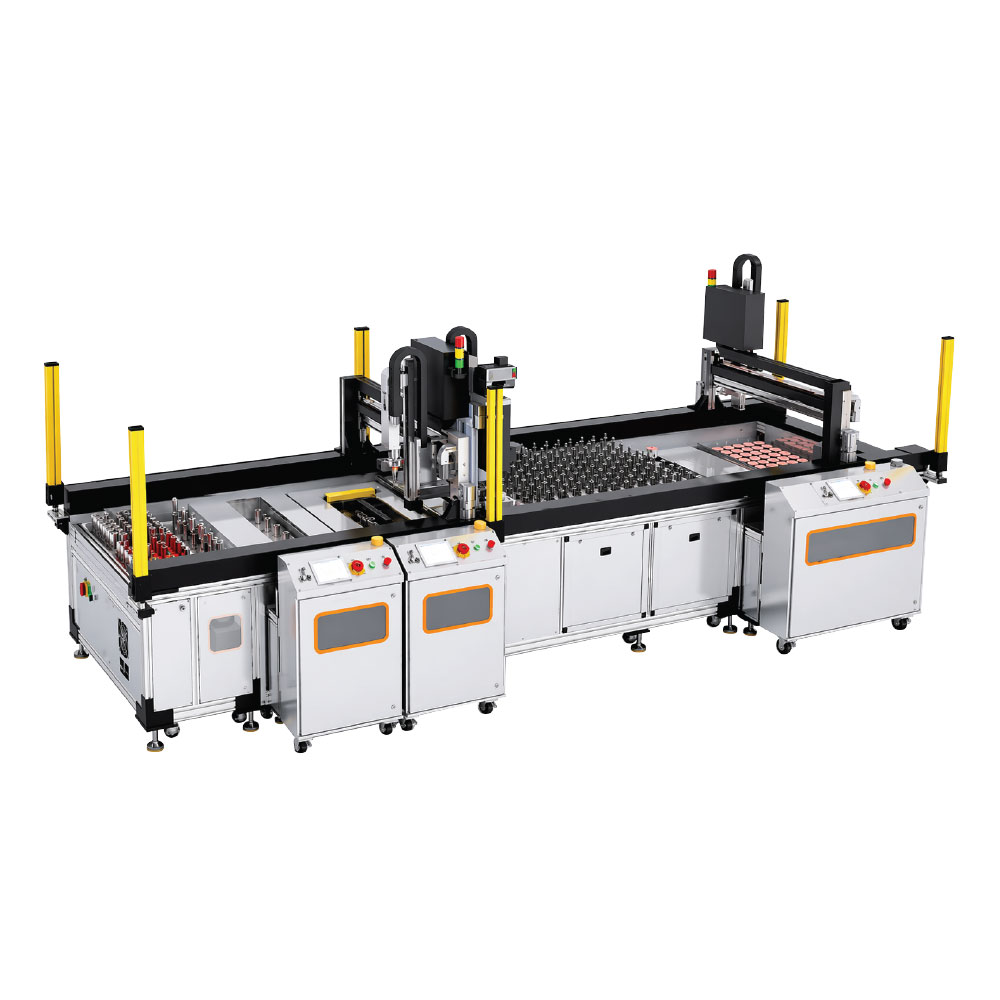

Fully Automatic Laboratory Dispensing System

Fully Automatic Laboratory Dispensing System delivers unmanned dyeing laboratory operation with precise dispensing, automated solution preparation, cleaning, and temperature control.

24-hour automated operation from solution making to post-treatment
High-precision dispensing accuracy up to 0.002 g
Supports 48–192 injectors with flexible laboratory dyeing configurations

Description

Introduction

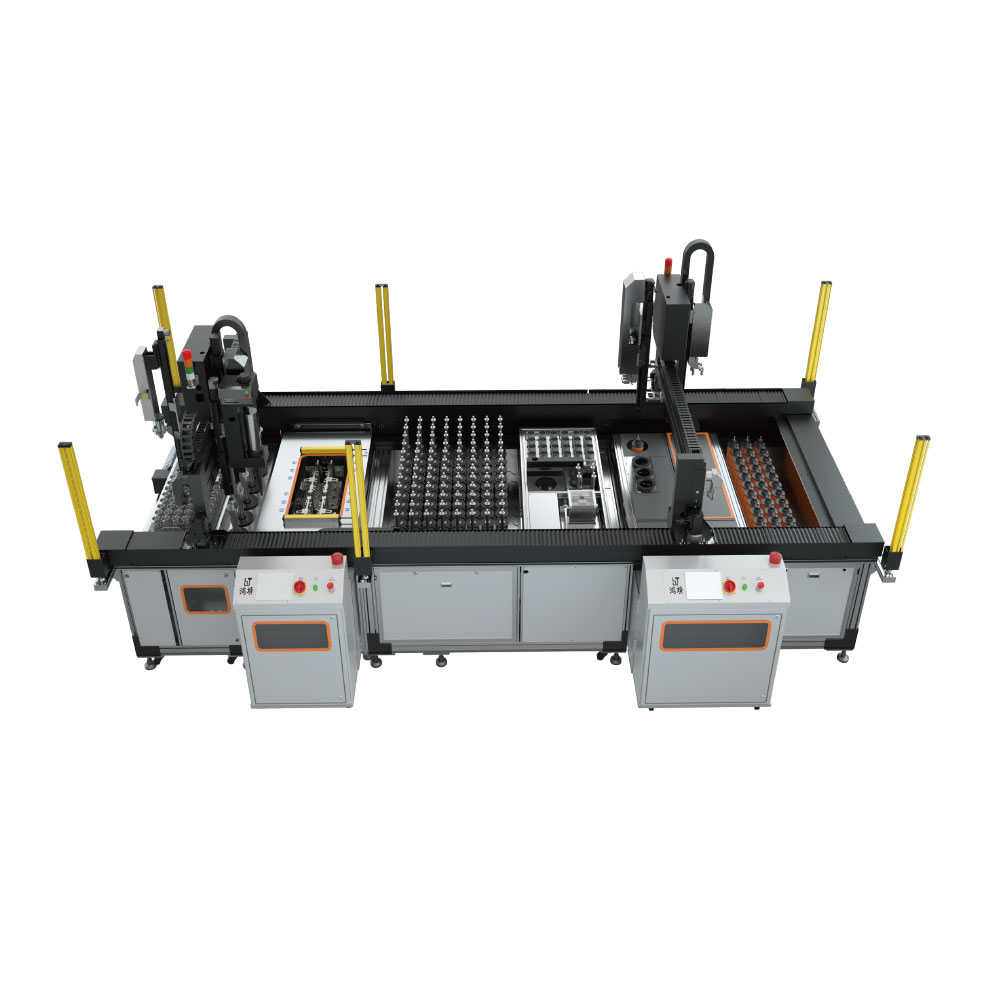

The Fully Automatic Laboratory Dispensing System automates the complete laboratory dyeing workflow, from solution preparation and dispensing to pre-treatment, dyeing, and post-treatment. Designed for textile printing and dyeing laboratories, it supports 24-hour unmanned operation and delivers consistent, repeatable dyeing results. Three independent manipulators work simultaneously to improve processing efficiency, while high-precision dispensing components ensure accurate chemical dosing. The system supports multiple dyeing capacities and integrates solution preparation, automatic cleaning, dilution, heating, and cooling functions to create a reliable and efficient laboratory dyeing environment.

Applicability

The Fully Automatic Laboratory Dispensing System is suitable for the dyeing laboratory of printing and dyeing industry. The machine adopts 24-hour unmanned on-duty design, and automatically executes the whole process from liquid making, dropping, pre-treatment, dyeing to post-treatment without human intervention, and ensures the reproducibility and consistency of dyeing.

Technical Data

Model	HJ-AST&DSP&DYE-60-144-24/36/48	HJ-AST&DSP&DYE-84-192-24/36/48	HJ-AST&DSP&DYE-144-24/36/48
Injector Capacity	32ml/100ml
Injector material	316L
Dropping Accuracy	0.005g/0.01g
Dropping Speed	12-16 minutes 24 cup/batch
No. of Drip Formula Each Batch	Max 24pcs (Dispensing for outside dyeing machine)
Calibration Balances	Satorius 320g, 0.001g
Dye & Auxiliaries Bottle	144pcs & 1000ml	192pcs & 1000ml	144pcs & 1000ml
Injector Number
Number of Powder Bottle Device	60	84	None
Weight Approx	3500kg	3700kg	3800kg
Power Supply	3 Phase AC380V / 50Hz 21kW / 26kW / 31kW		3 Phase AC380V / 50Hz 12kW / 17kW / 22kW
Dimensions (L×W×H) mm	24pcs: 5990×2320×2023mm 36pcs: 6890×2320×2023mm 48pcs: 7570×2320×2023mm	24pcs: 6600×2320×2023mm 36pcs: 7490×2320×2023mm 48pcs: 8190×2320×2023mm	24pcs: 4540×2030×1970mm 36pcs: 5430×2030×1970mm 36pcs: 6130×2030×1970mm

Features

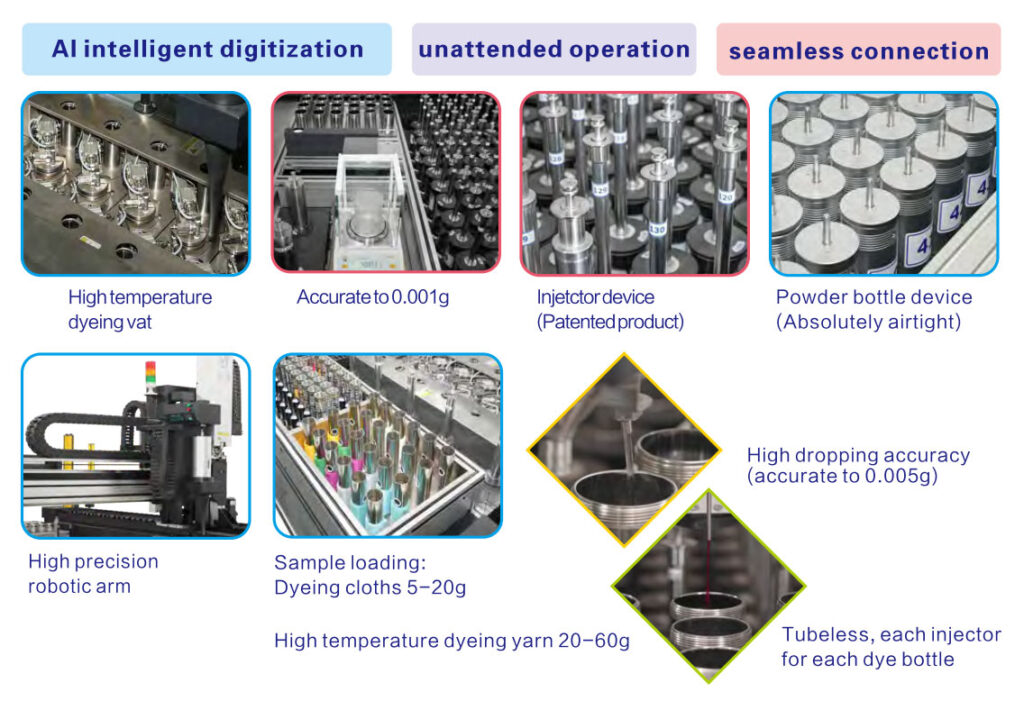

Three independent manipulators handle different processes simultaneously, significantly increasing operating speed and efficiency.
Patented drip needle assembly delivers stable dispensing accuracy of up to 0.002 g.
Flexible system integration connects solution-making and dispensing units with one or more dyeing units to support different proofing capacities and dyeing methods.

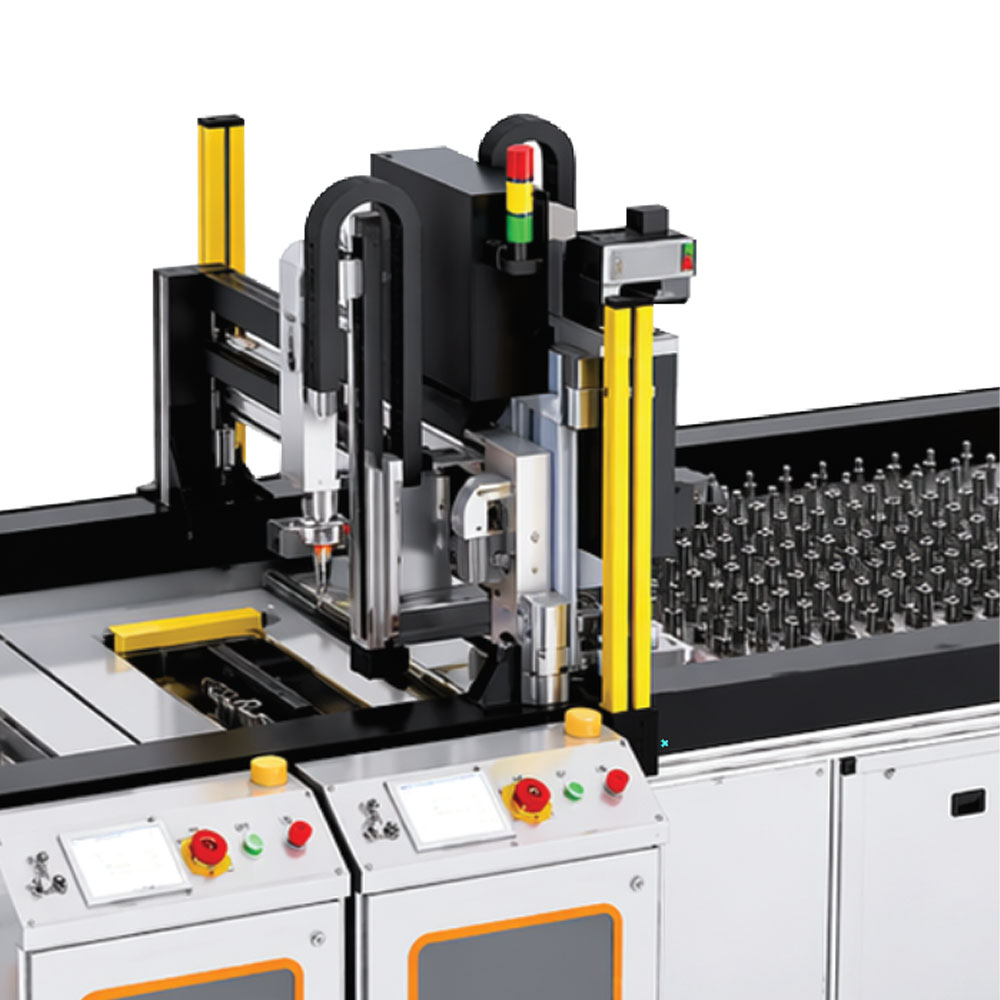

A 5-axis manipulator automatically cleans and quickly dries mother liquor bottles, minimizing residue. The system also prepares and dilutes solutions according to preset processes.
A built-in guide module maintains dispensing accuracy. 316L stainless steel needles and a multi-pipe system help prevent cross-contamination, while models support 48–192 injectors.

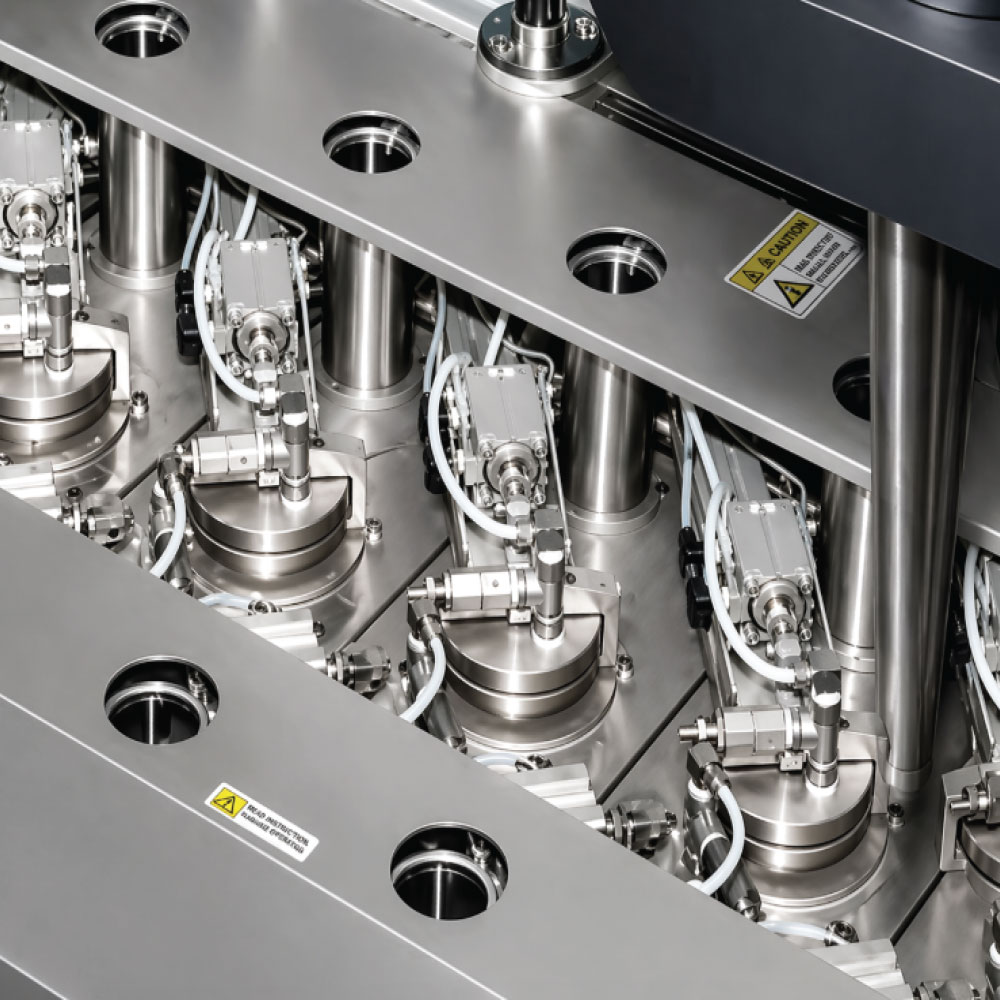

Internal and external circulation auxiliary cylinders reproduce production dyeing conditions, while patented heating and cooling technology maintains precise dyeing temperatures.

Why choose the Fully Automatic Laboratory Dispensing System

Choose the Fully Automatic Laboratory Dispensing System for 24-hour unmanned operation, high dispensing accuracy up to 0.002 g, faster processing with three independent manipulators, consistent dyeing results, automated solution preparation, and reliable temperature control. Its 316L stainless steel components and multi-pipe system also help reduce cross-contamination.
